Cobra GT30-24V - Grass Trimmer Main Diagram

Description

Cobra GT30-24V Brushcutter Parts Diagram

	Part No.	Details
1	COJ0010001270R Available to backorder	Screw	£2.52 £2.10
5	COQ0J5T91AH01 Available to backorder	Button Plate	£2.52 £2.10

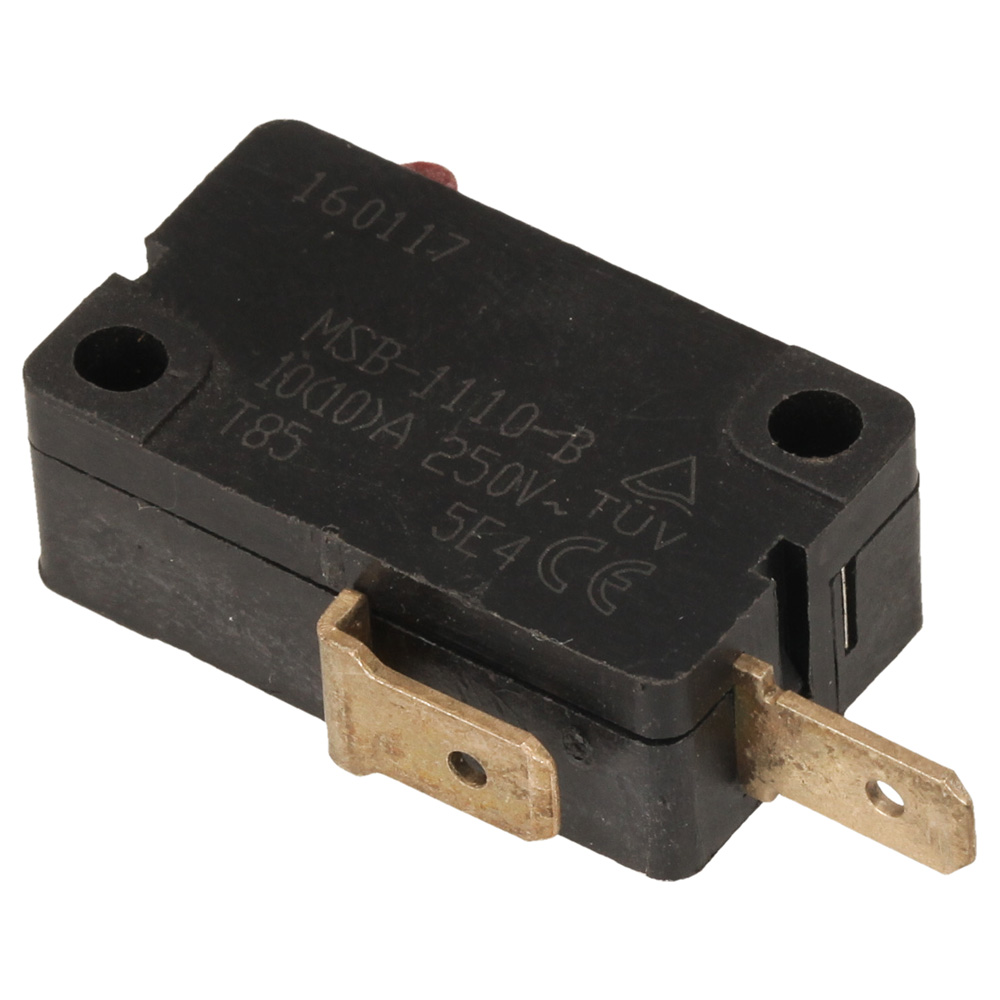

7	COD3081000015R Available to backorder	Switch	£4.85 £4.04
8	CO-24V2AHLI Available to backorder	Battery Pack	£60.48 £50.40
9	COA0G92300001R Available to backorder	Charger	£39.04 £32.53
10	COQ0K0666AZA7 Available to backorder	Left Handle Decorative Block	£4.14 £3.45
12	COD5000100004R Available to backorder	Crimple Cap	£2.52 £2.10
15	COJ2920720001R Available to backorder	Trigger Spring	£1.26 £1.05
19	COQ0D1K88AZA7 Available to backorder	Steady Handle Lift Button	£2.52 £2.10
20	COJ0D10370001R Available to backorder	Steady Handle Lift Button Spring	£2.52 £2.10
47	COQ0K0D68AH01 Available to backorder	Walking Wheel	£2.83 £2.36

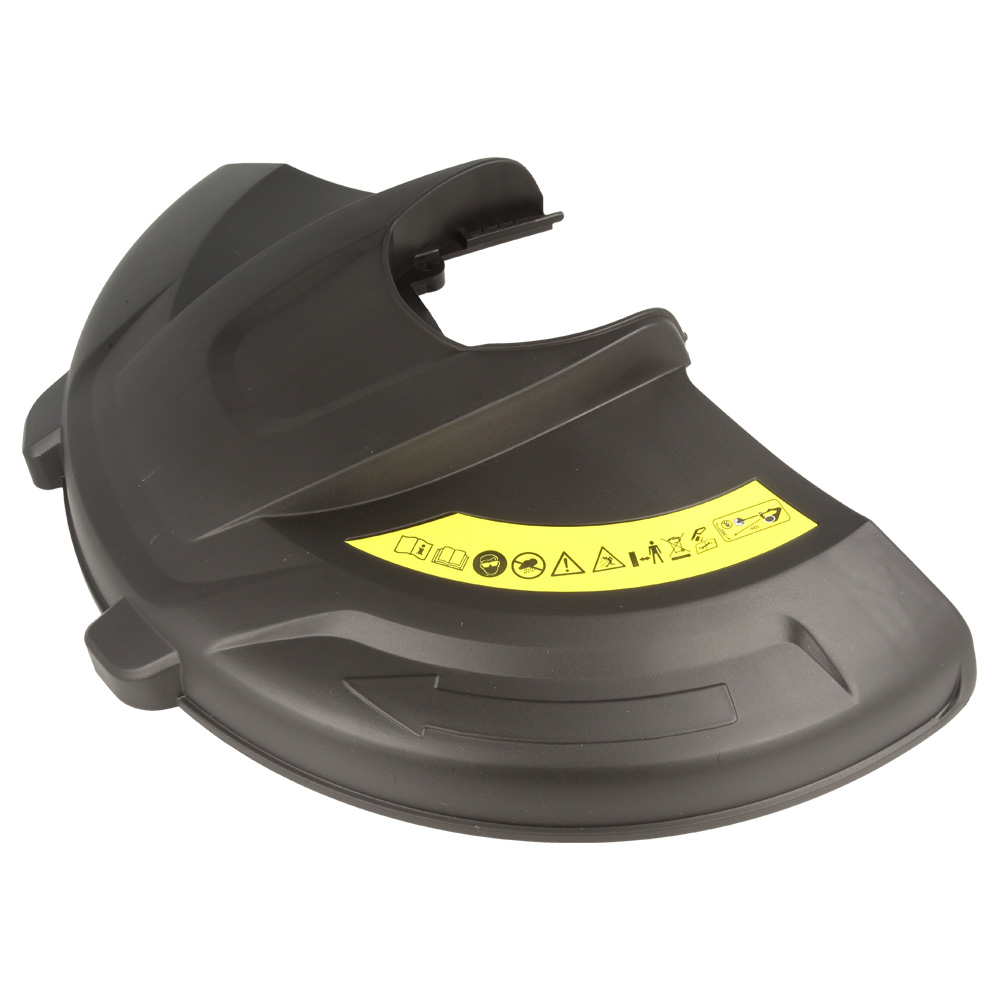

57	COA0K01720001R Available to backorder	Guard 30Cm - Contour	£7.18 £5.98
58	COJ2420000157R Available to backorder	Razor Blade	£2.52 £2.10
61	COQ0K0A130H33R Available to backorder	Cutting Head Autofeed Dc	£6.58 £5.48
69	COQ384D510H29R Available to backorder	Line Feeder	£2.52 £2.10

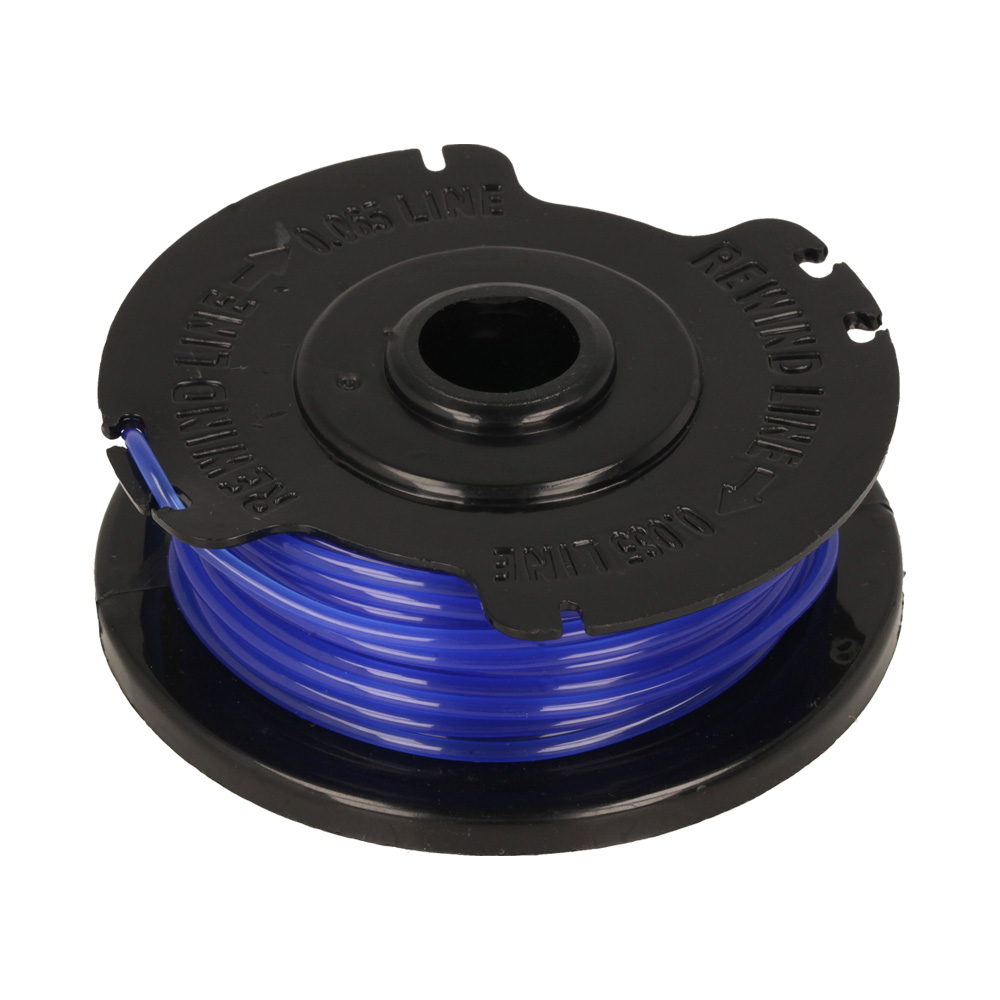

70	COA0K02450001R In stock	Spool /W Line	£5.04 £4.20

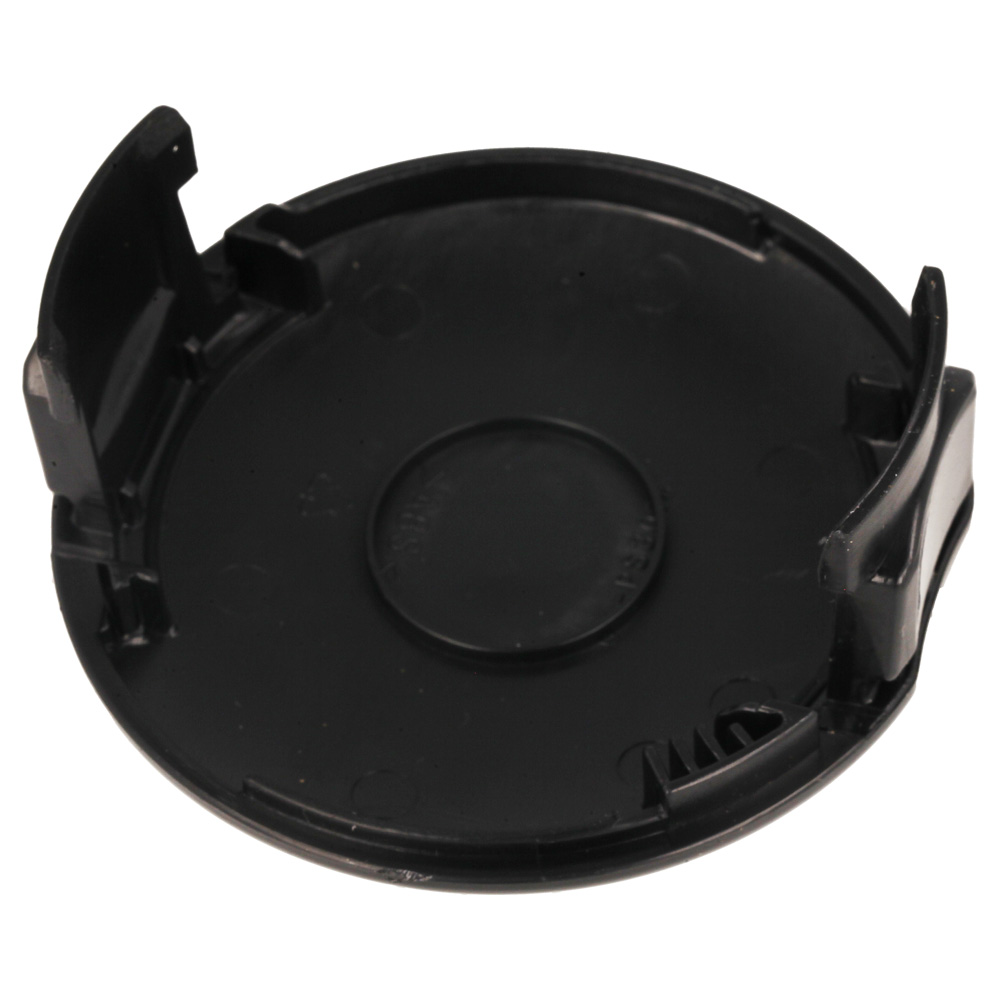

71	COQ3843650H01 In stock	Cutting Head Cap	£4.00 £3.33
