Cobra GT260C - Grass Trimmer 2017 Engine Diagram

Name: Cobra GT260C - Grass Trimmer 2017 Engine Diagram
SKU: gt260c_grass_trimmer_2017_engine-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra GT260C - Grass Trimmer 2017 Engine Diagram

Description

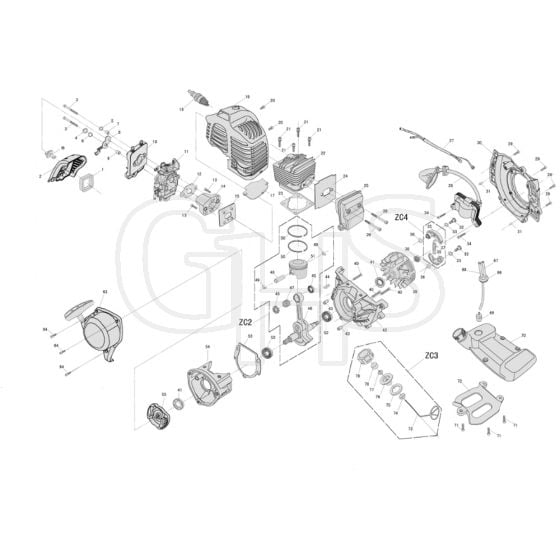

Cobra GT260C Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC260.3B-16313 In stock	Air Filter Sponge	£4.08 £3.40
2	COGC260.3B-16301 In stock	Cover-Air Fiilter	£5.86 £4.88
3	COCG260-1-18030 In stock	ZC3 Fuel Cap Assembly	£5.88 £4.90

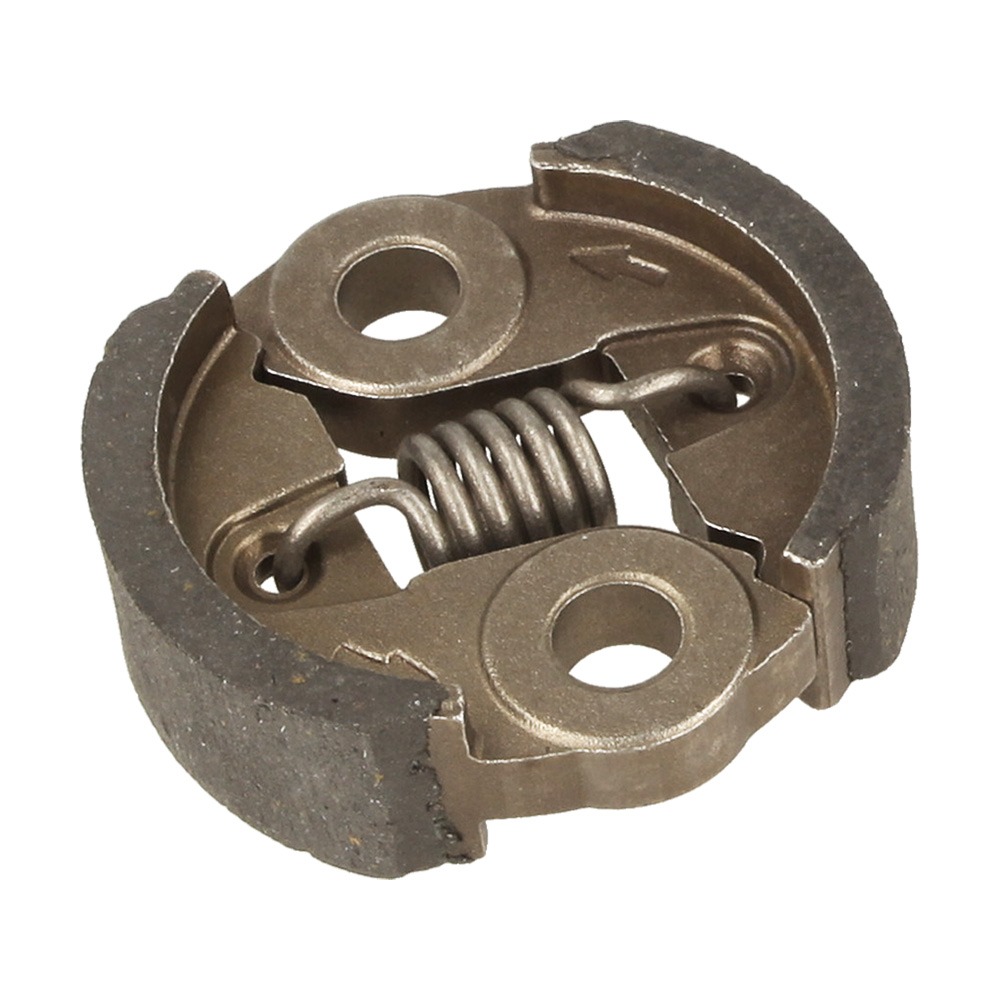

4	COCG260.1-22110 Available to backorder	ZC4 Clutch Assembly	£21.00 £17.50
5	COYD2500-93012 Available to backorder	Flat Washer	£1.26 £1.05
8	COGC260.3B-24006 Available to backorder	Choke Knob	£3.36 £2.80
10	COGC260-1-16211 Available to backorder	Air Filter Back Plate	£2.52 £2.10
11	COGC305-18200 In stock	Carburetor	£30.00 £25.00
12	COGC260.1-18204 Available to backorder	Gasket Carburetor	£2.40 £2.00
14	COGC260.3-16111 Available to backorder	Insulator- Intake Boot	£3.64 £3.03
15	COGC260.3-16001 Available to backorder	Washer-Intake	£2.40 £2.00
16	COGC260.3B-16426 Available to backorder	Air Filter Cover Knob	£2.40 £2.00
17	COGC260.3-21201 Available to backorder	Muffler Heat Shield	£3.64 £3.03
19	COGC260.3-11301 Available to backorder	Cylinder Cover	£11.20 £9.33

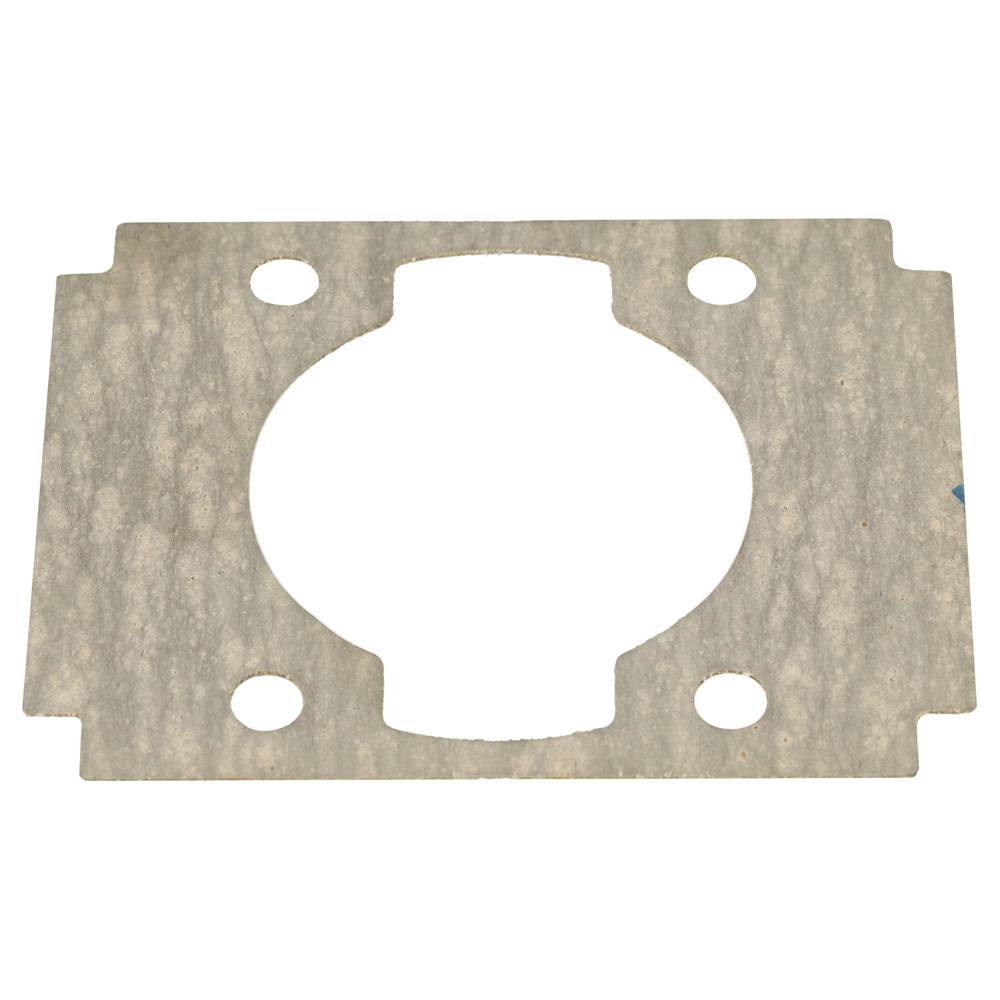

23	COGC260.1-12501 Available to backorder	Head Gasket	£7.16 £5.97
24	COGC260-1-21001 Available to backorder	Heat Plate Gasket	£2.52 £2.10
25	COGC260-21130 Available to backorder	Muffler Assembly	£18.25 £15.21
26	COYD4500-90029 Available to backorder	Screw	£1.20 £1.00
28	COGC260.3-26110 Available to backorder	Ignition Assembly	£22.66 £18.88
33	COGC305-93402 Available to backorder	Gasket	£2.52 £2.10
34	COYD3800-90024 In stock	Screw M5 20	£1.20 £1.00
36	COYD3600-93002 Available to backorder	Washer	£2.52 £2.10
38	COYD2500-92101 Available to backorder	Nut	£1.26 £1.05
39	COGC260-1-15110 Available to backorder	Flywheel Assembly	£7.37 £6.14
41	COYD3800-95012 Available to backorder	Oil Seal Fb12X22X7	£2.62 £2.18
52	COYD2500-96011 Available to backorder	Oil Seal	£2.62 £2.18
55	COGC260-25260.1 In stock	Starter Cup	£5.04 £4.20
63	COCG260-1-25000-3B In stock	Recoil Starter _ 3 Hole Fixing	£17.88 £14.90
64	COGB/T9074.4 M5X16 Available to backorder	Screw M5X16	£1.20 £1.00
66	COCG260.3-18104 Available to backorder	Support-Fuel Pipe	£4.32 £3.60
67	COCG260.3-18101.1 Available to backorder	Fuel Outlet	£2.40 £2.00
68	COCG260.3-18101.2 Available to backorder	Fuel Inlet	£2.40 £2.00
69	COCG260.3-18034 In stock	Fuel Filter	£4.68 £3.90
70	COCG260.3-18300 In stock	Fuel Tank	£11.40 £9.50
71	COYD6200-97004 Available to backorder	Combination Screw M5X20	£1.20 £1.00
72	COGC260.3-18303 Available to backorder	Fuel Tank Support 26Cc	£5.52 £4.60
80	COCG260.3-25000 Available to backorder	Recoil Starter 4 Hole Fixing	£14.99 £12.49
