Cobra FORTIS25B - Cylinder Lawn Mower Apr 2023 Transmission Assembly Diagram

Description

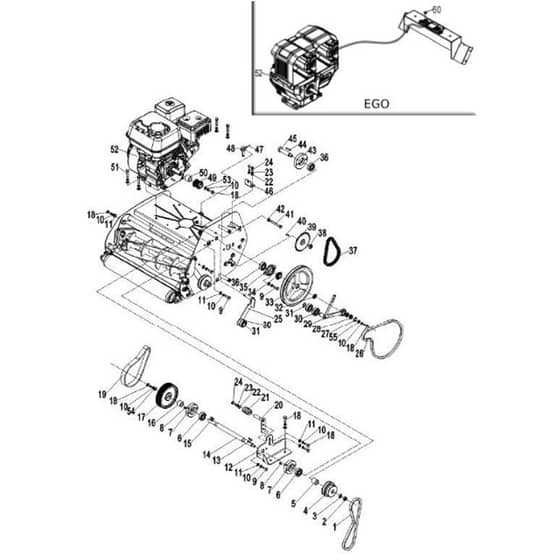

Cobra FORTIS25B Cylinder Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO1050665 Available to backorder	Belt 4Lxa665E	£43.12 £35.93
2	CO7021004 Available to backorder	Hex Lock Nut M10	£1.25 £1.04
3	CO7031009 Available to backorder	Flat Washer- A 10	£1.25 £1.04
4	CO1042022 Available to backorder	Drive Double Pulley	£33.29 £27.74
5	CO4034699 Available to backorder	Pulley Spacer	£1.58 £1.32
6	CO7060302 Available to backorder	Bearing 1203-Tn1	£9.26 £7.72
7	CO4070871 Available to backorder	Bearing Housing (With Grease Fitting)	£18.91 £15.76
8	CO7320601 Available to backorder	Pressure Filling Cup M6-Stainless Steel	£1.87 £1.56
9	CO7010821 Available to backorder	Hex Head Bolt - Full Thread M8×25	£1.25 £1.04
10	CO7040802 Available to backorder	Spring Washer 8	£1.25 £1.04
11	CO7030819 Available to backorder	Flat Washer- A 8	£1.25 £1.04
12	CO4034683-9005 Available to backorder	Shaft Fixing Plate	£26.93 £22.44
13	CO7110505 Available to backorder	Key-A 5×5×25	£1.25 £1.04
14	CO1013643 Available to backorder	Drive Shaft (25")	£52.25 £43.54
15	CO7110506 Available to backorder	Key-A 5×5×20	£1.25 £1.04
16	CO4034698 Available to backorder	Shaft Pulley Spacer	£1.43 £1.19
17	CO1042028 Available to backorder	Timing Pulley (64 Teeth)	£67.94 £56.62
18	CO7010888 Available to backorder	Hex Head Bolt - Full Thread M8×20	£1.20 £1.00
19	CO1050450 Available to backorder	Belt	£47.82 £39.85
20	CO4034684-9005 Available to backorder	Belt Tension Plate	£6.83 £5.69
21	CO7061207 Available to backorder	Deep Groove Ball Bearing 1616Zz	£2.39 £1.99
22	CO7030604 Available to backorder	Washer - A 6	£1.20 £1.00
23	CO7040602 Available to backorder	Spring Washer 6	£1.25 £1.04
24	CO7010667 Available to backorder	Hex Head Bolt - Full Thread M6×20	£1.25 £1.04
26	CO1050806 Available to backorder	Belt 4Lxa80 6 E	£47.90 £39.92
27	CO7142399 Available to backorder	Circlip A 21	£1.25 £1.04
28	CO7061209 Available to backorder	Deep Groove Ball Bearing 61801-2Rs	£4.79 £3.99
29	CO4034712-9005 Available to backorder	Self-Propelled Clutch Plate	£26.84 £22.37
30	CO7061224 Available to backorder	Deep Groove Ball Bearing 6203Z	£3.54 £2.95
31	CO7141702 Available to backorder	Circlip A 17	£1.25 £1.04
32	CO4034697 Available to backorder	Spacer	£1.82 £1.52
33	CO1042024 Available to backorder	Rear Roller Drive Pulley	£65.80 £54.83
34	CO1020751 Available to backorder	Drive Roller Sprocket 9 Teeth	£16.14 £13.45
35	CO4070911 Available to backorder	Bearing Housing	£3.78 £3.15
36	CO7061237 Available to backorder	Deep Groove Ball Bearing 6203Z-Nsk	£10.70 £8.92
37	CO1060830 Available to backorder	Self-Propelled Transmission Chain 32 Sections (084)	£8.17 £6.81
38	CO7021204 Available to backorder	Hex Lock Nut M12	£1.25 £1.04
39	CO1020752 Available to backorder	Rear Wheel Sprocket 24 Teeth	£29.75 £24.79
40	CO7110501 Available to backorder	Key-A 5×5×16	£1.25 £1.04
41	CO7010880 Available to backorder	Hex Head Bolt M8× 7 0	£1.39 £1.16
42	CO7020804 Available to backorder	Hex Nut M8	£1.20 £1.00
43	CO4070872 Available to backorder	Transition Shaft Bearing Housing	£18.78 £15.65
44	CO7110504 Available to backorder	Key-A 5×5×30	£1.25 £1.04
45	CO1013582 Available to backorder	Pulley Fixed Shaft	£14.62 £12.18
46	CO4034681-9005 Available to backorder	Bracket	£4.54 £3.78
47	CO7130505 Available to backorder	Spring Pin - 5×25	£1.25 £1.04
48	CO4034695-9005 Available to backorder	Clutch Bracket(9005)	£1.92 £1.60
49	CO1042027 Available to backorder	Timing Pulley (28 Teeth)	£29.08 £24.23
50	CO4034688 Available to backorder	Gasoline Engine Spacer	£4.79 £3.99
51	CO7010837 Available to backorder	Hex Head Bolt - Full Thread M8×35	£1.25 £1.04
52	EGPU2710RC Available to backorder	Ego Power Head Pu2710Rc	£570.00 £475.00
53	CO7080470 Available to backorder	Gasoline Engine Pressure Pad	£5.78 £4.82
54	CO7030813 Available to backorder	Washer - A 8	£1.25 £1.04
55	CO4165801 Available to backorder	Washer	£1.25 £1.04
60	CO7150153 Available to backorder	Plug	£1.25 £1.04
