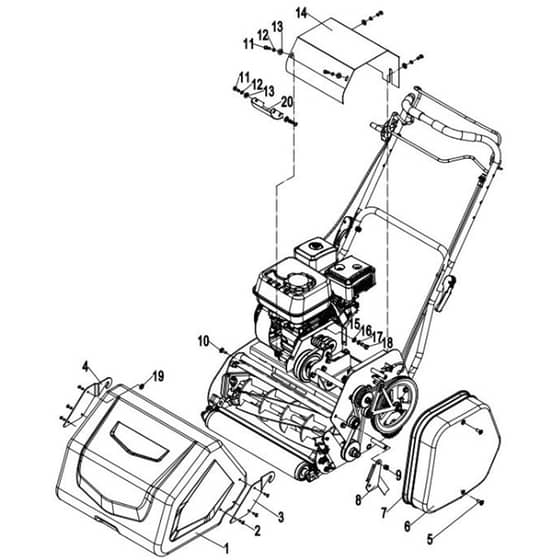

Cobra FORTIS25B - Cylinder Lawn Mower Apr 2023 Grassbox Assy Diagram

Name: Cobra FORTIS25B - Cylinder Lawn Mower Apr 2023 Grassbox Assy Diagram
SKU: fortis25b_cylinder_lawn_mower_apr_2023_grassbox_assy-group
Price: 1.03 GBP
Availability: InStock

Part No. fortis25b_cylinder_lawn_mower_apr_2023_grassbox_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra FORTIS25B - Cylinder Lawn Mower Apr 2023 Grassbox Assy Diagram

Description

Cobra FORTIS25B Cylinder Mower Parts Diagram

	Part No.	Details
1	CO3011066 Available to backorder	Grass Box (25")	£172.08 £143.40
2	CO7030413 Available to backorder	Rivets 4.8×12	£1.24 £1.03
3	CO4034937-9005 Available to backorder	Grass Box Left Connecting Plate	£17.77 £14.81
4	CO4034938-9005 Available to backorder	Grass Box Right Connecting Plate	£17.77 £14.81
5	CO7260807 Available to backorder	Screw-H M8×20	£1.24 £1.03
6	CO4034941-JH4P7033-2 Available to backorder	Guard	£20.20 £16.83
7	CO4034942 Available to backorder	Seal	£7.16 £5.97
8	CO4034694-9005 Available to backorder	Sealing Plate	£17.52 £14.60
9	CO7020803 Available to backorder	Hex Lock Nut M8	£1.24 £1.03
10	CO7180845 Available to backorder	Bolt M8×20	£1.24 £1.03
11	CO7010662 Available to backorder	Hex Head Bolt - Full Thread M6×16	£1.24 £1.03
12	CO7040602 Available to backorder	Spring Washer 6	£1.24 £1.03
13	CO7030604 In stock	Washer - A 6	£1.24 £1.03
14	CO4034832-JH4P7033-2 Available to backorder	Drive Belt Guard (25")	£47.21 £39.34
15	CO4034687-9005 Available to backorder	Guard Backplane	£28.26 £23.55
16	CO7030819 Available to backorder	Flat Washer- A 8	£1.24 £1.03
17	CO7040802 Available to backorder	Spring Washer 8	£1.24 £1.03
18	CO7010048A Available to backorder	Hex Head Bolts - Fully Threaded 5/16-24 X 3/4	£1.24 £1.03
19	CO7030421 Available to backorder	Grass Box Flat Mat	£1.24 £1.03
20	CO4016828-JH4P7033-2 Available to backorder	Sealing Plate	£16.72 £13.93
