Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Handle & Frame Assy Diagram

Part No. fortis20b_cylinder_lawn_mower_apr_2023_handle_frame_assy-group

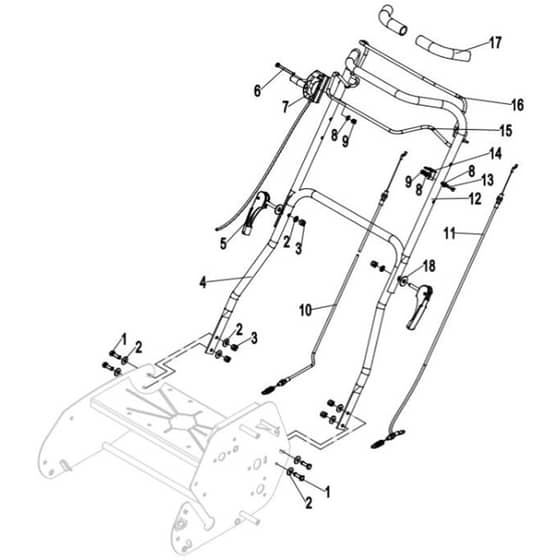

Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Handle & Frame Assy Diagram
Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Handle & Frame Assy Diagram

Description

Cobra FORTIS20B Cylinder Mower Parts Diagram

Ref. Img. Part No. Details
  1 Hex Head Bolt - Full Thread M8×20
Hex Head Bolt - Full Thread M8×20
CO7010888
Available to backorder
Hex Head Bolt - Full Thread M8×20
£1.24 £1.03

  2 Flat Washer- A 8
Flat Washer- A 8
CO7030819
Available to backorder
Flat Washer- A 8
£1.24 £1.03

  3 Hex Lock Nut M8
Hex Lock Nut M8
CO7020803
Available to backorder
Hex Lock Nut M8
£1.24 £1.03

  4 Lower Handle (20
Lower Handle (20
CO4034693-9005
Available to backorder
Lower Handle (20")
£53.86 £44.88

  5 Locking Handle Assembly
Locking Handle Assembly
CO4034708
Available to backorder
Locking Handle Assembly
£8.83 £7.36

  6 Hex Head Bolt M6×55
Hex Head Bolt M6×55
CO7010655
Available to backorder
Hex Head Bolt M6×55
£1.24 £1.03

  7 Throttle Box Assembly
Throttle Box Assembly
CO5071051
Available to backorder
Throttle Box Assembly
£15.91 £13.26

  8 Flat Washer- A 6
Flat Washer- A 6
CO7030601
Available to backorder
Flat Washer- A 6
£1.24 £1.03

  9 Hex Lock Nut M6
Hex Lock Nut M6
CO7020602
Available to backorder
Hex Lock Nut M6
£1.24 £1.03

  10 Clutch Cable
Clutch Cable
CO5070101
Available to backorder
Clutch Cable
£14.38 £11.98

  11 Self-Propelled Clutch Cable
Self-Propelled Clutch Cable
CO5070102
Available to backorder
Self-Propelled Clutch Cable
£14.51 £12.09

  12 Upper Handle
Upper Handle
CO4034692-9005
Available to backorder
Upper Handle
£22.92 £19.10

  13 Hex Head Bolt - Full Thread M6×35
Hex Head Bolt - Full Thread M6×35
CO7010648
Available to backorder
Hex Head Bolt - Full Thread M6×35
£1.24 £1.03

  14 Brake Bracket
Brake Bracket
CO4220040-9005
Available to backorder
Brake Bracket
£5.92 £4.93

  15 Cylinder Clutch Handle
Cylinder Clutch Handle
CO4034705-9005
Available to backorder
Cylinder Clutch Handle
£41.42 £34.52

  16 Self-Propelled Clutch
Self-Propelled Clutch
CO4016831-9005
Available to backorder
Self-Propelled Clutch
£46.08 £38.40

  17 Grip
Grip
CO4020540
Available to backorder
Grip
£3.06 £2.55

  18 Washer - A 8
Washer - A 8
CO7030813
Available to backorder
Washer - A 8
£1.24 £1.03


Description

Cobra FORTIS20B Cylinder Mower Parts Diagram
