Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Drive Roller Assy Diagram

Name: Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Drive Roller Assy Diagram
SKU: fortis20b_cylinder_lawn_mower_apr_2023_drive_roller_assy-group
Price: 1.03 GBP
Availability: InStock

Part No. fortis20b_cylinder_lawn_mower_apr_2023_drive_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra FORTIS20B - Cylinder Lawn Mower Apr 2023 Drive Roller Assy Diagram

Description

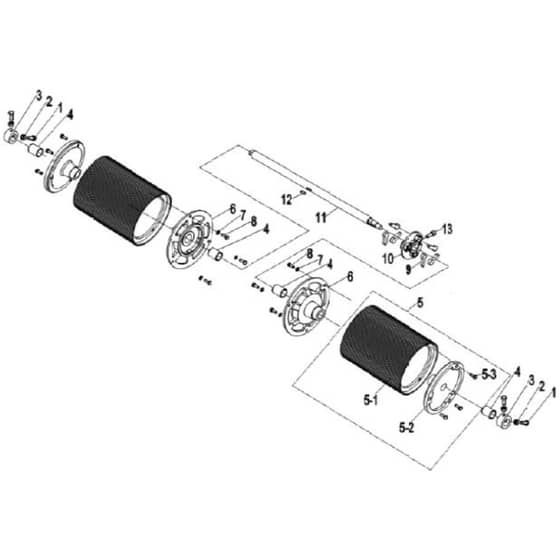

Cobra FORTIS20B Cylinder Mower Parts Diagram

	Part No.	Details
1	CO7010888 Available to backorder	Hex Head Bolt - Full Thread M8×20	£1.24 £1.03
2	CO7020804 Available to backorder	Hex Nut M8	£1.24 £1.03
3	CO7084270 Available to backorder	Rear Drive Wheel Fixing Sleeve	£7.16 £5.97
4	CO7084310 Available to backorder	Rear Drive Wheel Copper Sleeve	£4.92 £4.10
5	CO8011625 Available to backorder	Rear Drive Roller Assembly (20")	£299.52 £249.60
6	CO4069580-JH4P7033-2 Available to backorder	Rear Drive Roller End Cover	£79.92 £66.60
7	CO7040604 Available to backorder	Lock Washer 6	£1.24 £1.03
8	CO7010662 Available to backorder	Hex Head Bolt - Full Thread M6×16	£1.24 £1.03
9	CO4021450 In stock	Differential Pin	£1.68 £1.40
10	CO7101130 In stock	Differential	£22.68 £18.90
11	CO1013583 Available to backorder	Rear Drive Shaft 63 3	£70.20 £58.50
12	CO7110501 Available to backorder	Key-A 5×5×16	£1.24 £1.03
13	CO7240883 Available to backorder	Hexagon Socket Head Screw M8×20-Black	£1.24 £1.03
45662	CO8011620-JH4P7033-2 Available to backorder	Rear Drive Roller (20")	£215.88 £179.90
45693	CO4069760-JH4P7033-2 Available to backorder	Rear Drive Roller End Cover	£39.72 £33.10
45721	CO7240607 Available to backorder	Hexagon Socket Head Screw M6×20	£1.24 £1.03
