Cobra FORTIS17B - Cylinder Lawn Mower Apr 2023 Front & Rear Roller Assy Diagram

Name: Cobra FORTIS17B - Cylinder Lawn Mower Apr 2023 Front & Rear Roller Assy Diagram
SKU: fortis17b_cylinder_lawn_mower_apr_2023_front_rear_roller_assy-gr
Price: 1.03 GBP
Availability: InStock

Part No. fortis17b_cylinder_lawn_mower_apr_2023_front_rear_roller_assy-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra FORTIS17B - Cylinder Lawn Mower Apr 2023 Front & Rear Roller Assy Diagram

Description

Cobra FORTIS17B Cylinder Mower Parts Diagram

	Part No.	Details
1	CO8011596 Available to backorder	Front Roller Assembly (17")	£171.12 £142.60
2	CO7021004 Available to backorder	Hex Lock Nut M10	£1.24 £1.03
3	CO4211260 Available to backorder	Grass Box Support Rubber Sleeve	£1.68 £1.40
4	CO7010888 Available to backorder	Hex Head Bolt - Full Thread M8×20	£1.24 £1.03
5	CO7040602 Available to backorder	Spring Washer 6	£1.24 £1.03
6	CO7010673 Available to backorder	Hex Head Bolt - Full Thread M6×12	£1.24 £1.03
7	CO7030819 Available to backorder	Flat Washer - A 8	£1.24 £1.03
8	CO7020803 Available to backorder	Hex Lock Nut M8	£1.24 £1.03

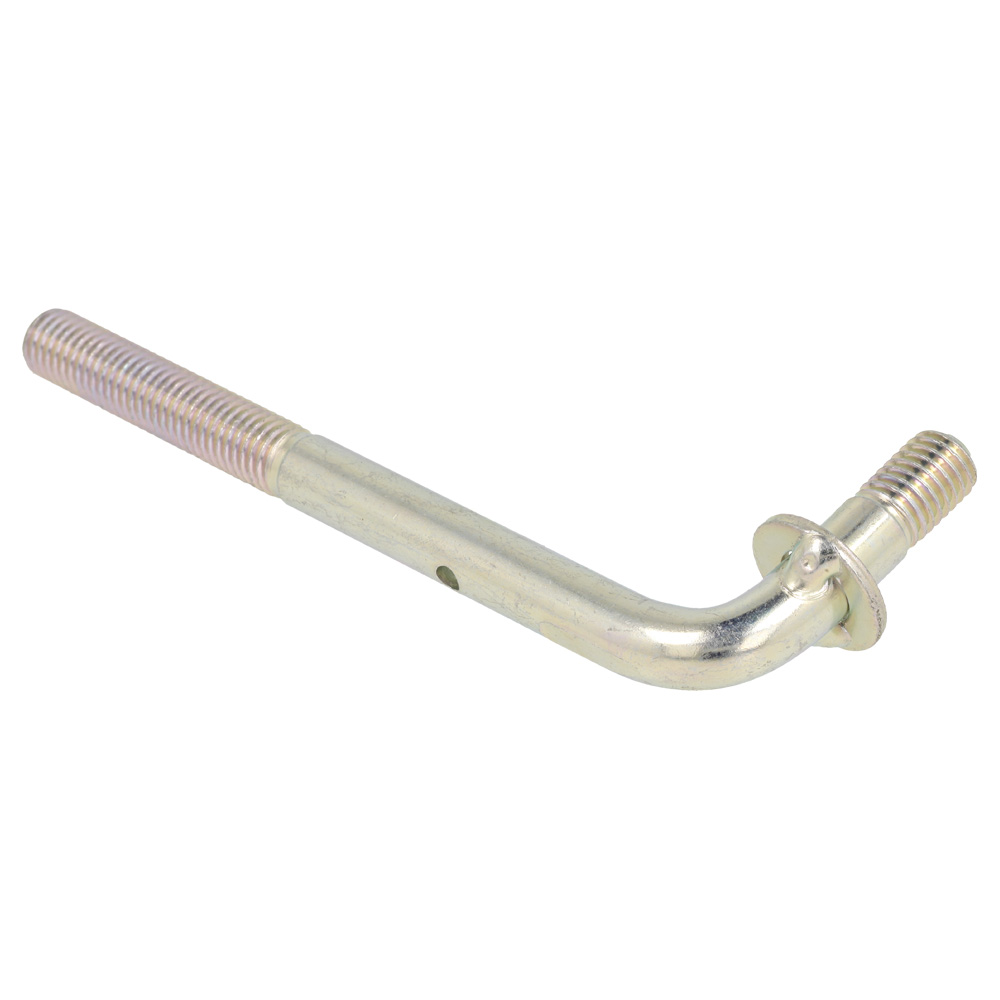

9	CO4016821 Available to backorder	Stubble Handle Connecting Rod Welding	£12.37 £10.31

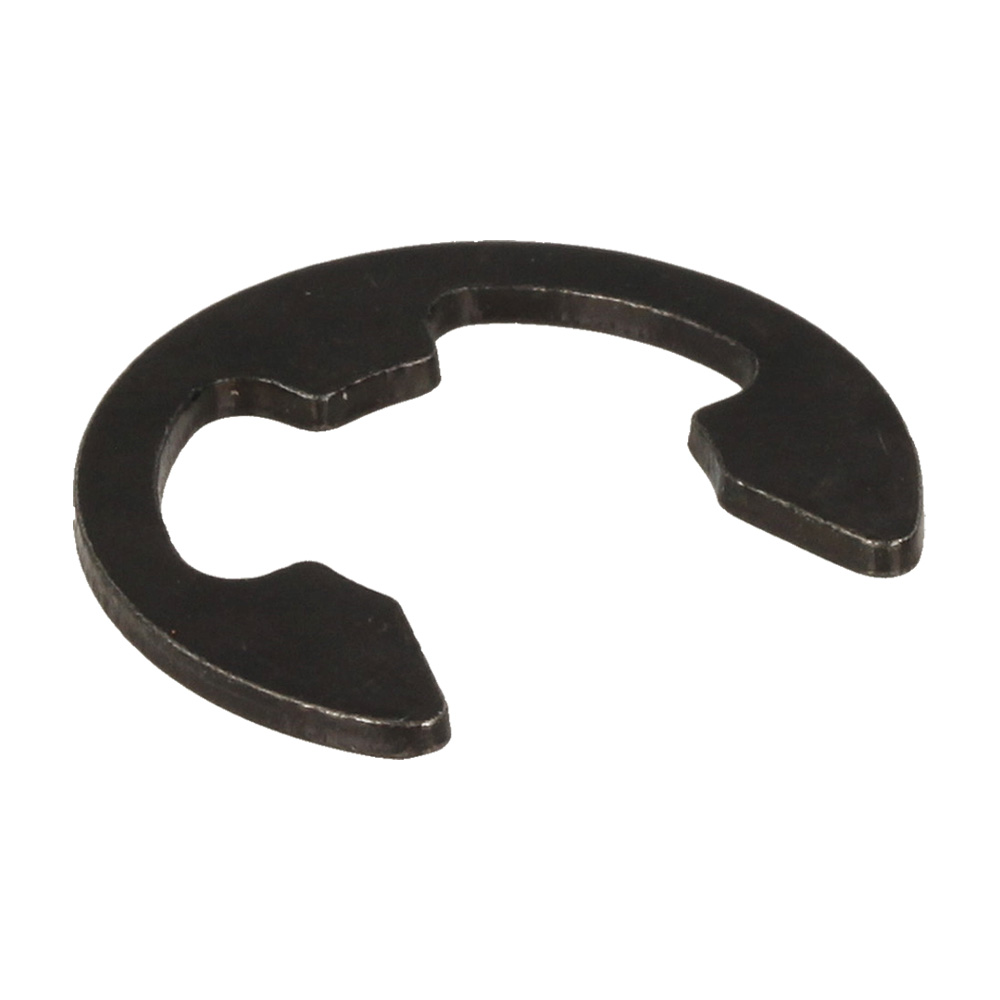

10	CO7141203 In stock	Circlip 12	£1.28 £1.07

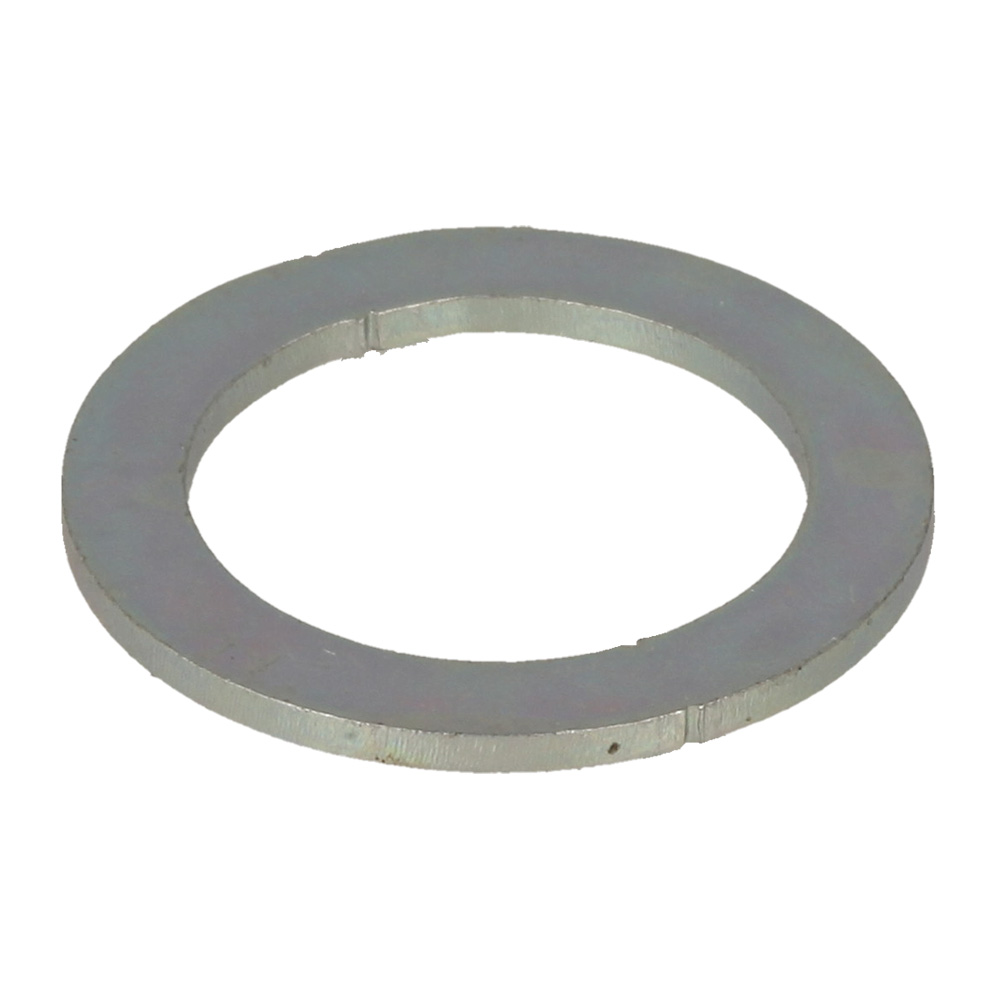

11	CO4163420 In stock	Gasket	£1.28 £1.07

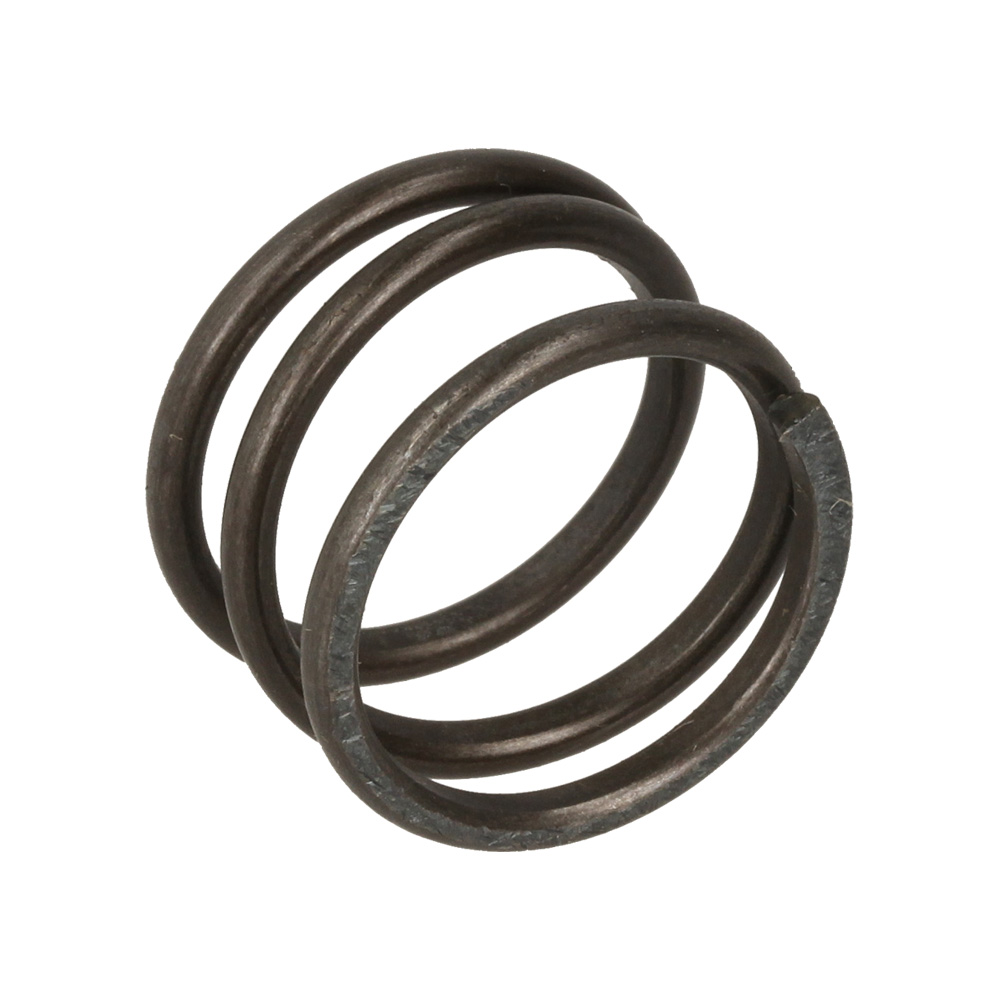

12	CO7054040 In stock	Compression Spring	£1.28 £1.07
13	CO4034691-JH4P7033-2 Available to backorder	Frame(17")	£247.92 £206.60

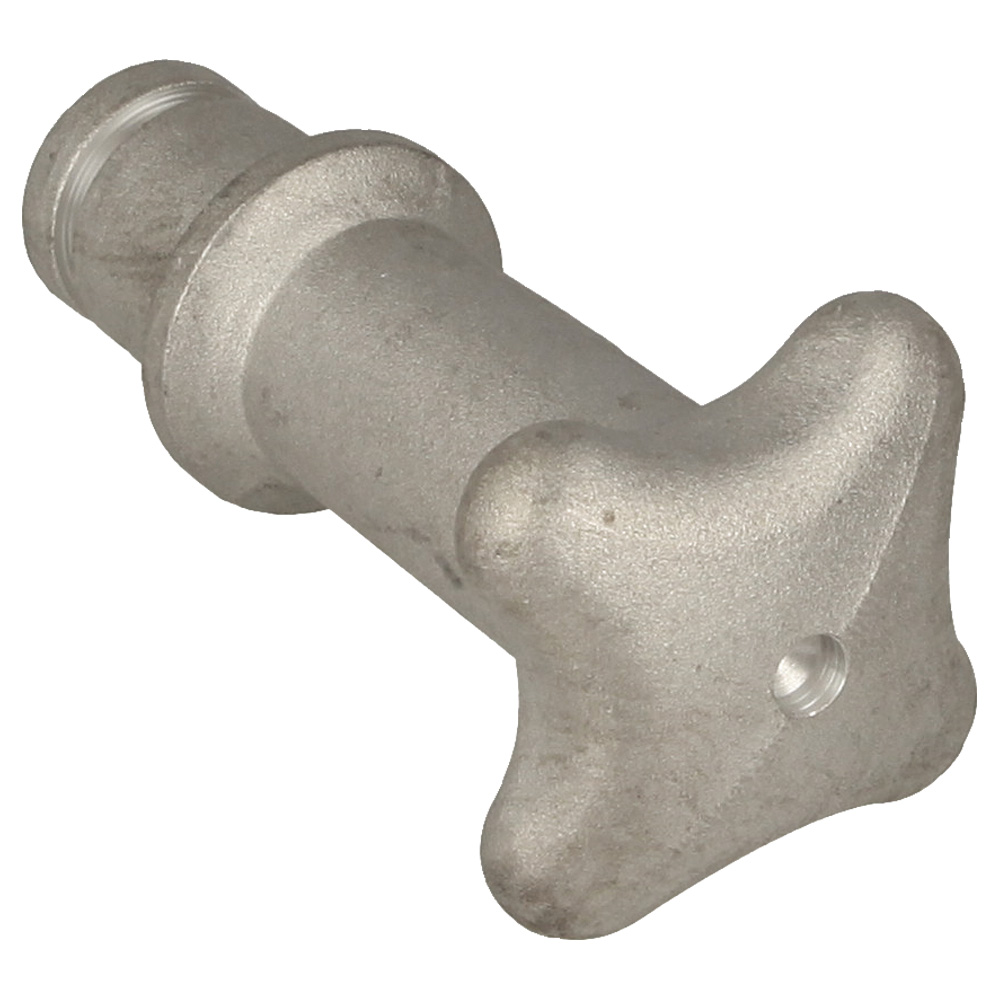

14	CO4016811 In stock	Stubble Handle	£10.63 £8.86
15	CO7061237 Available to backorder	Deep Groove Ball Bearing 6203Z-Nsk	£10.69 £8.91
16	CO4070780 Available to backorder	Rear Drive Roller Bearing Housing	£5.29 £4.41
17	CO8011815 Available to backorder	Rear Drive Roller Assembly (17")	£499.92 £416.60
18	CO4170171 Available to backorder	Scraper (17")	£7.16 £5.97
19	CO7030601 Available to backorder	Flat Washer - A 6	£1.24 £1.03
20	CO7020604 Available to backorder	Hex Nut M6	£1.24 £1.03
21	CO4034706 Available to backorder	Rubber Gasket	£1.68 £1.40
22	CO7010837 Available to backorder	Hex Head Bolt - Full Thread M8×35	£1.24 £1.03
23	CO7130401 Available to backorder	Elastic Parallel Pin - 4×20	£1.24 £1.03
24	CO7030604 In stock	Washer - A 6	£1.24 £1.03
