Cobra FORTIS14L - Cylinder Lawn Mower Apr 2023 Drive Roller Assy Diagram

Description

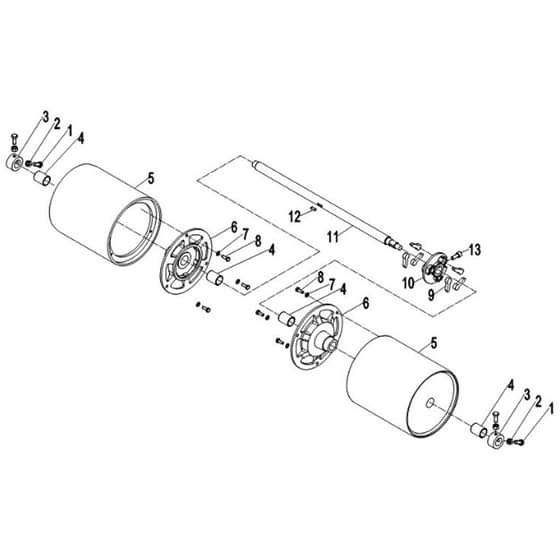

Cobra FORTIS14L Cylinder Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO7010888 Available to backorder	Hex Head Bolt - Full Thread M8×20	£1.20 £1.00
2	CO7020804 Available to backorder	Hex Nut M8	£1.20 £1.00
3	CO7084270 Available to backorder	Rear Drive Roller Fixing Sleeve	£6.96 £5.80
4	CO7084310 Available to backorder	Rear Drive Roller Copper Sleeve	£4.92 £4.10
5	CO8011750 Available to backorder	Rear Drive Roller(14")	£117.53 £97.94
6	CO4069580 Available to backorder	Rear Drive Roller End Cover	£98.36 £81.97
7	CO7040604 Available to backorder	Lock Washer 6	£1.25 £1.04
8	CO7010662 Available to backorder	Hex Head Bolt - Full Thread M6×16	£1.25 £1.04
9	CO4021450 Available to backorder	Differential Pin	£1.62 £1.35
10	CO7101130 Available to backorder	Differential	£21.92 £18.27
11	CO1013631 Available to backorder	Rear Drive Shaft 473	£43.88 £36.57
12	CO7110501 Available to backorder	Key-A 5×5×16	£1.25 £1.04
13	CO7240883 Available to backorder	Hexagon Socket Screw M8×20-Black	£1.25 £1.04
