Cobra FORTIS14L - Cylinder Lawn Mower Apr 2023 Cylinder Assy Diagram

Description

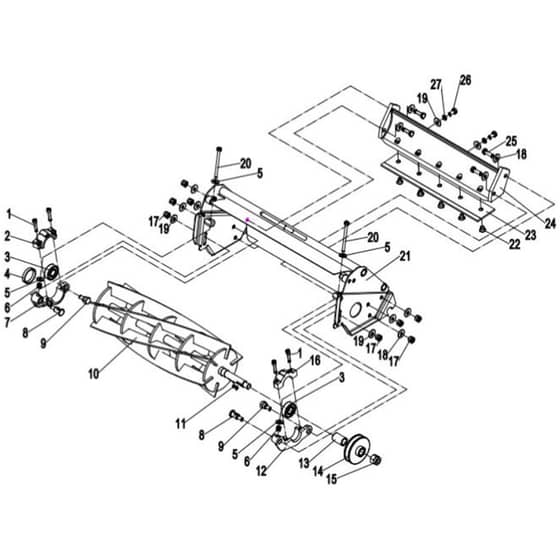

Cobra FORTIS14L Cylinder Mower Parts Diagram

	Part No.	Details
1	CO7240622 Available to backorder	Hexagon Socket Head Screw M6×30	£1.24 £1.03
2	CO4070810 Available to backorder	Right Bearing Housing (Upper)	£6.06 £5.05
3	CO7061237 Available to backorder	Deep Groove Ball Bearing 6203Z-Nsk	£10.69 £8.91
4	CO4163490 Available to backorder	Spacer	£5.54 £4.62
5	CO7030604 In stock	Washer - A 6	£1.24 £1.03
6	CO7020615 In stock	Hex Lock Nut M6-Lh	£1.28 £1.07
7	CO4070820 Available to backorder	Right Bearing Housing (Lower)	£13.69 £11.41
8	CO1070290 Available to backorder	Bolt (With Hole)	£5.59 £4.66
9	CO1070280 Available to backorder	Bolt	£4.01 £3.34
10	CO3011071 Available to backorder	Cutting Cylinder 480 (6 Blades)	£198.60 £165.50
11	CO7110501 Available to backorder	Key-A 5×5×16	£1.24 £1.03
12	CO4070800 Available to backorder	Left Bearing Housing (Lower)	£13.69 £11.41
13	CO4034702 Available to backorder	Spacer	£4.63 £3.86
14	CO1042023 Available to backorder	Drive Pulley	£25.45 £21.21
15	CO7021407 Available to backorder	Hex Lock Nut M14	£1.24 £1.03
16	CO4070790 Available to backorder	Left Bearing Housing(Upper)	£6.06 £5.05
17	CO7020803 Available to backorder	Hex Lock Nut M8	£1.24 £1.03
18	CO7030819 Available to backorder	Flat Washes - A 8	£1.24 £1.03
19	CO7030813 Available to backorder	Washer - A 8	£1.24 £1.03
20	CO7290612 In stock	Screw M6×80-L	£5.26 £4.38
21	CO4034792A-9005 Available to backorder	Bracket (14")	£148.56 £123.80
22	CO7260813 In stock	Screw-M8×12-A2-70	£1.81 £1.51
23	CO3011080 Available to backorder	Bed Knife (1 4")	£81.36 £67.80
24	CO4034793-9005 Available to backorder	Bed Knife Holder (14")	£92.40 £77.00
25	CO7010821 Available to backorder	Hex Head Bolt - Full Thread M8×2 5	£1.24 £1.03
26	CO7240809 Available to backorder	Hexagon Socket Head Screw M8×16	£1.24 £1.03
27	CO7040802 Available to backorder	Spring Washer 8	£1.24 £1.03
