Cobra DG600V - Engine Euro V Main Diagram

Description

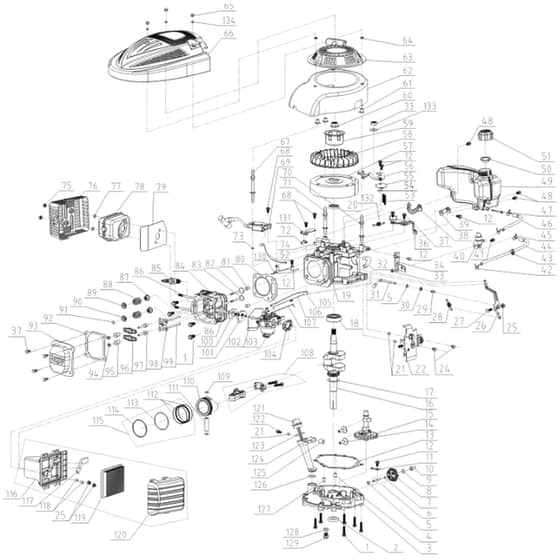

Cobra DG600V Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	CO60400114401 Available to backorder	Dg600 Eu-V Engine	£198.60 £165.50
1	CO26800610001 Available to backorder	Screw	£2.52 £2.10
2	CO25100129601 Available to backorder	Oil Seal	£7.64 £6.37
3	CO2031400064A Available to backorder	Skeleton Tank Cover	£39.20 £32.67
4	CO26809001601 Available to backorder	Position Pin	£2.52 £2.10
5	CO26800702101 Available to backorder	Washer	£2.52 £2.10
6	CO26900104402 Available to backorder	Speed Adjust Gear Shaft	£2.52 £2.10
7	CO26800900701 Available to backorder	Stop Ring	£2.52 £2.10
8	CO23057001301 Available to backorder	Speed Adjust Gear Assy	£3.84 £3.20
9	CO26800703201 Available to backorder	Flat Washer 6	£2.52 £2.10
10	CO25100121601 Available to backorder	Slide Sheath	£2.52 £2.10
11	CO26300205101 Available to backorder	Pressing Plate	£2.52 £2.10
12	CO26800604101 Available to backorder	Screw	£2.52 £2.10

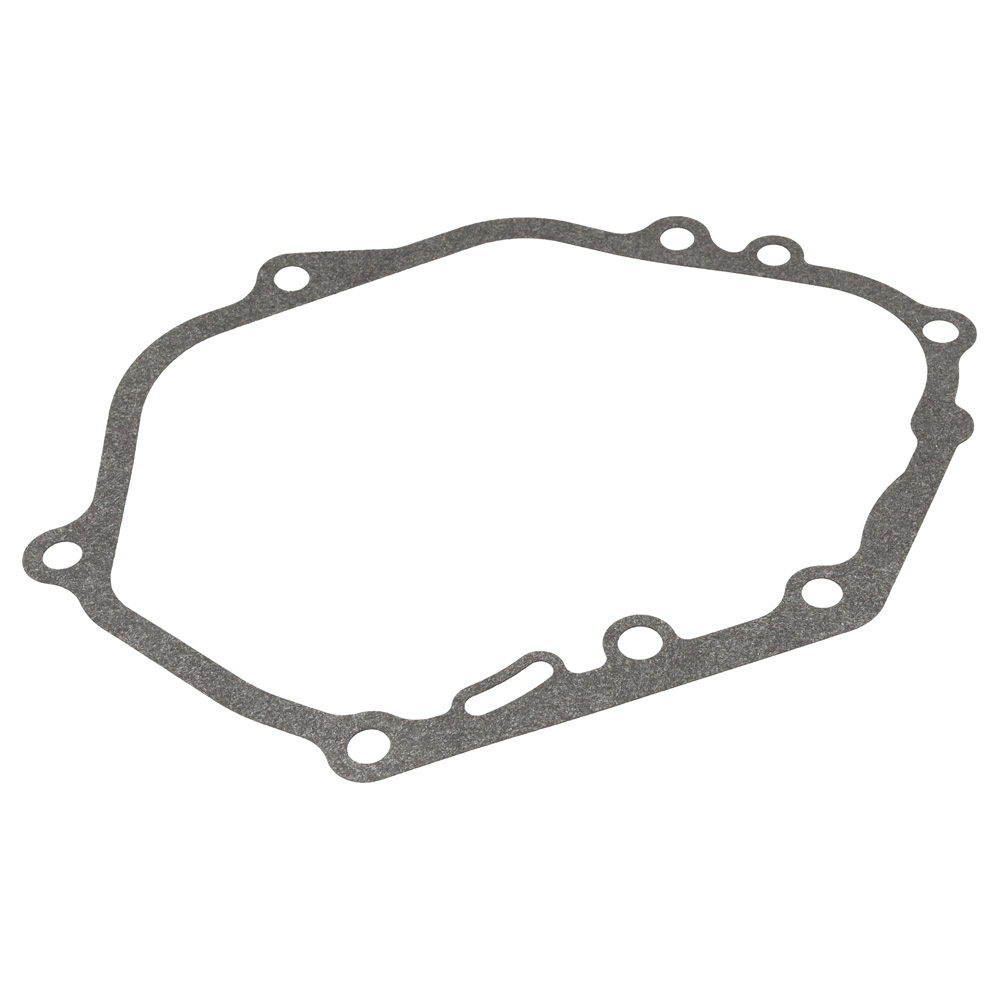

13	CO2032600002A Available to backorder	Seal Wahser	£16.69 £13.91
14	CO26300213301 Available to backorder	Pole	£2.52 £2.10
15	CO2032100005A Available to backorder	Raised Wheel Axle Assy	£15.98 £13.32
16	CO23053001901 Available to backorder	Bent Axle Assy	£36.60 £30.50
17	CO26800703102 Available to backorder	Washer	£2.52 £2.10
18	CO26800400202 Available to backorder	Rolling Bearing	£10.08 £8.40
20	CO25100123602 Available to backorder	Oil Seal	£6.05 £5.04
21	CO26900103201 Available to backorder	Sleeve 1	£2.52 £2.10
22	CO23057001502 Available to backorder	Speed Adjust Assy	£6.18 £5.15
24	CO26800608701 Available to backorder	Screw	£2.52 £2.10
25	CO26800501901 Available to backorder	Nut	£1.44 £1.20
26	CO2031300060C Available to backorder	Speed Rocker Arm	£2.52 £2.10
27	CO26800301101 Available to backorder	Speed Nut	£2.52 £2.10
28	CO26801106801 Available to backorder	Spring	£2.40 £2.00
29	CO26900103401 Available to backorder	Cotter Pin	£2.52 £2.10
30	CO25100123501 Available to backorder	Oil Seal	£2.52 £2.10
31	CO26300122201 Available to backorder	Speed Swinging Rod	£2.52 £2.10
32	CO25100130702 Available to backorder	Air Tube	£2.75 £2.29
33	CO26800500501 Available to backorder	Nut	£2.40 £2.00
34	CO26300211901 Available to backorder	Switch Bracket	£2.52 £2.10
36	CO2035200006A Available to backorder	Tank Bracket	£3.89 £3.24
37	CO26800608001 Available to backorder	Screw	£2.52 £2.10
38	CO26300212101 Available to backorder	Right Tank Bracket	£2.52 £2.10
39	CO26300212201 Available to backorder	Left Tank Bracket	£2.52 £2.10
40	CO23054000902 Available to backorder	Switch Assy	£3.44 £2.87
41	CO26800201801 Available to backorder	Screw	£2.52 £2.10
42	CO26900108001 Available to backorder	Tubing Clamps B	£2.40 £2.00
43	CO26300206401 Available to backorder	Tubing Clamps	£2.52 £2.10
44	CO25100130101 Available to backorder	Oil Intake 1	£6.28 £5.23
45	CO26900107901 Available to backorder	Tubing Clamps A	£2.52 £2.10
46	CO25100130401 Available to backorder	Oil Intake 2	£6.28 £5.23
47	CO25100131401 In stock	Fuel Filter	£2.40 £2.00
48	CO26800608301 Available to backorder	Screw	£2.52 £2.10

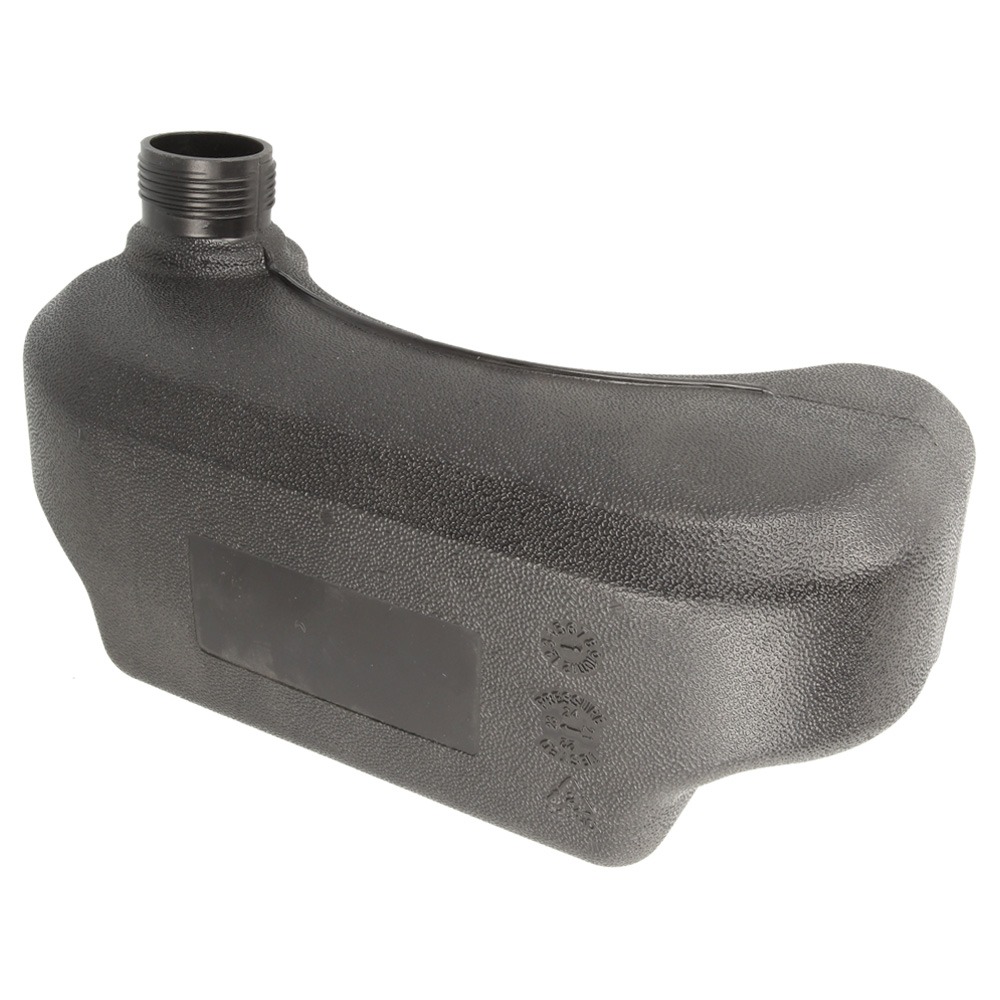

49	CO25800100303 Available to backorder	Oil Tank	£19.20 £16.00
50	CO25100124501 In stock	Seal Washer Of Oil Tank Cover	£2.40 £2.00
51	CO25100128106 Available to backorder	Oil Tank Cover	£4.39 £3.66
52	CO2038900009A Available to backorder	Flameout Wire Assy	£2.52 £2.10
53	CO2039900009A Available to backorder	Strainer	£2.52 £2.10
54	CO25100129701 Available to backorder	Respirator Valve Plate	£2.52 £2.10
55	CO2031200033A Available to backorder	Seal Of Respirator	£2.52 £2.10
56	CO2039200002A Available to backorder	Rocker Arm	£14.08 £11.73
57	CO23061000401 Available to backorder	Fly Wheel	£38.77 £32.31
58	CO2032100003A Available to backorder	Fan	£15.98 £13.32

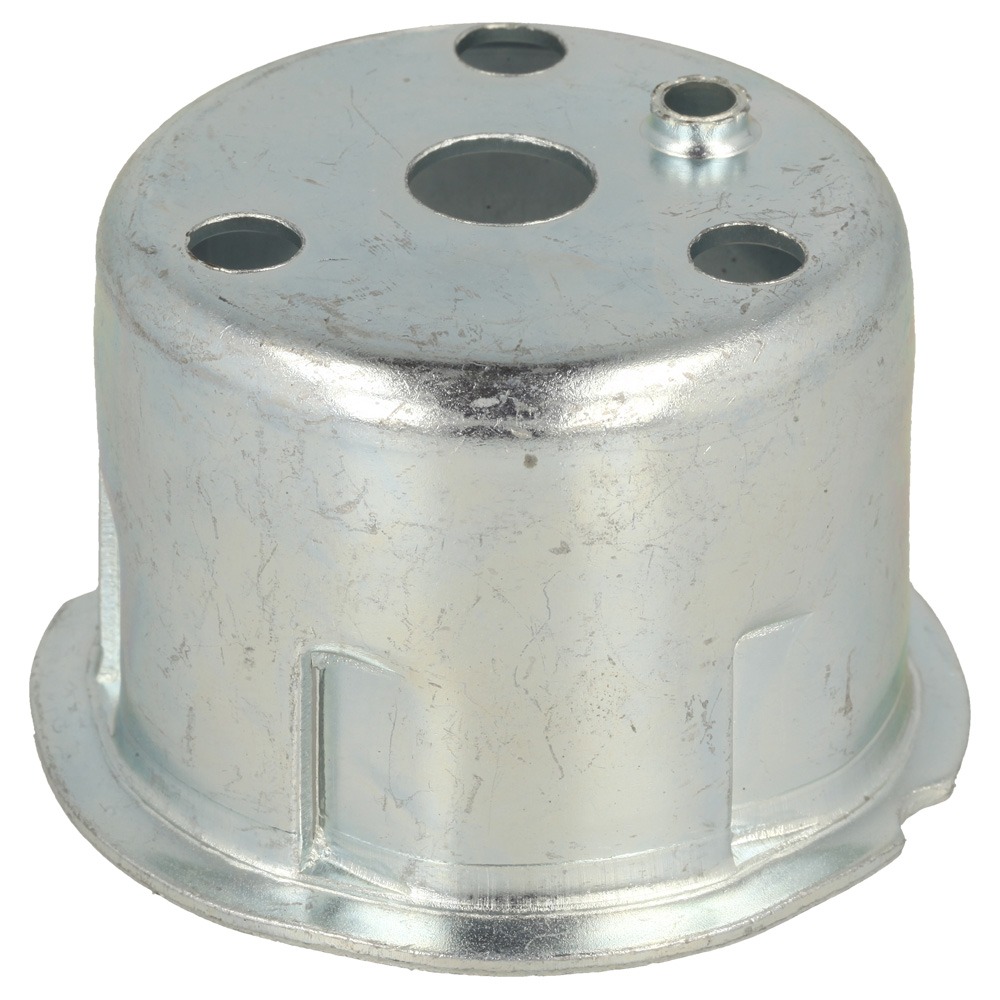

59	CO26900106801 Available to backorder	Clutch Drum	£4.82 £4.02
60	CO26800502701 Available to backorder	Nut	£2.52 £2.10
61	CO2034300002A Available to backorder	Sheath Of Air Guider	£2.52 £2.10
62	CO20391000070001A Available to backorder	Air Guider	£9.24 £7.70
63	CO23052002801 In stock	Initiator	£23.40 £19.50
64	CO26800502201 Available to backorder	Nut	£2.52 £2.10
65	CO26800501603 Available to backorder	Nut	£1.20 £1.00
66	CO23100101401 Available to backorder	Cover	£18.37 £15.31
67	CO2031300103A Available to backorder	Twin Head Screw A	£2.52 £2.10
68	CO26800607801 Available to backorder	Screw	£2.52 £2.10

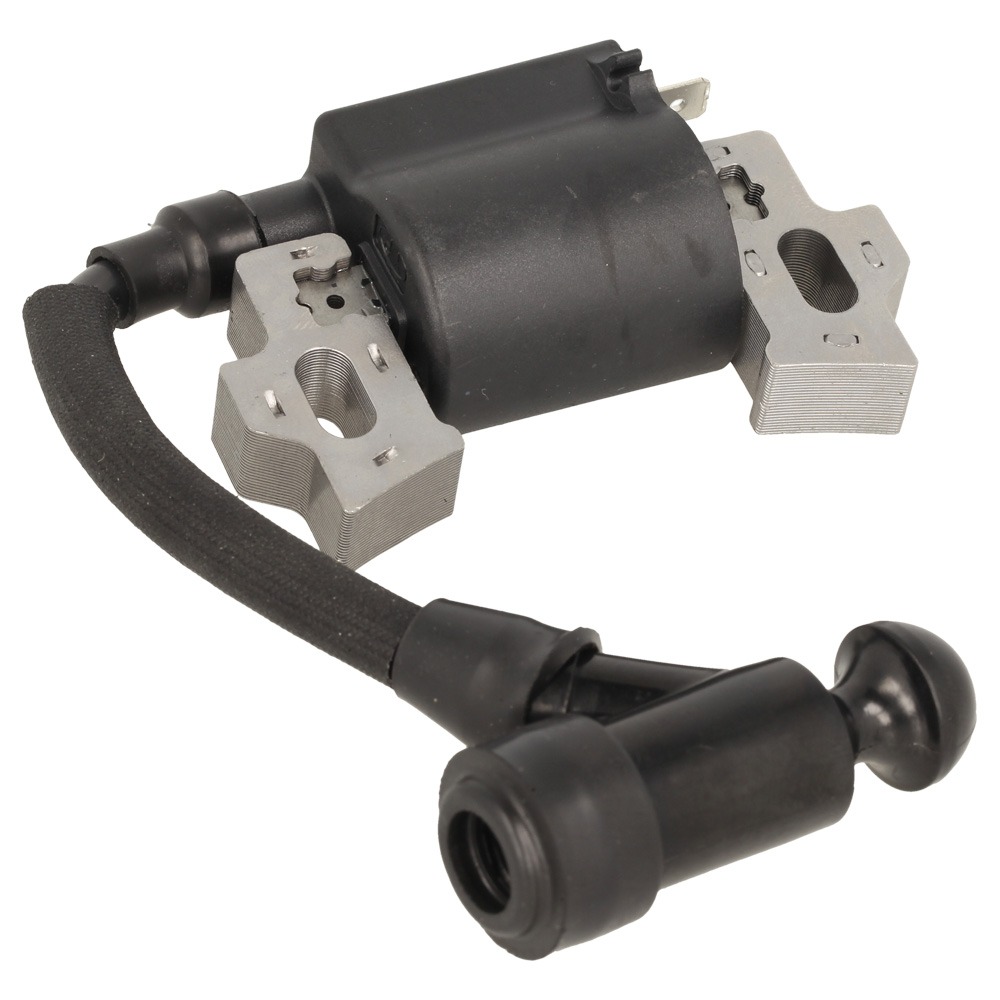

69	CO23062000801 In stock	Igniter Assembly	£24.12 £20.10
70	CO26800617701 Available to backorder	Twin Head Screw B	£2.52 £2.10
71	CO2031300104A Available to backorder	Twin Head Screw C	£2.52 £2.10
72	CO23058000202 Available to backorder	Flameout Switch Assy	£5.65 £4.71
73	CO2038200001A Available to backorder	Washer	£2.52 £2.10
74	CO26800702301 Available to backorder	Washer Sheath	£2.52 £2.10
75	CO26800502401 Available to backorder	Nut	£1.26 £1.05
76	CO23060000501 Available to backorder	Muffler Cover Assembly	£7.84 £6.53
77	CO25100130601 Available to backorder	Muffler- Insulation Mat	£2.52 £2.10
78	CO23060000401 Available to backorder	Muffler Assembly	£22.18 £18.48
79	CO2037200012A Available to backorder	Seal Washer	£3.19 £2.66
80	CO25600100701 Available to backorder	Seal Washer	£7.78 £6.48
81	CO26809001501 Available to backorder	Position Pin	£2.52 £2.10
82	CO26300213102 Available to backorder	Air Intake Door	£5.93 £4.94
83	CO26300213202 Available to backorder	Air Outtake Door	£8.29 £6.91
84	CO2031400077A Available to backorder	Cylinder Head Ass'Y	£33.20 £27.67
85	2688 In stock	Sparking Plug	Was £1.44 £1.20 Special Price £1.07 £0.89

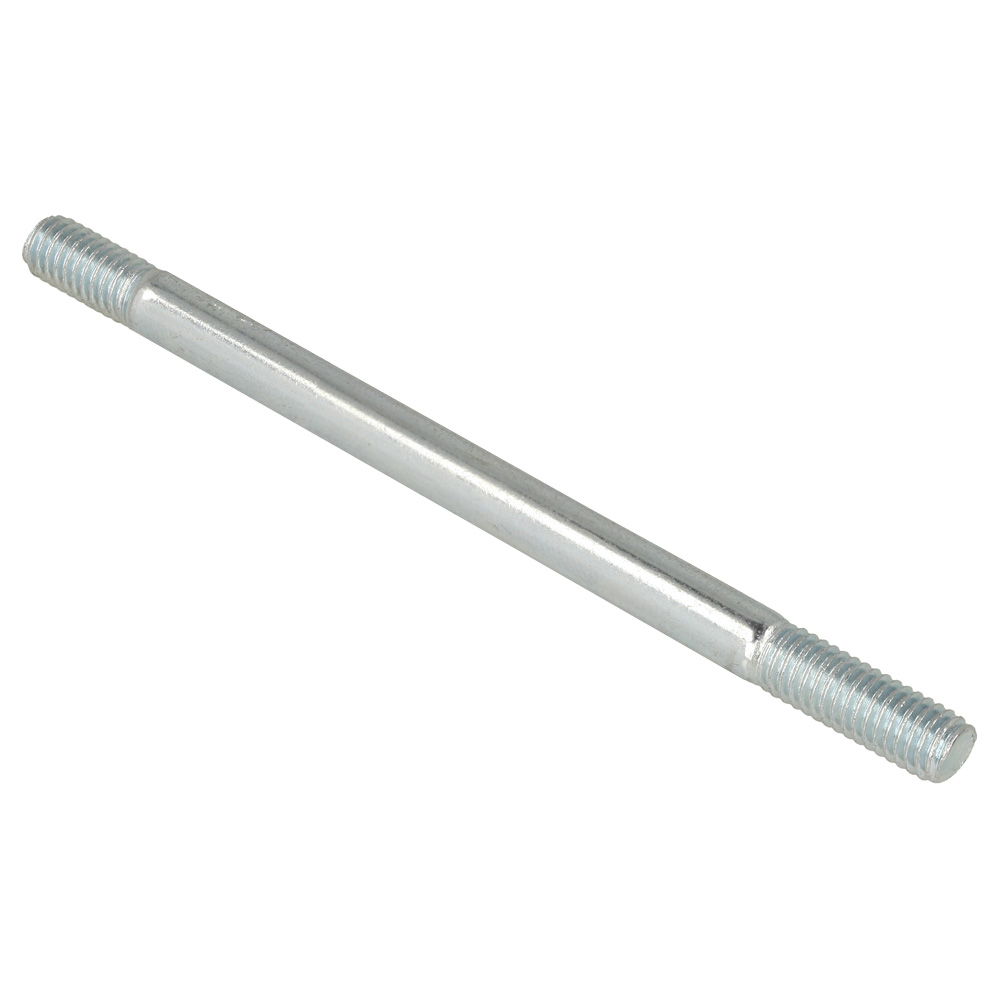

86	CO26800605601 Available to backorder	Screw Boss	£1.44 £1.20
87	CO26300207401 Available to backorder	Oil Baffle Cover	£2.52 £2.10
88	CO26801109801 Available to backorder	Spring	£2.52 £2.10
89	CO26900102401 Available to backorder	Spring Support	£2.52 £2.10
90	CO26900102501 Available to backorder	Spring Support	£2.52 £2.10
91	CO26400100801 Available to backorder	Hood	£2.52 £2.10
92	CO25100123701 Available to backorder	Seal Washer	£2.40 £2.00
93	CO26300207001 Available to backorder	Cowl Hood	£2.99 £2.49
94	CO26800502601 Available to backorder	Nut	£2.52 £2.10
95	CO26800502501 Available to backorder	Nut	£2.52 £2.10
96	CO26300214201 Available to backorder	Valve Rocker Arm	£2.52 £2.10
97	CO26800605401 Available to backorder	Adjusting Screw	£2.52 £2.10
98	CO26300213501 Available to backorder	Guider Plate	£9.43 £7.86
99	CO26300213401 Available to backorder	Push Rod Assy	£2.52 £2.10
100	CO2036900026A Available to backorder	Seal Washer	£2.52 £2.10
101	CO25100121201 Available to backorder	Air Intake Tube	£2.40 £2.00

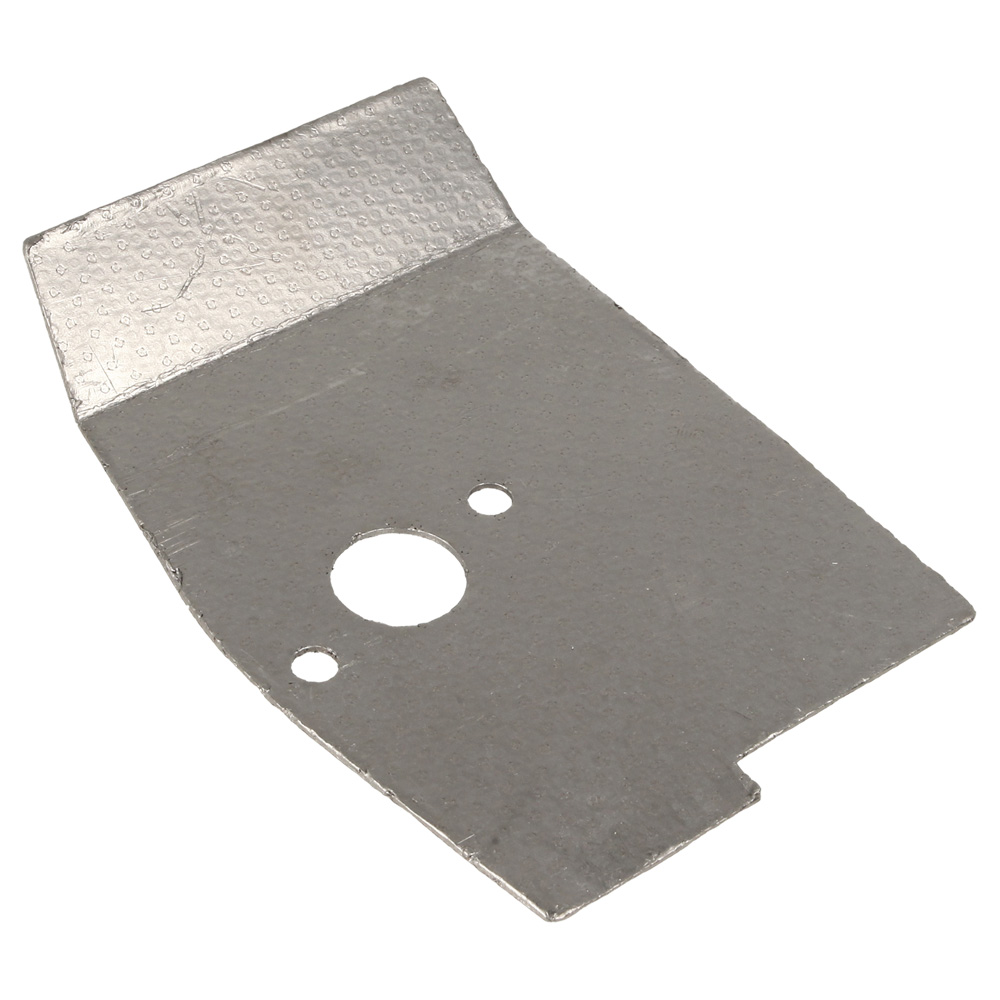

102	CO2036200002A Available to backorder	Seal Washer	£2.62 £2.18
103	CO2035400001A In stock	Carburetor Assy	£34.92 £29.10
104	CO25600100301 Available to backorder	Air Filter Seal Washer	£2.40 £2.00
105	CO26900108801 Available to backorder	Restrictor Pull Rod	£2.52 £2.10

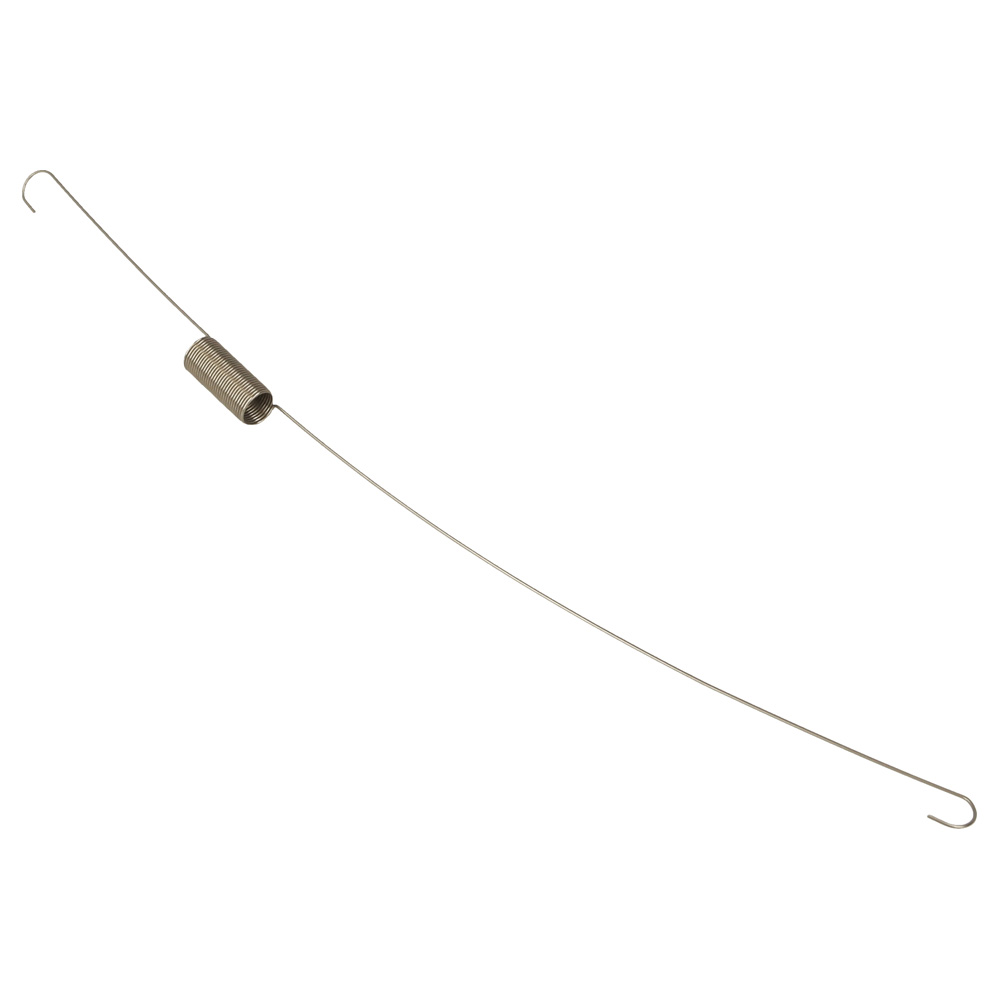

106	CO26801106601 Available to backorder	Spring	£2.40 £2.00
107	CO26900108201 Available to backorder	Choke Valve Pull Rod	£2.52 £2.10

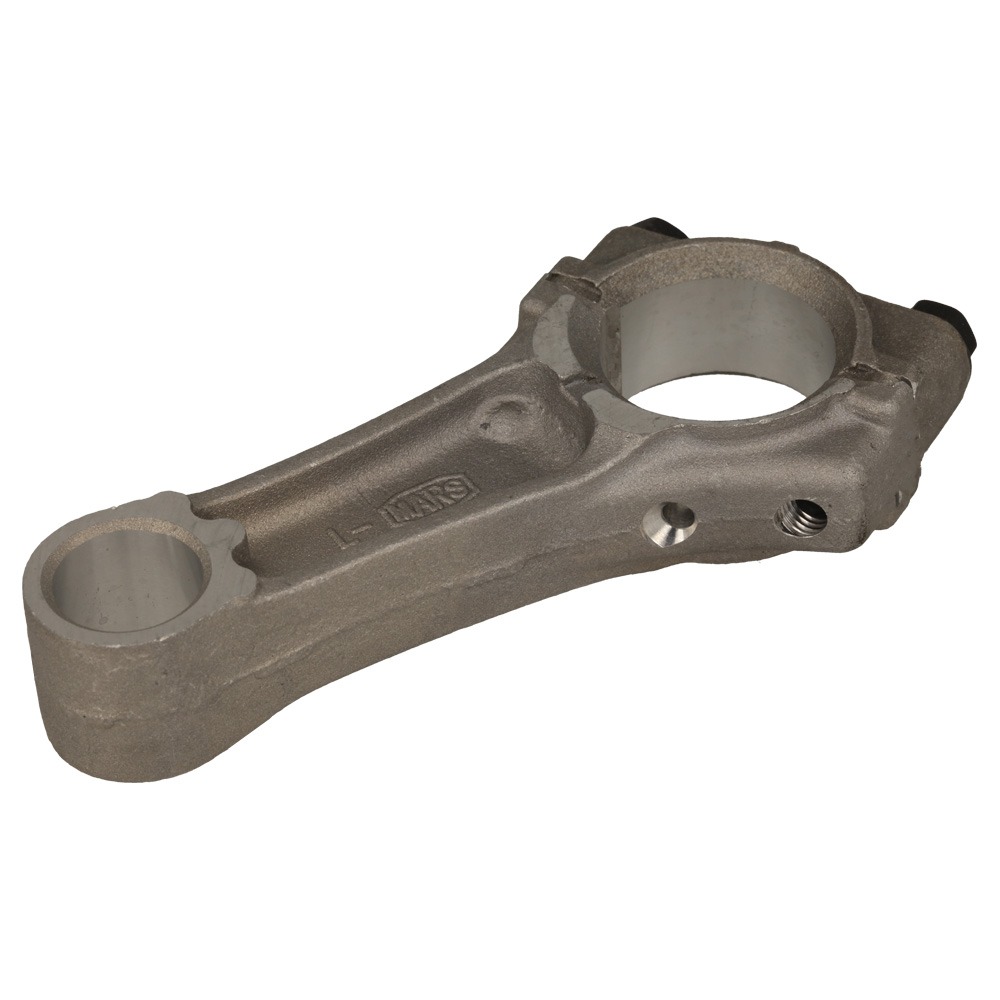

108	CO23054000701 Available to backorder	Connection Rod Assy	£15.72 £13.10
109	CO2032300096A Available to backorder	Spring	£2.52 £2.10
110	CO2032400007A Available to backorder	Piston	£11.39 £9.49
111	CO2032300095A Available to backorder	Piston Pin	£2.52 £2.10
112	CO2032400032A Available to backorder	Piston Ring Oil	£3.61 £3.01
113	CO2032400031A Available to backorder	Second Ring	£2.52 £2.10
114	CO2032400030A Available to backorder	First Ring	£3.49 £2.91
115	CO25100128401 Available to backorder	Air Filter Support	£6.11 £5.09
116	CO25100129001 Available to backorder	Air Filter Inside Cover	£2.52 £2.10
117	CO26300211501 Available to backorder	Sheath Of Air Filter Support	£2.52 £2.10
118	CO25100131601 In stock	Filter Assy	£7.44 £6.20
119	CO25100128502 Available to backorder	Upper Cover Of Air Filter	£4.39 £3.66
120	CO25236000101 Available to backorder	Oil Gage	£3.64 £3.03
121	CO26800608201 Available to backorder	Screw	£2.52 £2.10
122	CO25100134501 Available to backorder	O Shape Ring	£2.52 £2.10
123	CO25236100102 Available to backorder	Oil Gage Support	£2.57 £2.14
124	CO25100202201 Available to backorder	Sleeve	£2.52 £2.10
125	CO25100123202 Available to backorder	O Shape Ring	£2.40 £2.00
126	CO2031400066A Available to backorder	Position Pin	£2.52 £2.10
127	CO26300225901 Available to backorder	Washer	£2.52 £2.10
128	CO26300205601 Available to backorder	Plug	£2.52 £2.10
129	CO2039200005A Available to backorder	Wind Shield	£3.32 £2.77
130	CO2033200009A Available to backorder	Brake Lower Plate	£3.49 £2.91
131	CO2033800001A Available to backorder	Spring	£2.52 £2.10
132	CO26800700301 Available to backorder	Big Washer	£2.52 £2.10
133	COA26800707001 Available to backorder	Flat Washer	£2.52 £2.10
