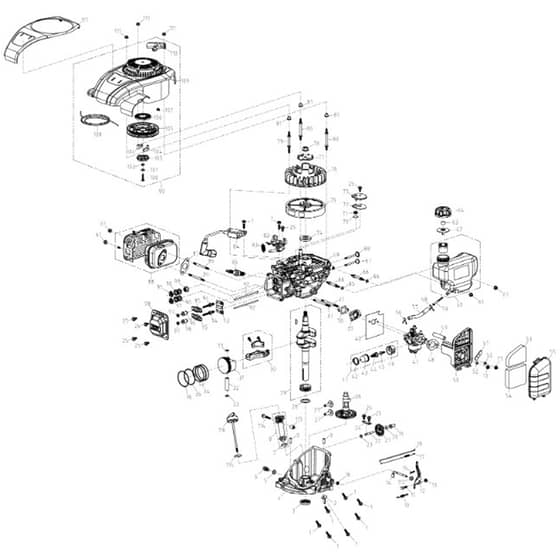

Cobra DG500 Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO3091307002 Available to backorder	Hexagonal Flange Bolt M6*25	£1.25 £1.04
2	CO2032400042A Available to backorder	Speed Regulating Fixed Plate	£1.25 £1.04
3	CO2031600016N Available to backorder	Oil Seal	£1.25 £1.04
4	CO2031400096B Available to backorder	Box Cover	£38.48 £32.07
5	CO2031300007A Available to backorder	Oil Drain Plug Gasket	£1.25 £1.04
6	CO2031300006A Available to backorder	Oil Drain Plug	£1.25 £1.04
7	CO2039600019N Available to backorder	O-Ring	£1.25 £1.04
8	CO2030X00618 Available to backorder	Oil Dipstick Seat Assembly	£2.12 £1.77
9	CO2031300107A Available to backorder	Locating Pins	£1.25 £1.04
10	CO2033800004A Available to backorder	Speed Regulating Spring	£1.25 £1.04
11	CO2031300012A Available to backorder	Speed Regulating Screw	£1.25 £1.04
12	CO2031300063N Available to backorder	Speed Regulating Rocker Arm	£2.24 £1.87
13	CO3032302004 Available to backorder	Hexagonal Flange Nut M6	£1.25 £1.04
14	CO2032300107A Available to backorder	Speed Regulating Lever	£1.96 £1.63
15	CO2031200007A Available to backorder	Elastic Split Pin	£1.25 £1.04
16	CO2031600007 Available to backorder	Oil Seal	£1.27 £1.06
17	CO2039800005A Available to backorder	Throttle Spring	£1.25 £1.04
18	CO2035300001A Available to backorder	Throttle Push Rod	£1.25 £1.04
19	CO2032100007A Available to backorder	Sliding Bushing	£2.52 £2.10
20	COA26800703201 Available to backorder	Flat Washer 6	£1.25 £1.04
21	CO2032300104A Available to backorder	Speed Regulating Gear Assembly	£2.99 £2.49
22	CO2032300097A Available to backorder	Speed Regulating Gear Shaft	£2.63 £2.19
23	CO3051204003 Available to backorder	Washer Φ6	£1.25 £1.04
24	CO2031200015B Available to backorder	Double Hole Pressure Plate	£1.25 £1.04
25	CO3091307005 Available to backorder	Hexagon Flange Bolt M6*12	£1.25 £1.04
26	CO2032100022B Available to backorder	Camshaft Assembly	£13.70 £11.42
27	CO2033300027A Available to backorder	Tappet	£1.96 £1.63

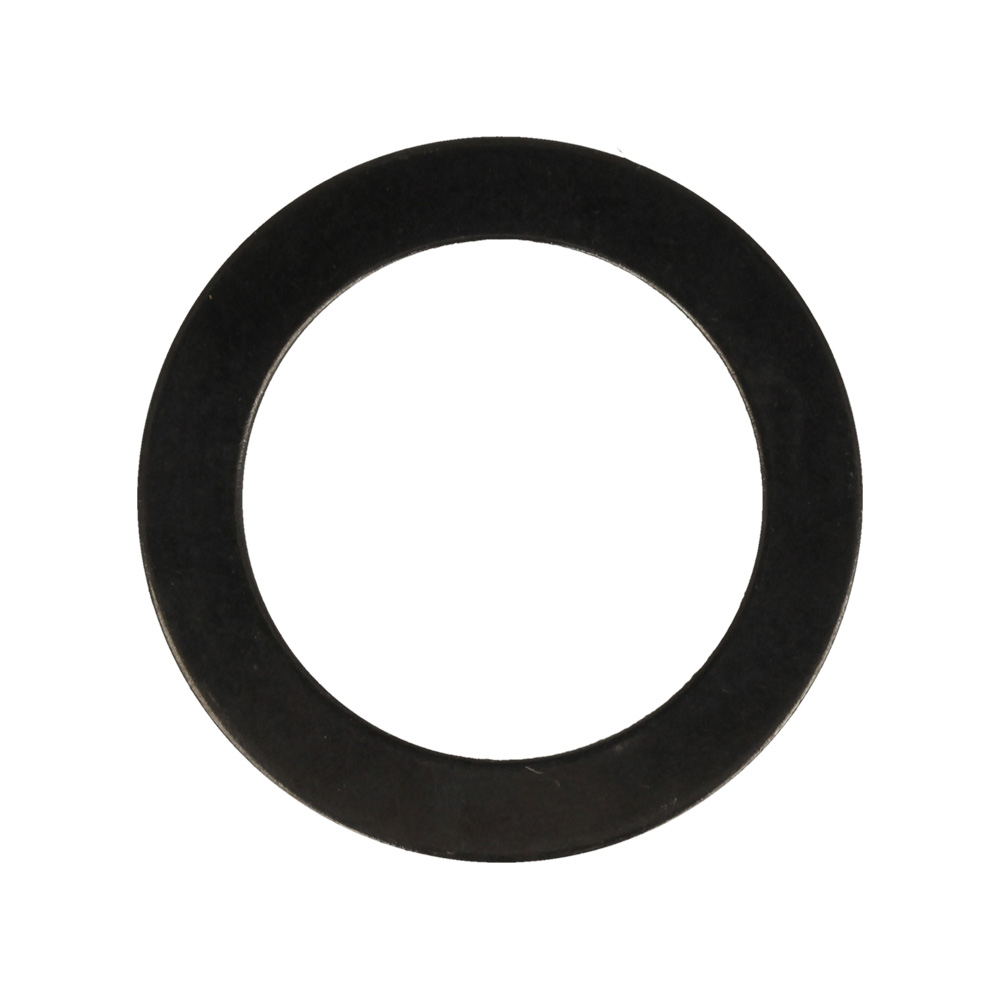

28	CO2032200003A Available to backorder	Gasket	£1.25 £1.04
29	CO2032400039A Available to backorder	Crankshaft Assembly	£35.68 £29.73
30	CO2032400040A Available to backorder	Connecting Rod Assembly	£10.61 £8.84
31	CO2032300106A Available to backorder	Piston	£19.20 £16.00
32	CO2032300105A Available to backorder	Piston Pin	£2.46 £2.05
33	CO2032800003A Available to backorder	Piston Pin Circlip	£1.25 £1.04
34	CO2032900011A Available to backorder	Oil Ring Assembly	£3.34 £2.78
35	CO2032900013A Available to backorder	Second Ring	£1.96 £1.63
36	CO2032900012A Available to backorder	One Ring	£3.16 £2.63
37	COA26800609901 Available to backorder	Studs	£2.52 £2.10
38	CO2036900044A Available to backorder	Cylinder Head And Intake Pipe Gasket	£1.25 £1.04
39	CO2036100057A Available to backorder	Intake Pipe	£1.43 £1.19
40	CO2039900038A Available to backorder	Carburetor And Intake Pipe Gasket	£1.25 £1.04

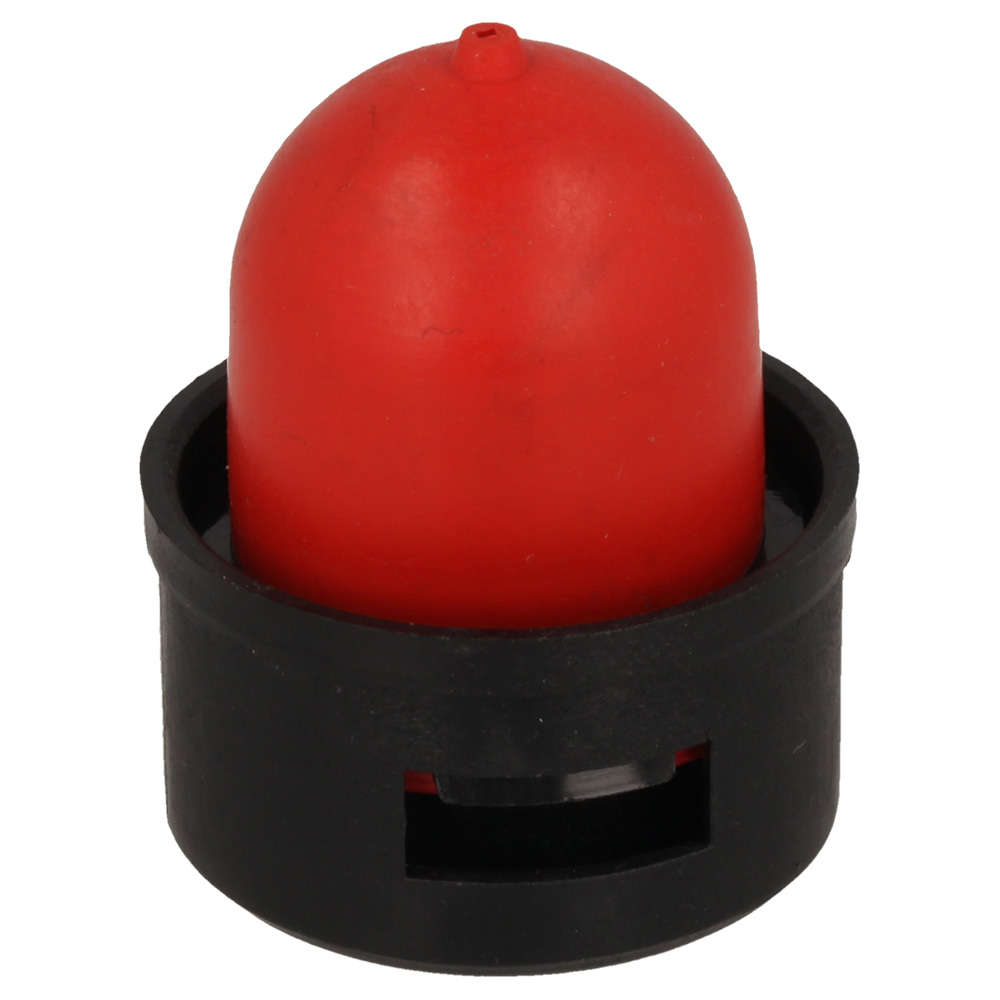

41	CO2030X00421 Available to backorder	Enrichment Pump Assembly	£5.38 £4.48
42	CO20361000080001A Available to backorder	Enrichment Pump Clamp (1P56Fa-19)	£1.25 £1.04

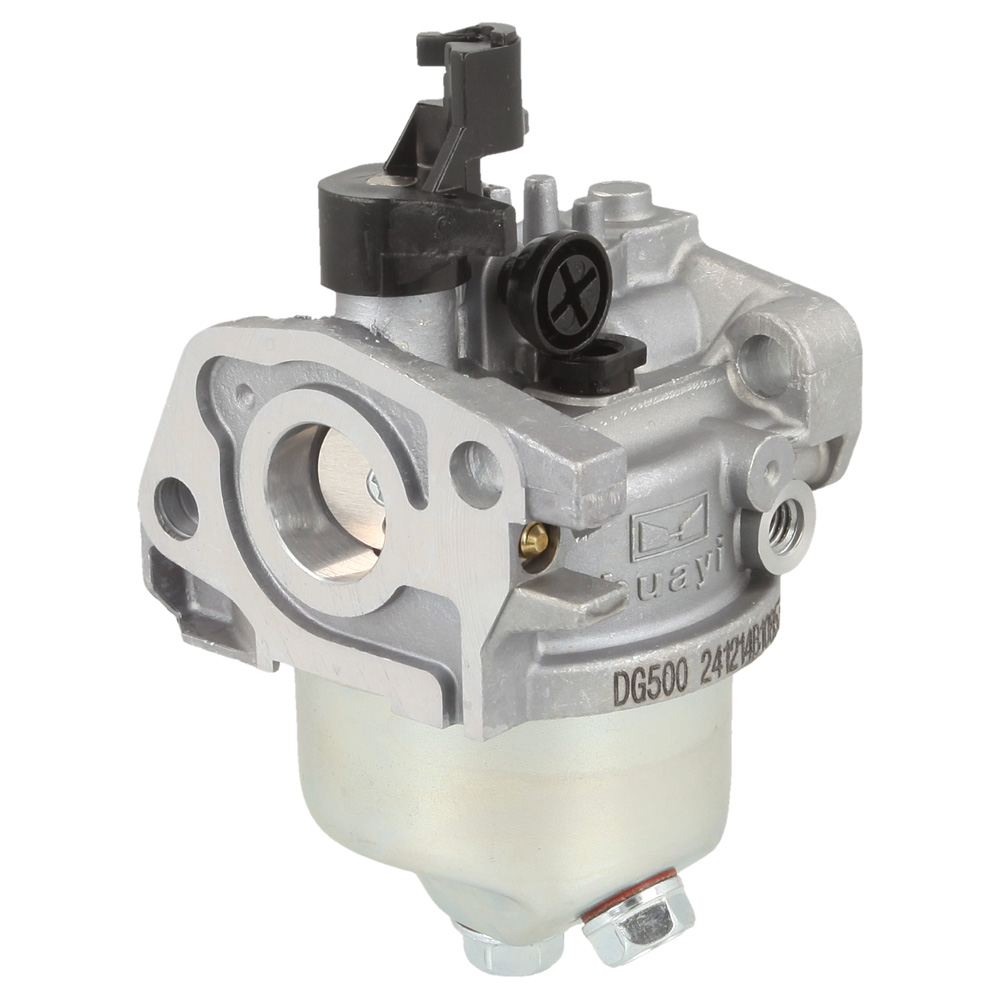

47	CO2035900007A Available to backorder	Carburetor Assembly (Euro V)	£30.40 £25.33

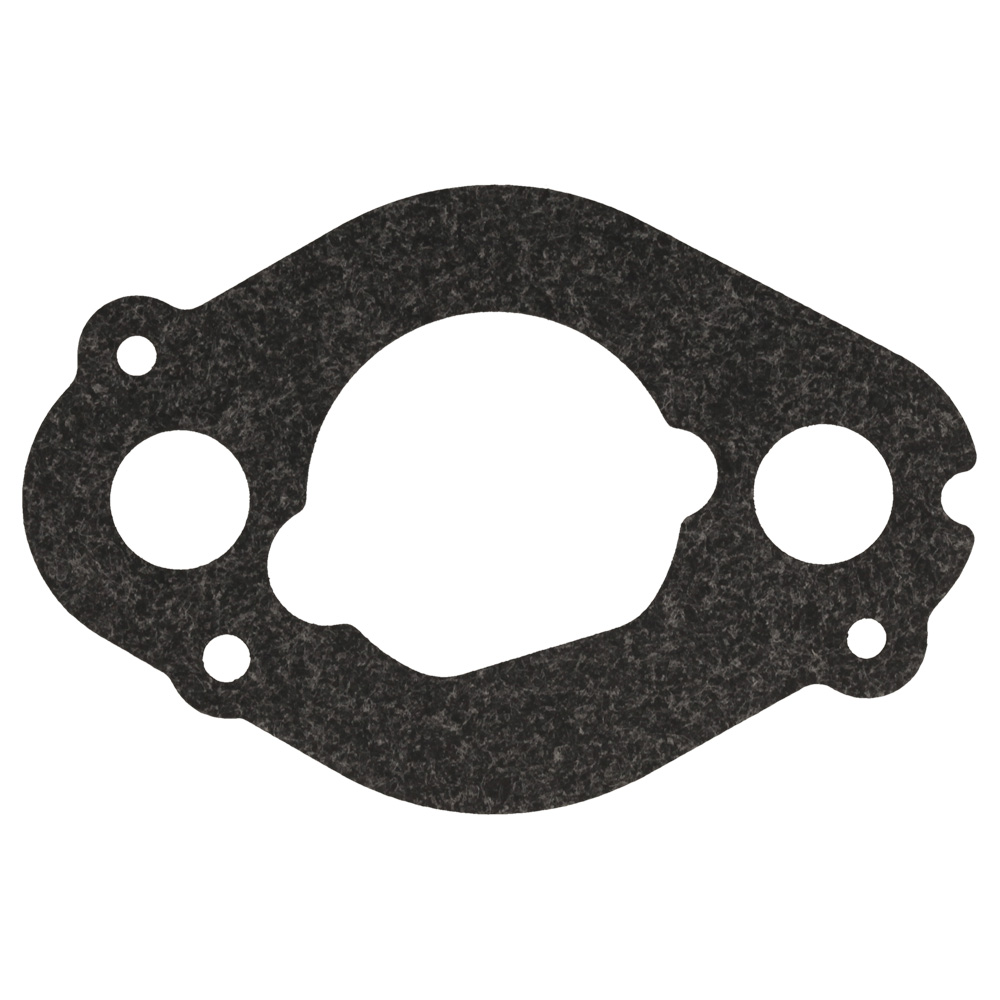

48	CO2036900045A Available to backorder	Carburetor And Air Filter Gasket	£1.25 £1.04
49	CO2035600007A Available to backorder	Snorkel	£3.10 £2.58
50	CO20351000100001A Available to backorder	Air Filter Base (Dg650-02)	£11.78 £9.82
51	CO20351000110001A Available to backorder	Air Filter Inner Cover (Dg650-03)	£1.25 £1.04
52	CO2031300008B Available to backorder	Cushion Cover	£1.25 £1.04

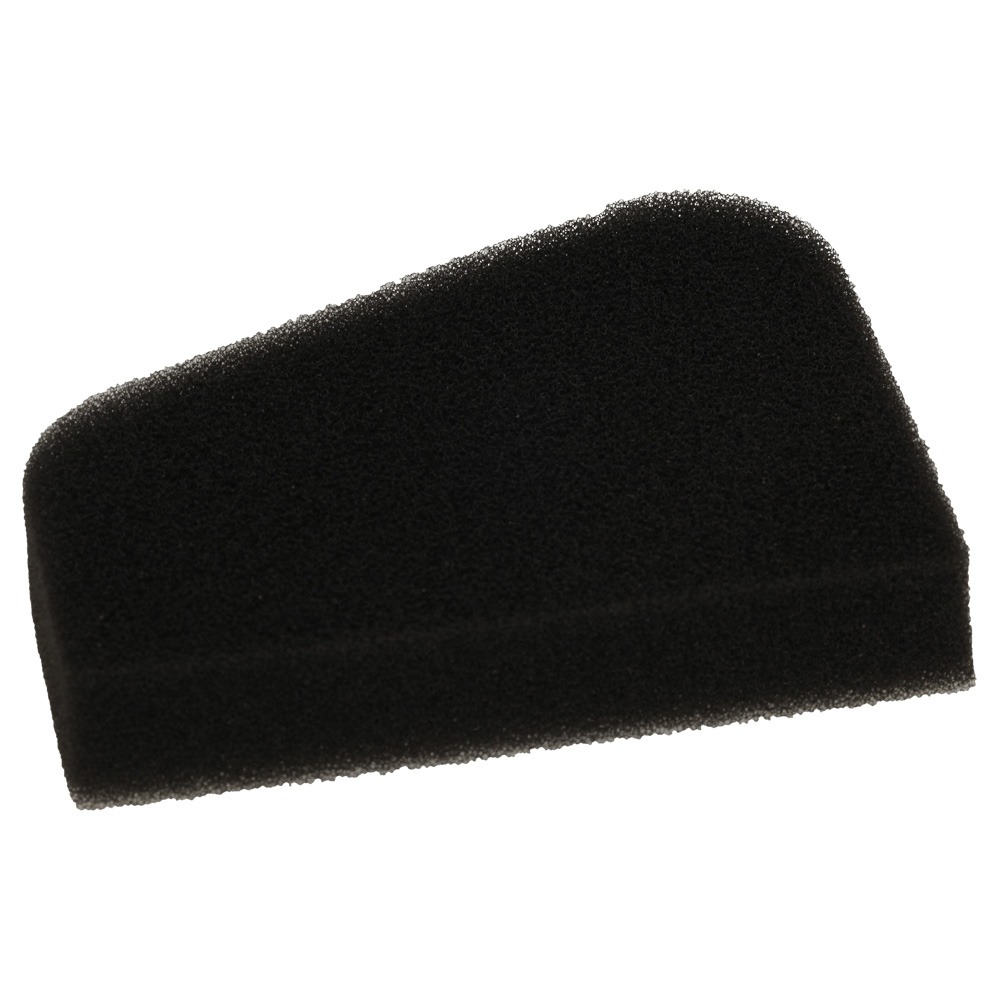

53	CO2036900046A Available to backorder	Air Filter Element A	£3.22 £2.68

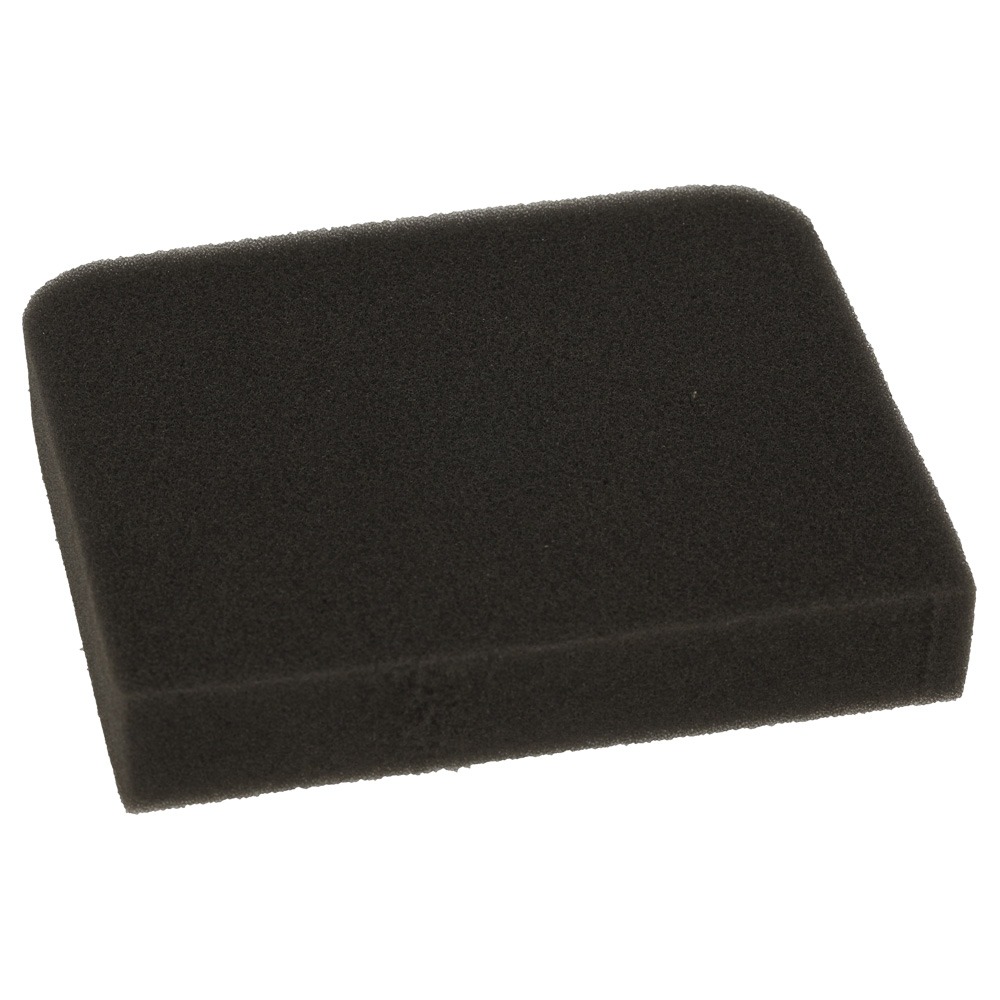

54	CO2035900006A Available to backorder	Air Filter Element B	£4.18 £3.48

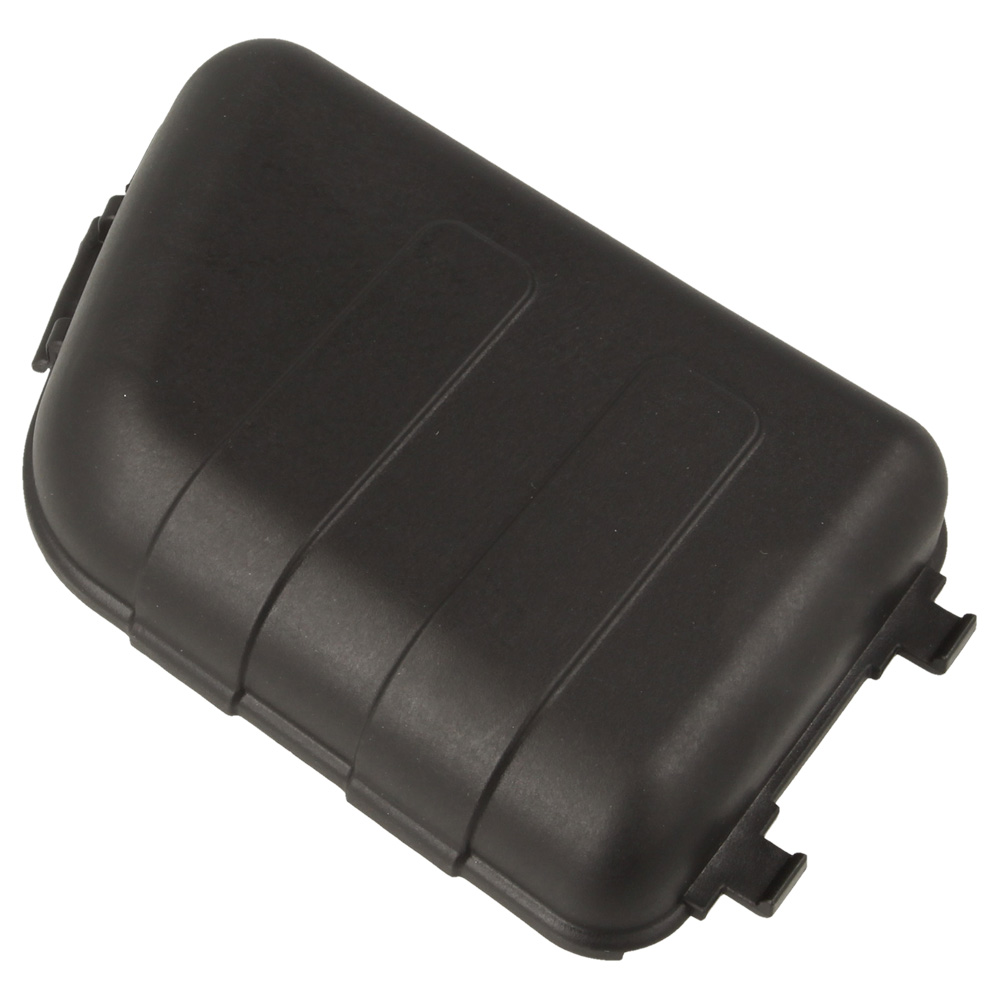

55	CO20351000090001A Available to backorder	Air Filter Cover (Dg650-05)	£5.58 £4.65
56	CO2035200035A Available to backorder	Oil Pipe Clamp B	£1.25 £1.04
57	CO2035600008A Available to backorder	Oil Inlet Pipe	£3.10 £2.58
58	CO2035200029A Available to backorder	Oil Pipe Clamp	£1.67 £1.39
59	CO2035100016A Available to backorder	Fuel Filter	£1.25 £1.04
60	CO2035100013A Available to backorder	Fuel Tank	£16.75 £13.96
61	CO30323060015000 Available to backorder	All Metal Hexagon Flange Lock Nut M6	£1.25 £1.04
62	CO2034600003A Available to backorder	Fuel Tank Cap Gasket	£2.93 £2.44
63	CO2036900037A Available to backorder	Filter Cotton	£1.25 £1.04
64	CO20351000220001A Available to backorder	Fuel Tank Cap (Dg650-07)	£1.43 £1.19
65	COA26800707001 Available to backorder	Flat Washers	£2.52 £2.10
66	CO2039300006A Available to backorder	Double-Ended Stud	£1.61 £1.34
67	CO2037300011D Available to backorder	Exhaust Valve	£5.96 £4.97
68	CO2031400087A Available to backorder	Intake Valve	£5.35 £4.46
69	CO2031400095A Available to backorder	Cabinet	£66.04 £55.03
70	CO2031600019A Available to backorder	Respirator Valve	£1.25 £1.04
71	CO2039800007A Available to backorder	Respirator Compression Spring	£1.25 £1.04
72	CO2037900007A Available to backorder	Breathing Gasket	£1.25 £1.04
73	CO2035900005A Available to backorder	Respirator Cover	£1.85 £1.54
74	CO2039600003A Available to backorder	Oil Seal	£1.72 £1.43
75	CO2033400003A Available to backorder	Flywheel Assembly	£25.97 £21.64
76	CO20331000530001A Available to backorder	Fan (Dg650-04)	£4.82 £4.02
77	CO2032200011A Available to backorder	Fan Pressure Plate	£2.30 £1.92
78	CO3032303001 Available to backorder	Hexagonal Flange Nut M12*1.25	£1.25 £1.04
79	CO2039300009A Available to backorder	Double-Ended Stud A	£1.90 £1.58
80	CO2039300030A Available to backorder	Double-Ended Stud B	£1.90 £1.58
81	CO2033300012A Available to backorder	Air Guide Cover	£1.25 £1.04
82	CO2032900015A Available to backorder	Brake Assembly	£9.86 £8.22
83	CO2039800006A Available to backorder	Brake Tension Spring	£1.25 £1.04
84	CO2033900017A Available to backorder	Ignition Assembly	£18.56 £15.47
86	COA26800610103 Available to backorder	Carburetor Stud	£2.76 £2.30
87	CO2039900041A Available to backorder	Muffler Gasket	£1.25 £1.04
88	CO2037200038A Available to backorder	Muffler Assembly	£15.07 £12.56
89	CO2036200007A Available to backorder	Oil Shield	£2.12 £1.77
90	CO2035800003A Available to backorder	Valve Spring	£1.25 £1.04
91	CO2036300040A Available to backorder	Valve Spring Seat	£1.38 £1.15
92	CO2036200011B Available to backorder	Push Rod Assembly	£2.18 £1.82
93	CO2039900033A Available to backorder	Push Rod Guide	£1.32 £1.10
94	CO2031300002C Available to backorder	Adjusting Bolt	£1.56 £1.30
95	CO2036200004A Available to backorder	Valve Rocker Arm	£1.25 £1.04
96	CO2031200002D Available to backorder	Adjusting Nut	£1.56 £1.30
97	CO2031300003C Available to backorder	Tighten The Nut	£1.56 £1.30
98	CO2035600009A Available to backorder	Cylinder Head Cover	£3.67 £3.06

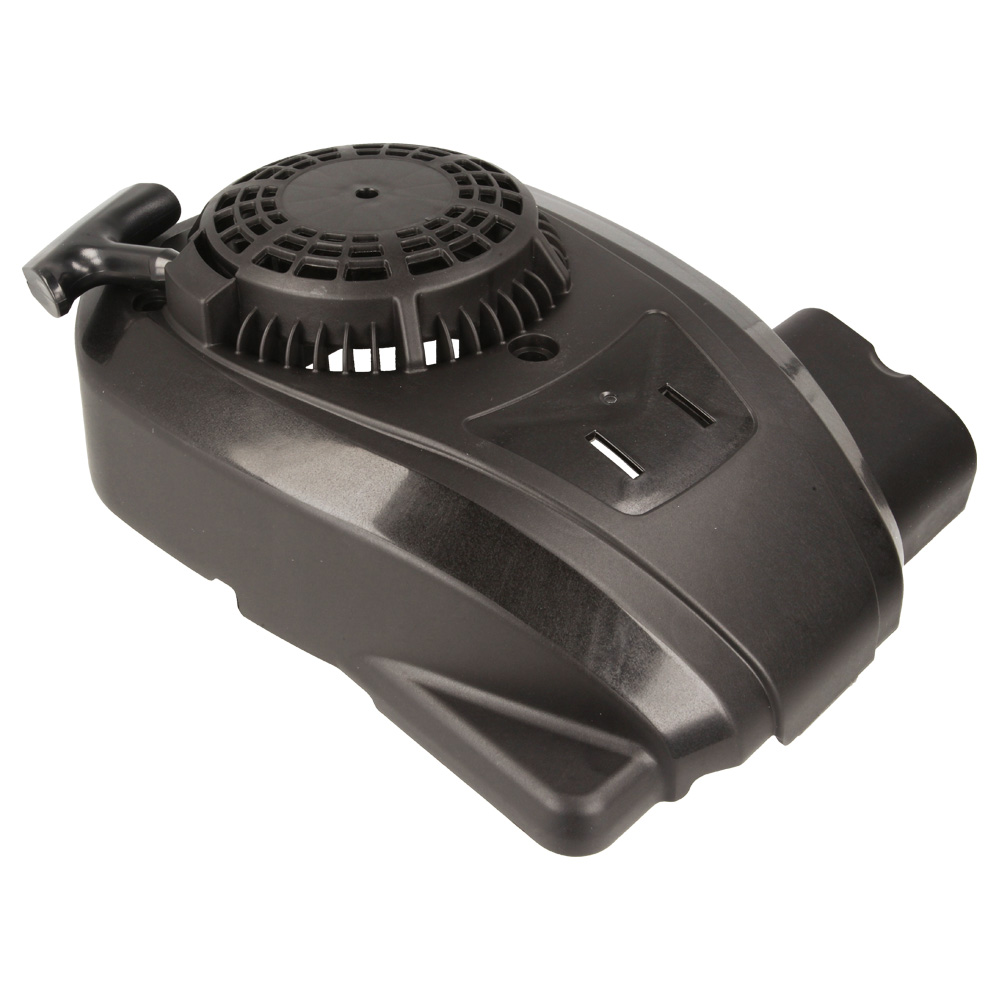

99	CO2040X00061 Available to backorder	Starter Housing Assembly	£23.40 £19.50
111	CO3032302005 Available to backorder	Hexagonal Flange Nut M6	£1.25 £1.04
112	CO2039300071A Available to backorder	Speed Regulating Lever Gasket	£1.25 £1.04
113	CO2039300062A Available to backorder	Bushing	£1.25 £1.04

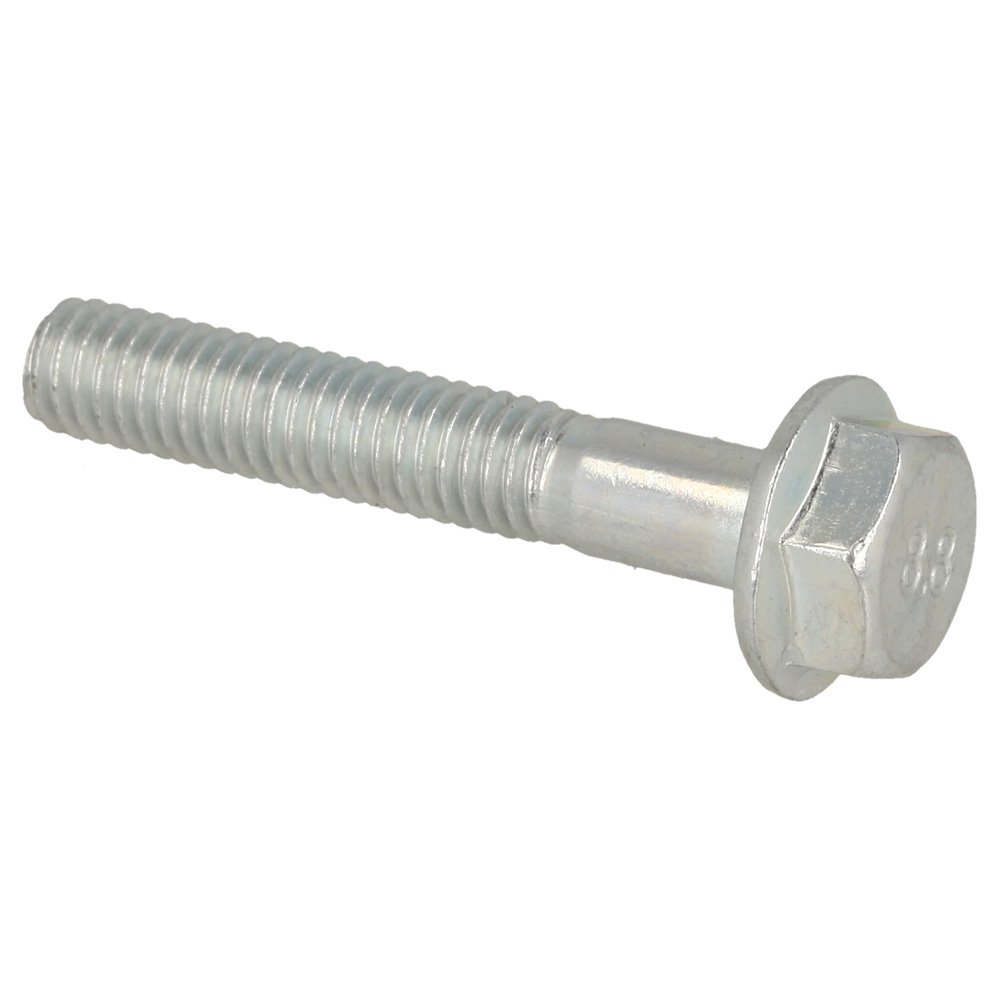

114	CO3091307003 Available to backorder	Hexagon Flange Bolt M6*35	£1.20 £1.00
115	CO2035600038A Available to backorder	O-Ring	£1.25 £1.04
116	CO2035900019 Available to backorder	Oil Dipstick	£3.28 £2.73
117	CO20341000690006A Available to backorder	Decorative Cover	£6.42 £5.35
