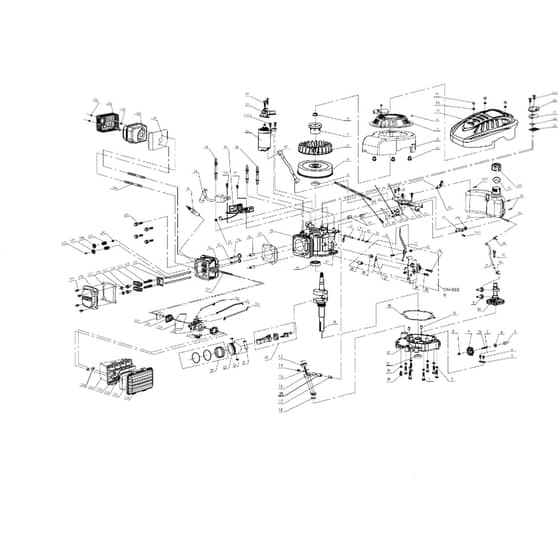

Cobra DG450 ES Engine Parts Diagram

	Part No.	Details
1	CO26800607601 Available to backorder	Bolt M6*30	£2.48 £2.07
2	CO26800702501 Available to backorder	Wave Washer Φ6	£2.48 £2.07
3	CO26300210102 Available to backorder	Dualhole Press Plate	£2.48 £2.07
4	CO26800604101 Available to backorder	Bolt M6*12	£2.48 £2.07
5	CO25100121601 Available to backorder	Slide Sheath	£2.48 £2.07
6	CO26800703201 Available to backorder	Slat Washer6 Φ6Xφ15X05	£2.48 £2.07
7	CO26900104402 Available to backorder	Speed Adjustment Gear Shaft	£2.48 £2.07
8	CO23057001301 Available to backorder	Speed Adjustment Gear Assy	£3.79 £3.16
9	CO26800702101 Available to backorder	Slat Washer	£2.48 £2.07
10	CO23055000401 Available to backorder	Camshaft Assy	£9.26 £7.72
11	CO26900102301 Available to backorder	Column	£2.48 £2.07
12	CO26809001601 Available to backorder	Position Fixed Pin	£2.48 £2.07
13	CO25236000101 Available to backorder	Oil Scaleplate	£3.58 £2.98
14	CO26800608201 Available to backorder	Bolt M6*50	£2.48 £2.07
15	CO25100134501 Available to backorder	O Type Ring 25X29	£2.48 £2.07
16	CO25236100101 Available to backorder	Oil Level Gauge Support	£2.48 £2.07
17	CO25100202201 Available to backorder	Sheath	£2.48 £2.07
18	CO25100123202 Available to backorder	O Type Ring 20X24	£2.48 £2.07
19	CO23053001101 Available to backorder	Crank Assy	£40.57 £33.81
20	CO23054000301 Available to backorder	Connecting Rod Assy	£15.04 £12.53
21	CO26900102201 Available to backorder	Piston Pin	£2.83 £2.36
22	CO26900102101 Available to backorder	Snap Ring Of Piston Pin	£2.48 £2.07
24	CO23054000801 Available to backorder	Piston Pin	£10.14 £8.45
25	CO26900103201 Available to backorder	Sheath 1	£2.48 £2.07
26	CO26900103301 Available to backorder	Sheath 2	£2.48 £2.07
27	CO26801102601 In stock	Speed Adjustment Spring	£2.58 £2.15
28	CO23057001602 Available to backorder	Speed Adjustment Assy	£9.29 £7.74
29	CO26800607701 Available to backorder	Flange Bolt M6X35	£2.48 £2.07
30	CO25600100401 Available to backorder	Sealing Washer	£6.74 £5.62
32	CO25100123602 Available to backorder	Oil Sealer Fb25X37X7	£5.96 £4.97
33	CO26300225901 Available to backorder	Purge Cock Washer	£2.48 £2.07
34	CO26300205601 Available to backorder	Purge Cock	£2.48 £2.07
35	CO26800607801 Available to backorder	Flange Bolt	£2.48 £2.07
36	CO26800501901 Available to backorder	Flange Nut	£1.24 £1.03
37	CO23057000901 Available to backorder	Speed Adjustment Rocker	£2.48 £2.07
38	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.48 £2.07
39	CO26900103401 Available to backorder	Spring Open Pin	£2.48 £2.07
40	CO25100123501 Available to backorder	Oil Sealer 6X11X4	£2.48 £2.07
41	CO26900103001 Available to backorder	Speed Adjustment Swing Pole	£2.48 £2.07
42	CO25100135002 Available to backorder	Aeration Pipe	£2.48 £2.07
43	CO26800703001 Available to backorder	Washer Sheath	£2.48 £2.07
44	CO25100163001 Available to backorder	Bellows	£2.48 £2.07
47	CO27100115801 Available to backorder	Start Control Cable	£2.48 £2.07
48	CO25100168301 Available to backorder	Drivepipe	£2.48 £2.07
50	CO28700100101 In stock	Relay	£12.20 £10.17
51	CO27100115901 Available to backorder	Connecting Cable	£2.83 £2.36
53	CO26300215502 Available to backorder	Oil Crank Bracket	£6.56 £5.47
54	CO26300215301 In stock	Left Gasoline Tank Bracket	£2.58 £2.15
55	CO26300215401 In stock	Right Gasoline Tank Bracket	£2.58 £2.15
56	CO25800100404 In stock	Gasoline Tank	£16.81 £14.01
57	CO25100134803 In stock	Oil Innet Pipe	£6.42 £5.35
58	CO26900102701 Available to backorder	Oil Pipe Clip B	£2.48 £2.07
59	CO26300206401 Available to backorder	Oil Pipe Clip	£2.48 £2.07
60	CO26900102601 Available to backorder	Oil Pipe Clip A	£2.48 £2.07
61	CO25100131401 Available to backorder	Oilburing Filter Net	£2.58 £2.15
62	CO26800608301 Available to backorder	Flange Bolt	£2.48 £2.07
63	CO25100124501 In stock	Tank Cover Sealing Washer	£2.58 £2.15
64	CO25100122702 In stock	Tank Cover	£4.48 £3.73
65	CO26900102001 Available to backorder	Filter Net	£2.48 £2.07
66	CO25100112601 Available to backorder	Breathing Vavle Plate	£2.48 £2.07
67	CO25100123901 Available to backorder	Breathing Sealing Washer	£2.48 £2.07

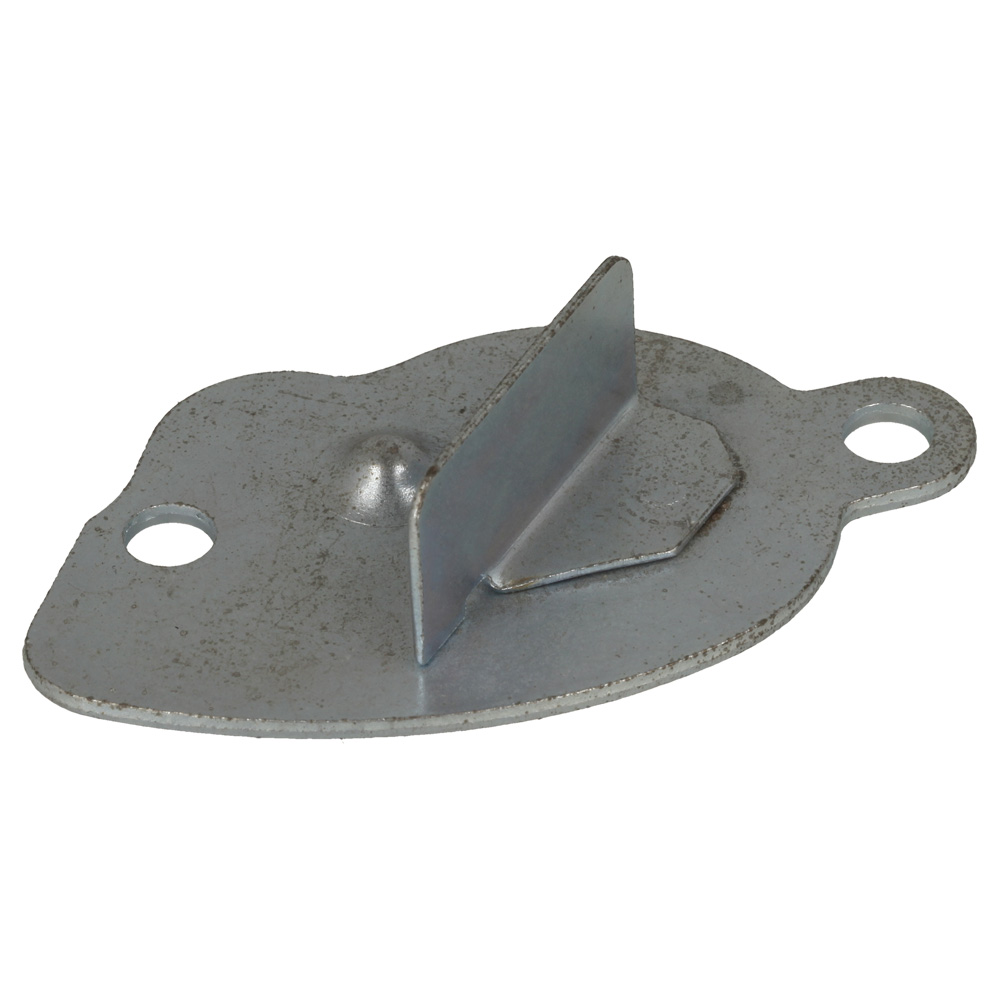

68	CO23052000501 Available to backorder	Breathing Cover Assy	£2.48 £2.07
69	CO26800400201 Available to backorder	Rolling Bearing 6205 E Grade	£7.00 £5.83
71	CO23061001701 Available to backorder	Cast Iron Flying Wheel Assy	£30.74 £25.62
72	CO25100121901 Available to backorder	Fan	£8.20 £6.83
73	CO26900103701 Available to backorder	Passive Tray	£4.61 £3.84
74	CO26800502701 Available to backorder	Nut	£2.48 £2.07
75	CO26900103601 Available to backorder	Starting Shell Sheath	£10.74 £8.95
76	CO25311000101 Available to backorder	Wind-Guiding Cover	£10.20 £8.50
77	CO23052002801 In stock	Starter Assey	£25.07 £20.89
78	CO26800502201 Available to backorder	Nut M6	£2.48 £2.07

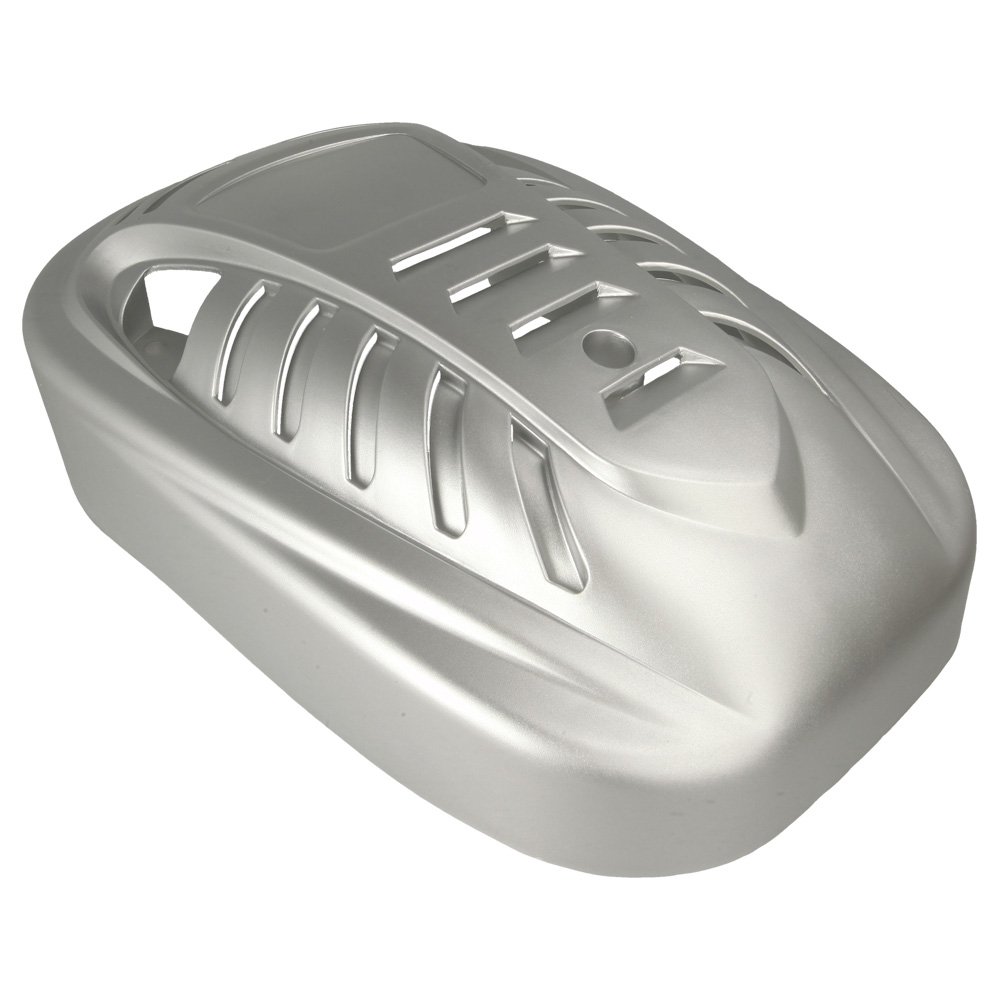

79	CO23600306401 Available to backorder	3# Cover	£13.39 £11.16
81	CO26800501603 In stock	Lid Shape Nut	£1.28 £1.07
82	CO26800312901 Available to backorder	Inner Hexagon Nut	£2.48 £2.07

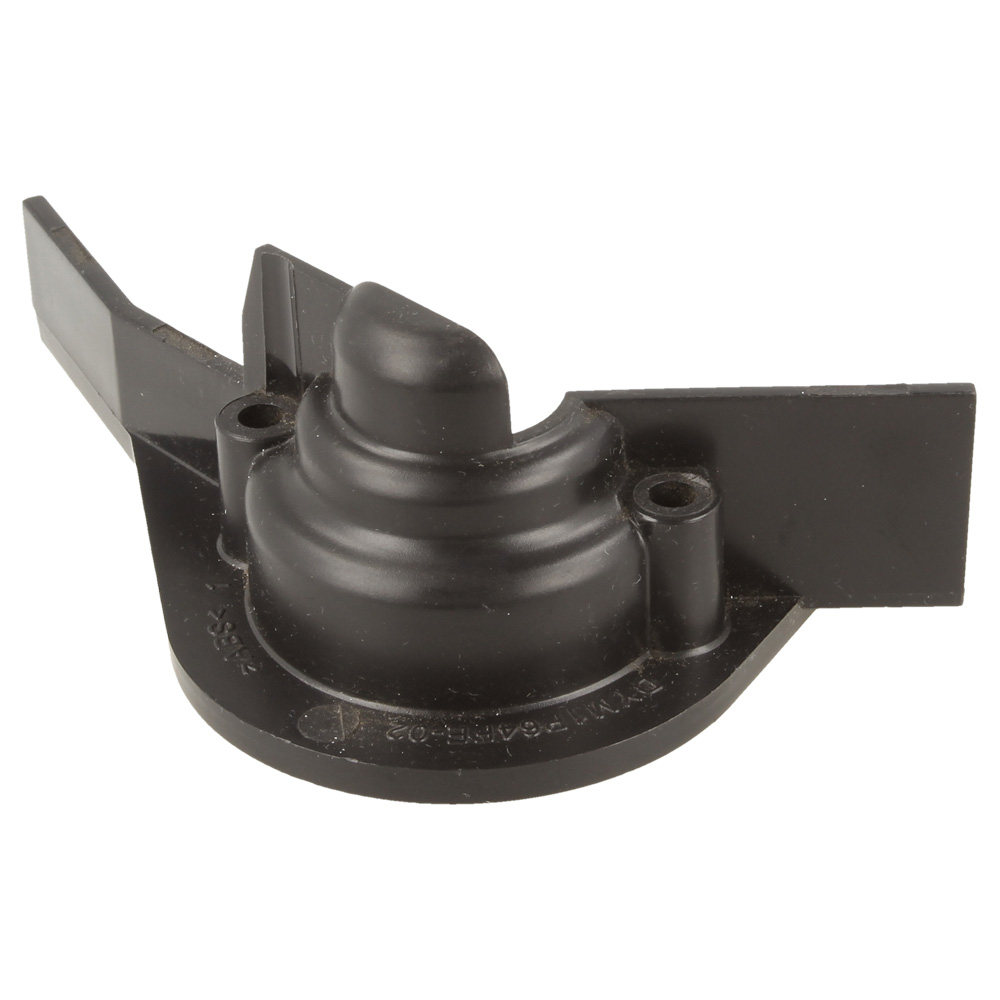

83	CO25310400101 Available to backorder	Motor Cover	£2.48 £2.07
84	CO27400400101 Available to backorder	Motor	£53.44 £44.53
84	CO2050100157C Available to backorder	Motor	£50.80 £42.33
85	CO22900104701 Available to backorder	Inner Connecting Cable Assy	£4.24 £3.53
87	CO23058002601 Available to backorder	Brake Controller Assey	£9.29 £7.74
89	CO26800603701 Available to backorder	Flange Bolt	£2.48 £2.07
90	CO23062000201 In stock	Ignation Assey	£21.43 £17.86
91	4547 In stock	Spark	£1.96 £1.63
93	CO26300206101 Available to backorder	Air Outlet	£5.80 £4.83
95	CO26300206001 Available to backorder	Air Inlet	£5.80 £4.83
96	CO26809001501 Available to backorder	Pisition Fixed Pin	£2.48 £2.07
97	CO25600100201 Available to backorder	Cylinder Head Sealing Washer	£6.97 £5.81
99	CO25600100101 Available to backorder	Muffler Sealing Washer	£4.08 £3.40
100	CO23060002701 Available to backorder	Air Discharge And Muffler Assey	£17.98 £14.98
101	CO25100130601 Available to backorder	Muffler Heat Insulation Washer	£2.48 £2.07
102	CO26300273901 Available to backorder	Muffler Sheath Assey	£11.57 £9.64
103	CO26800502401 Available to backorder	Flange Nut	£1.24 £1.03
106	CO26300207401 Available to backorder	Oil Block Sheath	£2.48 £2.07
107	CO26801103101 Available to backorder	Valve Spring	£2.48 £2.07
108	CO26900102401 Available to backorder	Airinnet Spring Seat	£2.48 £2.07
109	CO26900102501 Available to backorder	Airoutlet Spring Seat	£2.48 £2.07
110	CO26400100801 Available to backorder	Top Cat	£2.48 £2.07
111	CO23055000501 Available to backorder	Pushing Rod Assey	£2.48 £2.07
112	CO26300206301 Available to backorder	Pushing Rod Guidebar	£9.29 £7.74
113	CO26800605401 Available to backorder	Adjustment Bolt	£2.48 £2.07

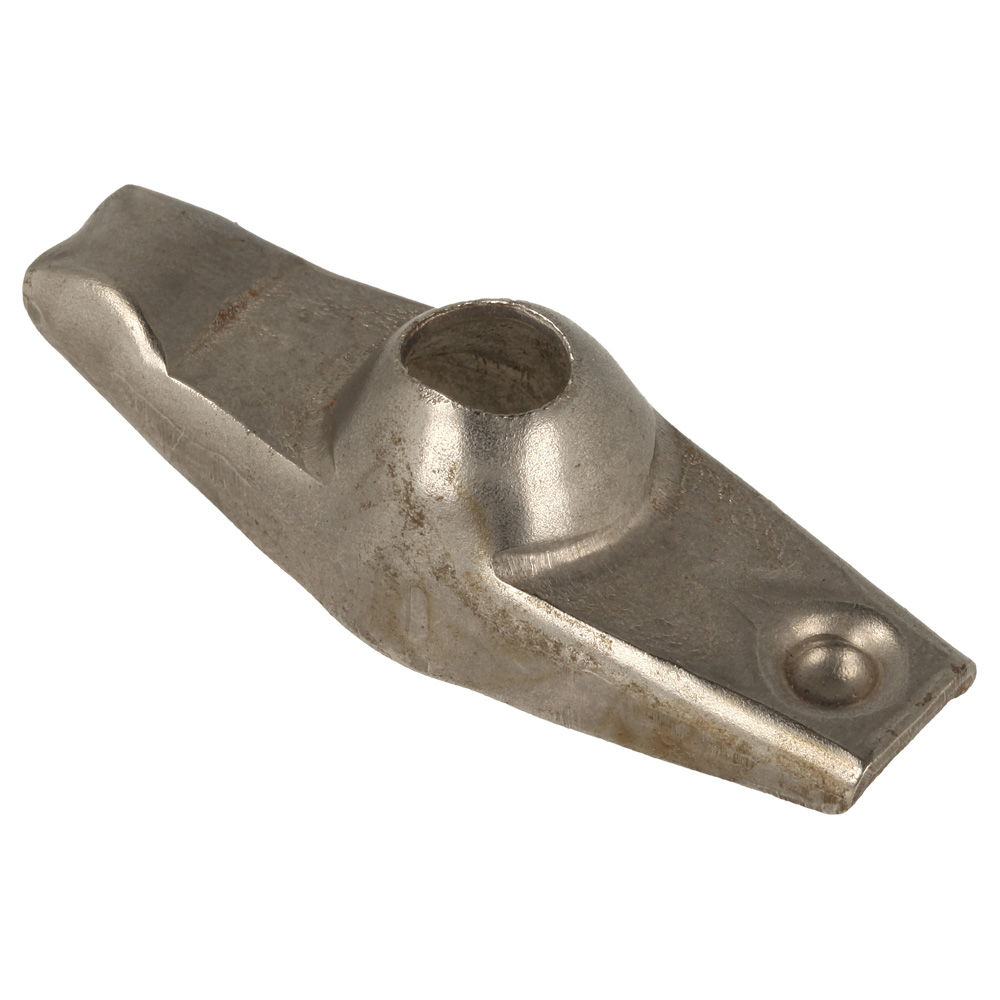

114	CO26300225701 Available to backorder	Valve Spring Rocker	£2.48 £2.07
115	CO26800502501 Available to backorder	Adjustment Nut	£2.48 £2.07
116	CO26800502601 Available to backorder	Locking Nut	£2.48 £2.07
117	CO25100123701 In stock	Cylinder Head Cover Sealing Washer	£2.58 £2.15

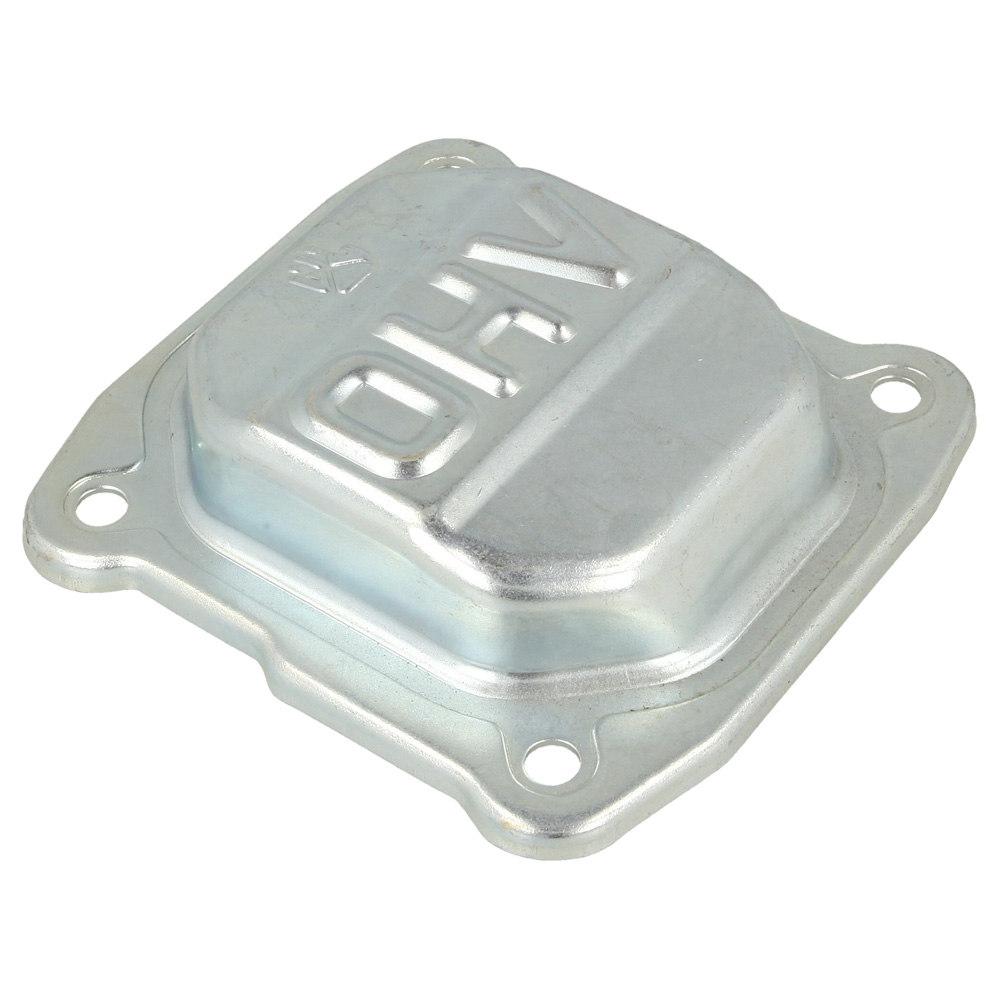

118	CO26300207001 Available to backorder	Cylinder Cover	£2.94 £2.45
120	CO26801102901 In stock	Accelerograph Spring	£2.58 £2.15
121	CO26900102801 Available to backorder	Valve Rod	£2.48 £2.07
122	CO26900108701 Available to backorder	Valve Pushing Pole	£2.48 £2.07
123	CO25100122901 In stock	Cylinder Head And Air Innet Pipe Sealing Washer	£2.58 £2.15
124	CO25100121201 In stock	Air Innet Pipe	£2.58 £2.15
125	CO25100124201 In stock	Airinnet Pipe And Carburetor Sealing Washer	£2.58 £2.15
126	CO23056000901 In stock	Carburetor Assey	£35.34 £29.45
127	CO25600100301 In stock	Empty Filter Sealing Washer	£2.58 £2.15
128	CO26809003101 Available to backorder	Spacer	£2.48 £2.07
129	CO25228700101 Available to backorder	Air Filter Base	£8.05 £6.71

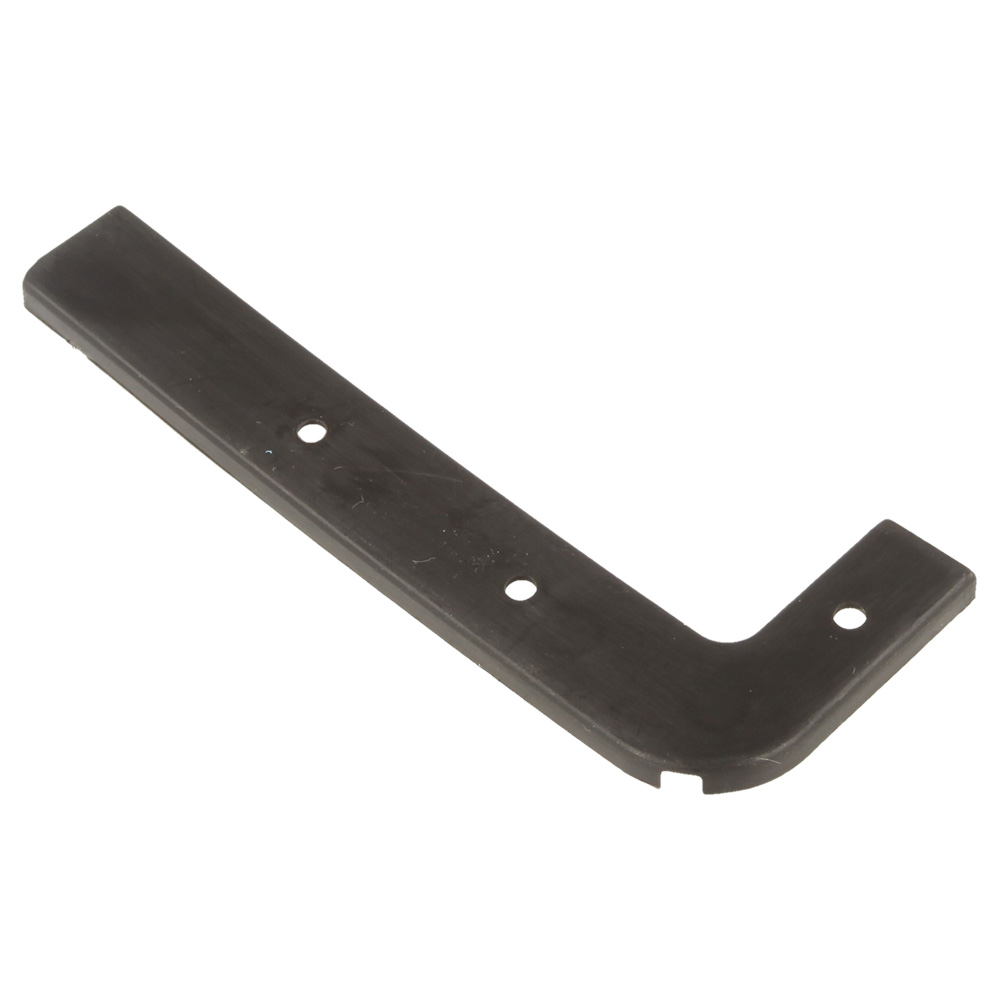

130	CO25228800101 Available to backorder	Air Filter Inner Cover	£2.48 £2.07
131	CO25100134901 In stock	Filter Core Assy	£5.36 £4.47
132	CO25228600101 In stock	Air Filter Upper Cover	£5.77 £4.81
