Cobra DG450 - Engine Main Diagram

Name: Cobra DG450 - Engine Main Diagram
SKU: dg450_engine_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

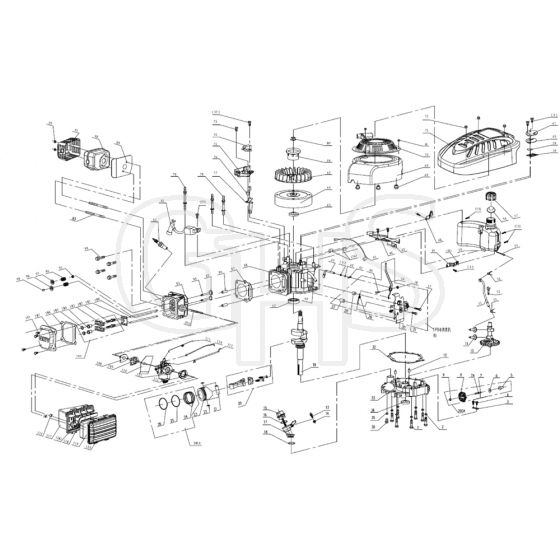

Cobra DG450 Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800607601 Available to backorder	Bolt M6*30	£2.52 £2.10
1	CO60400101304 Available to backorder	Engine	£182.88 £152.40
2	CO26800702501 Available to backorder	Wave Washer Φ6	£2.52 £2.10
3	CO26300210102 Available to backorder	Dualhole Press Plate	£2.52 £2.10
4	CO26800604101 Available to backorder	Bolt M6*12	£2.52 £2.10
5	CO25100121601 Available to backorder	Slide Sheath	£2.52 £2.10
6	CO26800703201 Available to backorder	Slat Washer6Φ6Xφ15X05	£2.52 £2.10
7	CO26900104402 Available to backorder	Speed Adjustment Gear Shaft	£2.52 £2.10
7	CO26800900701 Available to backorder	7A Shaft Steelwire Block Ring	£2.52 £2.10
8	CO23057001301 Available to backorder	Speed Adjustment Gear Assy	£3.84 £3.20
9	CO26800702101 Available to backorder	Flat Washer Φ6 Thickness 08	£2.52 £2.10
10	CO23055000401 Available to backorder	Camshaft Assy	£9.41 £7.84
11	CO26900102301 Available to backorder	Column	£2.52 £2.10
12	CO26809001601 Available to backorder	Position Fixed Pin	£2.52 £2.10
13	CO26800608801 Available to backorder	Bolt M5X20	£2.52 £2.10
14	CO26800503501 Available to backorder	Bolt M5	£2.52 £2.10
15	CO25100121002 Available to backorder	Oil Adding Gauge	£3.46 £2.88
16	CO25100123302 Available to backorder	O Type Sealing Ring 25*31	£2.52 £2.10
17	CO25100121102 Available to backorder	Oil Adding Pipe	£2.52 £2.10
18	CO25100123202 Available to backorder	O Type Sealing Ring 20*24	£2.40 £2.00
19	CO23053001101 Available to backorder	Crank Assy	£41.18 £34.32

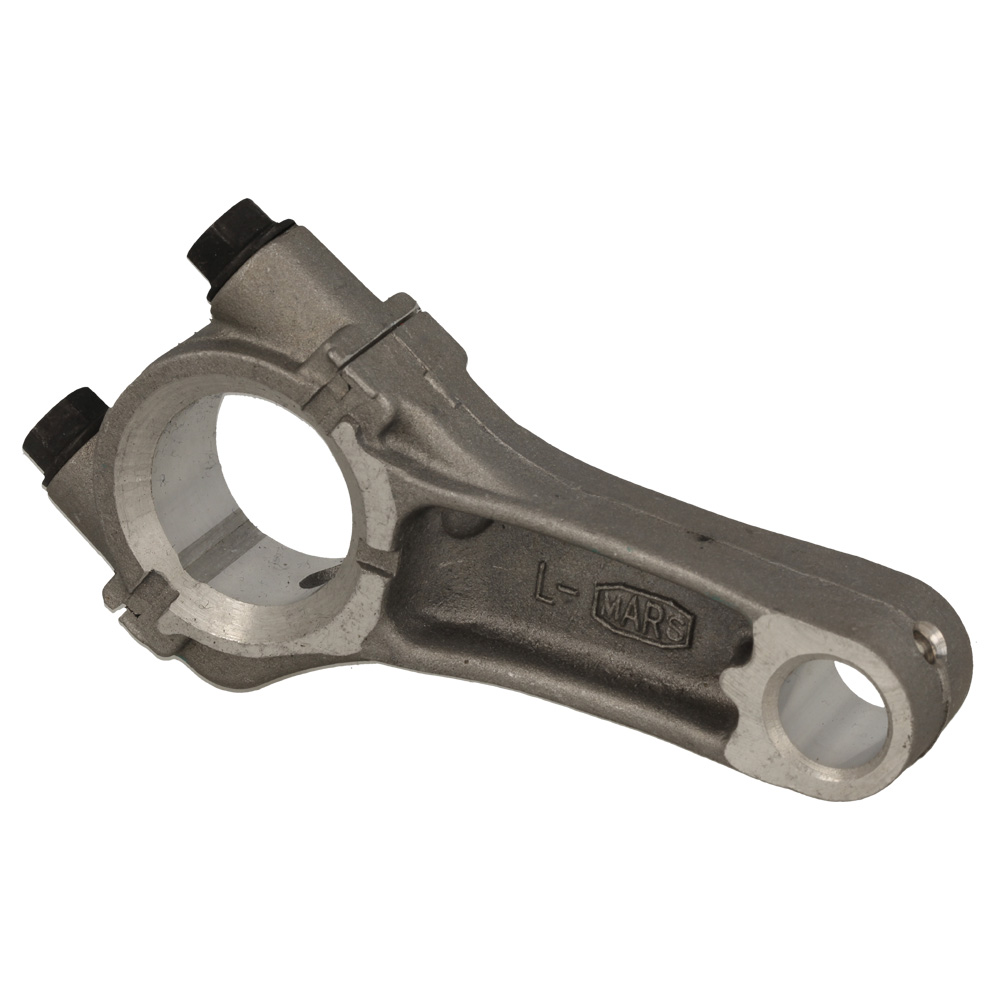

20	CO23054000301 Available to backorder	Link Rod Assy	£14.54 £12.12
21	CO26900102201 Available to backorder	Piston Pin	£2.88 £2.40
22	CO26900102101 Available to backorder	Piston Pin Clip Spring	£2.52 £2.10
27	CO26900103201 Available to backorder	Sheath 1	£2.52 £2.10
28	CO26900103301 Available to backorder	Sheath 2	£2.52 £2.10

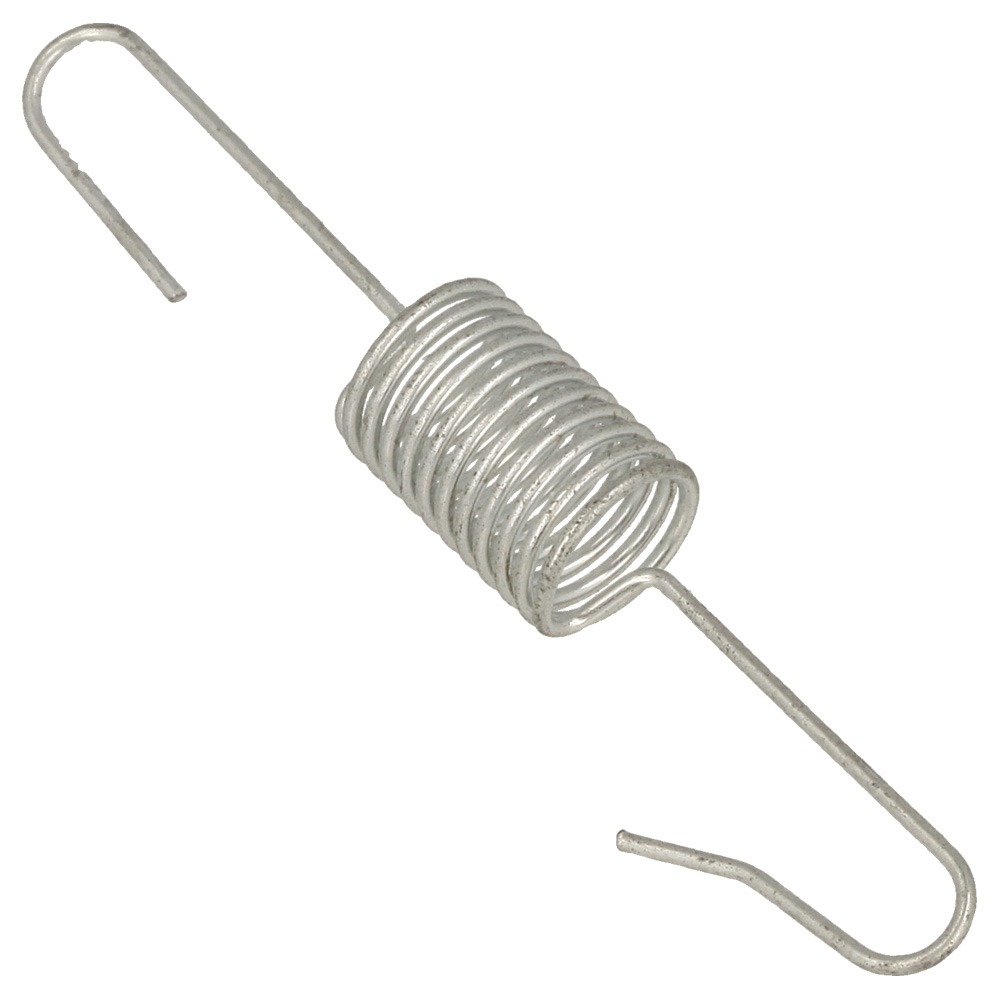

29	CO26801102601 Available to backorder	Speed Adjustment Spring	£2.40 £2.00
30	CO23057001601 Available to backorder	Speed Adjustment Assey	£9.43 £7.86
31	CO26800607701 Available to backorder	Flange Bolt M6*35	£2.62 £2.18
32	CO25600100401 Available to backorder	Box Sealing Washer	£6.52 £5.43
34	CO25100123602 Available to backorder	Oil Sealing Fb25387	£6.05 £5.04
36	CO26300205601 Available to backorder	Oil Outlet Screw Plug	£2.52 £2.10
37	CO26800607801 Available to backorder	Flange Bolt M6*25	£2.52 £2.10
38	CO26800501901 Available to backorder	Flange Nut M6	£1.44 £1.20
39	CO23057000901 Available to backorder	Speed Adjustment Rocker	£2.52 £2.10
40	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.52 £2.10
41	CO26900103401 Available to backorder	Spring Open Pin	£2.52 £2.10
42	CO25100123501 Available to backorder	Oil Sealing Fb6114	£2.52 £2.10
43	CO26900103001 Available to backorder	Speed Adjustment Rod	£2.52 £2.10
44	CO25100135001 Available to backorder	Aerating Pipe	£2.62 £2.18
45	CO23058000402 Available to backorder	Frameout Assey	£2.52 £2.10
47	CO26300215501 Available to backorder	Gasoline Tank Bracket	£7.50 £6.25
48	CO26300215301 In stock	Left Gasoline Tank Bracket	£2.40 £2.00
49	CO26300215401 Available to backorder	Right Gasoline Tank Bracket	£2.40 £2.00
50	CO25800100404 In stock	Fuel Tank	£15.72 £13.10
51	CO25100134803 In stock	Oil Innet Pipe	£5.98 £4.98
52	CO26900102701 Available to backorder	Oil Pipe Clip B	£2.52 £2.10
53	CO26300206401 Available to backorder	Oil Pipe Clip	£2.52 £2.10

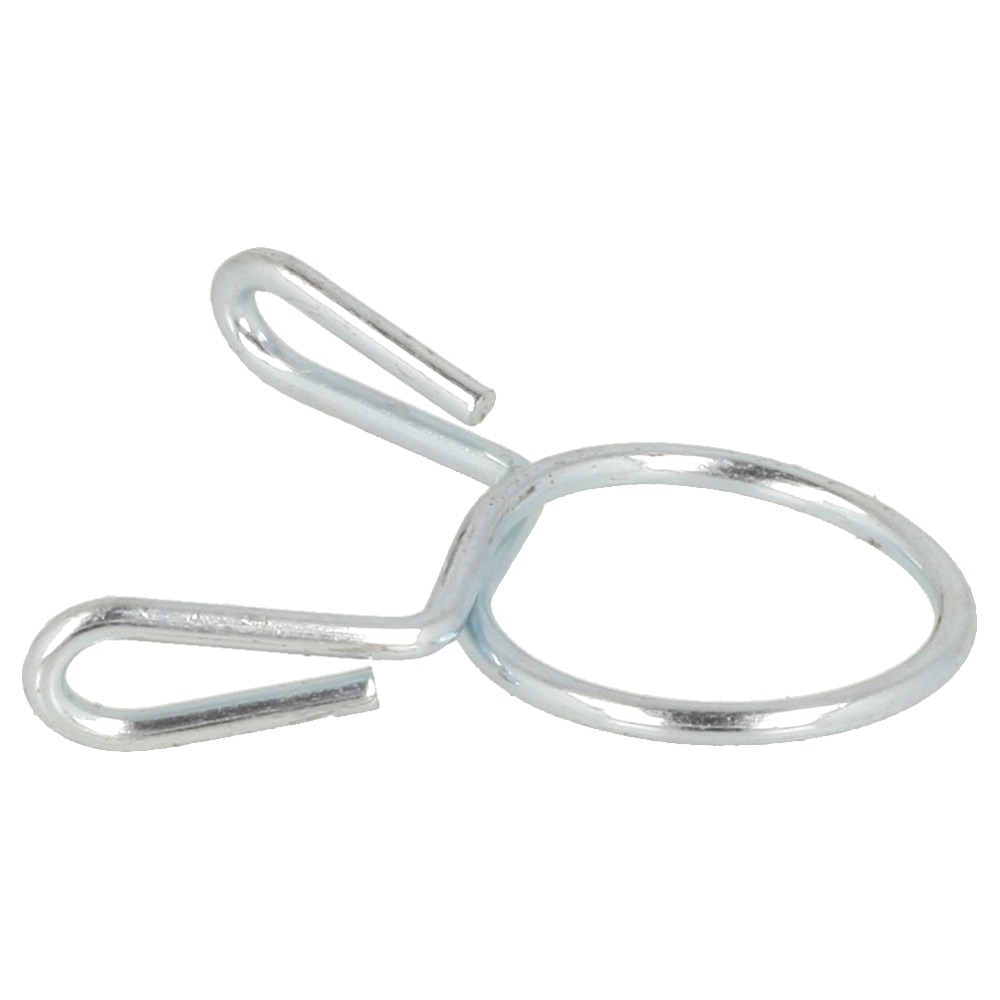

54	CO26900102601 Available to backorder	Oil Pipe Clip A	£2.40 £2.00
55	CO25100125802 Available to backorder	Oilburing Filter Net	£2.52 £2.10

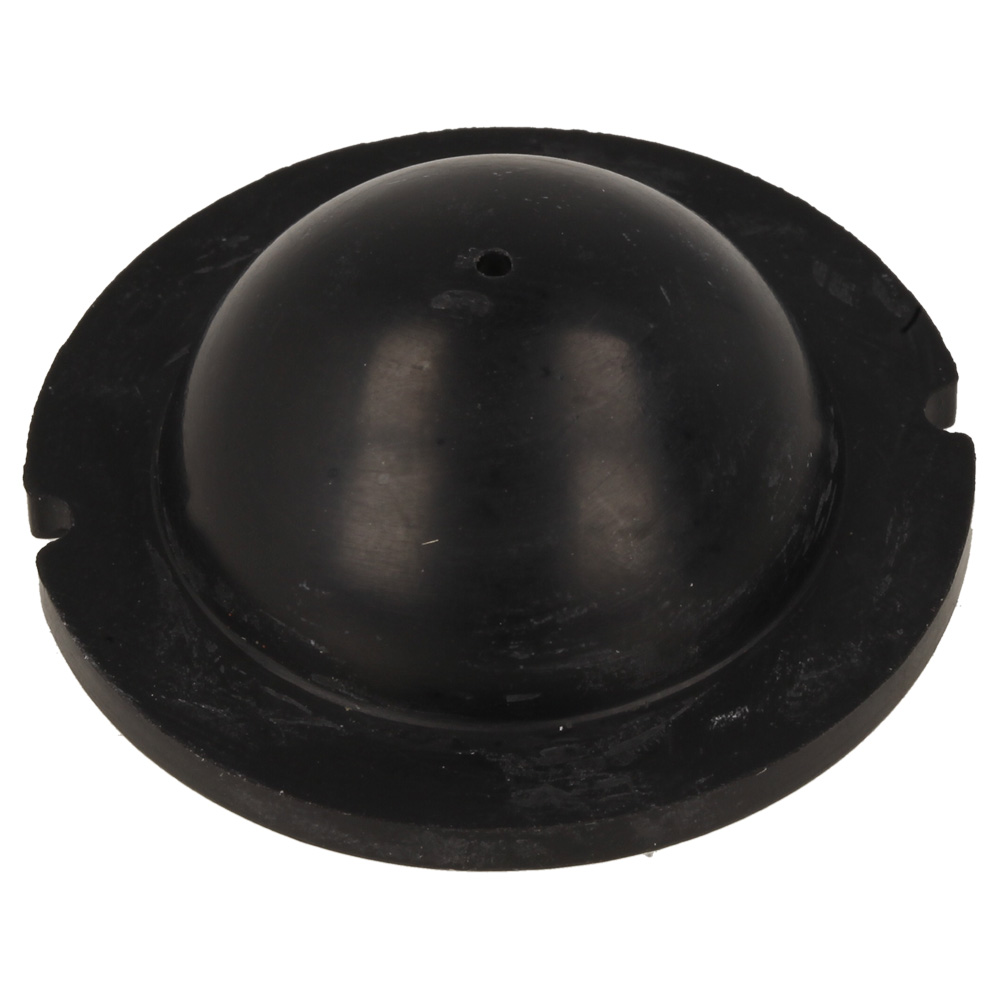

56	CO25100124501 In stock	Tank Cover Sealing Washer	£2.40 £2.00
57	CO25100122702 Available to backorder	Tank Cover	£4.20 £3.50
58	CO26900102001 Available to backorder	Filter Net	£2.52 £2.10
59	CO25100112601 Available to backorder	Breathing Vavle Plate	£2.52 £2.10
60	CO25100123901 Available to backorder	Breathing Sealing Washer	£2.52 £2.10
61	CO23052000501 Available to backorder	Breathing Cover Assy	£2.52 £2.10
62	CO26800400201 Available to backorder	Rolling Bearing 6205 E Grade	£7.10 £5.92
63	CO25100123402 Available to backorder	Oil Sealing Fb22357	£2.88 £2.40
64	CO23061000301 Available to backorder	Cast Iron Flying Wheel Assy	£39.65 £33.04
65	CO25100121901 Available to backorder	Fan	£8.32 £6.93
66	CO26900103701 Available to backorder	Passive Tray	£4.68 £3.90
67	CO26800502701 Available to backorder	Nut M14*15	£2.52 £2.10
68	CO26900103601 Available to backorder	Starting Shell Sheath	£2.52 £2.10
69	CO25218700101 Available to backorder	Wind-Guiding Cover	£9.24 £7.70
70	CO23052002801 In stock	Starter Assey	£23.40 £19.50

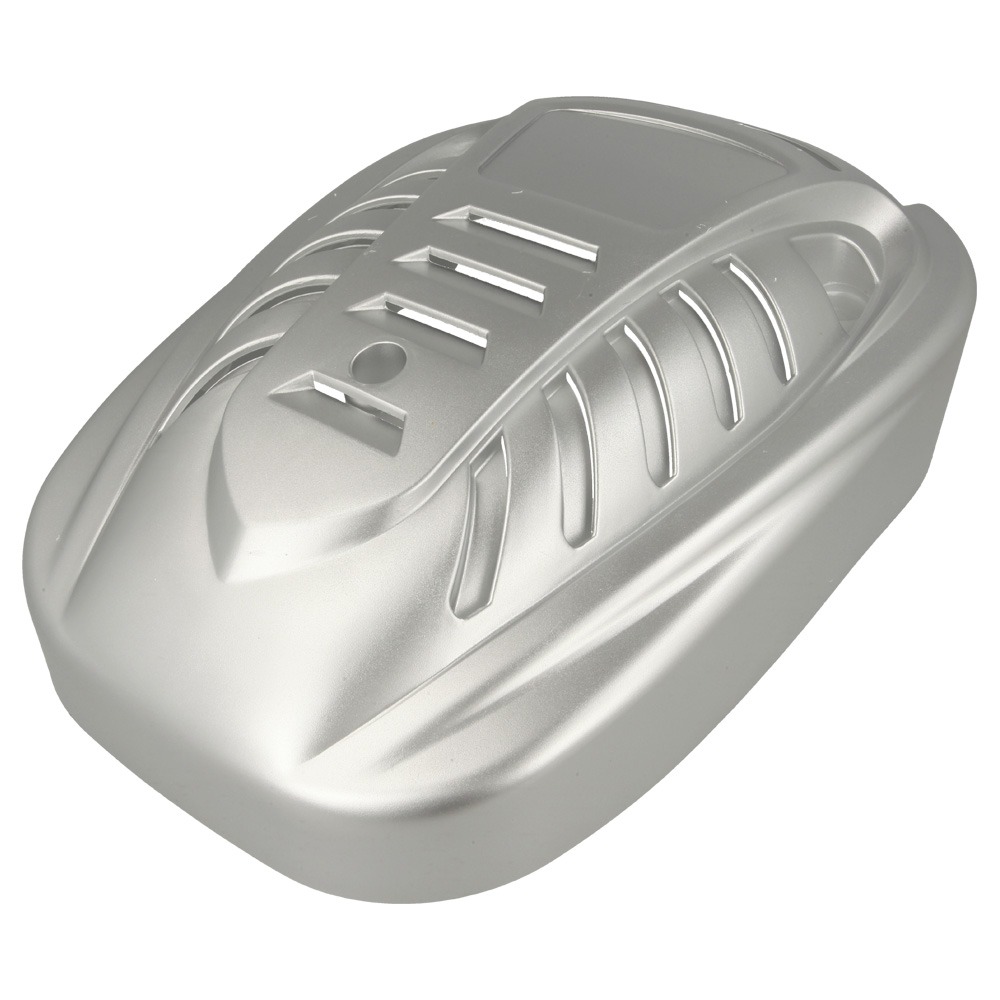

71	CO25219100101 Available to backorder	3# Cover	£10.90 £9.08
72	CO26800501601 Available to backorder	Lid Shape Nut	£2.52 £2.10
73	CO26800608301 Available to backorder	Flange Bolt M6X20	£2.52 £2.10
74	CO23058000202 Available to backorder	Flameout Switch Assey	£5.65 £4.71
75	CO23058000601 Available to backorder	Brake Controller Assey	£5.27 £4.39
76	CO26800703001 Available to backorder	Washer Sheath	£2.52 £2.10
77	CO26300211803 Available to backorder	Oil Adding Pipe Bracket	£2.52 £2.10
80	CO26800502201 Available to backorder	Hexagonal Bolt M6	£2.52 £2.10
81	CO23062000201 In stock	Ignation Assey	£20.04 £16.70
82	4547 In stock	Spark F6Rtc	£1.74 £1.45
84	CO26300206001 Available to backorder	Air Inlet	£5.88 £4.90
85	CO26300206101 Available to backorder	Air Outlet	£5.88 £4.90
86	CO26809001501 Available to backorder	Pisition Fixed Pin	£2.52 £2.10

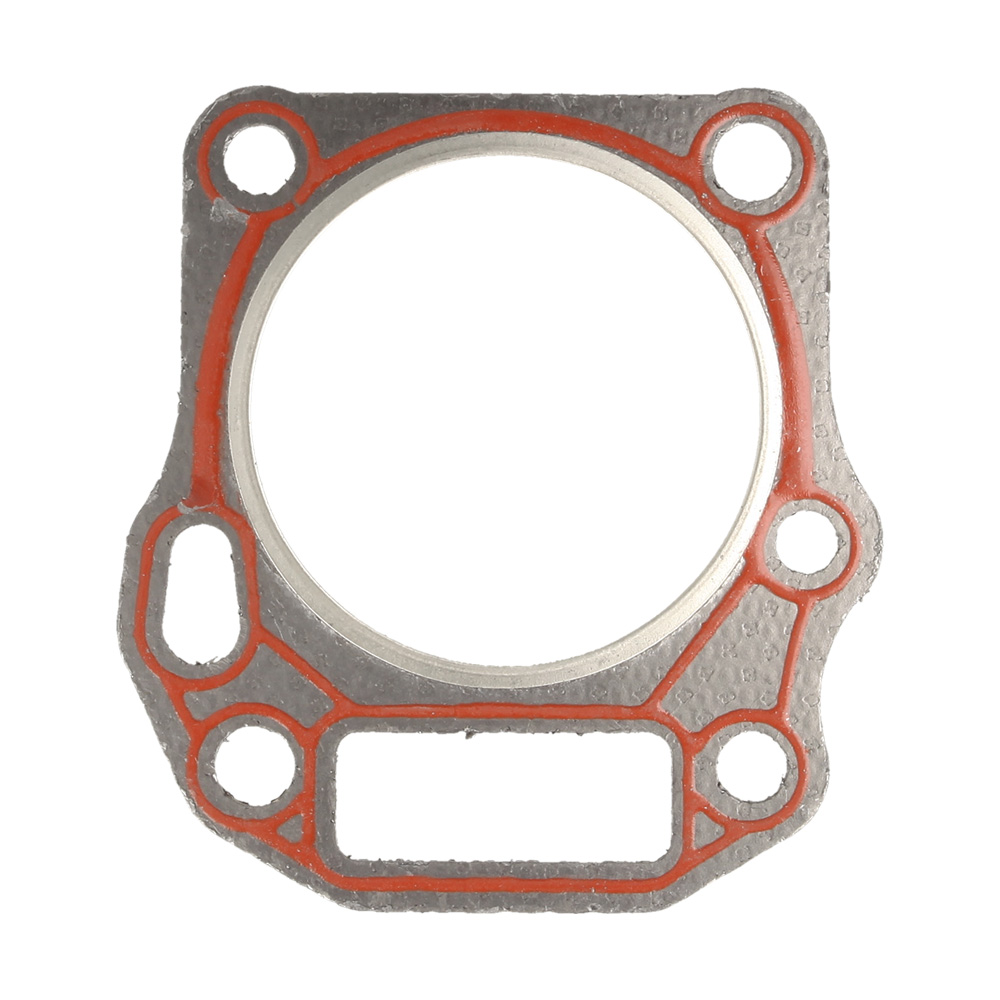

87	CO25600100201 Available to backorder	Cylinder Head Sealing Washer	£7.08 £5.90
89	CO25600100101 Available to backorder	Muffler Sealing Washer	£4.14 £3.45
90	CO23060000901 Available to backorder	Air Discharge And Muffler Assey	£18.25 £15.21
91	CO23060000801 Available to backorder	Muffler Sheath Assey	£6.68 £5.57
92	CO26800502401 Available to backorder	Flange Self-Locking Nut M6	£1.26 £1.05
94	CO26800605001 Available to backorder	Flange Nut M8*45	£2.52 £2.10
95	CO26300207401 Available to backorder	Valve Spring	£2.52 £2.10
96	CO26801103101 Available to backorder	Oil Block Sheath	£2.62 £2.18
97	CO26900102401 Available to backorder	Airinnet Spring Seat	£2.52 £2.10
98	CO26900102501 Available to backorder	Airoutlet Spring Seat	£2.52 £2.10
99	CO26400100801 Available to backorder	Top Cat	£2.52 £2.10
100	CO23055000501 Available to backorder	Pushing Rod Assey	£2.52 £2.10
101	CO26300206301 Available to backorder	Pushing Rod Guidebar	£9.43 £7.86
102	CO26800605401 Available to backorder	Adjustment Bolt	£2.52 £2.10
103	CO26300206201 Available to backorder	Valve Spring Rocker	£2.52 £2.10
104	CO26800502501 Available to backorder	Adjustment Nut	£2.52 £2.10
105	CO26800502601 Available to backorder	Closing Nut	£2.52 £2.10
106	CO25100123701 Available to backorder	Cylinder Head Cover Sealing Washer	£2.40 £2.00
107	CO26300207001 Available to backorder	Cylinder Cover Cylinder Head And Air Innet Pipe	£2.99 £2.49
108	CO25100122901 Available to backorder	Sealing Washer	£2.40 £2.00
109	CO25100121201 Available to backorder	Air Innet Pipe	£2.40 £2.00
110	CO25100124201 In stock	Airinnet Pipe And Carburetor Sealing Washer	£2.40 £2.00
111	CO23056000901 In stock	Carburetor Assey	£32.98 £27.48
112	CO25600100301 Available to backorder	Empty Filer Sealing Washer	£2.40 £2.00
113	CO26801102901 Available to backorder	Accelerograph Spring	£2.40 £2.00
114	CO26900102801 Available to backorder	Valve Rod	£2.52 £2.10
115	CO26900108701 Available to backorder	Valve Pushing Pole	£2.52 £2.10
116	CO26809003101 Available to backorder	Air Filter Sheath	£2.62 £2.18
117	CO25228700101 Available to backorder	Air Filter Base	£7.78 £6.48
118	CO25228800101 Available to backorder	Air Filter Inner Cover	£2.52 £2.10
119	CO25100134901 In stock	Air Filter Core	£5.04 £4.20
120	CO25228600101 In stock	Air Filter Upper Cover	£5.40 £4.50
201	CO23054000801 Available to backorder	201A Piston Ring Assy	£10.30 £8.58
