Cobra DG350V - Engine Euro V Main Diagram

Description

Cobra DG350V Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	CO60400107603 Available to backorder	Dg350 Eu-V Engine	£154.56 £128.80
1	CO26800607701 Available to backorder	Hexagonal Flange Bolt M6*35	£2.62 £2.18
2	CO26800612101 Available to backorder	Hexagonal Flange Bolt M6*40	£2.52 £2.10
3	CO2032300088A Available to backorder	Speed Adjustment Gear Assy	£3.38 £2.82
4	CO26300223101 Available to backorder	Press Board	£2.52 £2.10
5	CO26800604101 Available to backorder	Hexagonal Flange Bolt- Big Series	£2.52 £2.10
6	CO2032300087A Available to backorder	Nylon Camshaft	£9.13 £7.61
7	CO26900109201 Available to backorder	Tappet Valve	£2.52 £2.10
8	CO25100137602 Available to backorder	O Type Ring	£2.52 £2.10
9	CO25235100102 Available to backorder	Oil Adding Pipe	£2.52 £2.10
10	CO25100123303 Available to backorder	O Type Ring	£2.40 £2.00
11	CO25235200101 Available to backorder	Oil Dipstick	£3.64 £3.03
12	CO26800611201 Available to backorder	Hexagonal Flange Bolt	£2.62 £2.18
13	CO2031600064A Available to backorder	Crankcase Cover Gasket	£3.38 £2.82
14	CO2031600017A Available to backorder	Rubber Washer	£2.52 £2.10
15	CO26809003501 Available to backorder	Position Fixed Pin	£2.52 £2.10
17	CO25100123402 Available to backorder	Oil Sealing	£2.88 £2.40
18	CO26300225901 Available to backorder	Drain Plug Washer	£2.52 £2.10
19	CO26300205601 Available to backorder	Oil Drain Plug	£2.52 £2.10
20	CO2032300009A Available to backorder	Piston Ring Assy	£11.51 £9.59
21	CO26900109001 Available to backorder	Piston Pin Clip Spring	£2.52 £2.10
22	CO2032300008A Available to backorder	Piston	£11.51 £9.59
23	CO26900108901 Available to backorder	Piston Pin	£2.66 £2.22
24	CO23054001503 Available to backorder	Connecting Rod Assy	£11.93 £9.94
25	CO23053001101 Available to backorder	Crankshaft Assy	£41.18 £34.32
26	CO26809003901 Available to backorder	Semicircle Key	£2.40 £2.00
27	CO26800401101 Available to backorder	Ball Bearing	£5.65 £4.71
28	CO26300211501 Available to backorder	Air Filter Sheath	£2.52 £2.10
29	CO26300220001 Available to backorder	Spring Board	£2.52 £2.10
30	CO26300220501 Available to backorder	Speed Adjustment Board	£2.52 £2.10
31	CO26800501901 Available to backorder	Hexagonal Flange Nut	£1.44 £1.20
32	CO26300220401 Available to backorder	Speed Adjustment Rocker	£2.52 £2.10
33	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.52 £2.10
34	CO26801110701 In stock	Speed Adjustment Spring	£2.40 £2.00
35	CO26900103401 Available to backorder	Spring Open Pin	£2.52 £2.10
36	CO25100135802 Available to backorder	Oil Sealing	£2.52 £2.10
37	CO26800702101 Available to backorder	Washer	£2.52 £2.10
38	CO26900109501 Available to backorder	Speed Adjustment Rod	£2.40 £2.00
39	CO2031100008A Available to backorder	Breathing Valve Plate	£2.52 £2.10
40	CO2031600021A Available to backorder	Breathing Sealing Washer	£2.52 £2.10
41	CO2031300102A Available to backorder	Breathing Cover	£2.52 £2.10
42	CO26300151201 Available to backorder	Protecting Board 2	£2.52 £2.10
43	CO26300219801 Available to backorder	Left Fuel Tank Bracket	£2.40 £2.00
44	CO26300220301 Available to backorder	Fuel Tank Bracket	£2.86 £2.38
45	CO26300219901 Available to backorder	Right Fuel Tank Bracket	£2.52 £2.10
46	CO26800502401 Available to backorder	Hexagonal Flange Locking Nut M6	£1.26 £1.05
47	CO25100151101 Available to backorder	Fuel Hose	£5.98 £4.98
48	CO26900108001 Available to backorder	Fuel Hose Clamp B	£2.40 £2.00
49	CO26900107901 Available to backorder	Fuel Hose Clamp A	£2.52 £2.10
50	CO25100131401 In stock	Fuel Filter	£2.40 £2.00
51	CO26800608001 Available to backorder	Hexagonal Flange Bolt M6*16	£2.52 £2.10
52	CO25800100703 Available to backorder	Fuel Tank	£11.11 £9.26
53	CO25100141901 Available to backorder	Fuel Tank Sealing Washer	£2.52 £2.10
54	CO25234100102 Available to backorder	Fuel Tank Cap	£2.40 £2.00
55	CO26800617701 Available to backorder	Double Head Screw B	£2.52 £2.10
56	CO26800617801 Available to backorder	Double Head Screw C	£2.52 £2.10
57	CO26800617601 Available to backorder	Double Head Screw A	£2.52 £2.10
58	CO25100135902 Available to backorder	Oil Sealing	£2.52 £2.10
59	CO23061001101 Available to backorder	Flywheel	£27.70 £23.08

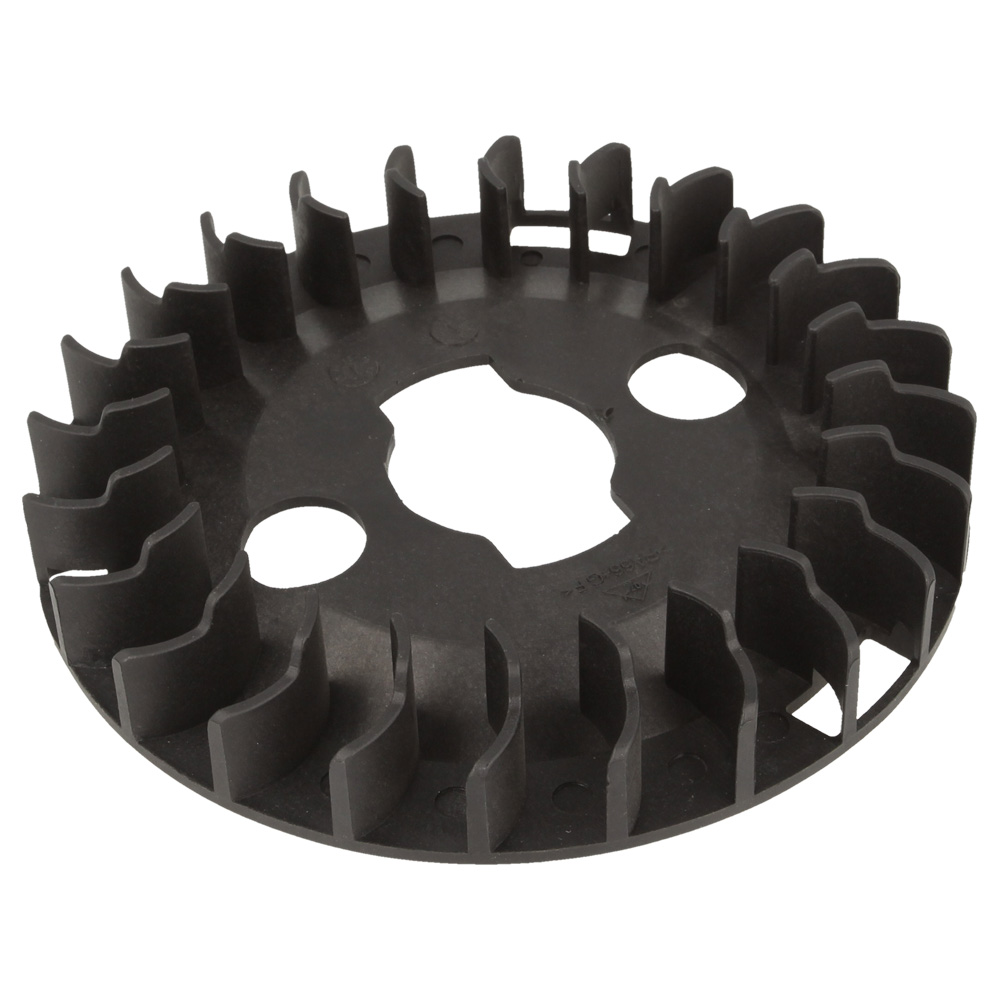

60	CO25235000101 Available to backorder	Fan	£12.12 £10.10
61	CO26900109301 Available to backorder	Start Cup	£4.92 £4.10
62	CO26800610501 Available to backorder	Hexagonal Falange Nut M12*125	£2.52 £2.10
63	CO26300211601 Available to backorder	Wind-Guiding Cover	£2.40 £2.00
64	CO2030200003A In stock	Starter Assy	£20.88 £17.40
65	CO25247500102 Available to backorder	Engine Cover	£10.90 £9.08
66	CO26800501603 Available to backorder	Cap Nut	£1.20 £1.00
67	CO26800612201 Available to backorder	Hexagonal Flange Bolt	£2.40 £2.00
68	CO2038900018B Available to backorder	Ignition Assy	£20.24 £16.87
69	CO26801113701 Available to backorder	Controller Spring	£2.52 £2.10
70	CO23058001201 In stock	Brake Controller Assy	£9.00 £7.50
71	CO26300149901 Available to backorder	Protecting Board 1	£2.52 £2.10
72	CO26800201002 Available to backorder	Machine Screw	£1.20 £1.00
74	CO25100135601 Available to backorder	Cylinder Head Gasket	£5.48 £4.57
75	CO26809001501 Available to backorder	Pisition Fixed Pin	£2.52 £2.10
76	CO26300219301 Available to backorder	Exhaust Valve	£5.99 £4.99
77	CO26300219401 Available to backorder	Intake Valve	£5.12 £4.27
79	CO26800610103 Available to backorder	Carburetor Bolt	£2.80 £2.33
80	CO2037200019B Available to backorder	Muffler Sealing Washer	£3.32 £2.77
81	CO2037500001A Available to backorder	Muffler Assy	£18.76 £15.63
82	CO23060001101 Available to backorder	Muffler Guard Assy	£5.71 £4.76
83	2688 In stock	Spark Plug	Was £1.44 £1.20 Special Price £1.07 £0.89
84	CO26800605001 Available to backorder	Hexagonal Flange Bolt	£2.52 £2.10
85	CO26801112001 Available to backorder	Valve Spring	£2.52 £2.10
86	CO26900109101 Available to backorder	Valve Spring Retainer	£2.52 £2.10
87	CO26300219501 Available to backorder	Pushing Rod Assy	£2.52 £2.10
88	CO26300219602 Available to backorder	Pushing Rod Guide Plate	£9.43 £7.86
89	CO26800605401 Available to backorder	Adjustment Bolt	£2.52 £2.10
90	CO26300206201 Available to backorder	Rocker Arm	£2.52 £2.10
91	CO26800503901 Available to backorder	Adjustment Nut	£2.52 £2.10
92	CO26800504001 Available to backorder	Lock Nut	£2.52 £2.10
93	CO25100135701 Available to backorder	Cylinder Head Cover Gasket	£2.62 £2.18
94	CO26300218702 Available to backorder	Cylinder Head Cover	£4.70 £3.92
95	CO2036600014B Available to backorder	Intake Gasket	£2.40 £2.00
96	CO2036100009A Available to backorder	Inlet Air Pipe	£2.40 £2.00
97	CO2036600012B In stock	Carburetor Gasket	£2.40 £2.00
98	CO26300220101 Available to backorder	Throttle Valve Pulling Pole	£2.40 £2.00
99	CO26801110601 Available to backorder	Spring	£2.40 £2.00
100	CO2036400003A In stock	Carburetor Assy	£32.96 £27.47
101	CO2036600013B Available to backorder	Air Cleaner Gasket	£2.40 £2.00
103	CO26809003101 Available to backorder	Gasket Cover	£2.62 £2.18
104	CO20361000290001C Available to backorder	Air Filter Base	£2.52 £2.10
105	CO20361000300001B Available to backorder	Air Filter Inner Cover	£2.52 £2.10
106	CO25100137001 In stock	Foam Core	£5.04 £4.20
107	CO25234400101 In stock	Air Filter Upper Cover	£5.38 £4.48
108	CO25100135002 Available to backorder	Breather Hose	£2.52 £2.10
