Cobra DG350 EU-V - 98.5cc OHV Engine Feb 2019 Main Diagram

Description

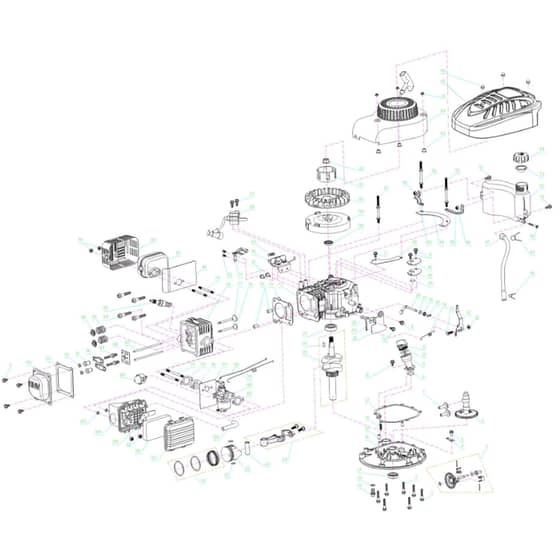

Cobra DG350 EU-V Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800607701 Out of stock	Hexagonal Flange Bolt M6*35	£2.52 £2.10
2	CO26800612101 Out of stock	Hexagonal Flange Bolt M6*40	£2.52 £2.10
3	CO2032300088A Out of stock	Speed Adjustment Gear Assy	£3.38 £2.82
4	CO26300223101 Out of stock	Press Board	£2.52 £2.10
5	CO26800604101 Out of stock	Hexagonal Flange Bolt- Big Series	£2.52 £2.10
6	CO2032300087A Out of stock	Nylon Camshaft	£9.13 £7.61
7	CO26900109201 Out of stock	Tappet Valve	£2.52 £2.10
8	CO25100137602 Out of stock	O Type Ring	£2.52 £2.10
9	CO25235100102 Out of stock	Oil Adding Pipe	£2.52 £2.10
10	CO25100123303 Out of stock	O Type Ring	£2.52 £2.10
11	CO25235200101 Out of stock	Oil Dipstick	£3.64 £3.03
12	CO26800611201 Out of stock	Hexagonal Flange Bolt	£2.52 £2.10
13	CO2031600064A Out of stock	Crankcase Cover Gasket	£3.38 £2.82
14	CO2031600017A Out of stock	Rubber Washer	£2.52 £2.10
15	CO26809003501 Out of stock	Position Fixed Pin	£2.52 £2.10
17	CO25100123402 Out of stock	Oil Sealing	£2.88 £2.40
18	CO26300225901 Out of stock	Drain Plug Washer	£2.52 £2.10
19	CO26300205601 Out of stock	Oil Drain Plug	£2.52 £2.10
20	CO2032300009A Out of stock	Piston Ring Assy	£11.51 £9.59
21	CO26900109001 Out of stock	Piston Pin Clip Spring	£2.52 £2.10
22	CO2032300008A Out of stock	Piston	£11.51 £9.59
23	CO26900108901 Out of stock	Piston Pin	£2.66 £2.22
24	CO23054001503 Out of stock	Connecting Rod Assy	£11.93 £9.94
25	CO23053001101 Out of stock	Crankshaft Assy	£41.18 £34.32
26	CO26809003901 Out of stock	Semicircle Key	£2.52 £2.10
27	CO26800401101 Out of stock	Ball Bearing	£5.65 £4.71
28	CO26300211501 Out of stock	Air Filter Sheath	£2.52 £2.10
29	CO26300220001 Out of stock	Spring Board	£2.52 £2.10
30	CO26300220501 Out of stock	Speed Adjustment Board	£2.52 £2.10
31	CO26800501901 Out of stock	Hexagonal Flange Nut	£1.26 £1.05
32	CO26300220401 Out of stock	Speed Adjustment Rocker	£2.52 £2.10
33	CO26800301101 Out of stock	Speed Adjustment Screw	£2.52 £2.10
34	CO26801110701 Out of stock	Speed Adjustment Spring	£2.52 £2.10
35	CO26900103401 Out of stock	Spring Open Pin	£2.52 £2.10
36	CO25100135802 Out of stock	Oil Sealing	£2.52 £2.10
37	CO26800702101 Out of stock	Washer	£2.52 £2.10
38	CO26900109501 Out of stock	Speed Adjustment Rod	£2.52 £2.10
39	CO2031100008A Out of stock	Breathing Valve Plate	£2.52 £2.10
40	CO2031600021A Out of stock	Breathing Sealing Washer	£2.52 £2.10
41	CO2031300102A Out of stock	Breathing Cover	£2.52 £2.10
42	CO26300151201 Out of stock	Protecting Board 2	£2.52 £2.10
43	CO26300219801 Out of stock	Left Fuel Tank Bracket	£2.52 £2.10
44	CO26300220301 Out of stock	Fuel Tank Bracket	£2.86 £2.38
45	CO26300219901 Out of stock	Right Fuel Tank Bracket	£2.52 £2.10
46	CO26800502401 Out of stock	Hexagonal Flange Locking Nut M6	£1.26 £1.05
47	CO25100151101 Out of stock	Fuel Hose	£6.28 £5.23
48	CO26900108001 Out of stock	Fuel Hose Clamp B	£2.52 £2.10
49	CO26900107901 Out of stock	Fuel Hose Clamp A	£2.52 £2.10
50	CO25100131401 Out of stock	Fuel Filter	£2.52 £2.10
51	CO26800608001 Out of stock	Hexagonal Flange Bolt M6*16	£2.52 £2.10
52	CO25800100703 Out of stock	Fuel Tank	£11.11 £9.26
53	CO25100141901 Out of stock	Fuel Tank Sealing Washer	£2.52 £2.10
54	CO25234100102 Out of stock	Fuel Tank Cap	£2.52 £2.10
55	CO26800617701 Out of stock	Double Head Screw B	£2.52 £2.10
56	CO26800617801 Out of stock	Double Head Screw C	£2.52 £2.10
57	CO26800617601 Out of stock	Double Head Screw A	£2.52 £2.10
58	CO25100135902 Out of stock	Oil Sealing	£2.52 £2.10
59	CO23061001101 Out of stock	Flywheel	£27.70 £23.08
60	CO25235000101 Out of stock	Fan	£12.66 £10.55
61	CO26900109301 Out of stock	Start Cup	£4.92 £4.10
62	CO26800610501 Out of stock	Hexagonal Flange Nut M12*125	£2.52 £2.10
63	CO26300211601 Out of stock	Wind-Guiding Cover	£2.52 £2.10
64	CO2030200003A In stock	Starter Assy	£21.90 £18.25
65	CO25247500102 Out of stock	Engine Cover	£10.90 £9.08
66	CO26800501603 Out of stock	Cap Nut	£1.26 £1.05
67	CO26800612201 Out of stock	Hexagonal Flange Bolt	£2.52 £2.10
68	CO2038900018B Out of stock	Ignition Assy	£20.24 £16.87
69	CO26801113701 Out of stock	Controller Spring	£2.52 £2.10
70	CO23058001201 Out of stock	Brake Controller Assy	£9.43 £7.86
71	CO26300149901 Out of stock	Protecting Board 1	£2.52 £2.10
72	CO26800201002 Out of stock	Machine Screw	£1.26 £1.05
74	CO25100135601 Out of stock	Cylinder Head Gasket	£5.48 £4.57
75	CO26809001501 Out of stock	Pisition Fixed Pin	£2.52 £2.10
76	CO26300219301 Out of stock	Exhaust Valve	£5.99 £4.99
77	CO26300219401 Out of stock	Intake Valve	£5.12 £4.27
79	CO26800610103 Out of stock	Carburetor Bolt	£2.80 £2.33
80	CO2037200019B Out of stock	Muffler Sealing Washer	£3.32 £2.77
81	CO2037500001A Out of stock	Muffler Assy	£18.76 £15.63
82	CO23060001101 Out of stock	Muffler Guard Assy	£5.71 £4.76
83	2688 In stock	Spark Plug	Was £2.90 £2.42 Special Price £1.45 £1.21
84	CO26800605001 Out of stock	Hexagonal Flange Bolt	£2.52 £2.10
85	CO26801112001 Out of stock	Valve Spring	£2.52 £2.10
86	CO26900109101 Out of stock	Valve Spring Retainer	£2.52 £2.10
87	CO26300219501 Out of stock	Pushing Rod Assy	£2.52 £2.10
88	CO26300219602 Out of stock	Pushing Rod Guide Plate	£9.43 £7.86
89	CO26800605401 Out of stock	Adjustment Bolt	£2.52 £2.10
90	CO26300206201 Out of stock	Rocker Arm	£2.52 £2.10
91	CO26800503901 Out of stock	Adjustment Nut	£2.52 £2.10
92	CO26800504001 Out of stock	Lock Nut	£2.52 £2.10
93	CO25100135701 Out of stock	Cylinder Head Cover Gasket	£2.52 £2.10
94	CO26300218702 Out of stock	Cylinder Head Cover	£4.70 £3.92
95	CO2036600014B Out of stock	Intake Gasket	£2.52 £2.10
96	CO2036100009A Out of stock	Inlet Air Pipe	£2.52 £2.10
97	CO2036600012B Out of stock	Carburetor Gasket	£2.52 £2.10
98	CO26300220101 Out of stock	Throttle Valve Pulling Pole	£2.52 £2.10
99	CO26801110601 Out of stock	Spring	£2.52 £2.10
100	CO2036400003A Out of stock	Carburetor Assy	£34.61 £28.84
101	CO2036600013B Out of stock	Air Cleaner Gasket	£2.52 £2.10
103	CO26809003101 Out of stock	Gasket Cover	£2.52 £2.10
104	CO20361000290001C Out of stock	Air Filter Base	£2.52 £2.10
105	CO20361000300001B Out of stock	Air Filter Inner Cover	£2.52 £2.10
106	CO25100137001 In stock	Foam Core	£5.26 £4.38
107	CO25234400101 In stock	Air Filter Upper Cover	£5.65 £4.71
108	CO25100135002 Out of stock	Breather Hose	£2.52 £2.10
