Cobra DG350 (AIRMOW VERSION) - Engine Main Diagram

Description

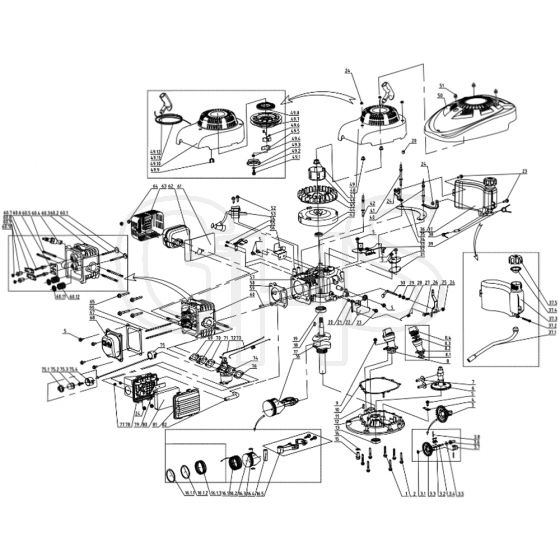

Cobra DG350 (AIRMOW VERSION) Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800607701 Available to backorder	Hexagonal Flange Bolt	£2.62 £2.18
2	CO26800612101 Available to backorder	Hexagonal Flange Bolt	£2.52 £2.10
3	CO26800900701 Available to backorder	Shaft Steelwire Block Ring	£2.52 £2.10
3	CO26800702101 Available to backorder	Washer	£2.52 £2.10
4	CO26800703201 Available to backorder	Flat Washer	£2.52 £2.10
4	CO25100121601 Available to backorder	Slide Sheath	£2.52 £2.10
4	CO26300223101 Available to backorder	Press Board	£2.52 £2.10
5	CO26800604101 Available to backorder	Hexagonal Flange Bolt	£2.52 £2.10
6	CO23055001001 Available to backorder	Nylon Protuberant Shaft Assey	£9.41 £7.84
7	CO26900109201 Available to backorder	Column	£2.52 £2.10
8	CO25235100102 Available to backorder	Oil Adding Pipe	£2.52 £2.10
8	CO25235200101 Available to backorder	Oil Adding Gauge	£3.64 £3.03
8	CO25100123303 Available to backorder	O Type Ring	£2.40 £2.00
8	CO25100137602 Available to backorder	O Type Ring	£2.52 £2.10
9	CO26800611201 Available to backorder	Flanged Bolts	£2.62 £2.18
10	CO25600101501 Available to backorder	Box Sealing Washer	£2.82 £2.35
11	CO26809003501 Available to backorder	Position Fixed Pin	£2.52 £2.10
14	CO26300225901 Available to backorder	Oil Outlet Washer	£2.52 £2.10
15	CO26300205601 Available to backorder	Oil Outlet Screw Plug	£2.52 £2.10
16	CO26900108901 Available to backorder	Piston Pin	£2.66 £2.22
16	CO26900109001 Available to backorder	Piston Pin Clip Spring	£2.52 £2.10
17	CO23054001503 Available to backorder	Rod Assy	£11.93 £9.94
18	CO26809003901 Available to backorder	Semicircle Key	£2.40 £2.00
19	CO26800401101 Available to backorder	Rolling Bearing 6203/P63	£5.65 £4.71
20	CO26300211501 Available to backorder	Air Filter Sheath	£2.52 £2.10
21	CO26300220001 Available to backorder	Spring Board	£2.52 £2.10
22	CO26300220501 Available to backorder	Speed Adjustment Board	£2.52 £2.10
23	CO26800608001 Available to backorder	Flanged Bolts	£2.52 £2.10
24	CO26800501901 Available to backorder	Hexagonal Flange Nut	£1.44 £1.20
25	CO26300220401 Available to backorder	Speed Adjustment Rocker	£2.52 £2.10
26	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.52 £2.10
27	CO26801110701 In stock	Speed Adjustment Spring	£2.40 £2.00
28	CO26900103401 Available to backorder	Spring Open Pin	£2.52 £2.10
29	CO25100135802 Available to backorder	Oil Sealing	£2.52 £2.10
30	CO26900109501 Available to backorder	Speed Adjustment Rod	£2.40 £2.00
32	CO26300257901 Available to backorder	Breathing Cover Assy	£2.52 £2.10
33	CO23058003901 Available to backorder	Brake Assembly	£24.16 £20.13
34	CO26300219801 Available to backorder	Left Gasoline Tank Bracket	£2.40 £2.00
35	CO26300220301 Available to backorder	Gasoline Tank Bracket	£2.86 £2.38
36	CO26300219901 Available to backorder	Right Gasoline Tank Bracket	£2.52 £2.10
37	CO25100131401 In stock	Filter Net	£2.40 £2.00
37	CO25100141901 Available to backorder	Oil Tank Sealing Washer	£2.52 £2.10
37	CO25800100701 Available to backorder	Tank Cover	£15.73 £13.11
37	CO25100151101 Available to backorder	Inner Oil Tube	£5.98 £4.98
38	CO26900108001 Available to backorder	Oil Pipe Clip B	£2.40 £2.00
38	CO25234100101 Available to backorder	Oil Tank Cover	£4.18 £3.48
39	CO26900107901 Available to backorder	Oil Pipe Clip A	£2.52 £2.10
40	CO26800617701 Available to backorder	Double Head Screw B	£2.52 £2.10
41	CO26800617801 Available to backorder	Double Head Screw C	£2.52 £2.10
42	CO26800617601 Available to backorder	Double Head Screw A	£2.52 £2.10
43	CO25100135902 Available to backorder	Oil Sealing	£2.52 £2.10
45	CO25235000101 Available to backorder	Fan	£12.12 £10.10
46	CO26900109301 Available to backorder	Passive Tray	£4.92 £4.10
47	CO26800610501 Available to backorder	Hexagonal Falange Bolt	£2.52 £2.10
48	CO26300211601 Available to backorder	Wind-Guiding Cover	£2.40 £2.00
49	CO23062004902 Available to backorder	Starter Assey	£20.98 £17.48
51	CO26800501603 Available to backorder	Lid Shape Nut	£1.20 £1.00
52	CO26800612201 Available to backorder	Hexagonal Flange Bolt	£2.40 £2.00
53	CO23062004803 In stock	Ignation Assey	£17.60 £14.67
54	CO26800201002 Available to backorder	Tooth Screw	£1.20 £1.00
55	CO26300149901 Available to backorder	Protecting Board 1	£2.52 £2.10
58	CO25100135601 Available to backorder	Cylinder Head Sealing Washer	£5.48 £4.57
59	CO26809001501 Available to backorder	Pisition Fixed Pin	£2.52 £2.10
60	CO26300219401 Available to backorder	Air Inlet	£5.12 £4.27
60	CO26900109101 Available to backorder	Valve Spring Seat	£2.52 £2.10
60	2688 In stock	Spark Plug F7Rtc Dym1P70Fa	Was £1.44 £1.20 Special Price £1.07 £0.89
60	CO26300219301 Available to backorder	Air Outlet	£5.99 £4.99
60	CO26801112001 Available to backorder	Valve Spring	£2.52 £2.10
60	CO26800504001 Available to backorder	Closing Nut	£2.52 £2.10
61	CO26300206201 Available to backorder	Valve Spring Rocker	£2.52 £2.10
61	CO25100137101 Available to backorder	Cylinder Sealing Washer	£3.24 £2.70
61	CO26800503901 Available to backorder	Adjustment Nut	£2.52 £2.10
61	CO26300219602 Available to backorder	Pushing Rod Guidebar	£9.43 £7.86
61	CO26800605401 Available to backorder	Adjustment Bolt	£2.52 £2.10
61	CO26800610103 Available to backorder	Carburetor Bolt	£2.80 £2.33
62	CO23060001002 Available to backorder	Muffler Assey	£18.11 £15.09
63	CO23060001101 Available to backorder	Muffler Protecting Assy	£5.71 £4.76
64	CO26800502401 Available to backorder	Hexagonal Flange Locking Nut	£1.26 £1.05
65	CO26800605001 Available to backorder	Hexagonal Flange Bolt	£2.52 £2.10
66	CO26300219501 Available to backorder	Pushing Rod Assey	£2.52 £2.10
67	CO25100135701 Available to backorder	Cylinder Head Cover Sealing Washer	£2.62 £2.18
68	CO26300218702 Available to backorder	Cylinder Cover	£4.70 £3.92

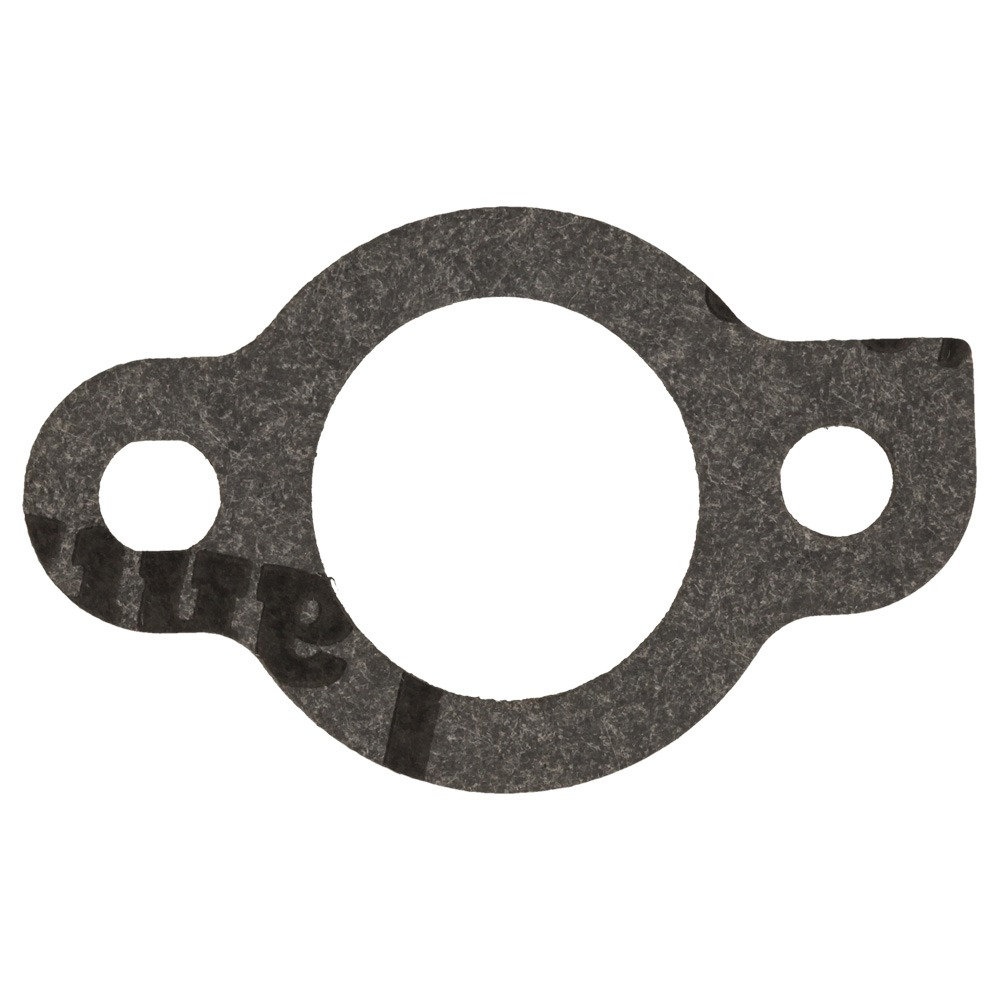

69	CO25100136901 Available to backorder	Cylinder Head And Air Innet Pipe Sealing Washer	£2.52 £2.10
70	CO25100136601 Available to backorder	Air Innet Pipe	£2.40 £2.00
71	CO25100136701 Available to backorder	Airinnet Pipe And Carburetor Sealing Washer	£2.62 £2.18
72	CO26300220101 Available to backorder	Throttle Valve Pulling Pole	£2.40 £2.00
73	CO26801110601 Available to backorder	Spring	£2.40 £2.00
74	CO23056003401 In stock	Carburetor Assy	£43.80 £36.50
76	CO25100136801 Available to backorder	Carburetor And Air Filter Sealing Washer	£2.62 £2.18
77	CO26809003101 Available to backorder	Air Filter Sheath	£2.62 £2.18
79	CO25234600101 Available to backorder	Air Filter Inner Cover	£2.52 £2.10
80	CO25100137001 In stock	Foam Core	£5.04 £4.20
81	CO25234400101 In stock	Air Filter Upper Cover	£5.38 £4.48
82	CO25100135002 Available to backorder	Aeration Tube	£2.52 £2.10
