Cobra CS520 - Chainsaw Aug 2016 Main Diagram

Name: Cobra CS520 - Chainsaw Aug 2016 Main Diagram
SKU: cs520_chainsaw_aug_2016_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra CS520 - Chainsaw Aug 2016 Main Diagram

Description

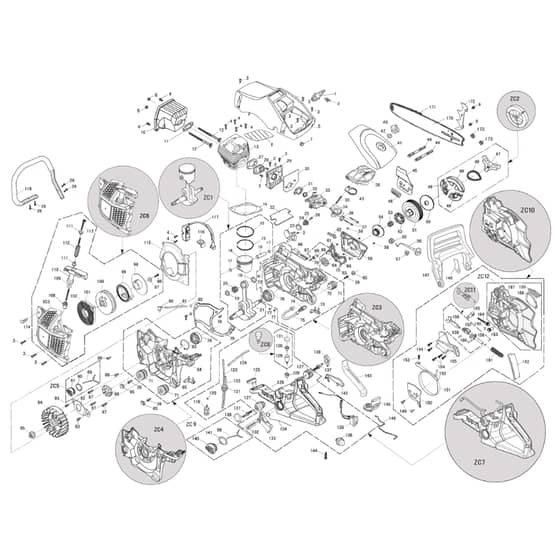

Cobra CS520 Chainsaw Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	9411 In stock	Spark Plug Ngk	£3.36 £2.80
1	COYD5200.2-14000 Available to backorder	ZC1 Crankshaft Connecting Rod Piston Combination	£36.76 £30.63
2	COYD4500-22110 Available to backorder	ZC2 Clutch Active Plate Assy	£15.73 £13.11
3	COYD4500-90023 Available to backorder	Screw M5*14	£2.52 £2.10
4	COYD3800-90024 In stock	Screw M5*20	£1.20 £1.00
5	COYD4600.8-15201 Available to backorder	Up Cover	£10.50 £8.75
5	COYD3800-17110 Available to backorder	ZC5 Oil Cap Assy	£3.64 £3.03
6	COYD4600.11-25000 Available to backorder	ZC6 Starter Assy	£20.77 £17.31
6	COYD4600.11-18002 Available to backorder	Insulation Mat	£2.52 £2.10
7	COYD4500-27601 Available to backorder	Switch Plug	£2.52 £2.10
7	COYD4500.11-18299 Available to backorder	ZC7 Fuel Tank	£32.72 £27.27
8	COYD3800-18010 Available to backorder	ZC8 Balancer Body Assy	£2.52 £2.10
9	COYD4500-18030 Available to backorder	ZC9 Fuel Flap Assy	£3.64 £3.03
9	COYD3800-90021 Available to backorder	Screw M5*10	£1.20 £1.00
10	COYD4500.11-21110 Available to backorder	Muffler Assy	£14.47 £12.06
10	COYD4600.12-25000 Available to backorder	ZC10 Brake Assy	£23.40 £19.50
11	COYD4500-21001 Available to backorder	Muffler Gasket	£2.40 £2.00
11	COYD2500X-23109 Available to backorder	ZC11 Brake Lever Assy	£2.52 £2.10
12	COYD4600.8-21002 Available to backorder	Muffler Connect Screw M5*84	£1.20 £1.00
13	COYD5200.7-12111 Available to backorder	Cylinder	£31.48 £26.23
14	COYD4600.7-12501 Available to backorder	Cylinder Gasket	£2.52 £2.10
15	COYD5200-14311 Available to backorder	Piston Ring	£2.52 £2.10
20	COYD4500-96126 Available to backorder	Needle Bearing K11×15×125	£3.95 £3.29
26	COYD2500-91333 Available to backorder	Screw St48*16	£2.52 £2.10
27	COYD4600.7-16001 Available to backorder	Tube Gasket	£2.52 £2.10
28	COYD4500-16111 Available to backorder	Tube	£3.13 £2.61
29	COYD4500-16121 Available to backorder	Tube Support	£4.20 £3.50
30	COYD4500-16132 Available to backorder	Tube Support Gasket	£2.52 £2.10
31	COYD4500-16131 Available to backorder	Inlet Flange	£2.52 £2.10
32	COYD4500-16002 Available to backorder	Keep Ring	£2.52 £2.10
33	COYD4500-18200 Available to backorder	Carburetor Assy Wt966 4500	£33.00 £27.50
34	COYD4500-16141 Available to backorder	Intake Tube	£2.52 £2.10
35	COYD4500-16141.2 Available to backorder	Studs M5*37	£2.52 £2.10
37	COYD4500-90029 Available to backorder	Carburetor Screw M5*50	£1.20 £1.00
38	COYD4500-16211 Available to backorder	Air Filter	£5.65 £4.71
40	COYD3800-16302A Available to backorder	Net	£2.52 £2.10
41	COYD4600.8-16301 Available to backorder	Air Filter Cover	£5.65 £4.71
42	COYD4500-16310 Available to backorder	Washer	£2.52 £2.10
43	COYD4500-16211.4 Available to backorder	Gasket	£2.52 £2.10
44	COYD4500-12128 Available to backorder	Studs M8*42	£2.52 £2.10
45	COYD4500.7A-22931 Available to backorder	Cover Plate	£2.52 £2.10
50	COYD4500-22101 Available to backorder	Clutch Gasket	£2.52 £2.10
51	COYD4500-22121 Available to backorder	Clutch Driven Plate	£11.95 £9.96
52	COYD4500.8-22050 Available to backorder	Sprocket	£2.52 £2.10
53	COYD4500-96115 Available to backorder	Clutch Needle Bearingk12×15×14	£2.52 £2.10
54	COYD4500-17001 Available to backorder	Worm	£2.52 £2.10
55	COYD4500-24112 Available to backorder	Throttle Sleeve	£2.52 £2.10
56	COYD4500-24111 Available to backorder	Throttle	£3.13 £2.61
57	COYD4500-24113 Available to backorder	Throttle Damping	£2.52 £2.10
60	COYD4500-17200 Available to backorder	Oil Pump Assy	£10.69 £8.91
65	COYD3800-27112 Available to backorder	Small Dust Cover	£2.52 £2.10
71	COYD4500-27111 Available to backorder	Short Damper	£2.52 £2.10
73	COYD4500-13105 Available to backorder	Right Damper	£2.52 £2.10
74	COYD4500-17124 Available to backorder	Oil Filter	£2.62 £2.18
75	COYD4500-17128 Available to backorder	Inlet Pipe	£2.52 £2.10
76	COYD2500-96013 Available to backorder	Bearing 6202	£2.52 £2.10
76	COYD4500-96013 Available to backorder	Bearing 6202	£2.52 £2.10
78	COYD4500-94604 Available to backorder	Woodruff Key 3×37×10	£2.52 £2.10
79	COYD4600.8-13090 Available to backorder	Crankcase Gasket	£2.52 £2.10
80	COYD4500-18021 Available to backorder	Suction Mouth	£2.52 £2.10
81	COYD4500-18022 Available to backorder	Negative Pressure Tube	£2.52 £2.10
82	COYD4500-18023 Available to backorder	Spring （Φ57）	£2.52 £2.10
85	COYD4500-13203 Available to backorder	Left Damper	£2.52 £2.10
87	COYD4500-90025 Available to backorder	Screw M5*30	£1.26 £1.05
88	COYD4500-90026 Available to backorder	Screw M5*25	£2.52 £2.10
92	COYD4500-13801 Available to backorder	Oil Seal Baffle	£2.52 £2.10
94	COYD4600.GF-15110 Available to backorder	Flywheel	£10.36 £8.63
95	COYD2500-92102 Available to backorder	Nut M8*1	£2.52 £2.10
114	COYD6200-25288 Available to backorder	Screwm5*18	£1.20 £1.00
115	COYD4600.12-15120 Available to backorder	Dome	£4.20 £3.50
116	COYD4600.8-26118 Available to backorder	Spark Plug Sleeve	£2.52 £2.10
117	COYD4500-26110 Available to backorder	Igniter Assy	£18.25 £15.21
118	COYD4600.11-24510 Available to backorder	Grip	£6.64 £5.53
119	COYD4500-18103 Available to backorder	Fuel Filter	£2.52 £2.10
120	COYD4500-18102 Available to backorder	Circlip	£2.52 £2.10
121	COYD3800-18104 Available to backorder	Fuel Pipe Support	£2.52 £2.10
122	COYD3800-18432 Available to backorder	Return Pipe （Φ25Χφ45）	£2.52 £2.10
123	COYD3800-18101A Available to backorder	Fuel Pipe	£2.52 £2.10
124	COYD3800-18431 Available to backorder	Tubing	£2.62 £2.18
127	COYD3800-27211 Available to backorder	Long Damper Support	£3.13 £2.61
128	COYD3800-18001 Available to backorder	Balancer Body Support	£2.52 £2.10
132	COYD4500-94104A Available to backorder	Trigger Pin 6×25	£2.52 £2.10
133	COYD4600.7-24211 Available to backorder	Trigger	£2.52 £2.10
134	COYD3800-24212 Available to backorder	Trigger Spring	£2.52 £2.10
135	COYD4500-26210B Available to backorder	Switch	£2.62 £2.18
136	COYD2500-18410 Available to backorder	Oil Vacuole	£3.46 £2.88

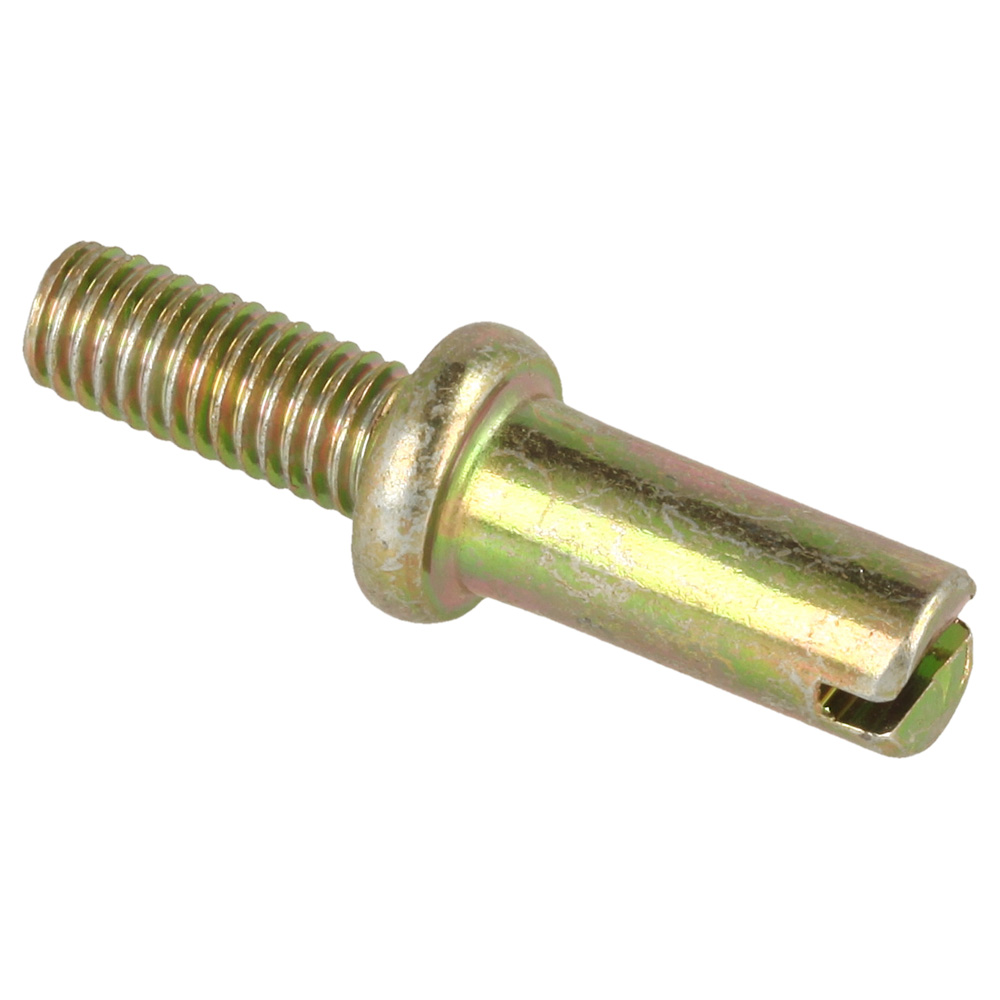

137	COYD4500-27212 Available to backorder	Bolt 45	£2.52 £2.10
138	COYD4600.11-27500 Available to backorder	Left Decorative Cover	£2.52 £2.10
139	COYD4600.11-27501 Available to backorder	Right Decorative Cover	£2.52 £2.10
142	COYD4600.8-24214 Available to backorder	Trigger Control Arm	£2.52 £2.10
143	COYD4600.11-24411 Available to backorder	Handle Cover	£2.52 £2.10
144	COYD4500-91334 Available to backorder	Screw St48*19	£2.52 £2.10
145	COYD4500-18006 Available to backorder	Rubber Sheet	£2.52 £2.10
146	COYD4500-24001 Available to backorder	Throttle Push Rod	£2.52 £2.10
147	COYD4600.11-23011 Available to backorder	Head Baffle	£2.52 £2.10
148	COYD4600.11-21001 Available to backorder	Front Baffle Heat	£2.52 £2.10
150	COYD4500.7B-22251 Available to backorder	Tensioner Cover	£2.52 £2.10
151	COYD4500.7B-23111B Available to backorder	Brake Belt	£2.52 £2.10
155	COYD4600.11-23108 Available to backorder	Brake Spring Cover	£2.52 £2.10
161	COYD4600.11-23113 Available to backorder	Brake Spring	£2.52 £2.10
163	COYD4500-22211 Available to backorder	Tension Driving Gear	£2.52 £2.10
164	COYD4500-22201 Available to backorder	Tension Passive Gear	£2.58 £2.15
165	COYD4500-22212 Available to backorder	Tension Pin	£2.52 £2.10
170	CO516481.325 Available to backorder	Bar 18" 0325 Oregon	£48.47 £40.39
171	CO20LPX072X Available to backorder	Chain 18" 0325 Oregon	£33.71 £28.09
172	COYD3800-13002A Available to backorder	Nail Plate	£2.52 £2.10
173	COYD2500-92101 Available to backorder	Nut M8	£1.26 £1.05
