Cobra CS420 - Chainsaw Aug 2016 Main Diagram

Name: Cobra CS420 - Chainsaw Aug 2016 Main Diagram
SKU: cs420_chainsaw_aug_2016_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra CS420 - Chainsaw Aug 2016 Main Diagram

Description

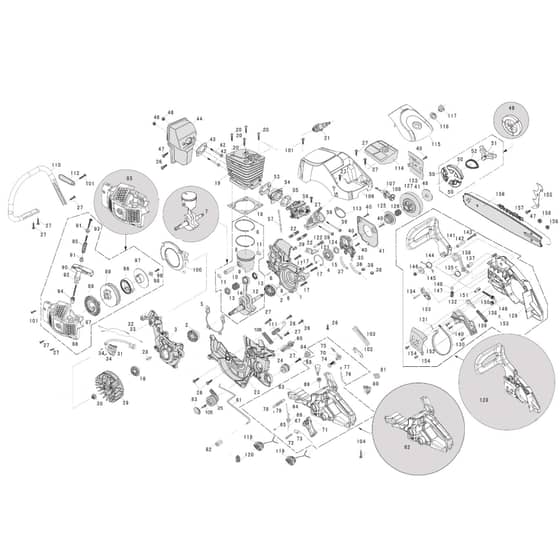

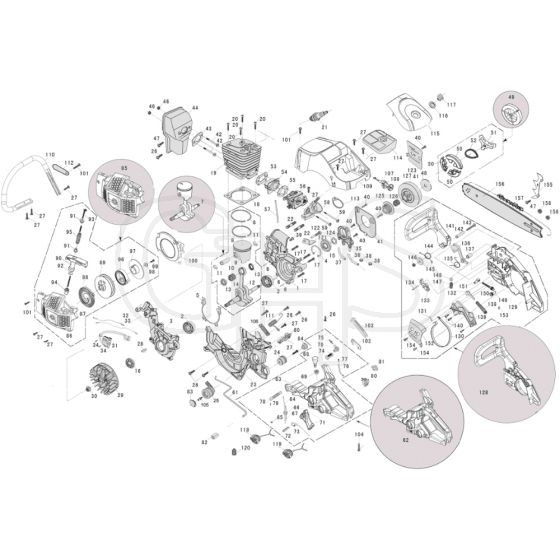

Cobra CS420 Chainsaw Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	COGC305-96022 Available to backorder	Ball Bearing	£2.52 £2.10
4	COYD3800-93211 Available to backorder	Circlip For Hole	£2.52 £2.10
5	COYD3800-13090 Available to backorder	Washer-Crankcase	£2.52 £2.10
7	COYD3800-14110 Available to backorder	Crankshaft + Piston Assy	£26.02 £21.68
15	COYD3800-95014 Available to backorder	Oil Seal Fb12X32X5	£2.52 £2.10
16	COYD3800-95012 Available to backorder	Oil Seal Fb12X22X7	£2.62 £2.18
18	COYD3800-12501 Available to backorder	Washer-Cylinder	£2.52 £2.10
19	COYD4100.7-12111 Available to backorder	Cylinder	£28.00 £23.33
20	COYD2500-90121 Available to backorder	Screw 5*20	£2.52 £2.10
21	9411 In stock	Ngk Spark Plug	£3.36 £2.80
22	COYD3800-12128 Available to backorder	Stud	£2.52 £2.10

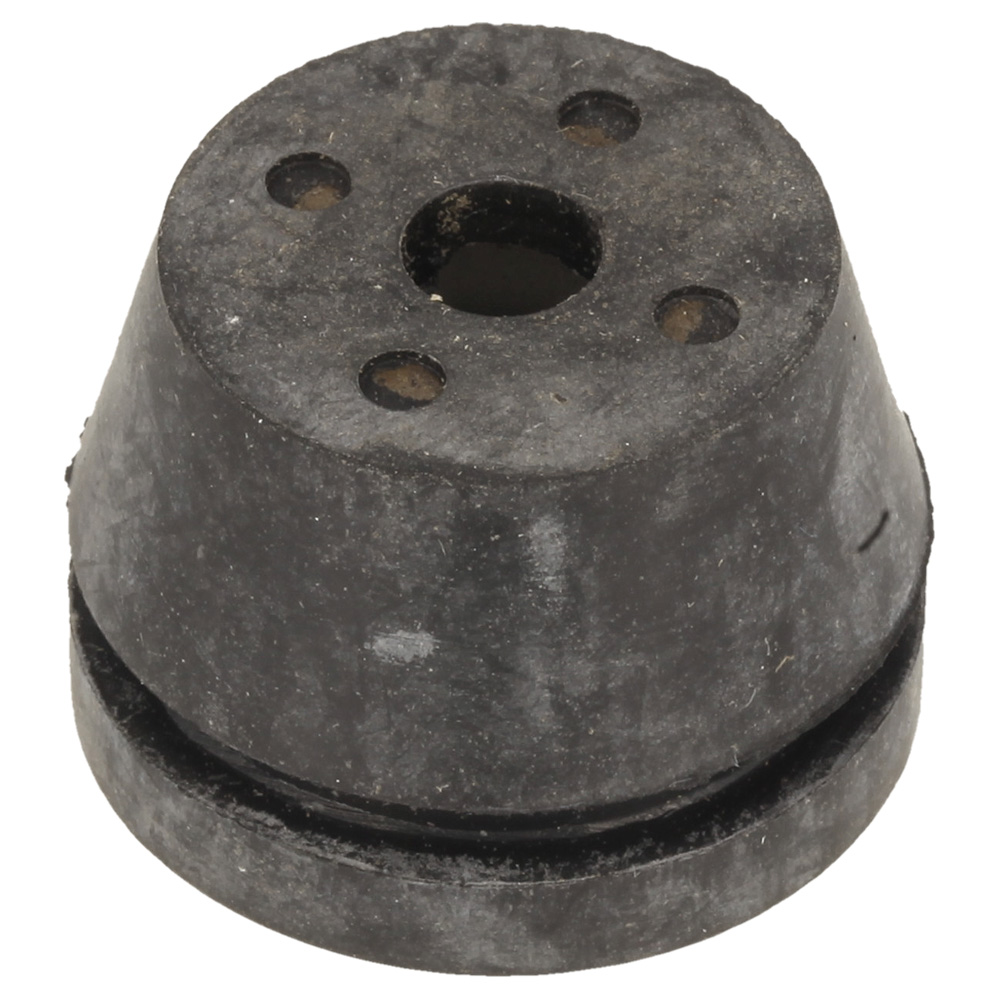

24	COYD3800-27111 Available to backorder	Short-Rubber Seat	£2.62 £2.18

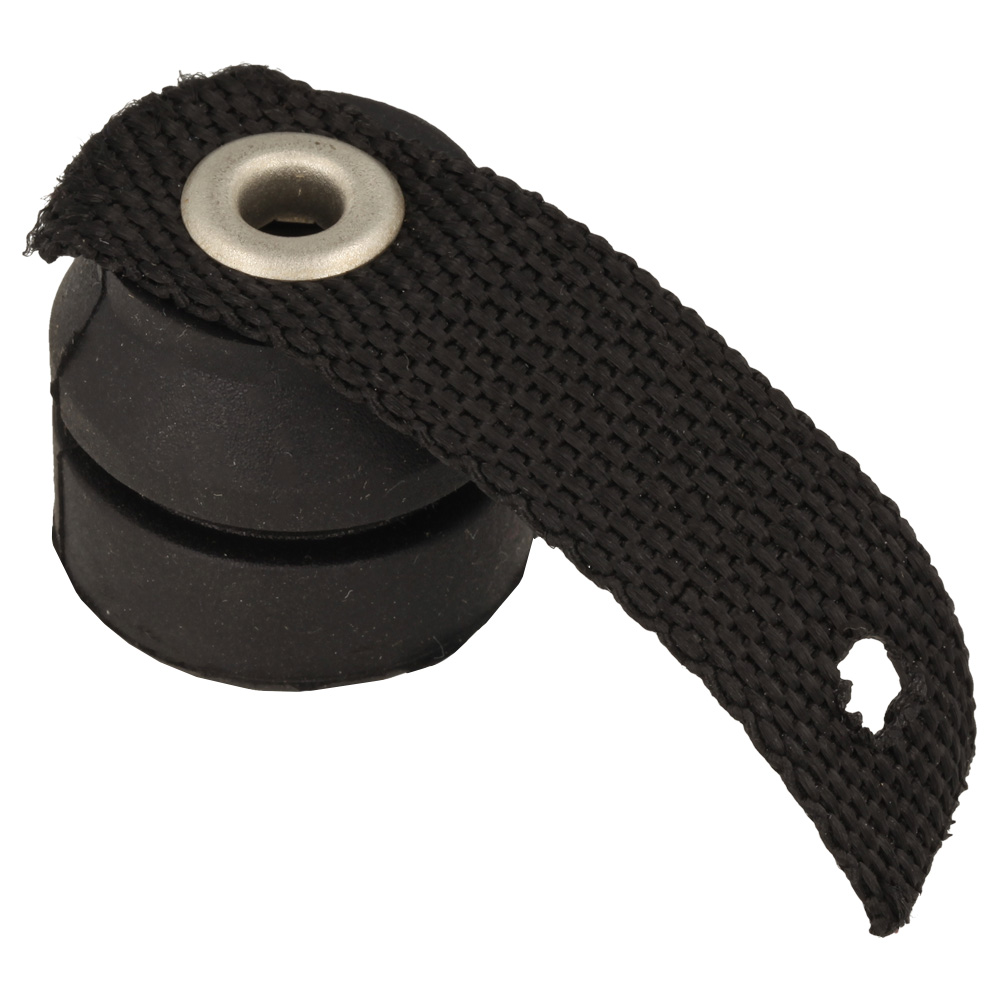

25	COYD3800.8-27211 Available to backorder	Long Pad Rubber	£2.62 £2.18
28	COYD4500-94604 Available to backorder	Key Flywheel	£2.52 £2.10
29	COYD3800.GF-15110 Available to backorder	Flywheel	£14.22 £11.85
30	COYD2500-92102 Available to backorder	Nut M8×1	£2.52 £2.10
31	COYD3800-26110 Available to backorder	Ignition	£18.25 £15.21
32	COYD3800-26151 Available to backorder	Switch-Off Wire	£2.52 £2.10
33	COYD3800-26155A Available to backorder	Grounding Wire	£2.52 £2.10
35	COYD3800-17200 Available to backorder	Oil Pump	£10.69 £8.91

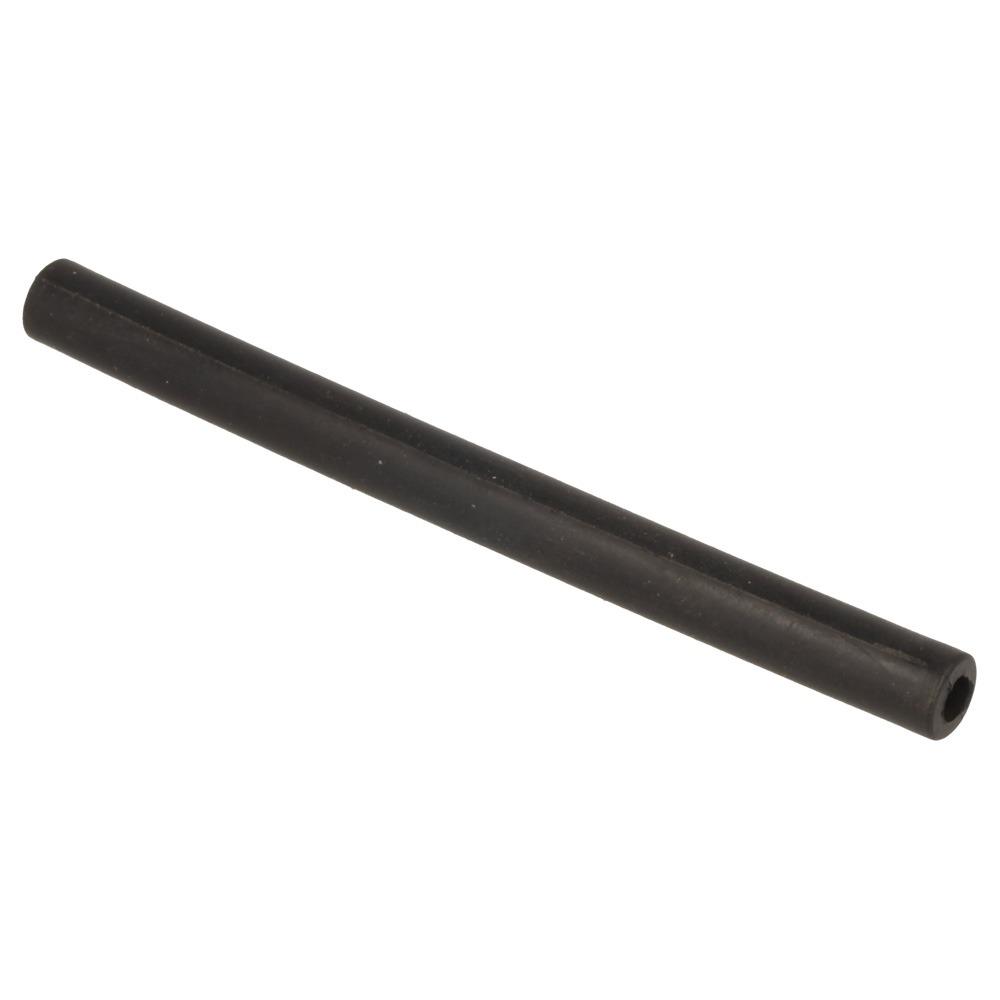

36	COYD3800-17129 Available to backorder	Hose Oil Outlet	£2.40 £2.00
37	COYD3800-17128 Available to backorder	Hose Oil Leter	£2.52 £2.10
39	COYD3800-17403 Available to backorder	Oil Nozzle	£2.52 £2.10
41	COYD3800-17301 Available to backorder	Cover Plate - Oil Pump	£2.52 £2.10
42	COYD4100-21002 Available to backorder	Bolt	£2.62 £2.18
43	COYD3800.7-21001 Available to backorder	Washer-Muffler	£2.52 £2.10
44	COYD3800-21110B Available to backorder	Muffler	£14.70 £12.25
46	COYD4100-92402 Available to backorder	Nut	£1.44 £1.20
48	COYD3800-22101 Available to backorder	Washer-Clutch	£2.52 £2.10
49	COYD3800-22110 Available to backorder	Clutch Assy	£15.73 £13.11

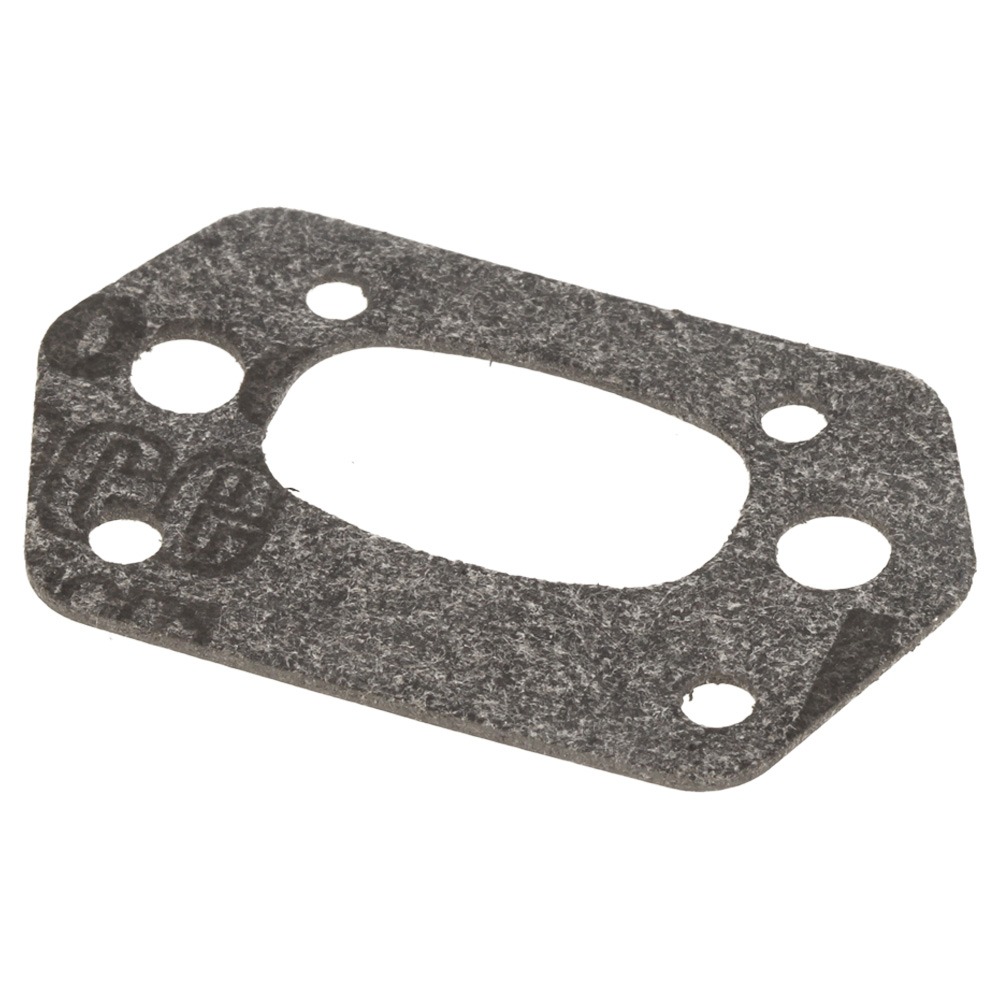

53	COYD3800-16001A Available to backorder	Washer-Intake	£2.40 £2.00

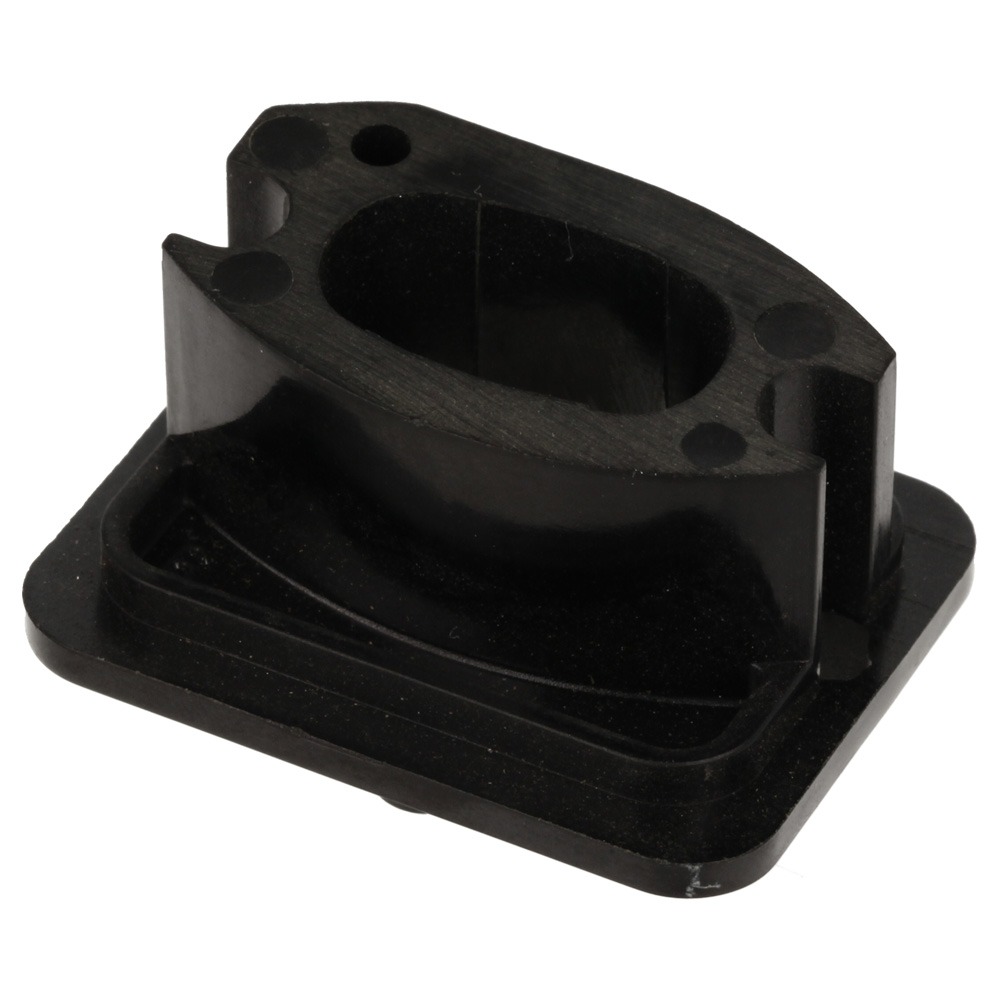

54	COYD3800-16111A Available to backorder	Intake	£3.00 £2.50

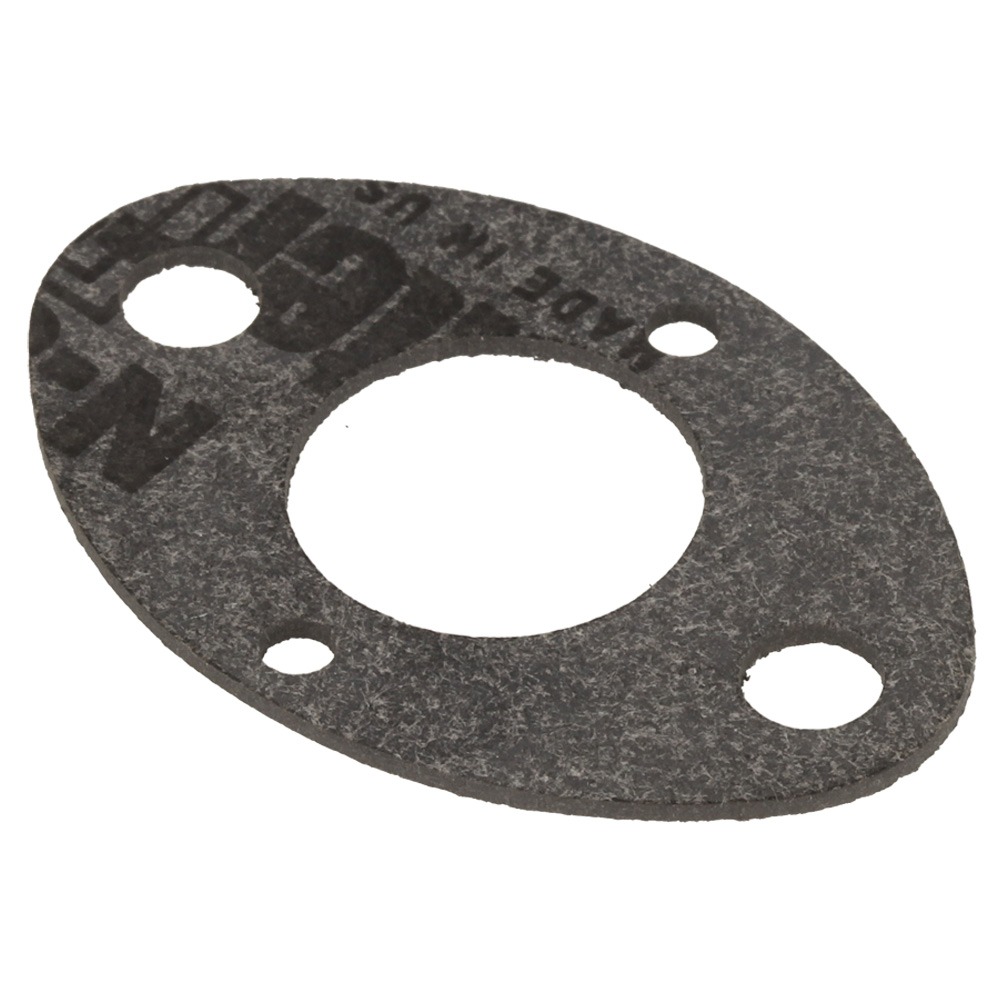

55	COYD3800-18203A Available to backorder	Washer-Carburetor	£2.40 £2.00
56	COYD3800-18200 Available to backorder	Walbro Carburetor	£33.50 £27.92
57	COYD3800-18431 Available to backorder	Oil Inlet Pipe	£2.40 £2.00
58	COYD3800-16141B Available to backorder	Inlet Elbow	£2.52 £2.10
59	COYD3800.7-18201 Available to backorder	Screw M5×70	£2.52 £2.10
60	COYD3800-24002 Available to backorder	Rod-Throttle Holder	£2.52 £2.10
61	COYD3800.2-24001 Available to backorder	Rod-Throttle	£2.52 £2.10
62	COYD3800.8-18299 Available to backorder	Fuel Tank Assy	£15.73 £13.11
64	COYD3800-18101A Available to backorder	Fuel Pipe	£2.52 £2.10
65	COYD4500-18102 Available to backorder	Circlip	£2.52 £2.10
66	COYD3800-18104 Available to backorder	Fuel Pipe Seat	£2.52 £2.10
67	COYD3800-18432A Available to backorder	Oil Return Pipe	£2.52 £2.10
68	COYD3800-18010 Available to backorder	Balancer Assy	£2.52 £2.10
69	COYD3800-18001 Available to backorder	Balancer Holder	£2.52 £2.10

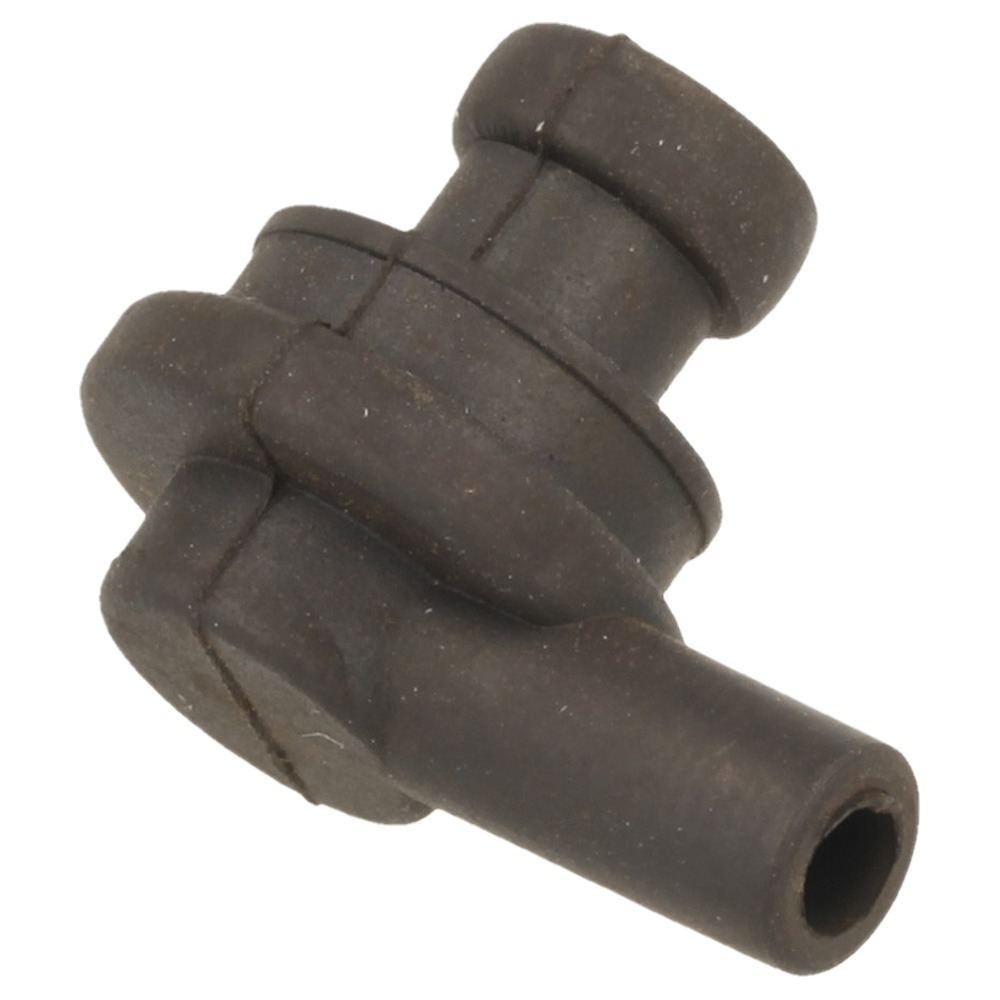

70	COYD3800-18105 Available to backorder	Oil Nozzle	£2.40 £2.00
71	COYD3800.8-24211 Available to backorder	Trigger	£2.52 £2.10
73	COYD3800-24212 Available to backorder	Trigger Spring	£2.52 £2.10

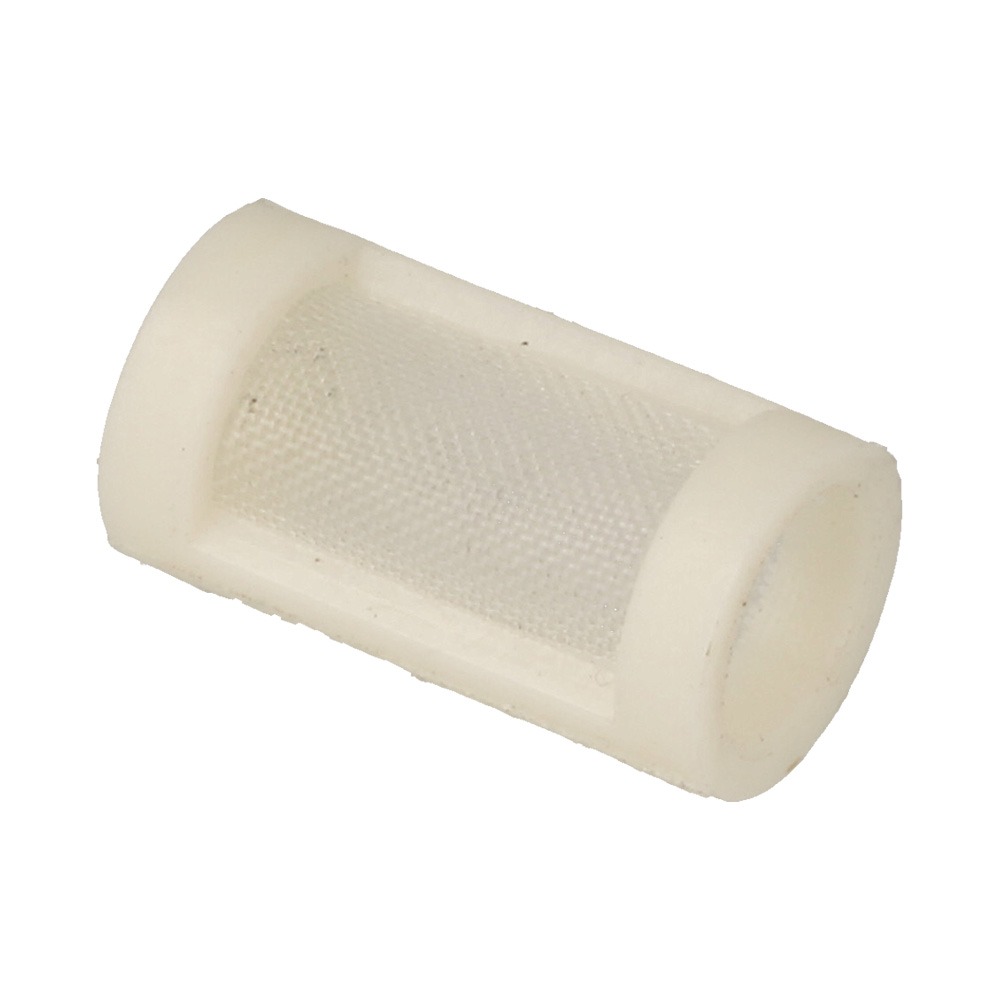

74	COYD3800-19200 Available to backorder	Oil Filter	£2.40 £2.00

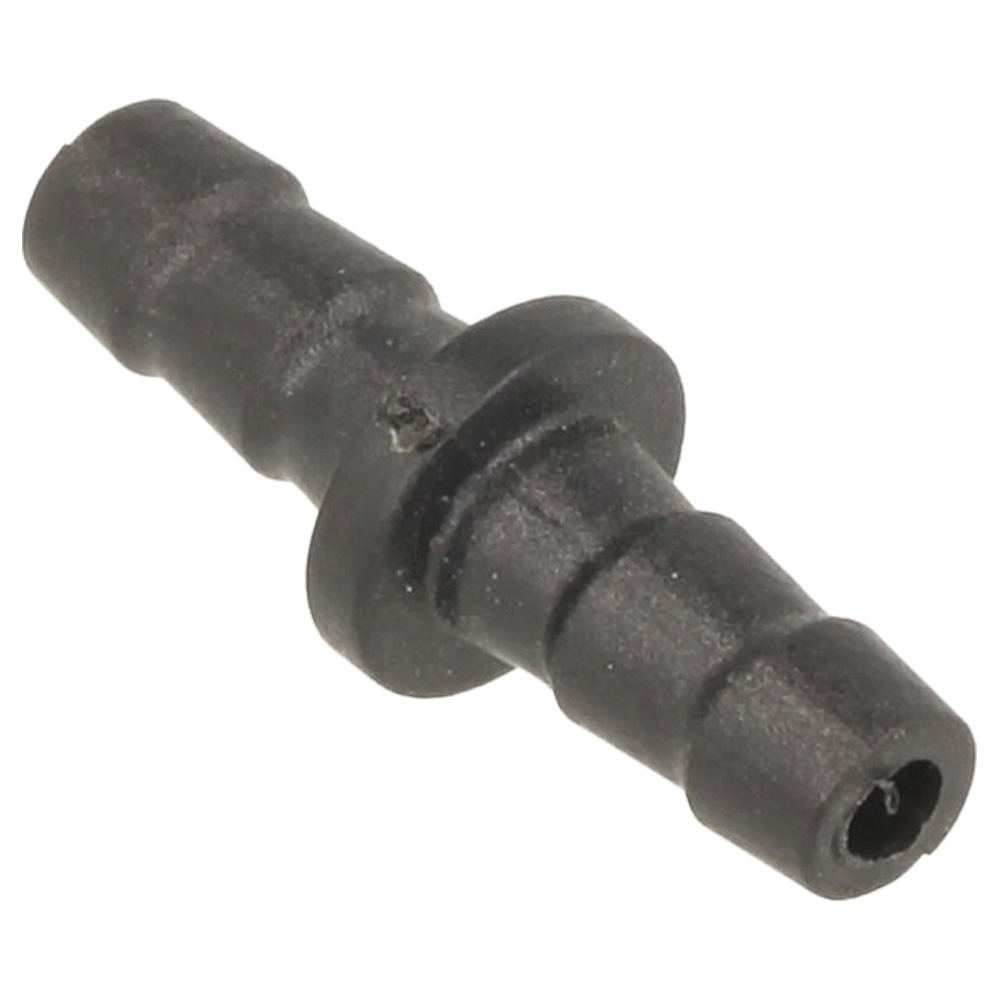

75	COYD2500-17125 Available to backorder	Pipe Joint	£2.40 £2.00
76	COYD3800-17134 Available to backorder	Breather Pipe	£2.52 £2.10
77	COYD3800-91231 Available to backorder	Screw St5X16	£1.26 £1.05
78	COYD3800-13911 Available to backorder	Spring For Base	£2.52 £2.10
80	COYD2500-26190 In stock	Switch	£2.40 £2.00
81	COYD2500-18410 Available to backorder	Oil Bubble	£3.46 £2.88
82	COYD3800-27215 Available to backorder	Shock-Reducing Rubber	£2.52 £2.10
83	COYD3800-27112 Available to backorder	Dust Cover Small	£2.52 £2.10
84	COYD3800-27213 Available to backorder	Dust Cover Big	£2.52 £2.10
85	COYD3800.12-25000 Available to backorder	Starter Assy	£18.25 £15.21
99	COYD2500-91221 Available to backorder	Screw St48X14	£1.26 £1.05
100	COYD3800.8-15120 Available to backorder	Fairing	£2.52 £2.10
101	COYD3800-91232 Available to backorder	Screw St5X19	£2.52 £2.10
102	COYD3800.8-24214 Available to backorder	Trigger Lock-Out	£2.52 £2.10
103	COYD3800-24411 Available to backorder	Cover-Rear Handle	£2.52 £2.10
104	COYD3800-91335 Available to backorder	Screw St5X25	£2.52 £2.10
105	COPN3800.8-27111 Available to backorder	Clamp	£2.52 £2.10
106	COYD2500-27116 Available to backorder	Screw	£2.52 £2.10

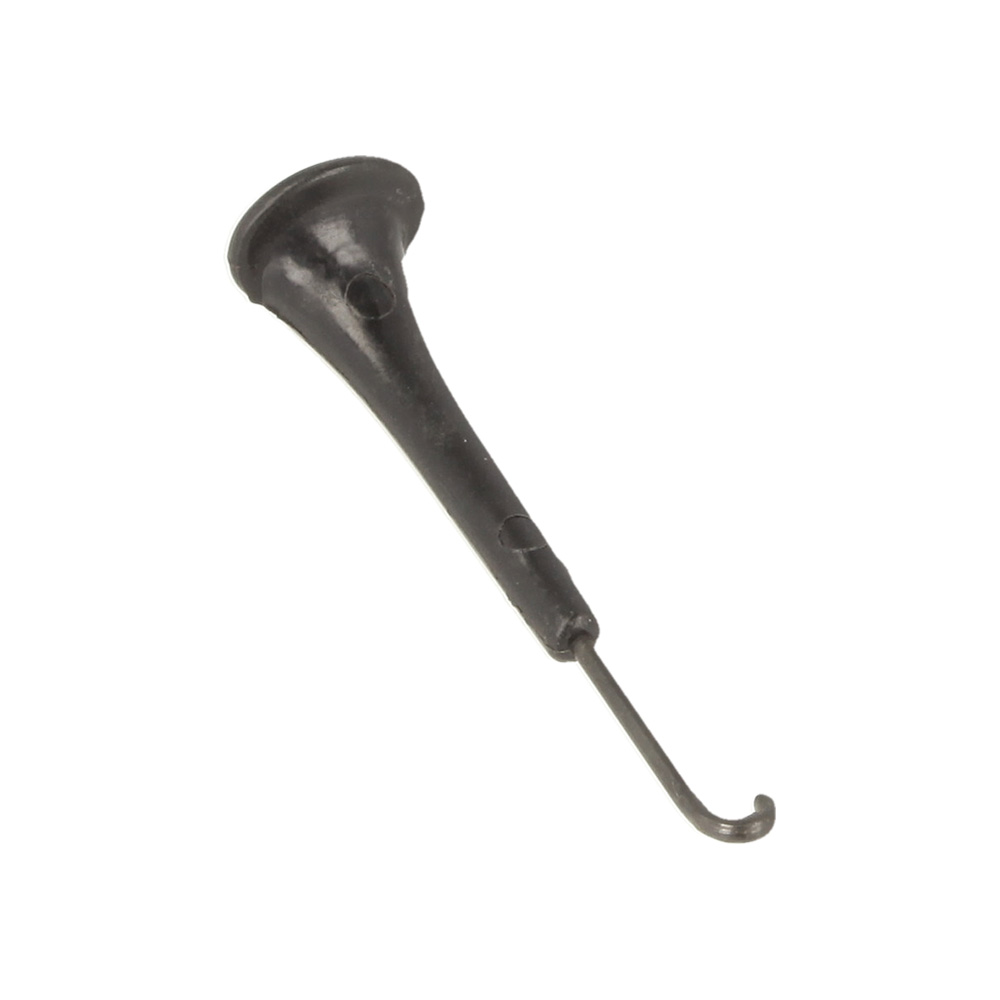

107	COYD3800-24111 Available to backorder	Choker	£2.68 £2.23

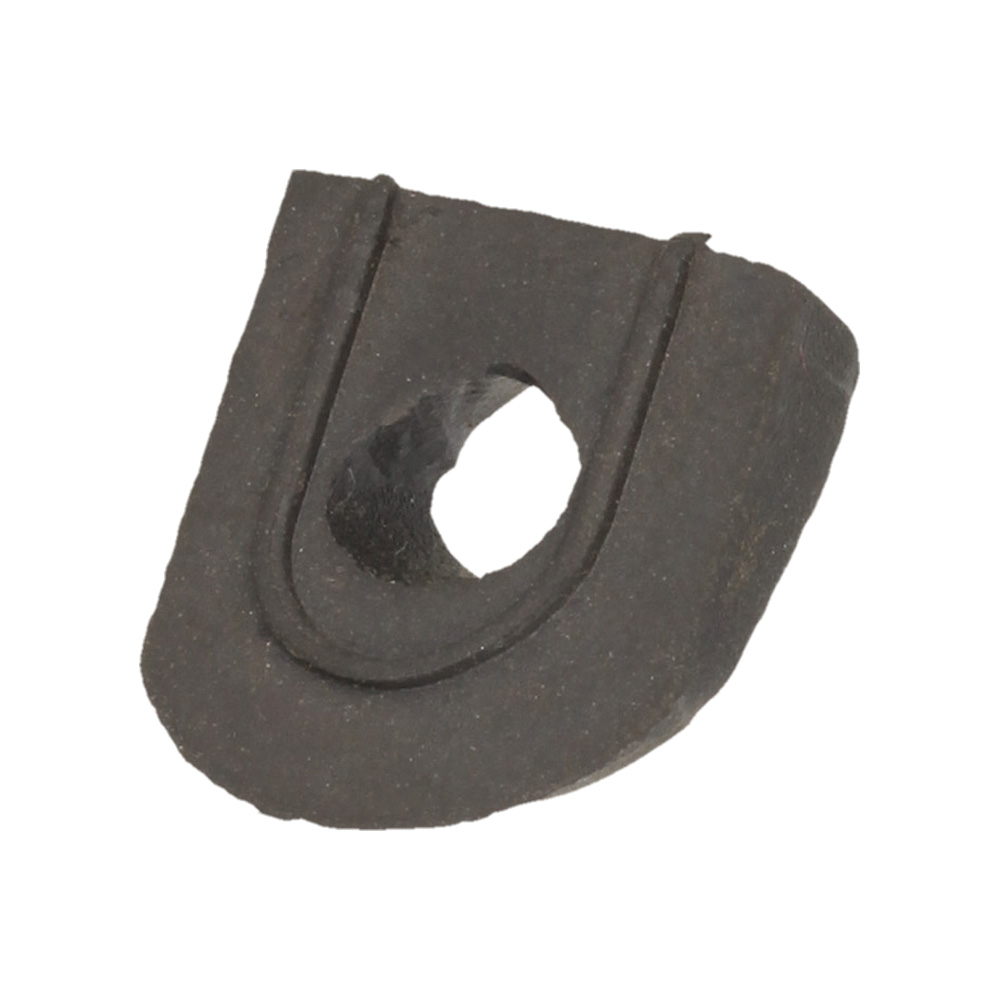

108	COYD3800.6-24112 Available to backorder	Choker Holder	£2.62 £2.18
109	COYD3800.8-15201 Available to backorder	Cover-Top	£10.50 £8.75
110	COYD3800.2-24510 Available to backorder	Handle	£15.23 £12.69
111	COYD3800-24515 Available to backorder	Handle Spring	£2.52 £2.10
112	COYD3800-24513 Available to backorder	Handle Spring Plate	£2.52 £2.10
113	COYD3800-16318 Available to backorder	Washer-Air Filter	£2.52 £2.10

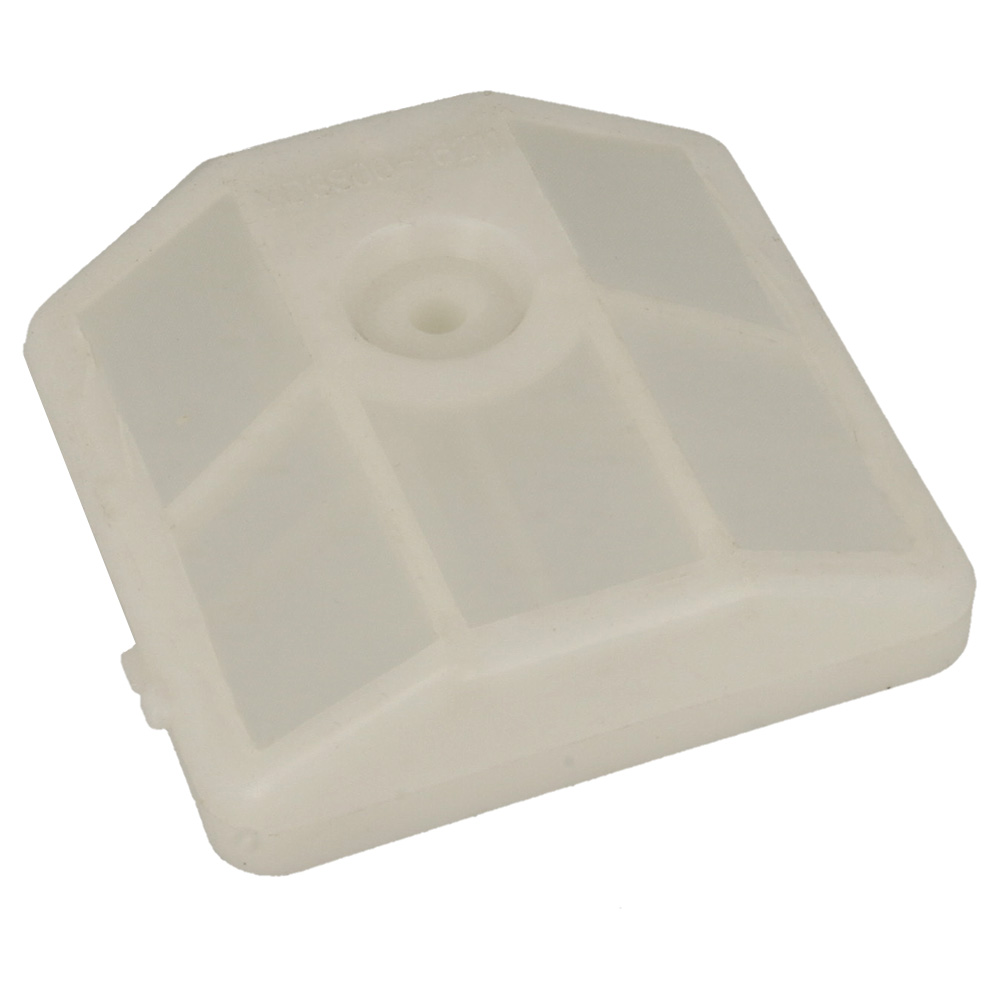

114	COYD3800-16211 Available to backorder	Air Filter	£5.52 £4.60
115	COYD3800.8-16301 Available to backorder	Air Filter Cover	£3.64 £3.03
116	COYD4500-16310 Available to backorder	Gasket	£2.52 £2.10
117	COYD3800-16302A Available to backorder	Air Filter Lock Nut	£2.52 £2.10
118	COYD3800-17110 Available to backorder	Oil Cap Assy	£3.64 £3.03
119	COYD3800.7-18030 Available to backorder	Fuel Cap Assy	£3.64 £3.03
120	COYD4500-18103 Available to backorder	Fuel Filter	£2.52 £2.10
121	COYD3800-13001 Available to backorder	Chain Catcher	£2.52 £2.10
122	COYD3800-13006 Available to backorder	Screw	£2.52 £2.10
123	COYD3800-17004 Available to backorder	Cover Plate	£2.52 £2.10
124	COYD3800-17208 Available to backorder	Washer-Oil Pump	£2.52 £2.10
125	COYD3800-17001 Available to backorder	Worm	£2.52 £2.10
126	COYD2500-96112 Available to backorder	Needle Bearing	£2.52 £2.10
127	COYD3800-22121 Available to backorder	Drum-Clutch	£11.95 £9.96
128	COYD3800.8-23000 Available to backorder	Brake Assy	£19.96 £16.63
150	COYD4500-22211 Available to backorder	Driven Gear	£2.52 £2.10
151	COYD4500-22201 Available to backorder	Piston Pin	£2.58 £2.15
152	COYD3800-22212 Available to backorder	Tensioner Plate	£2.52 £2.10
155	COYD3800-13002A Available to backorder	Spiker Board	£2.52 £2.10
156	CO140SDEA041 In stock	14"/16"Oregon Bar	£40.80 £34.00
156	CO160SDEA041 Available to backorder	14"/16"Oregon Bar	£32.95 £27.46
157	CO91P057X Available to backorder	14"/16"Oregon Chain	£24.55 £20.46
157	CO91P053X Available to backorder	14"/16"Oregon Chain	£22.03 £18.36
158	COYD2500-92101 Available to backorder	Nut M8	£1.26 £1.05
