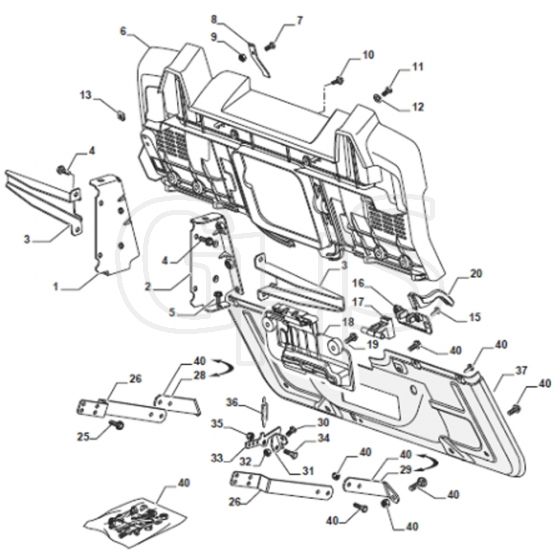

Cobra BT84B - Tractor Rear Plate Diagram

Cobra BT84B - Tractor Rear Plate Diagram

Part No. bt84b_tractor_rear_plate-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BT84B - Tractor Rear Plate Diagram

Cobra BT84B - Tractor Rear Plate Diagram

Description

Cobra BT84B Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		MO325774501/0 Available to backorder	Clamp		£12.94 £10.78
	2		MO325774507/0 Available to backorder	Clamp		£16.34 £13.62
	3		MO325650163/0 Available to backorder	Stiffening		£11.12 £9.27
	5		MO125943009/0 Available to backorder	Screw		£1.62 £1.35
	6		MO325547299/2 In stock	Rear Plate Upper Part		£45.04 £37.53
	8		MO127430600/0 Available to backorder	Spring		£2.82 £2.35
	12		MO112523020/0 In stock	Washer		£1.55 £1.29
	13		MO112437503/0 Available to backorder	Plate		£1.97 £1.64
	15		MO112728686/0 In stock	Screw		£1.55 £1.29
	16		MO325109522/0 In stock	Protection Cover		£2.40 £2.00
	17		MO325318276/0 In stock	Gearshift		£3.52 £2.93
	19		MO125943010/0 In stock	Screw		£1.97 £1.64
	20		MO325318277/0 In stock	Lever		£1.55 £1.29
	25		MO112793102/0 In stock	Screw		£1.55 £1.29
	26		MO325774521/0 Available to backorder	Clamp		£9.28 £7.73
	28		MO325650151/0 Available to backorder	Stiffening		£8.18 £6.82
	29		MO325650153/0 Available to backorder	Stiffening		£8.18 £6.82
	30		MO112789008/0 Available to backorder	Screw		£1.84 £1.53
	31		MO325755061/0 Available to backorder	Bracket		£2.40 £2.00
	32		MO112154330/0 In stock	Low Self-Locking Nut		£1.55 £1.29
	33		MO325774533/0 In stock	Clamp		£4.64 £3.87
	35		MO112154510/0 In stock	Nut		£1.55 £1.29

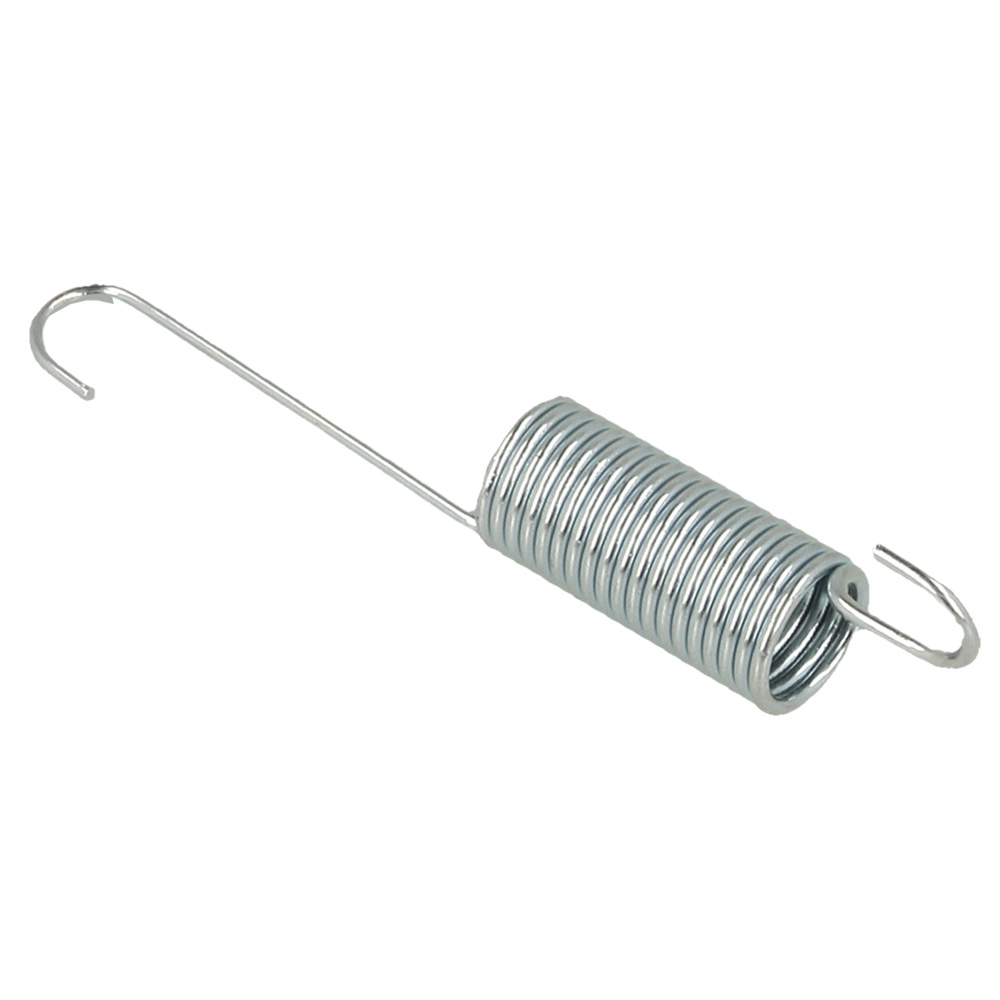

	36		MO125430282/1 Available to backorder	Spring		£1.84 £1.53
	37		MO382547071/1 Available to backorder	Rear Plate		£114.02 £95.02
