Cobra BP43C EU-V - Backpack Blower July 2020 Main Diagram

Name: Cobra BP43C EU-V - Backpack Blower July 2020 Main Diagram
SKU: bp43c_eu_v_backpack_blower_july_2020_main-group
Price: 1.03 GBP
Availability: InStock

Part No. bp43c_eu_v_backpack_blower_july_2020_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BP43C EU-V - Backpack Blower July 2020 Main Diagram

Description

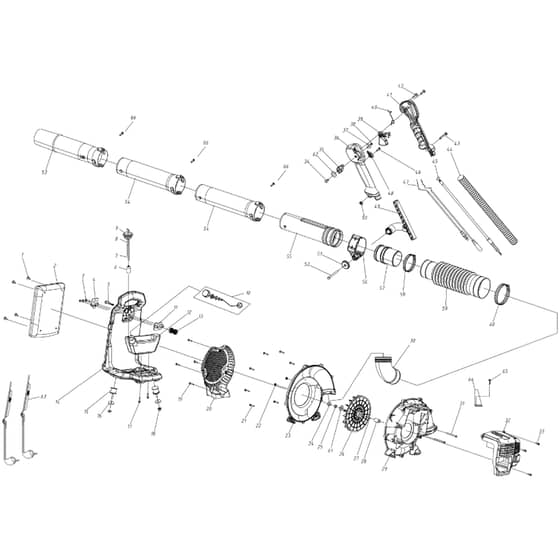

Cobra BP43C EU-V Backpack Blower Parts Diagram

	Part No.	Details
1	COEB430-CLIP Available to backorder	Clip	£1.24 £1.03
2	COEB430-15 Available to backorder	Backpad	£10.12 £8.43
3	COGB/T 845 ST4.8X25 Available to backorder	Screw St48X25	£1.24 £1.03
4	COEB430-10 Available to backorder	Blank	£2.48 £2.07
5	COEB430-13 Available to backorder	Drawstring	£1.86 £1.55
6	CO1E40F-5A Available to backorder	Fuel Filter	£2.48 £2.07
7	CO3X5MM Available to backorder	Inlet Fuel Pipe	£3.64 £3.03
8	CO2.5X4.5MM Available to backorder	Outlet Fuel Pipe	£3.64 £3.03
9	CO1E36F.8.1-1 Available to backorder	Plug	£2.48 £2.07
10	CO1E40F-5-FUEL CAP In stock	Fuel Tank Cap	£5.77 £4.81
11	COEB430-11 Available to backorder	Spring Fixture	£2.48 £2.07
12	COEB430-16 Available to backorder	Fuel Tank	£9.29 £7.74
13	COEB430-12 Available to backorder	Spring	£2.48 £2.07
18	COGB/T889.1 M6 Available to backorder	Nut M6	£1.24 £1.03
19	COGB/T845 ST4.8X18 Available to backorder	Screw St48X18	£1.24 £1.03
20	COEB430-6 Available to backorder	Wheel Cover	£2.94 £2.45
23	COEB430-4 Available to backorder	Back Volute	£13.92 £11.60
26	COEB430-3 Available to backorder	Wheel	£11.75 £9.79
27	CO3WB-900 Available to backorder	Key 4X18	£1.24 £1.03
28	COEB430E-6 In stock	Support Sleeve	£5.77 £4.81
29	COEB430-1 Available to backorder	Front Volute	£14.74 £12.28
31	COGB/T9074.1 M5X70 Available to backorder	Bolt M5X70	£1.24 £1.03
32	COEB430E-17 Available to backorder	Cylinder Cover	£9.31 £7.76
33	COGB/T845 ST4.8X25 Available to backorder	Screw St48X25	£1.24 £1.03
34	COEB430-25 Available to backorder	Screw Shaft	£2.48 £2.07
35	COEB430-22 Available to backorder	Switch Handle	£2.48 £2.07
39	COEB430-26 Available to backorder	Trigger	£2.48 £2.07
40	COEB430-27 Available to backorder	Trigger Spring	£2.48 £2.07
42	COGB/T845 ST3.9X15 Available to backorder	Screw St39X15	£1.24 £1.03
45	COEB430-20 Available to backorder	Cable Comp	£8.28 £6.90
47	COEB430-21 Available to backorder	Cut Off Wire	£2.48 £2.07
48	COEB430-24 Available to backorder	Limiting Frame	£2.48 £2.07
52	COGB/T 70.1 M5X60 Available to backorder	Screw M5X60	£1.24 £1.03
58	CO64-76 Available to backorder	Clip	£4.34 £3.62
59	CO-3 Available to backorder	Hose Pipe	£10.54 £8.78
60	CO76-92 Available to backorder	Clip	£4.34 £3.62
63	COBG430-15-STRAPS Available to backorder	Belt	£9.29 £7.74
64	COEB430-5 Available to backorder	Wind Board	£2.48 £2.07
65	COGB/T9074.1 M5X20 Available to backorder	Screw M5X20	£1.24 £1.03
66	COM5X12 Available to backorder	Screw M5X12	£1.24 £1.03
