Cobra BP43C EU-V - Backpack Blower July 2020 Engine Diagram

Name: Cobra BP43C EU-V - Backpack Blower July 2020 Engine Diagram
SKU: bp43c_eu_v_backpack_blower_july_2020_engine-group
Price: 1.03 GBP
Availability: InStock

Part No. bp43c_eu_v_backpack_blower_july_2020_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BP43C EU-V - Backpack Blower July 2020 Engine Diagram

Description

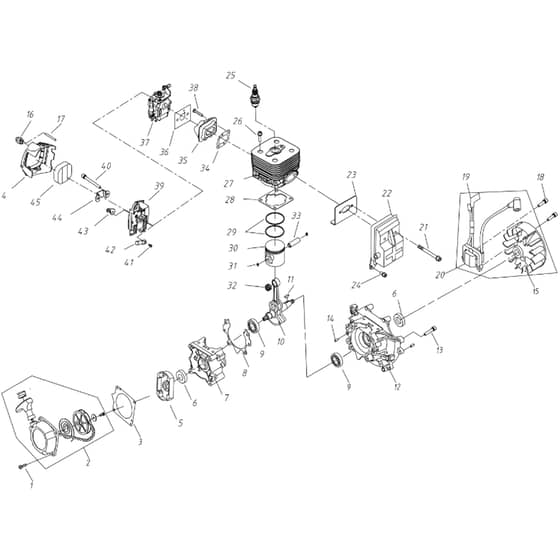

Cobra BP43C EU-V Backpack Blower Parts Diagram

	Part No.	Details

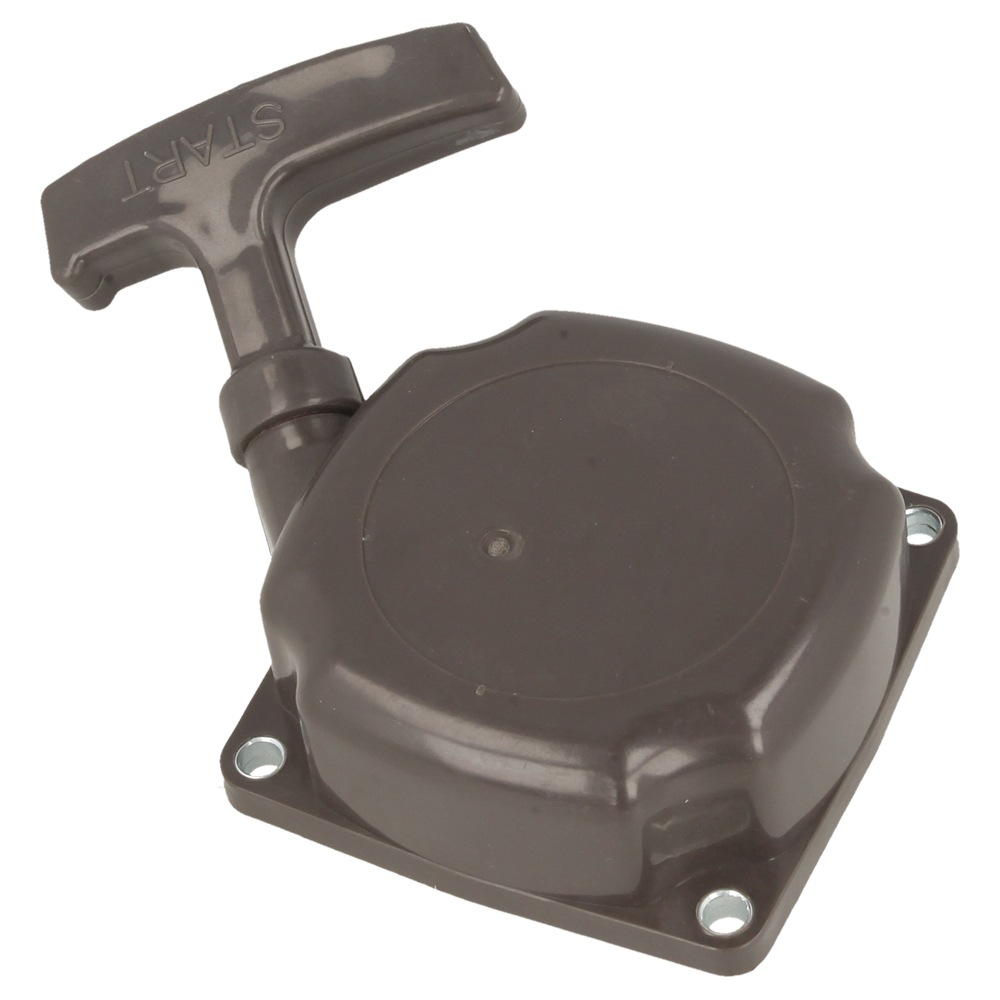

2	CO1E40F-5.11 Available to backorder	Starter Comp	£17.98 £14.98
3	CO1E40F-5-10 Available to backorder	Starter Gasket	£2.48 £2.07

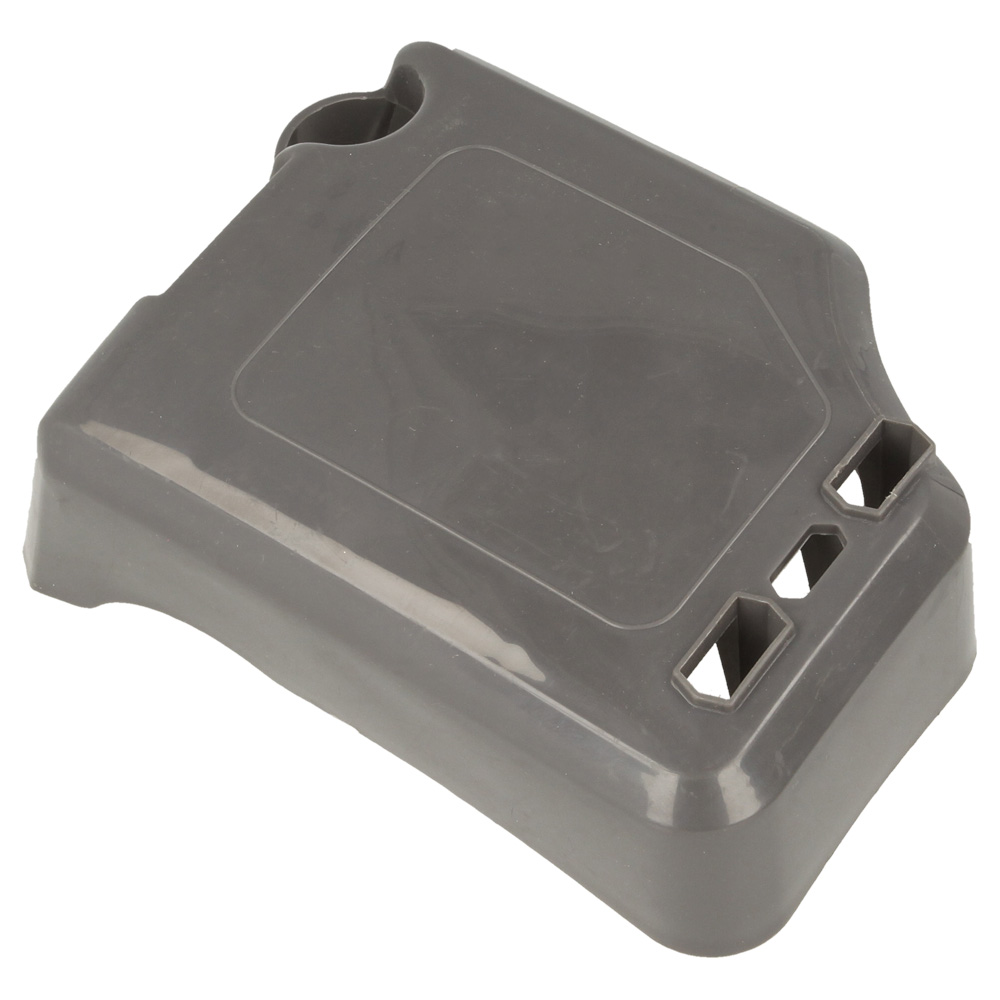

4	CO1EB430E-3 Available to backorder	Outside Air Filter Cover	£6.80 £5.67
5	CO1E40F-5.7-1 Available to backorder	Starter Pully	£5.17 £4.31
6	CO1E36F.2 Available to backorder	Seal 12×22×7	£2.48 £2.07
8	CO1E40F-5.8-4 Available to backorder	Gasket	£2.48 £2.07
9	COGB/T276 6202/P5 Available to backorder	Bearing 6202/P5	£2.48 £2.07
15	CO1E40F-5C Available to backorder	Magneto Rotor Comp	£10.32 £8.60
16	CO1E36FE.7 Available to backorder	Primer Pump Assy	£3.11 £2.59
17	CO1E36FE.8-3 Available to backorder	Pump Oil Pipe	£1.24 £1.03
19	CO1E40FE.5.1 Available to backorder	Ignition Coil Comp	£17.98 £14.98
22	CO1E40F-5.2 Available to backorder	Muffler	£1.24 £1.03
23	CO1E40F-5-5 Available to backorder	Muffler Gasket	£2.48 £2.07
25	2131 In stock	Spark Plug	£2.45 £2.04
28	CO1E40F-5-6 Available to backorder	Cylinder Gasket	£2.48 £2.07
34	CO1E40F-5-2 Available to backorder	Admitting Pipe Gasket	£1.24 £1.03
35	CO1E40F-5A.2 Available to backorder	Admitting Pipe	£1.24 £1.03
36	CO1E40F-5A-1 In stock	Carburetor Gasket	£1.24 £1.03
37	CO1E40FE.6 In stock	Carburetor	£34.06 £28.38

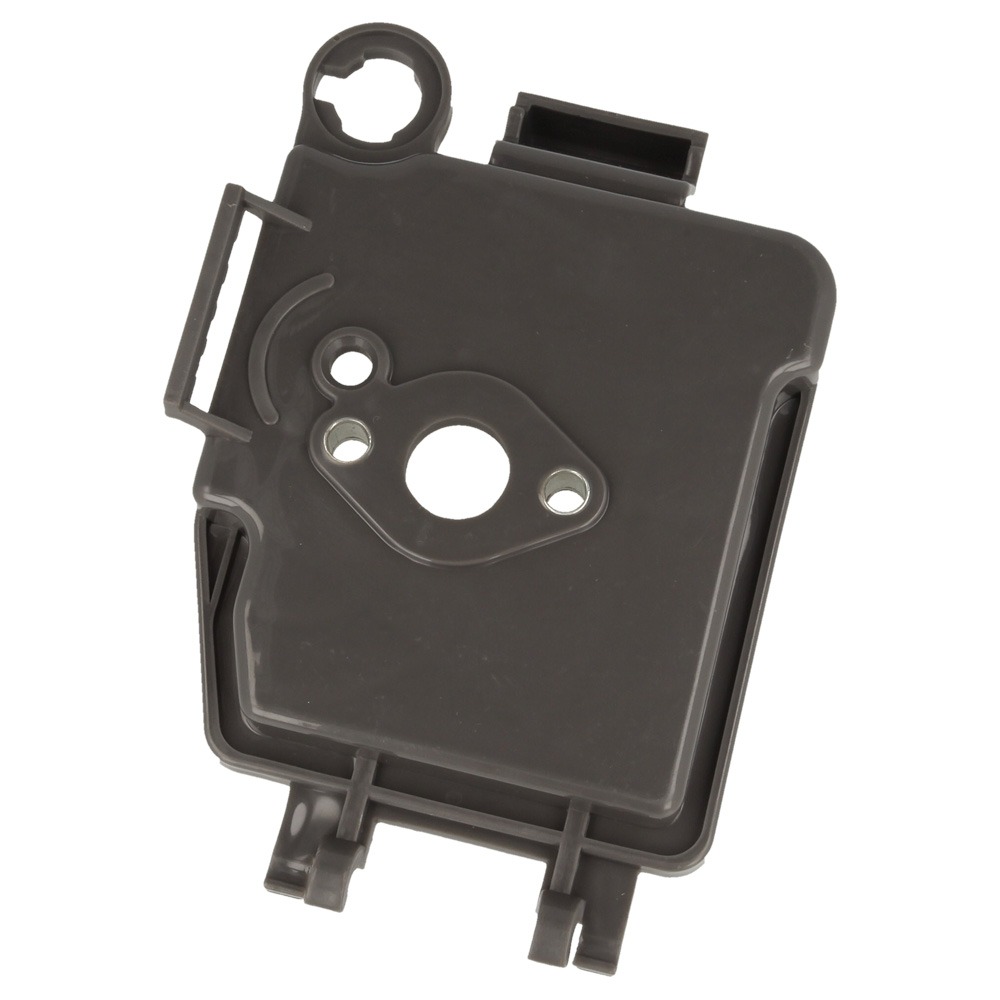

39	COEB430E-4 Available to backorder	Inside Air Filter Cover	£5.57 £4.64
42	CO1E36FE.2-4 Available to backorder	Choke Handle	£1.24 £1.03
43	CO1E36FE.2-3 Available to backorder	Choke	£1.24 £1.03
44	CO1E40FE.2-3 Available to backorder	Baffle	£1.24 £1.03

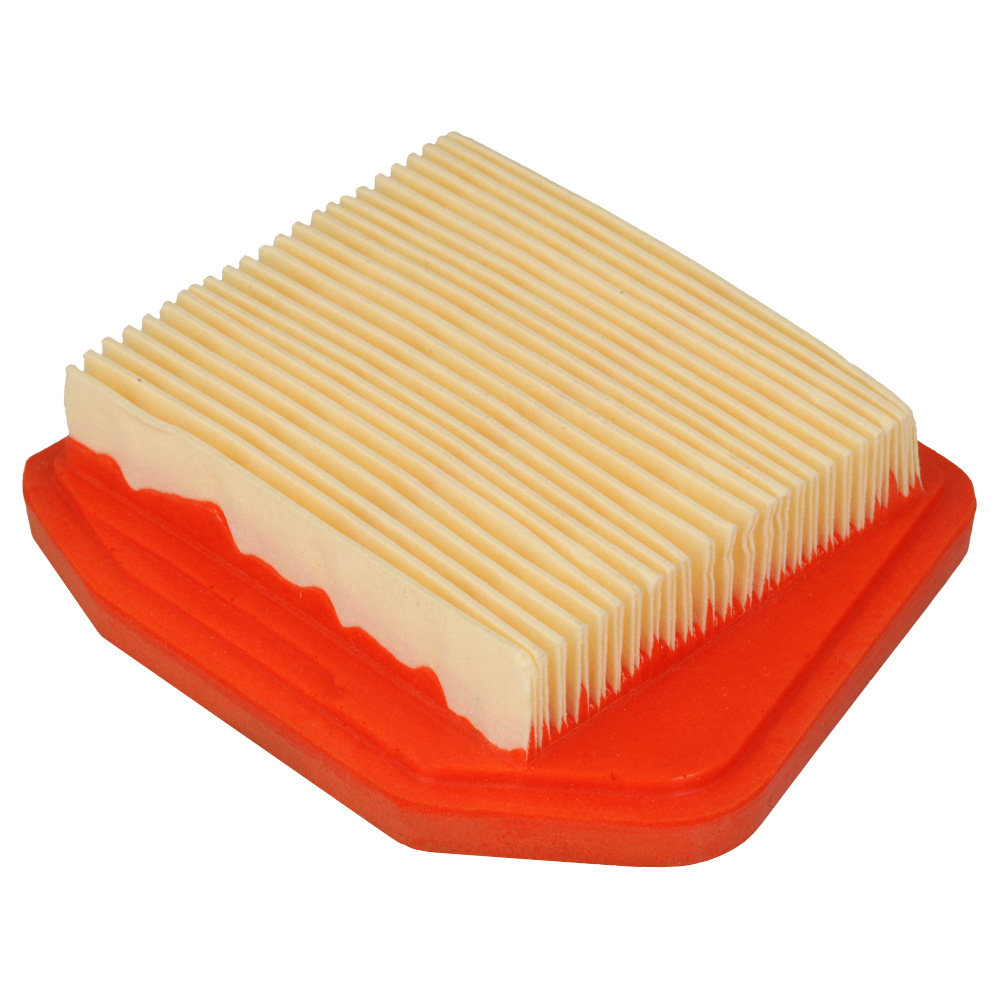

45	COEB430E-6 In stock	Air Filter	£5.77 £4.81
