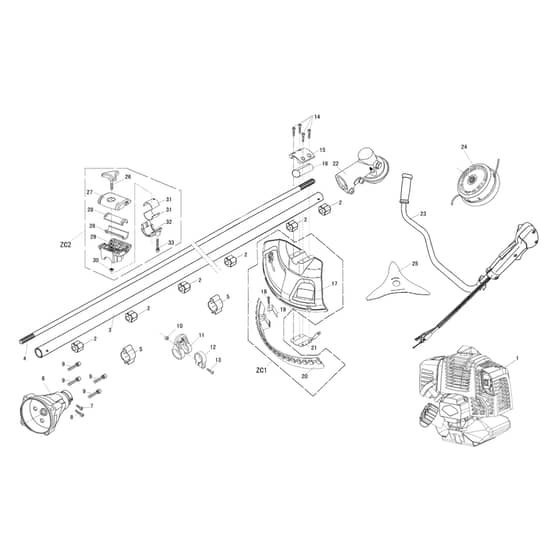

Cobra BCX370CU - Brushcutter Sept 2018 Main Diagram

Ref. Img. Part No. Details
  1 370 Engine Assy
370 Engine Assy
COGC370-42000 Out of stock
370 Engine Assy
£108.84 £90.70

  2 Bearing
Bearing
COGC415-45300 Out of stock
Bearing
£2.52 £2.10

  2 ZC2 Fixture Plate Assy
ZC2 Fixture Plate Assy
COGC305.3A-43013 Out of stock
ZC2 Fixture Plate Assy
£18.28 £15.23

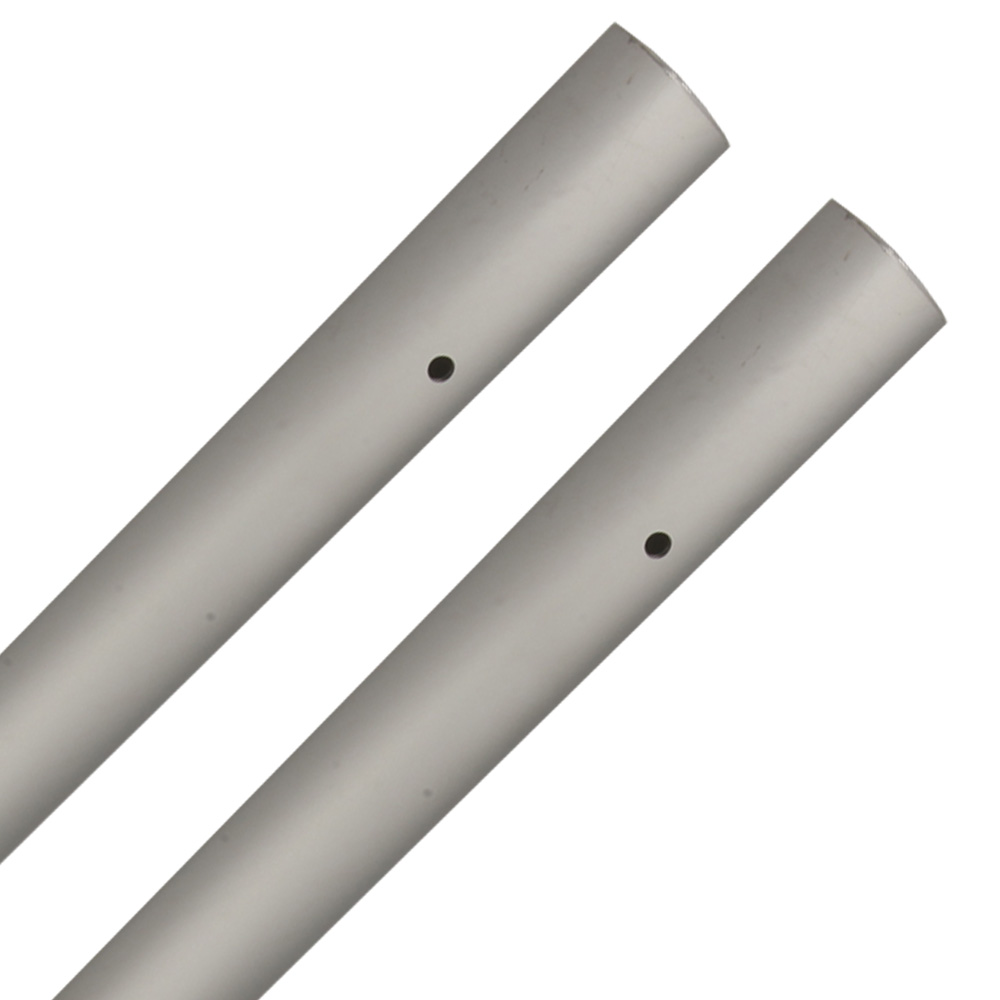

  3 Al Tube (Special Treatment)
Al Tube (Special Treatment)
COGC305-45123.1B Out of stock
Al Tube (Special Treatment)
£29.65 £24.71

  4 Drive Shaft
Drive Shaft
COGC260-45131 Out of stock
Drive Shaft
£27.10 £22.58

  5 Clip
Clip
COGC305.3-48118A Out of stock
Clip
£2.52 £2.10

  6 Clutch Housing Assy
Clutch Housing Assy
COGC415-44310 Out of stock
Clutch Housing Assy
£39.98 £33.32

  7 Screw
Screw
COGC305.3A-90081 Out of stock
Screw
£2.52 £2.10

  8 Screw
Screw
COGC305-90012 Out of stock
Screw
£1.26 £1.05

  10 Nut
Nut
COYD2500-92001 Out of stock
Nut
£1.26 £1.05

  11 Hook
Hook
COGC305-46581 Out of stock
Hook
£2.52 £2.10

  12 Hook Support
Hook Support
COGC305-13582 Out of stock
Hook Support
£2.52 £2.10

  13 Screw
Screw
COYD5200.5-90030 Out of stock
Screw
£2.52 £2.10

  14 Screw
Screw
COGC305.5-90039 Out of stock
Screw
£1.26 £1.05

  15 Clamping Upper Plate
Clamping Upper Plate
COGC305.5-48051 Out of stock
Clamping Upper Plate
£2.52 £2.10

  16 Damping Sleeve
Damping Sleeve
COGC305.5-48057 Out of stock
Damping Sleeve
£2.52 £2.10

  17 Protective Cover
Protective Cover
COGC305.5-48053 Out of stock
Protective Cover
Was £18.25 £15.21 Special Price £12.78 £10.65

  18 Tapping Screw
Tapping Screw
COGC305.3B-91337 Out of stock
Tapping Screw
£2.52 £2.10

  19 Small Blade
Small Blade
COGC305.3A-48056.2A Out of stock
Small Blade
£2.52 £2.10

  20 Plate Of Protective Cover
Plate Of Protective Cover
COGC305.5-48060 Out of stock
Plate Of Protective Cover
£2.52 £2.10

  21 Clamping Under Plate
Clamping Under Plate
COGC305-48052B Out of stock
Clamping Under Plate
£2.52 £2.10

  23 23A Bike Handle Only
23A Bike Handle Only
COGC305.3A-43030 Out of stock
23A Bike Handle Only
£30.85 £25.71

  23 Throttle Control Only
Throttle Control Only
COGC305.3A-47080 Out of stock
Throttle Control Only
£26.10 £21.75

  24 Nylon Head Assy
Nylon Head Assy
COGC305.3-48180 In stock
Nylon Head Assy
£20.64 £17.20

  25 Three Teeth Blade
Three Teeth Blade
COGC305-48200 Out of stock
Three Teeth Blade
£10.50 £8.75

  26 Knob
Knob
COGC305.3A-43023 Out of stock
Knob
£2.52 £2.10

  27 Upper Plate
Upper Plate
COGC305.3A-43016 Out of stock
Upper Plate
£2.52 £2.10

  28 Sleeve
Sleeve
COGC305.3A-43021 Out of stock
Sleeve
£2.52 £2.10

  29 Middle Plate
Middle Plate
COGC305.3A-43017 Out of stock
Middle Plate
£2.60 £2.17

  30 Nut
Nut
COGC305.3A-92004 Out of stock
Nut
£2.52 £2.10

  31 Semicircle Sleeve For Lower Platen
Semicircle Sleeve For Lower Platen
COGC305.3A-43036 Out of stock
Semicircle Sleeve For Lower Platen
£2.52 £2.10

  32 Lower Plate
Lower Plate
COGC305.3A-43018 Out of stock
Lower Plate
£2.52 £2.10

  33 Combination Screw
Combination Screw
COGC305.1-97013 Out of stock
Combination Screw
£1.26 £1.05


Description

Cobra BCX370CU Brushcutter Parts Diagram
