Cobra BCX230C - Brushcutter Sept 2018 Main Diagram

Name: Cobra BCX230C - Brushcutter Sept 2018 Main Diagram
SKU: bcx230c_brushcutter_sept_2018_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BCX230C - Brushcutter Sept 2018 Main Diagram

Description

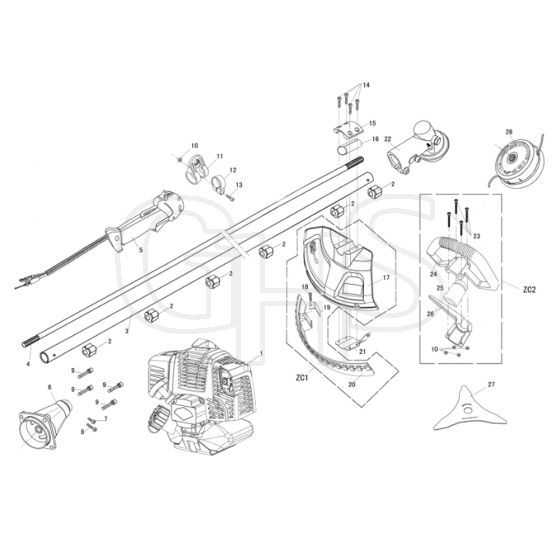

Cobra BCX230C Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC230-42000 Available to backorder	230 Engine Assy	£108.84 £90.70
2	COGC260-46090 Available to backorder	ZC2 G-Handle Assy	£11.98 £9.98
2	COGC415-45300 Available to backorder	Bearing	£2.62 £2.18
3	COGC305-45125 Available to backorder	Al Tube	£29.65 £24.71
4	COGC260-45131 Available to backorder	Drive Shaft	£27.10 £22.58
5	COLJ260K-47000 Available to backorder	Controller	£18.84 £15.70
6	COGC260.3-44310 Available to backorder	Output Based	£34.20 £28.50
7	COGC305.3A-90081 Available to backorder	Screw	£2.52 £2.10
8	COBGC350K-97025 Available to backorder	Screw	£2.52 £2.10
9	COGC260-97016 Available to backorder	Combination Screw	£1.26 £1.05
10	COYD2500-92001 Available to backorder	Hex Nut	£1.26 £1.05
11	COGC305-46581 Available to backorder	Hook	£2.52 £2.10
12	COGC305-13582 Available to backorder	Hook Fix Seat	£2.52 £2.10
13	COYD5200.5-90030 Available to backorder	Screw	£2.52 £2.10
14	COGC305.5-90039 Available to backorder	Screw	£1.20 £1.00
15	COGC305.5-48051 Available to backorder	Clamping Bracket	£2.62 £2.18
16	COGC305.5-48057 Available to backorder	Damping Sleeve	£2.40 £2.00
17	COGC305.5-48053 Available to backorder	Cutting Attachment Shield	£18.25 £15.21
18	COGC305.3B-91337 Available to backorder	Tapping Screw	£2.52 £2.10
19	COGC305.3A-48056.2A Available to backorder	Small Blade	£2.62 £2.18
20	COGC305.5-48060 Available to backorder	Plt Btm Brush Cutter Ppp	£2.52 £2.10
21	COGC305-48052B Available to backorder	Bottom Clamp Bracket	£2.62 £2.18
23	COYD4500-90025 Available to backorder	Screw	£1.26 £1.05
25	COGC260-46092 Available to backorder	Circle Shealth	£3.76 £3.13
27	COGC305-48200 In stock	Blade	£10.00 £8.33
28	COGC305.3-48180 In stock	Nylon Head	£20.04 £16.70
