Cobra BC530K Brushcutter Parts Diagram

	Part No.	Details
1	KA92154-2045 Available to backorder	Bolit	£2.75 £2.29
2	KA11065-2141 Available to backorder	Air Filter Cover	£9.97 £8.31
2	KA13081-0635 Available to backorder	ZC2 Clutch-Assy	£59.89 £49.91
3	KA11013-2242 Available to backorder	Element-Air Filter	£4.14 £3.45
4	KA49080-0707 Available to backorder	ZC4 Pulley-Starting	£8.63 £7.19
5	KA18020-2096 Available to backorder	Baffle	£2.26 £1.88
5	KA49088-0774 Available to backorder	ZC5 Starter-Recoil	£64.68 £53.90
6	KA16126-2250 Available to backorder	Air Filter Valve	£4.46 £3.72
7	KA11038-0705 Available to backorder	Air Filter Case	£13.31 £11.09
8	CO15004-2100 Available to backorder	Carburettor	£123.12 £102.60
9	KA92009-2235 Available to backorder	Screw	£0.49 £0.41

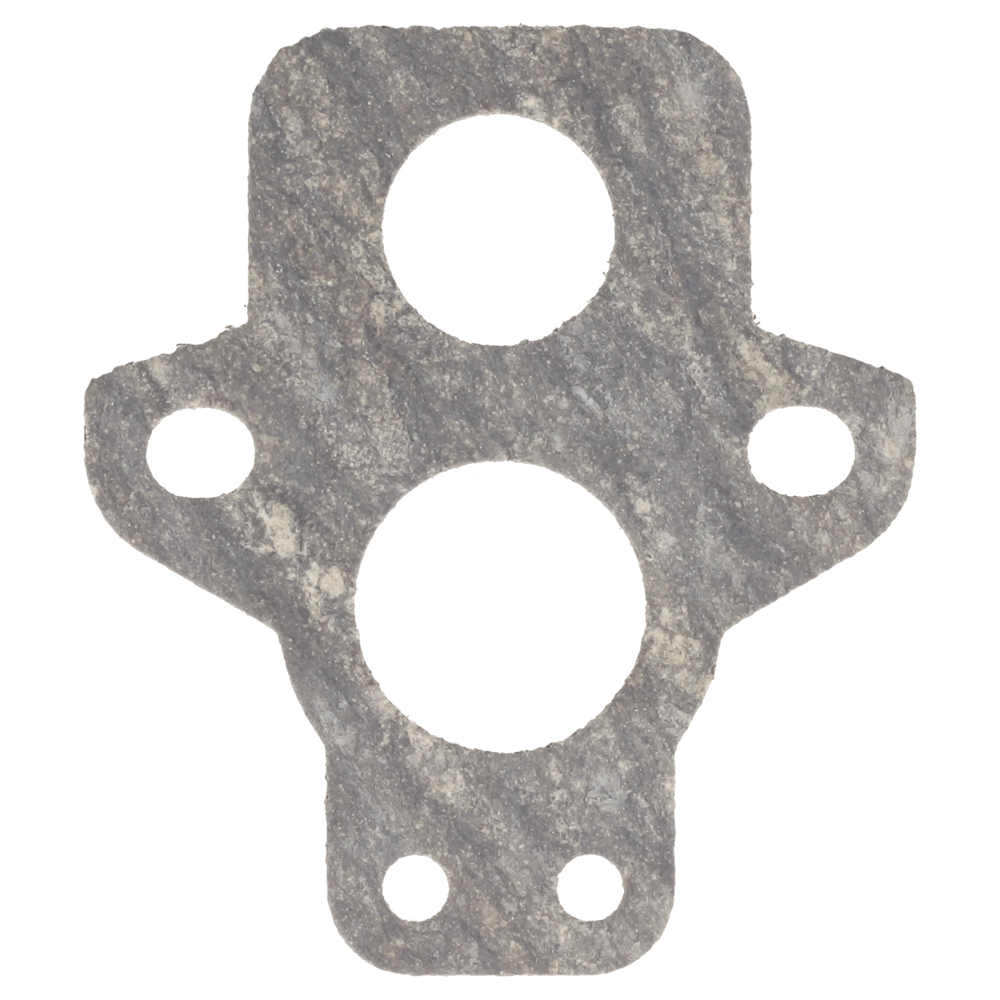

10	KA11061-2237 Available to backorder	Body	£1.80 £1.50
17	KA13272-2044 Available to backorder	Plate	£1.16 £0.97
17	KA13272-2049 Available to backorder	Plate 2	£1.16 £0.97
18	KA92172-2103 Available to backorder	Screw-Pan+-	£0.48 £0.40

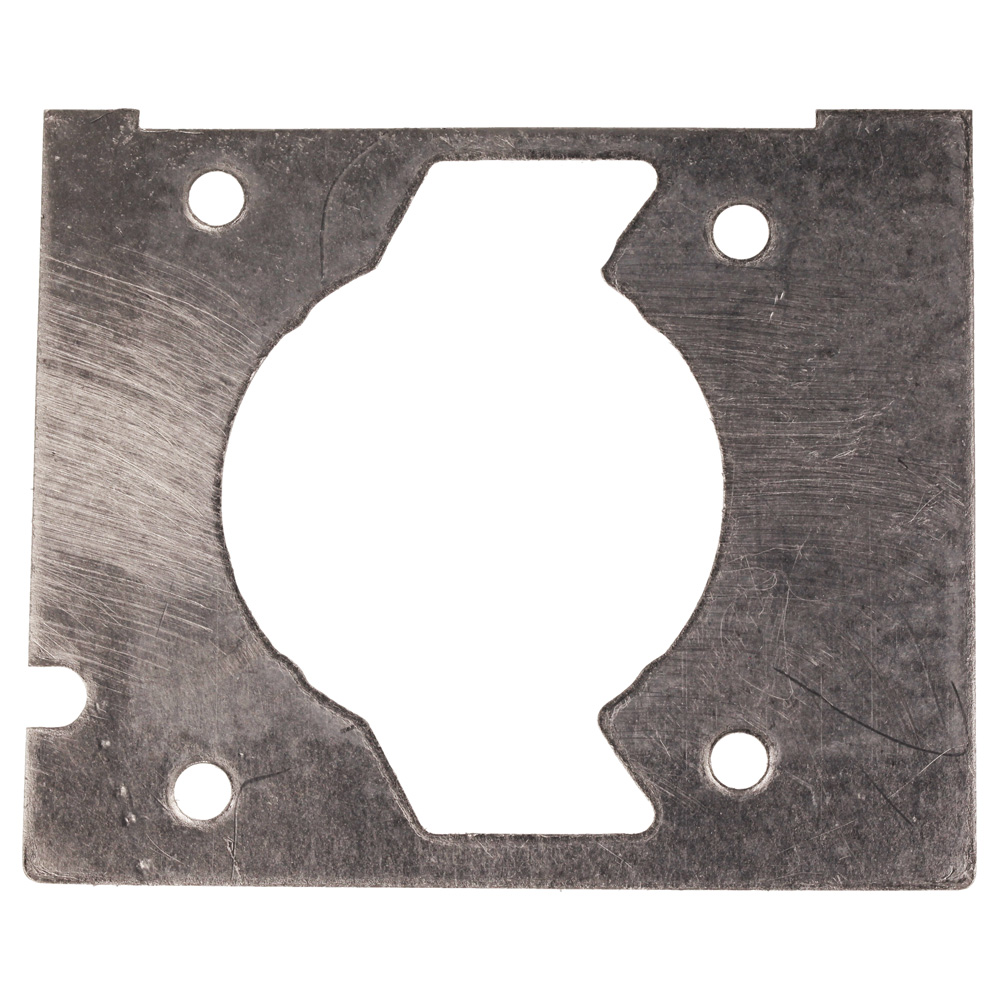

19	KA11061-2234 Available to backorder	Gasket Cylinder	£8.14 £6.78
20	2134 In stock	Plug-Spark Bpmr7A	£2.80 £2.33
21	KA21169-2080 Available to backorder	Spring	£0.71 £0.59
22	KA92071-0704 Available to backorder	Grommet	£1.16 £0.97
23	KA21130-2082 Available to backorder	Spark Plug Cap	£5.60 £4.67
24	KA92049-2281 Available to backorder	Oil Seal	£9.94 £8.28

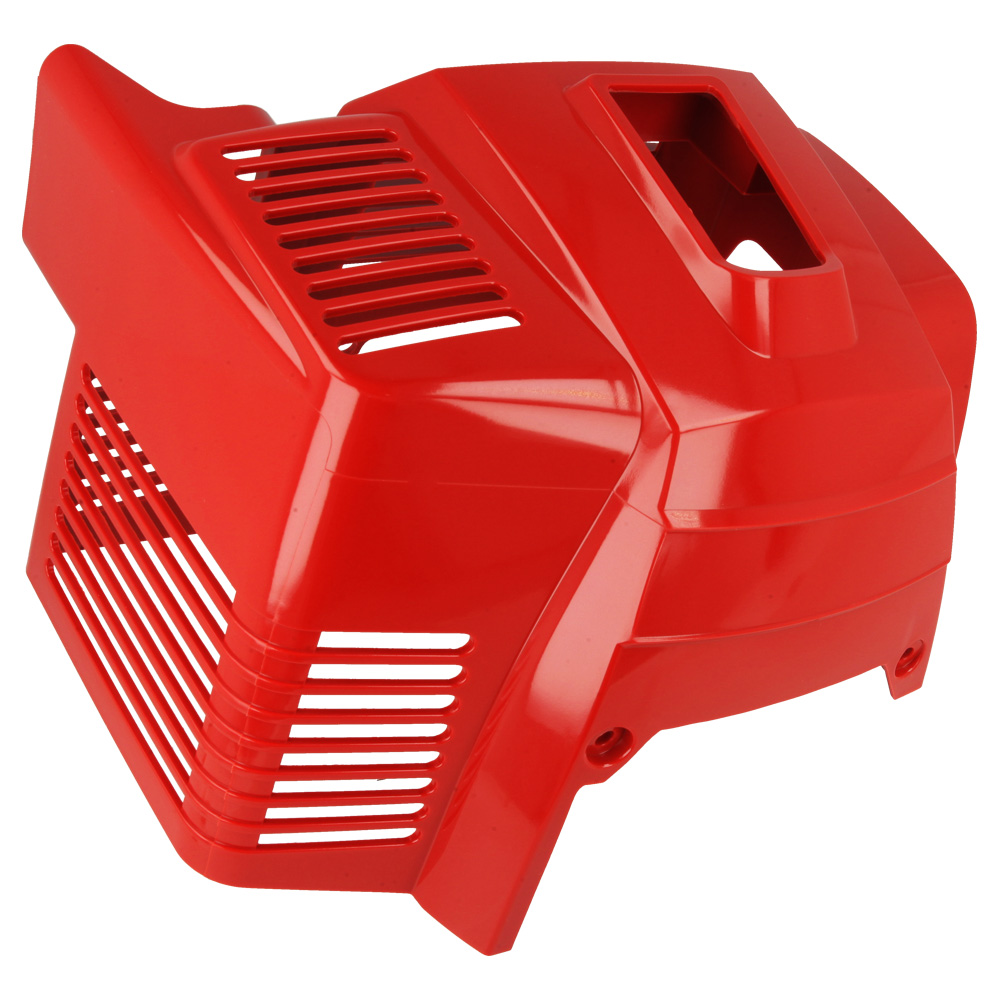

25	KA49089-0915 Available to backorder	Shroud-Engine	£35.83 £29.86
26	KA92172-2060 Available to backorder	Screw 4X10	£0.43 £0.36

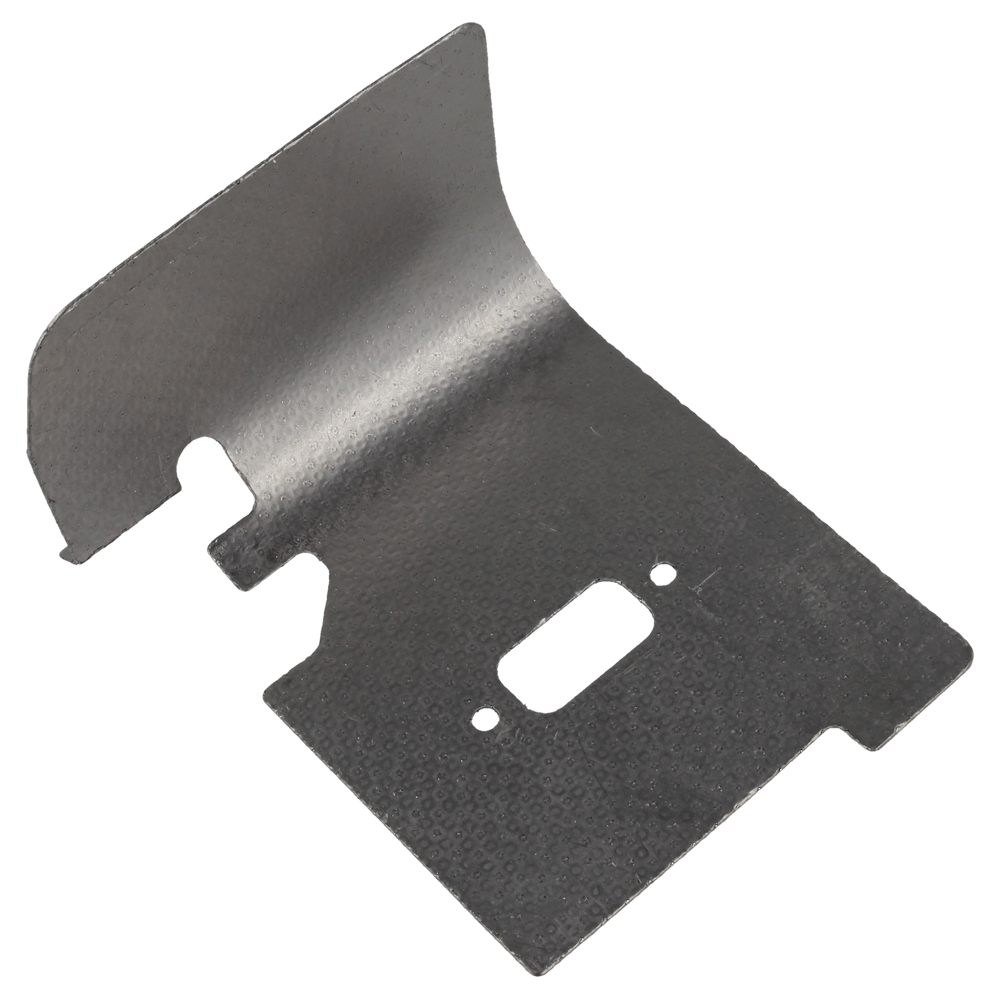

27	KA11061-0898 Available to backorder	Gasket Muffler	£20.74 £17.28
30	KA92172-2112 Available to backorder	Screw	£0.46 £0.38
32	KA92153-2137 Available to backorder	Bolt	£0.43 £0.36
33	KA21171-0791 Available to backorder	Coil-Assy-Ignition	£104.88 £87.40
34	KA92153-2138 Available to backorder	Bolt 4X25	£0.94 £0.78
36	KA26011-2399 Available to backorder	Wire-Lead	£4.55 £3.79
39	KA13008-6075 Available to backorder	Ring-Set-Piston	£17.11 £14.26
42	KA92033-2200 Available to backorder	Ring-Snap	£0.49 £0.41
43	KA13033-2063 Available to backorder	Bearing-Small End	£10.63 £8.86
44	KA92026-2364 Available to backorder	Spacer	£1.97 £1.64
46	KA92038-2109 Available to backorder	Key-Woodruff	£1.54 £1.28
47	KA92043-2275 Available to backorder	Pin	£0.66 £0.55
48	KA92045-2285 Available to backorder	Bearing-Ball 6202C3	£12.80 £10.67
51	KA92049-2280 Available to backorder	Oil Seal	£9.94 £8.28
52	KA14080-0715 Available to backorder	Crankcase	£59.36 £49.47
55	KA92210-2101 Available to backorder	Nut M8	£0.80 £0.67
57	KA92172-2125 Available to backorder	Screw-Pan-Wp+-	£0.80 £0.67
58	KA92033-2202 Available to backorder	Washer	£0.94 £0.78
59	CO49049-2098 Available to backorder	Shoe-Clutch	£22.69 £18.91

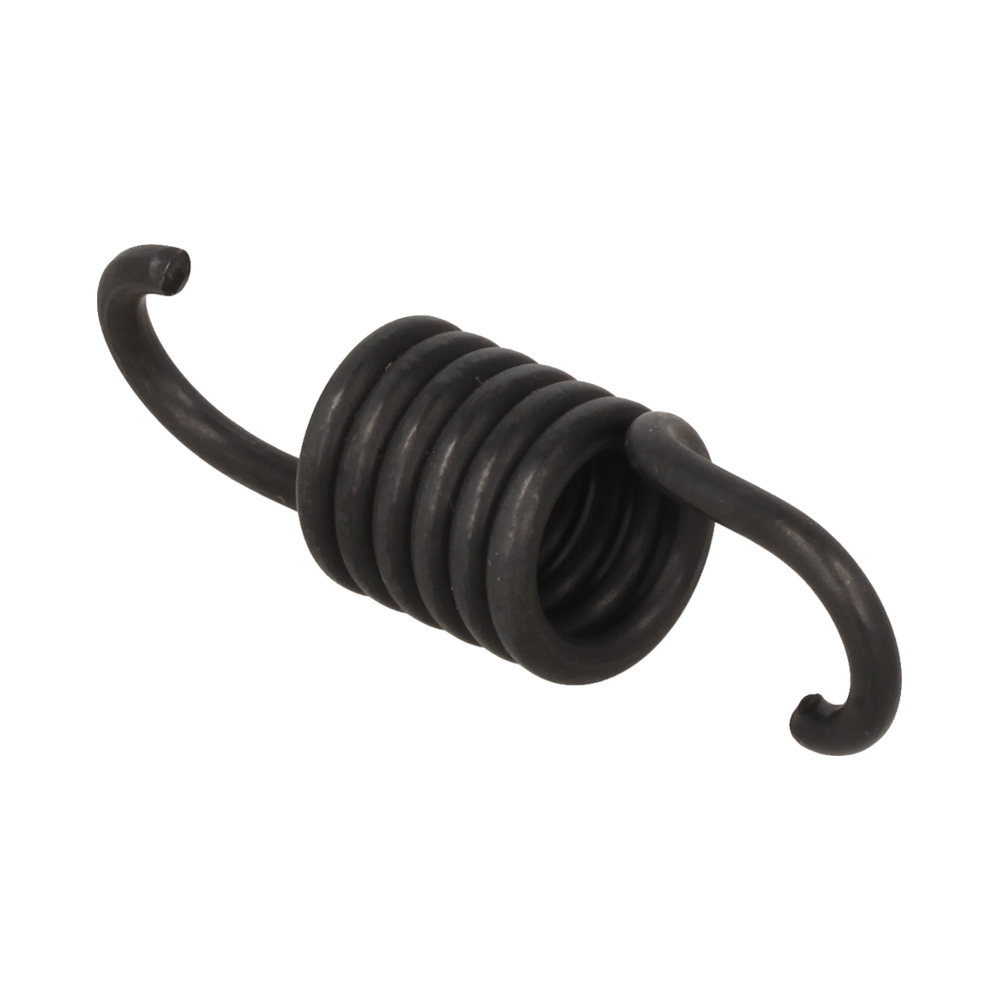

60	KA92144-2373 Available to backorder	Spring	£2.26 £1.88
61	CO13270-2119 Available to backorder	Washer Spring 105X145X0	£4.74 £3.95
62	CO92043-2210 Available to backorder	Pin Clutch	£7.14 £5.95
63	KA92009-2249 Available to backorder	Screw 5X20	£0.43 £0.36
64	KA34001-2093 Available to backorder	Stand	£5.60 £4.67
65	KA51001-2343 Available to backorder	Tank-Comp-Fuel	£44.83 £37.36
66	KA14069-0017 In stock	Breather	£11.26 £9.38
67	KA51048-2083 Available to backorder	Cap-Assy-Tank	£9.89 £8.24

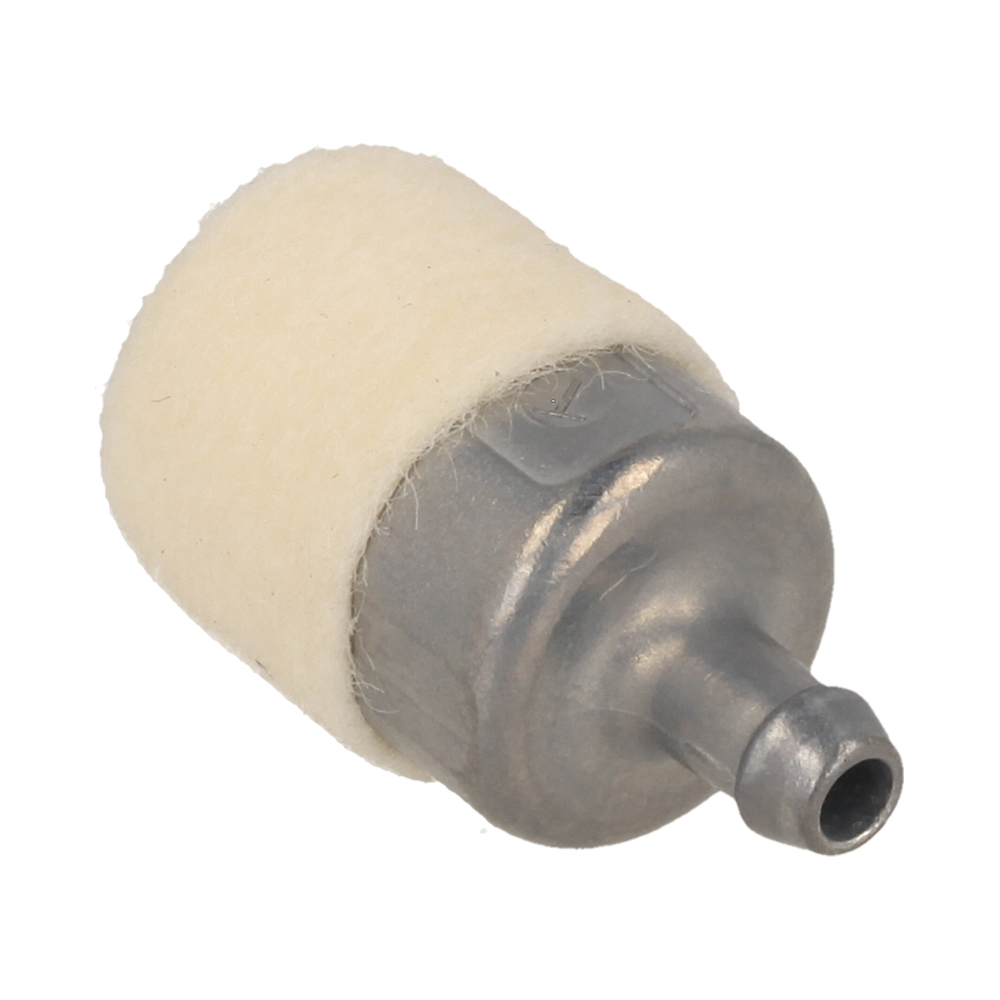

68	KA49019-2111 Available to backorder	Filter-Fuel	£12.64 £10.53
69	KA92173-2022 Available to backorder	Clamp	£0.86 £0.72
72	KA92190-2177 Available to backorder	Tube 3X5X200	£2.40 £2.00
74	KA92033-2010 Available to backorder	Ring-Snap	£0.48 £0.40
75	KA92145-2148 Available to backorder	Spring	£0.49 £0.41
76	KA13165-2109 Available to backorder	Pawl	£2.51 £2.09

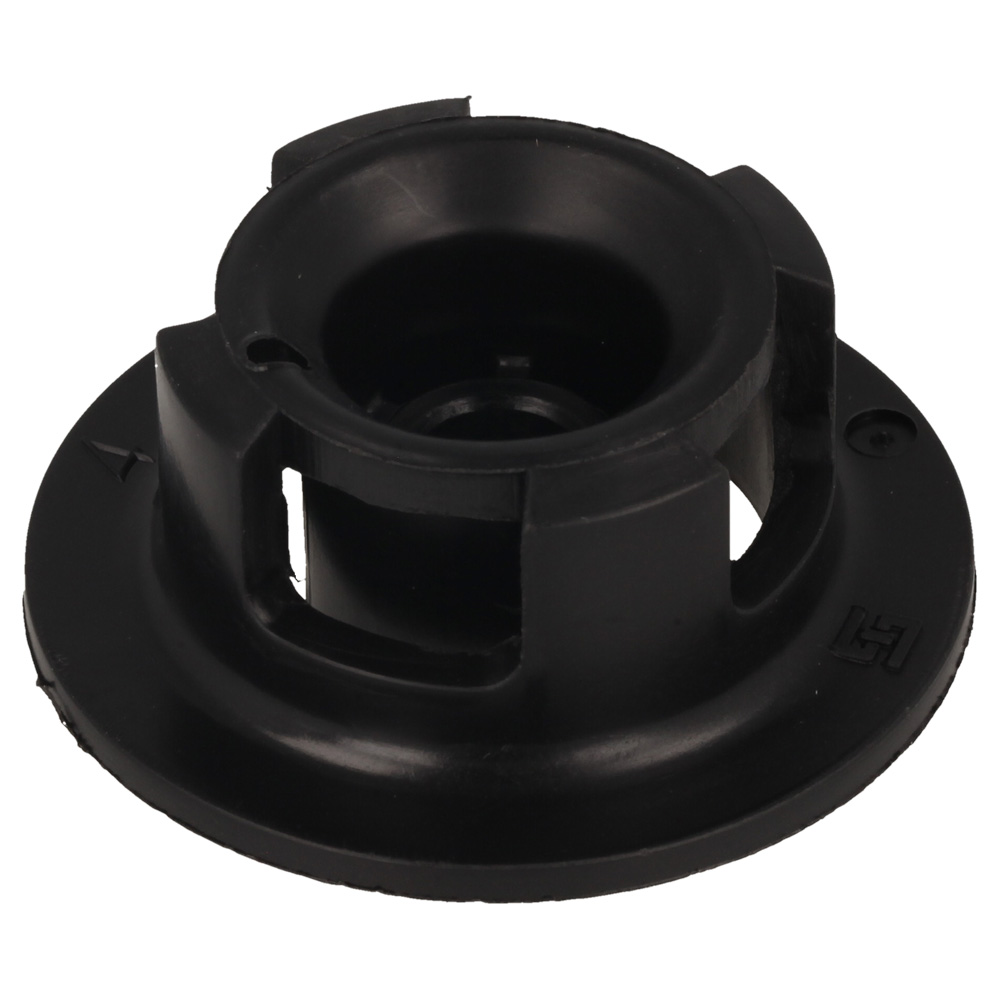

78	KA49060-0556 Available to backorder	Cam Starter-Recoil	£22.16 £18.47
79	KA92145-0864 Available to backorder	Spring	£9.83 £8.19
80	KA59101-0010 Available to backorder	Reel Starter-Recoil	£11.09 £9.24
81	KA92145-0837 Available to backorder	Spring Spiral	£16.54 £13.78
82	KA32099-0707 Available to backorder	Recoil Case	£32.20 £26.83
83	KA13169-2386 Available to backorder	Plate Recoil Starter	£1.46 £1.22
84	KA46075-2129 Available to backorder	Grip Recoil Starter	£12.31 £10.26
86	KA92172-0710 Available to backorder	Screw	£0.60 £0.50
87	KA13168-2521 Available to backorder	Air Filter Lever	£3.40 £2.83
90	KA49089-0752 Available to backorder	Engine Cowling	£5.52 £4.60
