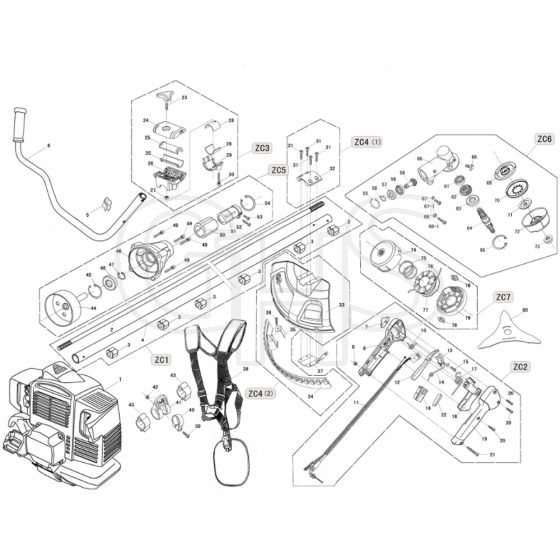

Cobra BC530K - Brushcutter July 2016 Main Diagram

Ref. Img. Part No. Details
  1 ZC1 Shaft Assy
ZC1 Shaft Assy
COGC415K-45120 Out of stock
ZC1 Shaft Assy
£58.80 £49.00

  2 Transmission Shaft
Transmission Shaft
COGC305-45130 Out of stock
Transmission Shaft
£27.10 £22.58

  2 ZC2 Sw Asm Cub Ppp
ZC2 Sw Asm Cub Ppp
COGC305.3A-47080 Out of stock
ZC2 Sw Asm Cub Ppp
£26.10 £21.75

  3 ZC3 Handle Clamp Assy
ZC3 Handle Clamp Assy
COGC305.3A-43013 Out of stock
ZC3 Handle Clamp Assy
£18.28 £15.23

  3 Oil-Bearing
Oil-Bearing
COGC415K-45300A Out of stock
Oil-Bearing
£2.52 £2.10

  4 Tube
Tube
COGC415K-45123 Out of stock
Tube
£31.08 £25.90

  5 ZC5 Shaft Tube
ZC5 Shaft Tube
COGC305-44300.2 Out of stock
ZC5 Shaft Tube
£35.89 £29.91

  6 Bike Handlebar Assy
Bike Handlebar Assy
COGC305.3A-43030 Out of stock
Bike Handlebar Assy
£30.85 £25.71

  7 ZC7 Cutting Head Assy
ZC7 Cutting Head Assy
COGC305.3-48180 Out of stock
ZC7 Cutting Head Assy
£20.64 £17.20

  7 Ignition Switch
Ignition Switch
COGC305.3A-47081 Out of stock
Ignition Switch
£2.52 £2.10

  11 Throttle Lockout
Throttle Lockout
COGC305K.3A-47090 Out of stock
Throttle Lockout
£15.73 £13.11

  12 Spring Plate Ignition Switch
Spring Plate Ignition Switch
COGC305.3A-47088 Out of stock
Spring Plate Ignition Switch
£2.52 £2.10

  18 Throttle Trigger
Throttle Trigger
COGC305.3A-47091 Out of stock
Throttle Trigger
£2.52 £2.10

  35 Small Blade
Small Blade
COGC305.3A-48056.2A Out of stock
Small Blade
£2.52 £2.10

  37 Plate
Plate
COGC305.5-48052 Out of stock
Plate
£2.52 £2.10

  38 Strap Assembly
Strap Assembly
COGC305K.3A-46580 Out of stock
Strap Assembly
£15.73 £13.11

  40 Φ28 Anchor Hook
Φ28 Anchor Hook
COGC450K.3-46582 Out of stock
Φ28 Anchor Hook
£2.52 £2.10

  41 Φ28 Hook
Φ28 Hook
COGC450K.3-46581 Out of stock
Φ28 Hook
£2.52 £2.10

  41 ZC4(1) Guard Clamp Assy
ZC4(1) Guard Clamp Assy
COGC305.5-48063 Out of stock
ZC4(1) Guard Clamp Assy
£2.63 £2.19

  42 ZC4(2) Guard Assy
ZC4(2) Guard Assy
COGC305.5-48050 Out of stock
ZC4(2) Guard Assy
£7.10 £5.92

  43 Throttle Cable Clamp
Throttle Cable Clamp
COGC305.3A-48115 Out of stock
Throttle Cable Clamp
£2.52 £2.10

  48 Clutch Drum Housing
Clutch Drum Housing
COGC305-44324.2 Out of stock
Clutch Drum Housing
£2.52 £2.10

  61 Bearing
Bearing
COGC415-96030 Out of stock
Bearing
£2.52 £2.10

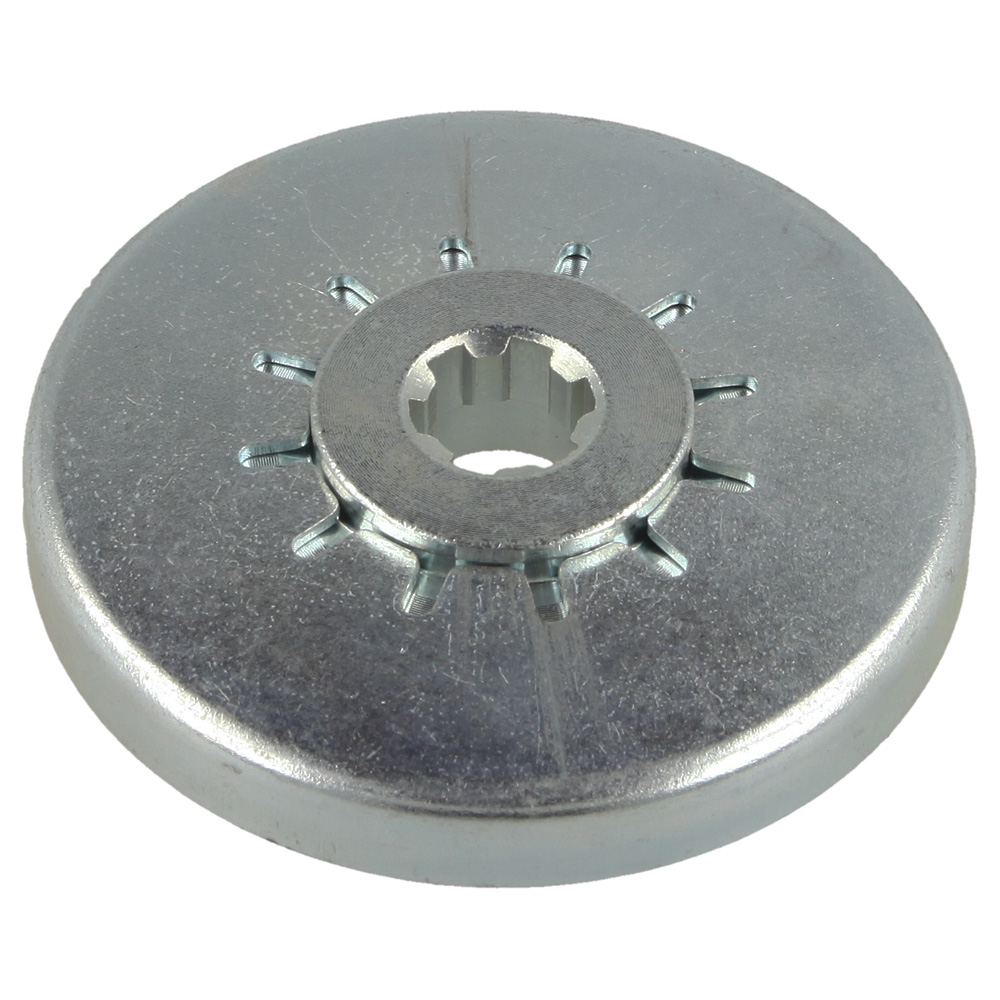

  69 Shaft Bushing
Shaft Bushing
COGC305.3-48046A Out of stock
Shaft Bushing
£3.42 £2.85

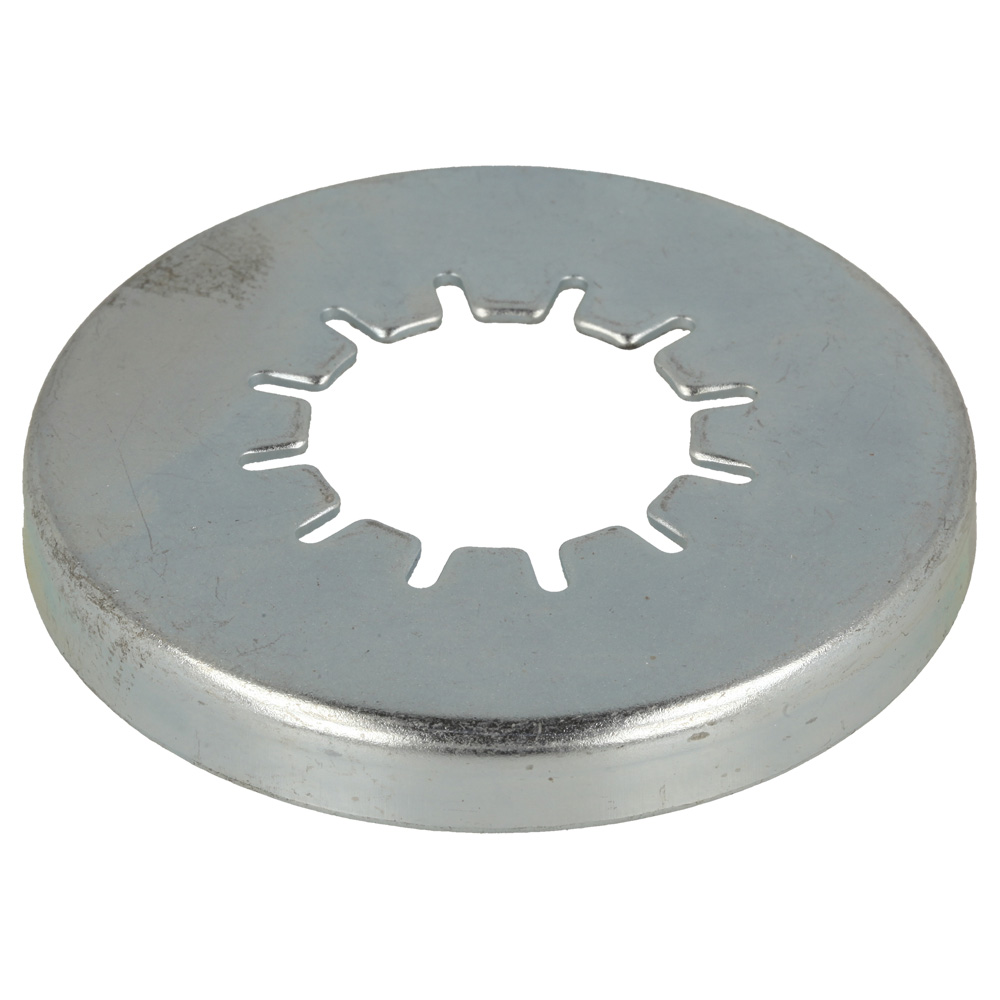

  70 Blade Holder
Blade Holder
COGC305.3-48047 Out of stock
Blade Holder
£3.13 £2.61

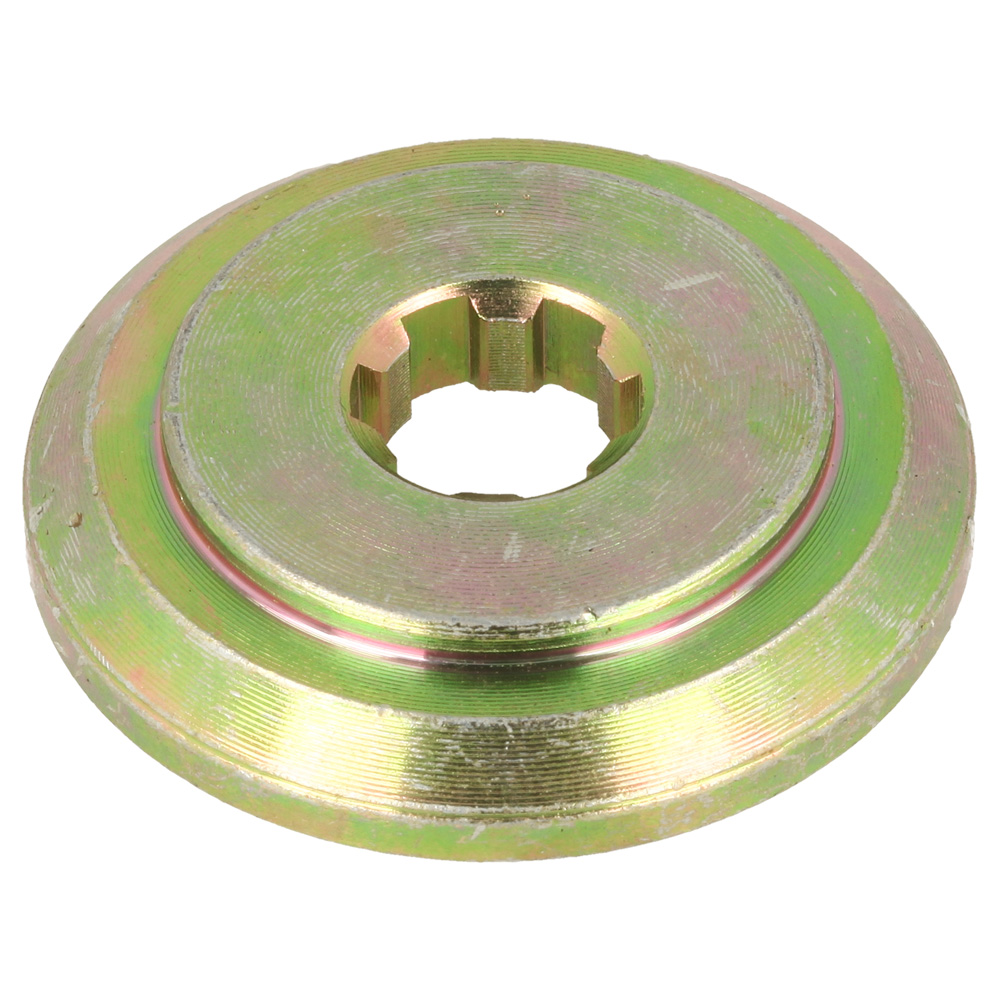

  71 Spacer
Spacer
COGC305.3-48045 Out of stock
Spacer
£2.52 £2.10

  72 Blade Holder Cover
Blade Holder Cover
COGC305.3-48048A Out of stock
Blade Holder Cover
£3.13 £2.61

  73 Cutting Blade Locking Nut
Cutting Blade Locking Nut
COGC305.1-92105 Out of stock
Cutting Blade Locking Nut
£3.78 £3.15


Description

Cobra BC530K Brushcutter Parts Diagram
