Cobra BC450KB - Loop Handle Straight Shaft Engine Diagram

Ref. Img. Part No. Details
  1 Bolt CO92153-2128
Bolt
Out of stock
£4.16 £3.47

  1 ZC1 Muffler-Assy KA49069-2435
ZC1 Muffler-Assy
Out of stock
£61.44 £51.20

  2 ZC2 Clutch-Assy KA13081-2220
ZC2 Clutch-Assy
Out of stock
£72.00 £60.00

  2 Cap-Air Filter CO11065-2125
Cap-Air Filter
Out of stock
£7.31 £6.09

  3 Element-Air Filter CO11013-2226
Element-Air Filter
Out of stock
£5.26 £4.38

  3 ZC3 Cap-Tank & Breather Assy KA99996-6107
ZC3 Cap-Tank & Breather Assy
Out of stock
£29.71 £24.76

  4 ZC4 Pulley-Starting KA49080-2201
ZC4 Pulley-Starting
Out of stock
£15.77 £13.14

  5 ZC5 Starter-Recoil CO49088-2566
ZC5 Starter-Recoil
Out of stock
£40.93 £34.11

  6 Case-Air Filter CO11011-2362
Case-Air Filter
Out of stock
£8.93 £7.44

  7 Gasket CO11061-2176
Gasket
Out of stock
£2.52 £2.10

  8 Carburetor KA15004-0708
Carburetor
Out of stock
£182.28 £151.90

  10 Body CO11061-2208
Body
Out of stock
£2.52 £2.10

  11 Insulator CO16073-2236
Insulator
Out of stock
£40.62 £33.85

  15 Gasket CO11061-2209
Gasket
Out of stock
£2.52 £2.10

  19 Gasket Cylinder KA11061-2226
Gasket Cylinder
Out of stock
£6.66 £5.55

  24 Cap-Spark Plug KA21130-2080
Cap-Spark Plug
Out of stock
£7.20 £6.00

  25 Shroud-Engine CO49089-2742
Shroud-Engine
Out of stock
£164.40 £137.00

  27 Gasket Muffler CO11061-2174
Gasket Muffler
Out of stock
£97.68 £81.40

  33 Coil-Assy-Ignition KA21171-2250
Coil-Assy-Ignition
Out of stock
£124.56 £103.80

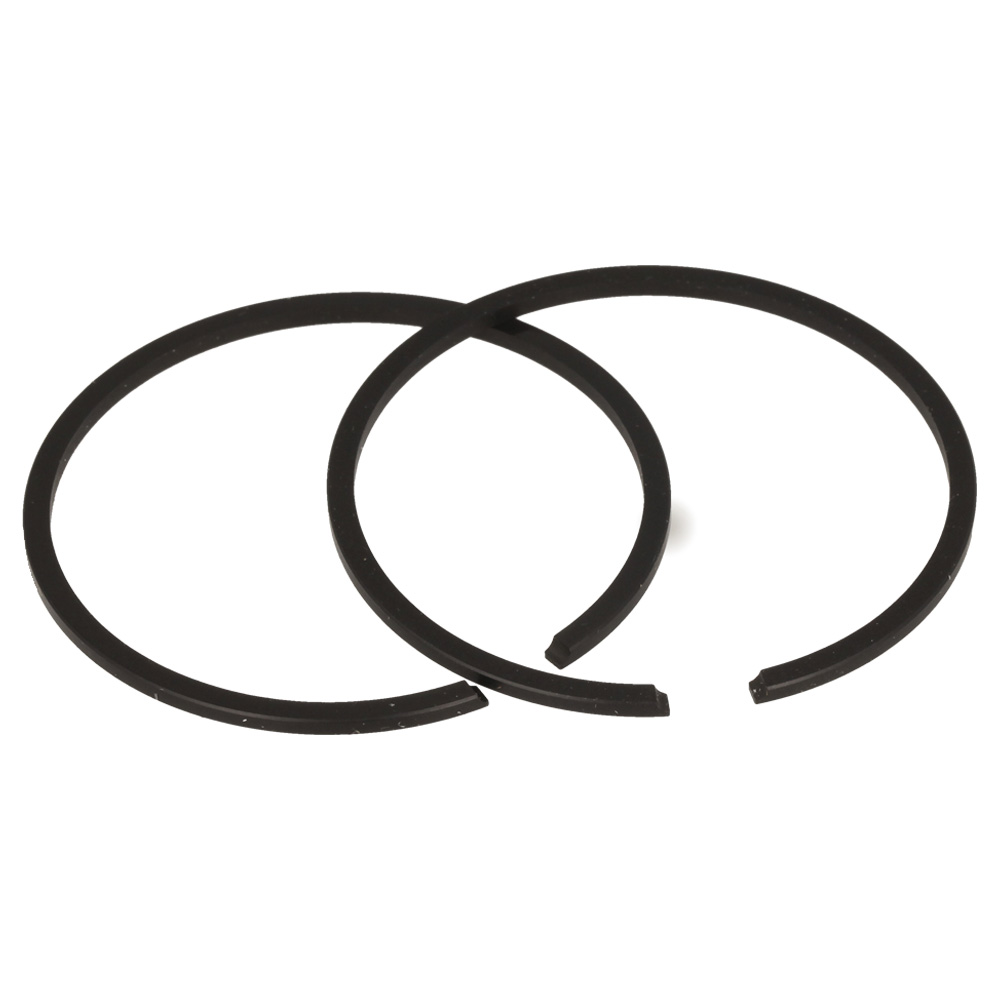

  39 Ring-Set-Piston KA13008-6067
Ring-Set-Piston
Out of stock
£18.71 £15.59

  40 Piston-Engine CO13001-2166
Piston-Engine
Out of stock
£174.84 £145.70

  41 Pin-Piston KA13002-2067
Pin-Piston
Out of stock
£5.33 £4.44

  43 Bearing-Small End KA13033-2063
Bearing-Small End
Out of stock
£13.66 £11.38

  45 Crankshaft-Assy CO49119-2231
Crankshaft-Assy
Out of stock
£898.80 £749.00

  51 Seal-Oil 12X22X45 KA92049-2217
Seal-Oil 12X22X45
Out of stock
£14.53 £12.11

  54 Flywheel KA21050-2313
Flywheel
Out of stock
£141.48 £117.90

  60 Spring CO92144-2390
Spring
Out of stock
£2.63 £2.19

  64 Stand KA34001-2092
Stand
Out of stock
£7.21 £6.01

  65 Tank-Comp-Fuel CO51001-2324
Tank-Comp-Fuel
Out of stock
£41.24 £34.37

  68 Filter-Fuel KA49019-2114
Filter-Fuel
Out of stock
£15.64 £13.03

  70 Grommet Fuel Tank KA92071-2142
Grommet Fuel Tank
Out of stock
£4.08 £3.40

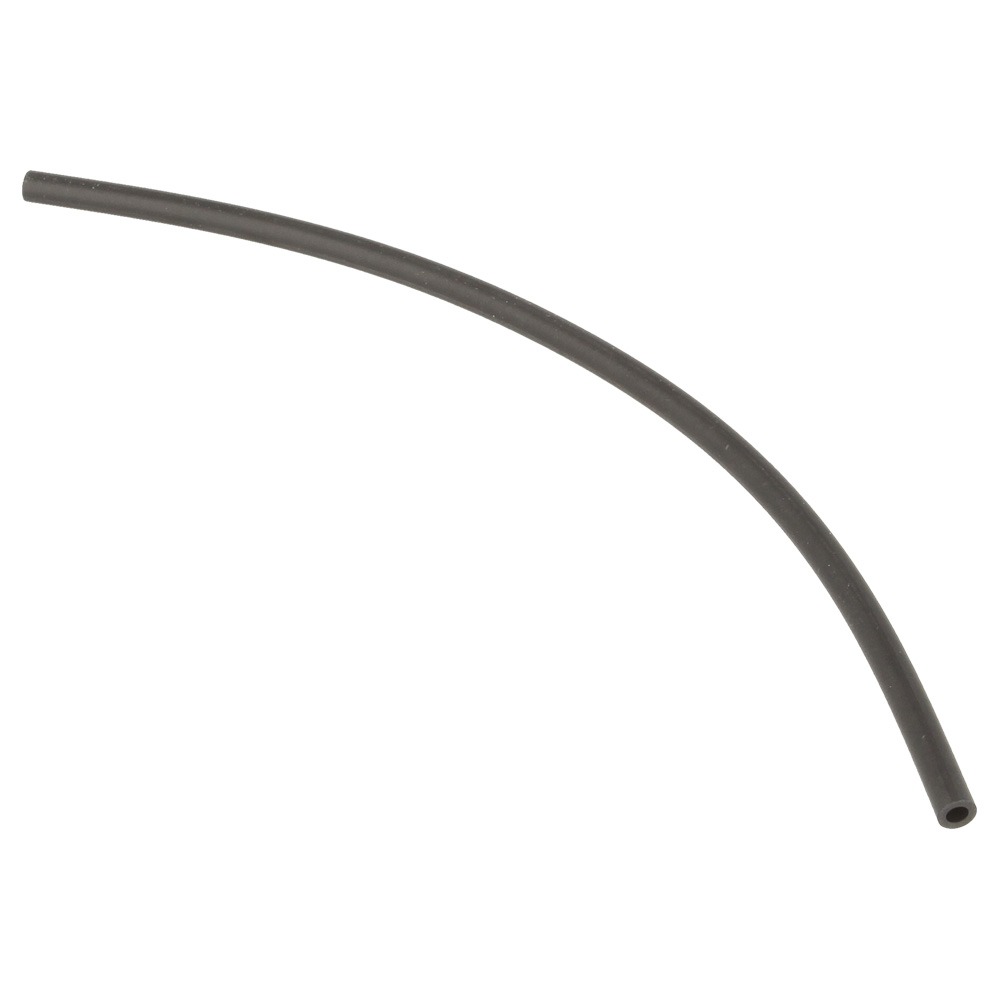

  72 Tube 3X5X200 KA92190-2157
Tube 3X5X200
Out of stock
£2.94 £2.45

  79 Spring KA92145-2150
Spring
Out of stock
£2.32 £1.93

  80 Reel Starter-Recoil KA59101-2120
Reel Starter-Recoil
Out of stock
£14.24 £11.87

  81 Spring Spiral KA92145-2112
Spring Spiral
Out of stock
£19.68 £16.40


Description

Cobra BC450KB Brushcutter Parts Diagram
