Cobra BC350KB - Loop Handle Straight Shaft Main Diagram

Description

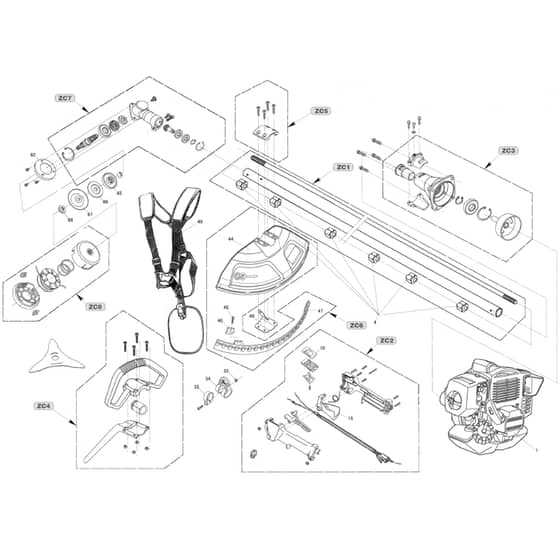

Cobra BC350KB Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC260-45120 Available to backorder	ZC1 Shf Asm Brush Cutter	£38.36 £31.97
2	COGC260-47000-2 Available to backorder	ZC2 Sw Asm Cub Ppp	£18.84 £15.70
3	COGC305-44300.2 Available to backorder	ZC3 Clutch Drum Assembl	£35.89 £29.91
4	COGC415-45300 Available to backorder	Oil-Retaining Bearin	£2.62 £2.18
4	COGC260-46090 Available to backorder	ZC4 G-Handle Ass`Y	£11.98 £9.98
5	COGC305.5-48051 Available to backorder	ZC5 Clamping Bracket Assy	£2.62 £2.18
6	COGC305.5-48053 Available to backorder	ZC6 Cutting Attachment Shield	£18.25 £15.21
7	COGC305.3A-48040 Available to backorder	ZC7 Grbx Asm Brush Cutter	£34.63 £28.86
8	COGC305.3-48180 In stock	ZC8 Sp Hd Asm Ppp	£20.04 £16.70
10	COGC260-47061 Available to backorder	Ignition Switch	£2.52 £2.10
15	COGC260-47006-2 Available to backorder	Throttle Trigger	£2.52 £2.10
34	COGC305-46581 Available to backorder	Hook	£2.52 £2.10
35	COGC305-46582 Available to backorder	Support-Hook	£2.52 £2.10
48	COGC305.5-48052 Available to backorder	Guard Plate	£2.40 £2.00
49	COGC305.3A-46590 Available to backorder	Harn Asm Deluxe Cub Ppp	£15.73 £13.11
62	COGC305-48045.2 Available to backorder	Protective Cover	£15.73 £13.11
66	COGC305-48047 Available to backorder	Blade Holder	£2.40 £2.00
67	COGC305.3A-48088 In stock	Blade Holder Cover	£4.18 £3.48
68	COGC305.1-92105 In stock	Locking Nut Cutting Blade	£3.60 £3.00
