Cobra BC330CU - Brushcutter Main Diagram

Name: Cobra BC330CU - Brushcutter Main Diagram
SKU: bc330cu_brushcutter_main-group
Price: 1.03 GBP
Availability: InStock

Part No. bc330cu_brushcutter_main-group

Description

Cobra BC330CU Brushcutter Parts Diagram

	Part No.	Details
1	COGC305.5-48053 In stock	ZC1 Cutting Attachment Shield	£18.62 £15.52
1	COGC305.3B-42000 Available to backorder	Engine	£97.08 £80.90
2	COGC305.3-48180 In stock	ZC2 Nylon Head	£21.43 £17.86
2	COGC415-45300 Available to backorder	Bearing	£2.48 £2.07
3	COGC305.3A-43013 Available to backorder	ZC3 Clamp Assembly	£18.00 £15.00
3	COGC305-45123 Available to backorder	Al Tube(Special Treatment)	£17.46 £14.55
4	COGC260-45131 Available to backorder	Drive Shaft	£26.69 £22.24
5	COGC305.3-48118A Available to backorder	Fix Seat	£2.48 £2.07
6	COGC415-44300.2 Available to backorder	Output Base	£35.36 £29.47
7	COGC305.3A-90081 Available to backorder	Screw	£2.48 £2.07
8	COGC305-90012 Available to backorder	Screw	£1.24 £1.03
9	COGC305.1-97013 Available to backorder	Combination Screw	£1.24 £1.03
10	COYD2500-92001 Available to backorder	Hex Nut	£1.24 £1.03
11	COGC305-46581 Available to backorder	Hook	£2.48 £2.07
12	COGC305-13582 Available to backorder	Hook Fix Seat	£2.48 £2.07
13	COYD5200.5-90030 Available to backorder	Screw	£2.48 £2.07
14	COGC305.5-90039 Available to backorder	Screw	£1.24 £1.03
15	COGC305.5-48051 Available to backorder	Clamping Bracket	£2.48 £2.07
16	COGC305.5-48057 Available to backorder	Damping Sleeve	£2.48 £2.07
21	COGC305-48052B In stock	Bottom Clamp Bracket	£2.58 £2.15
23	COGC305.3A-43030 Available to backorder	23A Bike Handle Only	£30.40 £25.33
23	COGC305.3A-47080 Available to backorder	Control Lever Assy	£25.72 £21.43

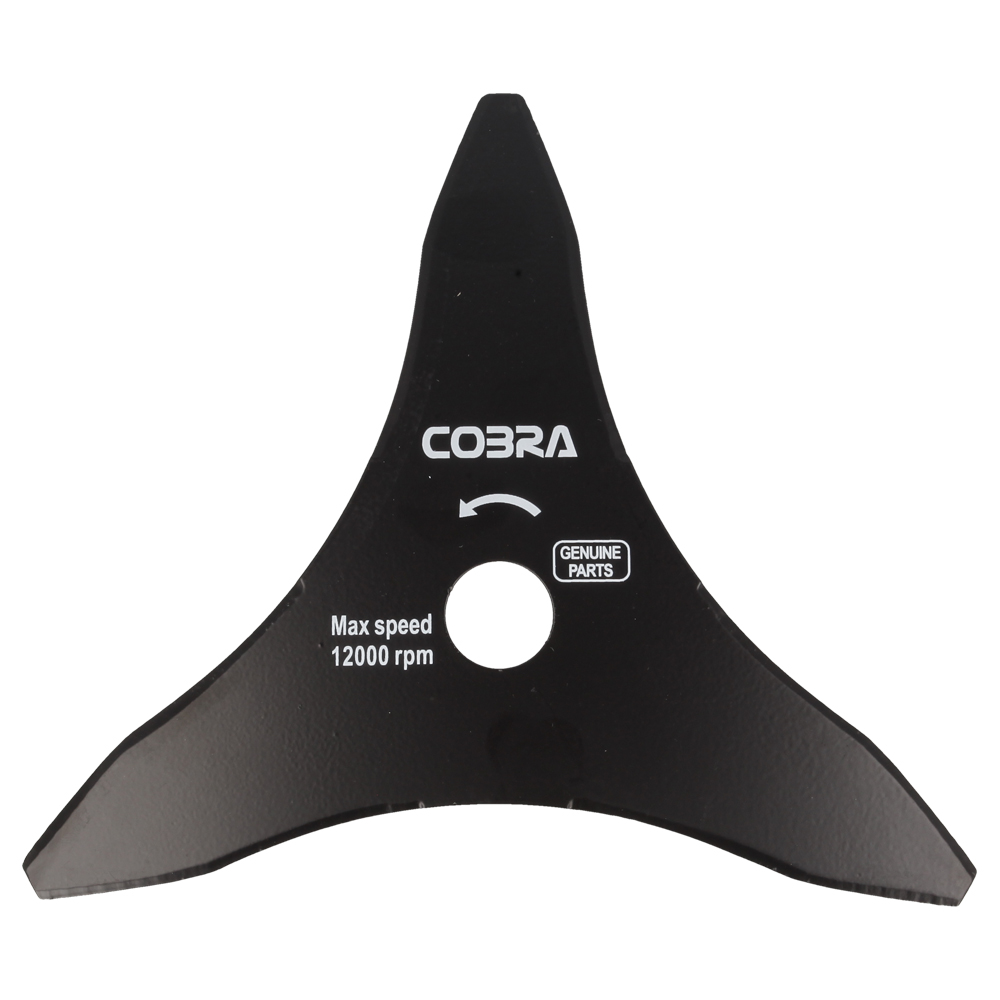

30	COGC305-48200 In stock	Blade	£10.72 £8.93
