Cobra BC330CU - Brushcutter Engine Diagram

Description

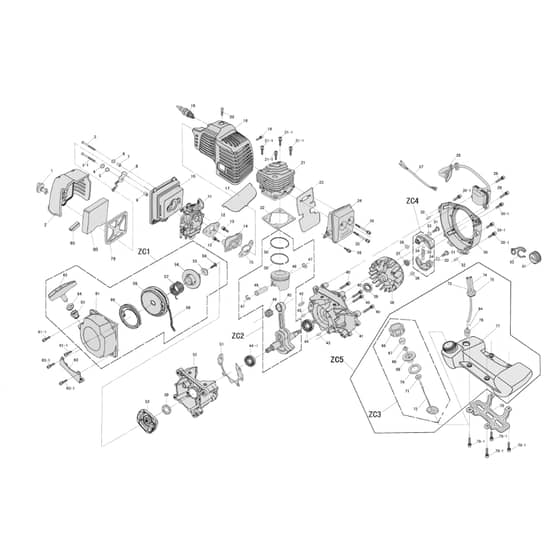

Cobra BC330CU Brushcutter Parts Diagram

	Part No.	Details
1	COGC305.3B-16308 In stock	Air Filter Cover Knob	£2.58 £2.15
1	COGC305-25000 In stock	ZC1 Starter Assembly	£18.62 £15.52
2	COGC305.3B-16301 Available to backorder	Cover Air Filter	£6.06 £5.05
2	COGC305-14000 Available to backorder	ZC2 Crank Assembly	£19.22 £16.02
3	COYD4500-90029 Available to backorder	Screw	£1.24 £1.03
3	COGC305-18030 Available to backorder	ZC3 Fuel Cap Assembly	£6.06 £5.05
4	COGC305-22110 Available to backorder	ZC4 Clutch	£21.71 £18.09
5	COGC305-18300 In stock	ZC5 Fuel Tank Ass	£12.20 £10.17
6	COYD2500-93012 In stock	Flat Washer	£1.28 £1.07
8	COGC305.3B-24006 Available to backorder	Choke Lever	£3.46 £2.88
10	COGC305.3B-16211 Available to backorder	Air Filter Housing	£2.48 £2.07
11	COGC305-18200 In stock	Carburetor	£32.09 £26.74
12	COGC305-18204 Available to backorder	Gasket	£2.48 £2.07
14	COGC305-16111 Available to backorder	Manifold	£3.71 £3.09
15	COGC305-16001 Available to backorder	Gasket	£2.48 £2.07
17	COGC305.3-18315 Available to backorder	Muffler Heat Shield	£3.58 £2.98
18	COGC305.3-11301 Available to backorder	Engine Cowling	£11.03 £9.19
20	COYD5200.5-90030 Available to backorder	Screw M5 X16	£2.48 £2.07
21	COGC305-12111 Available to backorder	Cylinder	£20.89 £17.41
22	COGC305-12501 Available to backorder	Cylinder Head Gasket	£2.48 £2.07
23	COGC305.3-21003 Available to backorder	Gasket	£3.11 £2.59
24	COGC305-21110 Available to backorder	Muffler	£17.98 £14.98
28	COGC305.3-26110 In stock	Ignition Coil	£24.28 £20.23
33	COGC305-93402 Available to backorder	Gasket	£2.48 £2.07
36	COGC305-93004 Available to backorder	Flat Washer	£2.48 £2.07
37	COYD2500-92102 Available to backorder	Nut Flywheel	£1.24 £1.03
38	COGC305-15110 Available to backorder	Flywheel Assembly	£7.26 £6.05
39	COYD3800-95012 Available to backorder	Oil Seal Fb12X22X7	£3.72 £3.10
40	COLJ230B-97007 Available to backorder	Screw M5X30	£2.48 £2.07
44	COYD2500-96013 Available to backorder	Oil Seal	£2.48 £2.07
53	COGC305-25260.2 Available to backorder	Starter Cup	£5.17 £4.31
59	COGC305-25211.2 Available to backorder	Spare Part	£2.48 £2.07
60	COGC305-25212.2 Available to backorder	Starter Assembly	£17.98 £14.98
73	COGC305-18101.1 In stock	Fuel Hose	£2.58 £2.15
74	COGC305-18101.2 Available to backorder	Return Fuel Hose	£2.48 £2.07
75	COGC305-18104 In stock	Support Of Fuel Hose	£4.62 £3.85
76	COGC305-18034 In stock	Fuel Filter	£5.00 £4.17
78	COGC305.3-18213 Available to backorder	Fuel Tank Support 33Cc	£5.57 £4.64
79	COGC305.3B-16205 Available to backorder	Retainer Plate	£2.48 £2.07
80	COGC305.3B-16313 In stock	Sponge-Air Filter	£5.77 £4.81
441	COYD2500-96011 Available to backorder	44-1 Oil Seal	£2.48 £2.07
781	COYD6200-97004 In stock	78-1 Combination Screw M5X20	£1.28 £1.07
