Cobra BC330C - Brushcutter Oct 2016 Engine Diagram

Name: Cobra BC330C - Brushcutter Oct 2016 Engine Diagram
SKU: bc330c_brushcutter_oct_2016_engine-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BC330C - Brushcutter Oct 2016 Engine Diagram

Description

Cobra BC330C Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC305-25000	ZC1 Starter Assembly	Out of stock	£18.25 £15.21
1	COGC305.3B-16308	Air Filter Cover Knob	Out of stock	£2.62 £2.18
2	COGC305.3B-16301	Cover Air Filter	Out of stock	£6.16 £5.13
2	COGC305-14000	ZC2 Crank Assembly	Out of stock	£19.51 £16.26
3	COGC305-18030	ZC3 Fuel Cap Assembly	Out of stock	£6.16 £5.13
3	COYD4500-90029	Screw	Out of stock	£1.26 £1.05
4	COGC305-22110	ZC4 Clutch	Out of stock	£22.03 £18.36
5	COGC305-18300	ZC5 Fuel Tank Ass	Out of stock	£11.95 £9.96
6	COYD2500-93012	Flat Washer	Out of stock	£1.26 £1.05
8	COGC305.3B-24006	Choke Lever	Out of stock	£3.00 £2.50
10	COGC305.3B-16211	Air Filter Housing	Out of stock	£2.62 £2.18
11	COGC305-18200	Carburetor	In stock	£31.44 £26.20
12	COGC305-18204	Gasket	Out of stock	£2.52 £2.10
14	COGC305-16111	Manifold	Out of stock	£3.76 £3.13
15	COGC305-16001	Gasket	Out of stock	£2.52 £2.10
17	COGC305.3-18315	Muffler Heat Shield	Out of stock	£3.64 £3.03
18	COGC305.3-11301	Engine Cowling	Out of stock	£11.20 £9.33
20	COYD5200.5-90030	Screw M5 X16	Out of stock	£2.52 £2.10
21	COGC305-12111	Cylinder	Out of stock	£21.22 £17.68
22	COGC305-12501	Cylinder Head Gasket	Out of stock	£2.52 £2.10
23	COGC305.3-21003	Gasket	Out of stock	£3.16 £2.63
24	COGC305-21110	Muffler	Out of stock	£18.25 £15.21
28	COGC305.3-26110	Ignition Coil	Out of stock	£23.80 £19.83
33	COGC305-93402	Gasket	Out of stock	£2.52 £2.10
36	COGC305-93004	Flat Washer	Out of stock	£2.52 £2.10
37	COYD2500-92102	Nut Flywheel	Out of stock	£2.52 £2.10
38	COGC305-15110	Flywheel Assembly	Out of stock	£7.37 £6.14

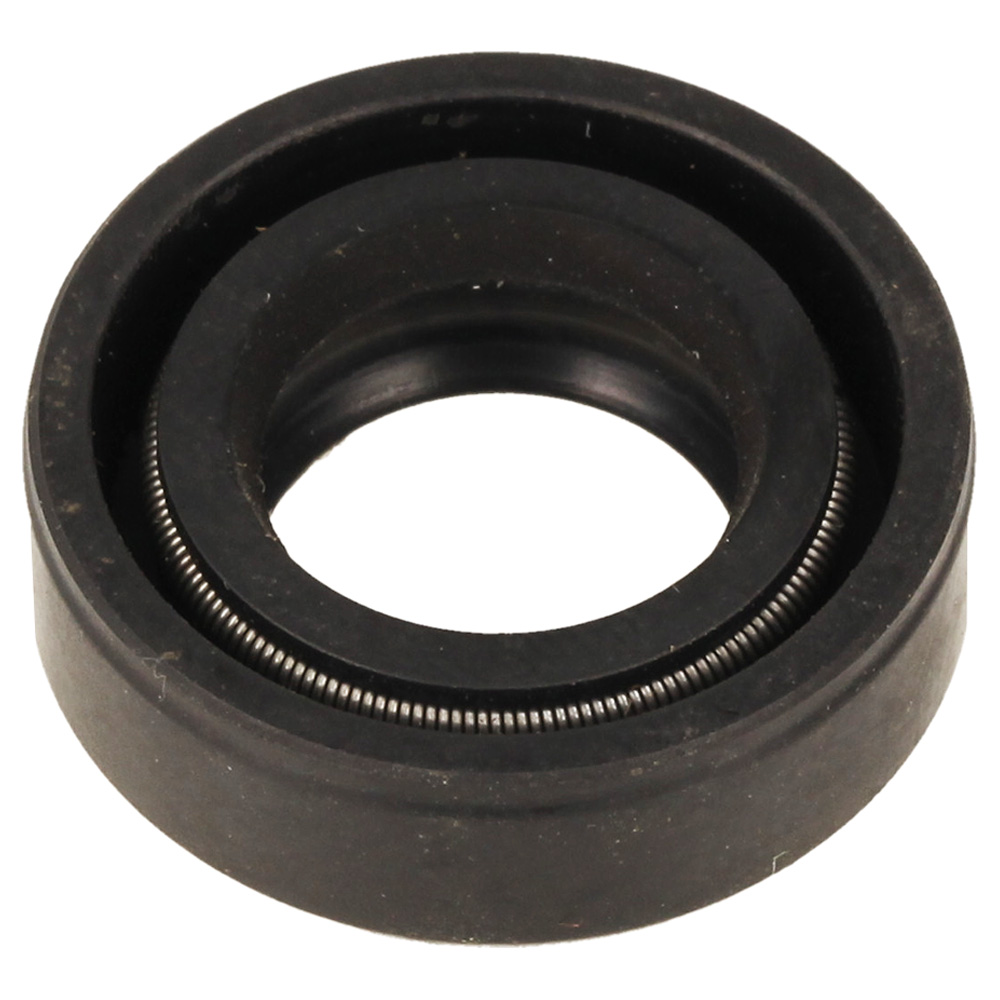

39	COYD3800-95012	Oil Seal Fb12X22X7	Out of stock	£2.52 £2.10
40	COLJ230B-97007	Screw M5X30	Out of stock	£2.52 £2.10
44	COYD2500-96013	Oil Seal	Out of stock	£2.52 £2.10
53	COGC305-25260.2	Starter Cup	Out of stock	£4.85 £4.04
59	COGC305-25211.2	Spare Part	Out of stock	£2.52 £2.10
60	COGC305-25212.2	Starter Assembly	Out of stock	£2.52 £2.10
73	COGC305-18101.1	Fuel Hose	Out of stock	£2.62 £2.18
74	COGC305-18101.2	Return Fuel Hose	Out of stock	£2.52 £2.10
75	COGC305-18104	Support Of Fuel Hose	Out of stock	£4.51 £3.76
76	COGC305-18034	Fuel Filter	Out of stock	£4.90 £4.08
78	COGC305.3-18213	Fuel Tank Support 33Cc	Out of stock	£5.65 £4.71
79	COGC305.3B-16205	Retainer Plate	Out of stock	£2.62 £2.18
80	COGC305.3B-16313	Sponge-Air Filter	Out of stock	£5.52 £4.60
441	COYD2500-96011	44-1 Oil Seal	Out of stock	£2.52 £2.10
781	COYD6200-97004	78-1 Combination Screw M5X20	Out of stock	£1.26 £1.05
