Cobra BC270K - Kawasaki TJ27E Engine Main Diagram

Name: Cobra BC270K - Kawasaki TJ27E Engine Main Diagram
SKU: bc270k_kawasaki_tj27e_engine_main-group
Price: 0.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BC270K - Kawasaki TJ27E Engine Main Diagram

Description

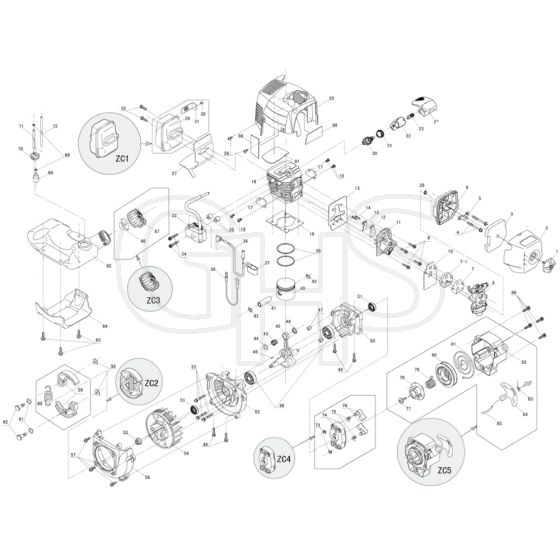

Cobra BC270K Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO49069-0728 Available to backorder	ZC1 Muffler-Assembly	£43.07 £35.89
1	KA92154-2053 Available to backorder	Bolt	£5.53 £4.61
2	KA11065-2143 Available to backorder	Cap	£12.20 £10.17
2	CO13081-2232 Available to backorder	ZC2 Clutch-Assy	£43.49 £36.24
3	KA11013-2244 Available to backorder	Element-Air Filter	£4.68 £3.90
3	KA99996-6107 Available to backorder	ZC3 Cap-Tank & Breather Assy	£26.28 £21.90
4	KA92172-2139 Available to backorder	Screw 5X65	£0.96 £0.80
4	KA49080-2215 Available to backorder	ZC4 Pulley-Starting	£10.92 £9.10
5	CO49088-2594 Available to backorder	ZC5 Starter-Recoil	£59.86 £49.88
5	KA18020-2096 Available to backorder	Baffle	£2.88 £2.40
6	KA11011-2392 Available to backorder	Case-Air Filter	£15.64 £13.03
7	KA11061-2248 In stock	Gasket Carburetor/Spacer	£2.28 £1.90
8	KA15004-2106 Available to backorder	Carburetor-Assy	£183.84 £153.20
9	KA92009-2249 Available to backorder	Screw	£0.52 £0.43
10	KA11061-2247 In stock	Gasket Carburetor-Insulat	£2.52 £2.10
12	KA12022-2064 Available to backorder	Valve-Reed	£9.36 £7.80
13	KA32085-2107 Available to backorder	Stopper	£1.75 £1.46
15	KA11061-2246 Available to backorder	Gasket Cylinder-Insulator	£2.52 £2.10
16	KA11005-2163 Available to backorder	Cylinder-Engine	£150.72 £125.60
17	KA13272-2013 Available to backorder	Plate	£1.48 £1.23
19	KA11061-0749 Available to backorder	Gasket Cylinder	£3.42 £2.85
20	2134 In stock	Plug-Spark	£2.26 £1.88
21	KA92145-2193 Available to backorder	Spring	£8.34 £6.95
22	KA14091-2147 Available to backorder	Cover	£13.25 £11.04
23	KA21169-2078 Available to backorder	Terminal	£0.88 £0.73
24	KA21130-2071 Available to backorder	Cap-Spark Plug	£6.72 £5.60
26	KA92172-2060 Available to backorder	Screw 4X10	£0.52 £0.43
27	KA11061-2204 Available to backorder	Gasket Muffler	£16.55 £13.79
30	KA92172-2112 Available to backorder	Screw	£0.48 £0.40
31	KA18077-2140 Available to backorder	Arrester-Spark	£16.52 £13.77
34	KA92153-2138 Available to backorder	Bolt 4X20	£1.19 £0.99

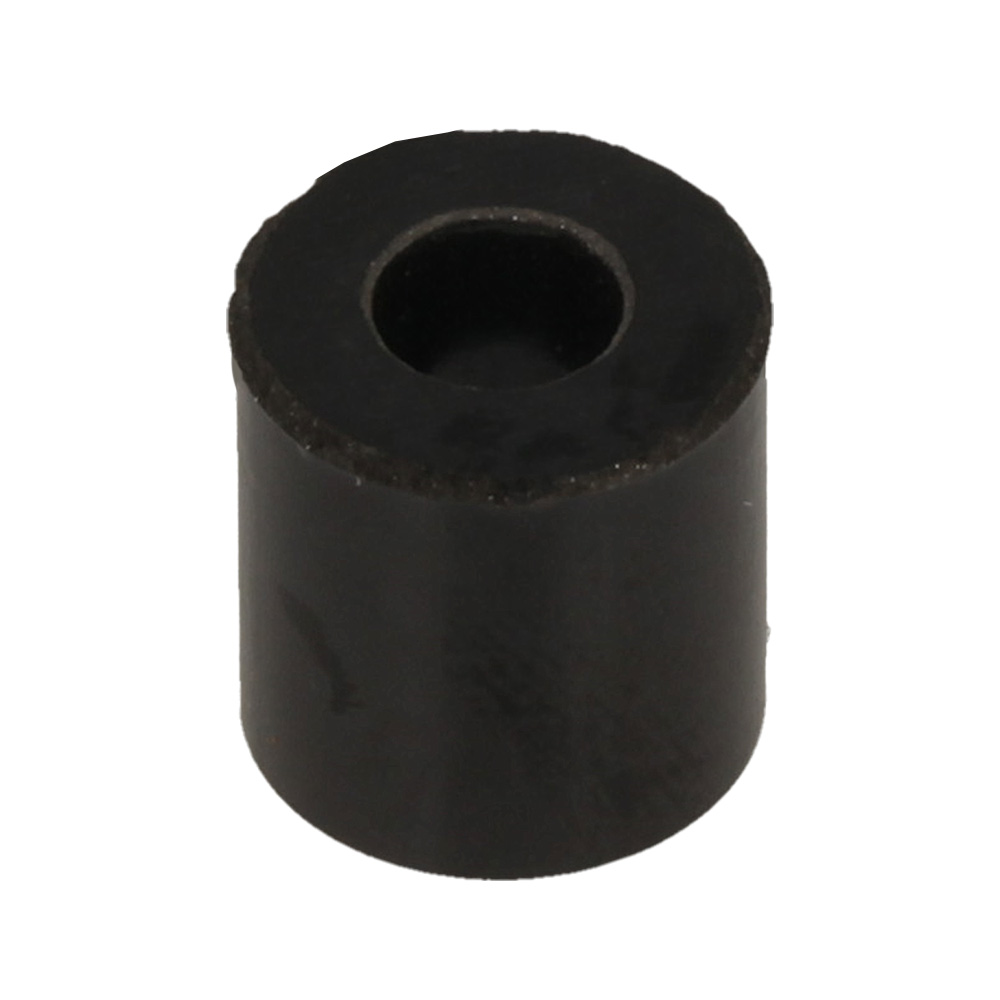

35	KA16073-2239 Available to backorder	Insulator	£1.32 £1.10
36	KA26011-2388 Available to backorder	Wire-Lead L 230	£4.82 £4.02
37	KA92170-2083 Available to backorder	Clamp	£1.00 £0.83
39	KA13008-6071 Available to backorder	Ring-Set-Piston	£17.52 £14.60
40	CO13001-2174 Available to backorder	Piston-Engine	£20.58 £17.15
41	KA13002-2100 Available to backorder	Pin-Piston	£11.36 £9.47
42	KA92033-2198 Available to backorder	Ring-Snap	£0.90 £0.75
43	KA13033-2064 Available to backorder	Bearing-Small End	£12.32 £10.27
44	KA92026-0803 Available to backorder	Spacer	£3.85 £3.21
45	KA49119-2242 Available to backorder	Crankshaft-Assy	£230.40 £192.00
46	KA92038-2106 Available to backorder	Key	£1.97 £1.64
47	KA92043-2257 Available to backorder	Pin	£0.52 £0.43
48	KA92045-2278 Available to backorder	Bearing-Ball 6001C3	£16.45 £13.71
49	CO120CB0520 Available to backorder	Bolt-Socket	£0.36 £0.30
51	KA92049-2269 Available to backorder	Seal-Oil 12X22X45	£3.16 £2.63
52	KA14080-2068 Available to backorder	Crankcase	£76.68 £63.90
54	KA21050-2329 Available to backorder	Flywheel	£141.60 £118.00
55	KA92210-2101 Available to backorder	Nut 8Mm	£1.06 £0.88
56	KA59066-2824 Available to backorder	Housing-Fan	£75.96 £63.30
57	KA92172-2125 Available to backorder	Screw 5X16	£1.06 £0.88
58	KA92026-2145 Available to backorder	Obsolete	£2.30 £1.92
59	KA49049-2101 Available to backorder	Shoe-Clutch	£24.31 £20.26
60	KA92145-2129 Available to backorder	Spring	£3.84 £3.20
61	KA92200-2146 Available to backorder	Washer	£1.69 £1.41
62	KA92043-2243 Available to backorder	Pin	£7.21 £6.01
63	KA92172-2080 Available to backorder	Screw 5X18	£1.25 £1.04
64	KA34001-2091 Available to backorder	Stand	£7.21 £6.01
65	KA51001-2335 Available to backorder	Tank-Comp-Fuel	£34.69 £28.91
66	KA14069-0017 In stock	Breather	£12.36 £10.30
67	KA51048-2083 In stock	Cap-Assy-Tank	£10.80 £9.00
68	KA49019-2114 Available to backorder	Filter-Fuel	£14.28 £11.90
69	KA92171-2073 In stock	Clamp	£1.20 £1.00
70	KA92071-2142 In stock	Grommet Fuel Tank	£3.96 £3.30
72	KA92192-2130 Available to backorder	Tube 3X5X174	£10.28 £8.57
73	KA92033-2010 Available to backorder	Ring-Snap	£0.48 £0.40

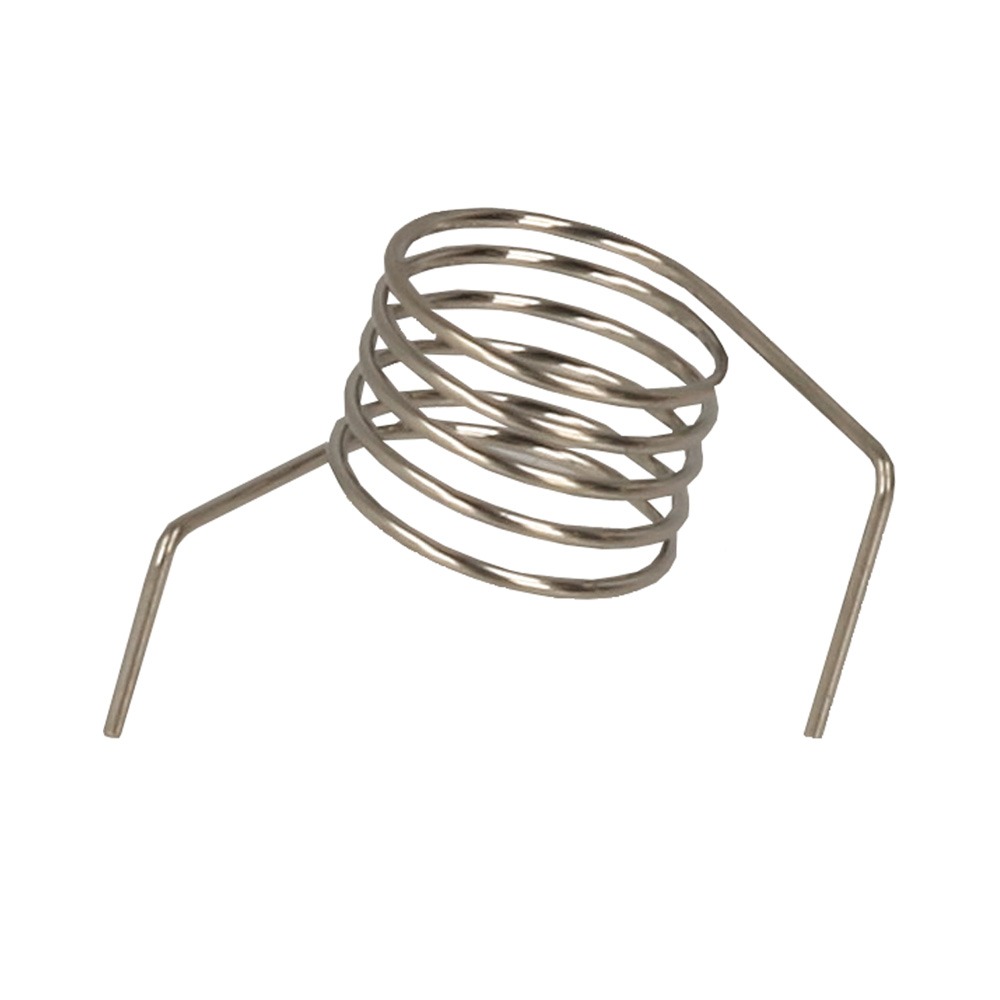

75	KA92081-2253 Available to backorder	Spring	£3.96 £3.30

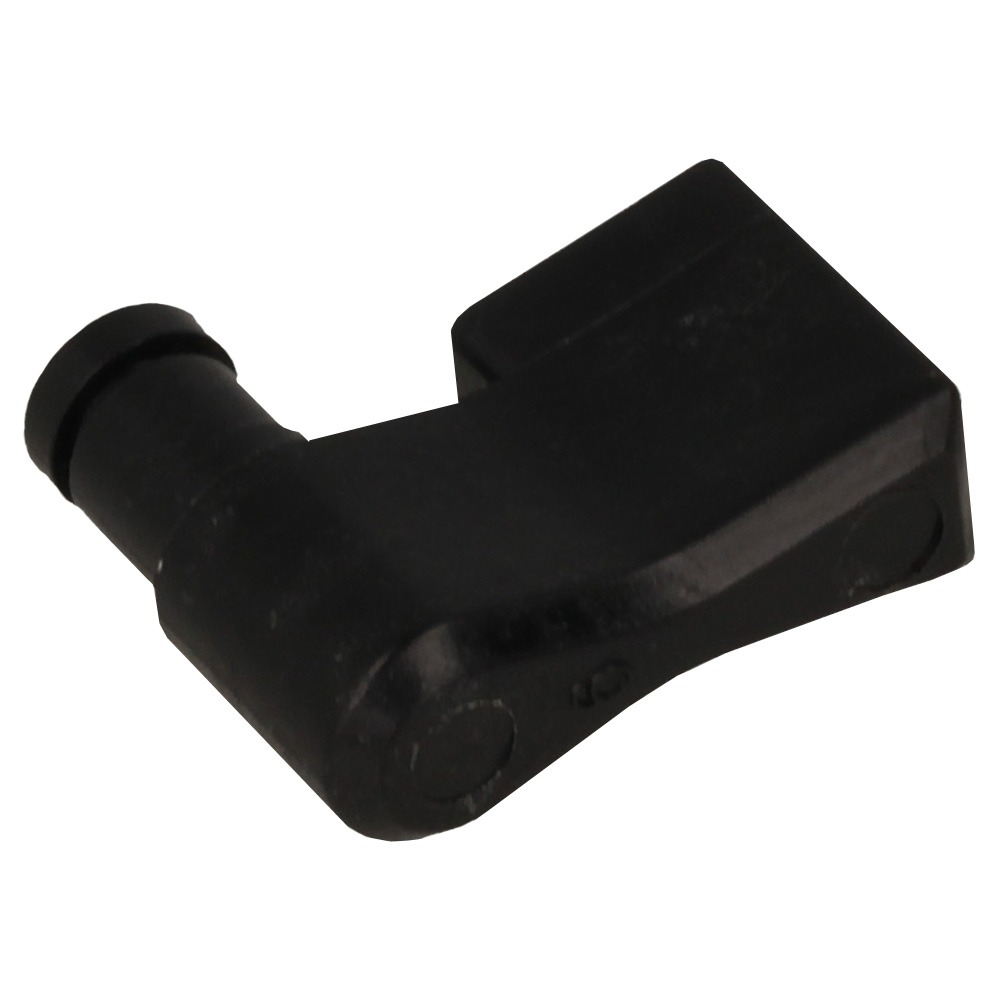

76	KA13165-2100 Available to backorder	Pawl	£2.76 £2.30
77	KA92172-2065 Available to backorder	Screw	£1.97 £1.64
79	KA92145-2128 In stock	Spring Recoil	£5.16 £4.30
80	KA59101-0558 Available to backorder	Reel Starter-Recoil	£12.35 £10.29
81	KA92145-0850 Available to backorder	Spring Recoil	£21.24 £17.70
82	KA32099-2432 Available to backorder	Case Recoil Starter	£34.26 £28.55
83	KA13169-2386 Available to backorder	Plate Recoil Starter	£1.88 £1.57
84	KA46075-2161 Available to backorder	Grip Starter-Recoil	£9.94 £8.28
86	KA92009-2061 Available to backorder	Screw	£0.90 £0.75
88	KA39156-2102 Available to backorder	Pad	£2.88 £2.40
44933	KA92026-2366 Available to backorder	Spacer	£3.58 £2.98
