Cobra BC270K - Bike Handle Straight Shaft Engine Diagram

Name: Cobra BC270K - Bike Handle Straight Shaft Engine Diagram
SKU: bc270k_bike_handle_straight_shaft_engine-group
Price: 1.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra BC270K - Bike Handle Straight Shaft Engine Diagram

Description

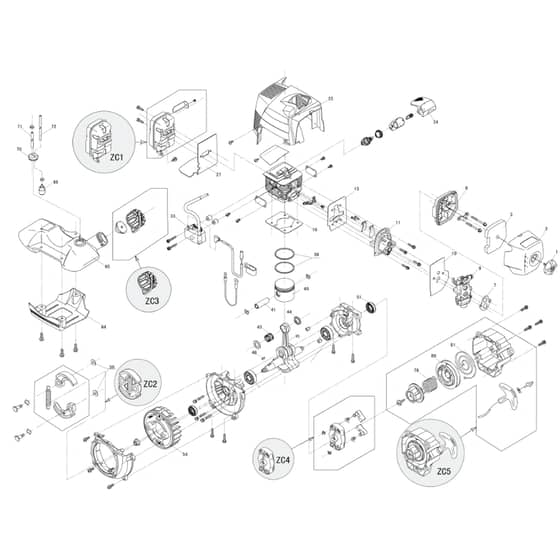

Cobra BC270K Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO49069-0728 Available to backorder	ZC1 Muffler-Assembly	£43.07 £35.89
1	KA92154-2053 Available to backorder	Bolt	£5.81 £4.84
2	CO13081-2232 Available to backorder	ZC2 Clutch-Assy	£43.49 £36.24
2	KA11065-2143 Available to backorder	Cap	£12.82 £10.68
3	KA99996-6107 Available to backorder	ZC3 Cap-Tank & Breather Assy	£26.28 £21.90
3	KA11013-2244 Available to backorder	Element-Air Filter	£4.68 £3.90
4	KA49080-2215 Available to backorder	ZC4 Pulley-Starting	£10.92 £9.10
5	CO49088-2594 Available to backorder	ZC5 Starter-Recoil	£64.48 £53.73
6	KA11011-2392 Available to backorder	Case-Air Filter	£15.64 £13.03
7	KA11061-2248 Available to backorder	Gasket Carburetor/Spacer	£2.28 £1.90
8	KA15004-2106 Available to backorder	Carburetor-Assy	£183.84 £153.20
10	KA11061-2247 Available to backorder	Gasket Carburetor-Insulat	£2.52 £2.10
15	KA11061-2246 Available to backorder	Throttle Trigger	£2.52 £2.10
19	KA11061-0749 Available to backorder	Gasket Cylinder	£3.42 £2.85
24	KA21130-2071 Available to backorder	Oil Gearing	£6.72 £5.60
25	KA39156-2102 Available to backorder	Pad	£2.88 £2.40
27	KA11061-2204 Available to backorder	Gasket Muffler	£16.55 £13.79
39	KA13008-6071 Available to backorder	Ring-Set-Piston	£17.52 £14.60
40	CO13001-2174 Available to backorder	Piston-Engine	£20.58 £17.15
41	KA13002-2100 Available to backorder	Hook	£11.36 £9.47
43	KA13033-2064 Available to backorder	Bearing-Small End	£12.32 £10.27
45	KA49119-2242 Available to backorder	Crankshaft-Assy	£230.40 £192.00
46	KA92038-2106 Available to backorder	Key	£1.97 £1.64
51	KA92049-2269 Available to backorder	Seal-Oil 12X22X45	£3.16 £2.63
54	KA21050-2329 Available to backorder	Flywheel	£141.60 £118.00
64	KA34001-2091 Available to backorder	Protective Ver	£7.21 £6.01
65	KA51001-2335 Available to backorder	Shaft Bushing	£36.43 £30.36
68	KA49019-2114 Available to backorder	Filter-Fuel	£14.28 £11.90
70	KA92071-2142 Available to backorder	Grommet Fuel Tank	£3.96 £3.30
72	KA92192-2130 Available to backorder	Blade Holder Ver	£10.28 £8.57
79	KA92145-2128 In stock	Spring Recoil	£5.16 £4.30
80	KA59101-0558 Available to backorder	Reel Starter-Recoil	£12.35 £10.29
81	KA92145-0850 Available to backorder	Spring Recoil	£21.24 £17.70
