Cobra AIRMOW 5180V - Hover Mower March 2021 Main Diagram

Description

Cobra AIRMOW 5180V Hover Mower Parts Diagram

	Part No.	Details
1	CO21015001970001N In stock	Fixing Support Of Wheel	£21.25 £17.71
2	CO26800700701 Available to backorder	Flat Washer	£2.48 £2.07
3	CO21061000020108B In stock	Knob Of Lower Handle	£2.58 £2.15
4	CO3031306002 Available to backorder	Nut	£1.24 £1.03
5	CO21011001490006A Available to backorder	Wheel Cover	£4.26 £3.55
6	CO3032306003 Available to backorder	Nut	£1.24 £1.03
7	CO2101300065A Available to backorder	Bearing	£4.14 £3.45
8	CO21011002750001A Available to backorder	Wheel Assy	£31.09 £25.91
9	CO21011001460001A Available to backorder	Wheel Cover	£3.12 £2.60
10	CO26800100501 In stock	Self Tapping Screw	£1.28 £1.07
11	CO26800706202 In stock	Washer	£2.48 £2.07
12	CO3054202001 Available to backorder	Washer	£2.48 £2.07

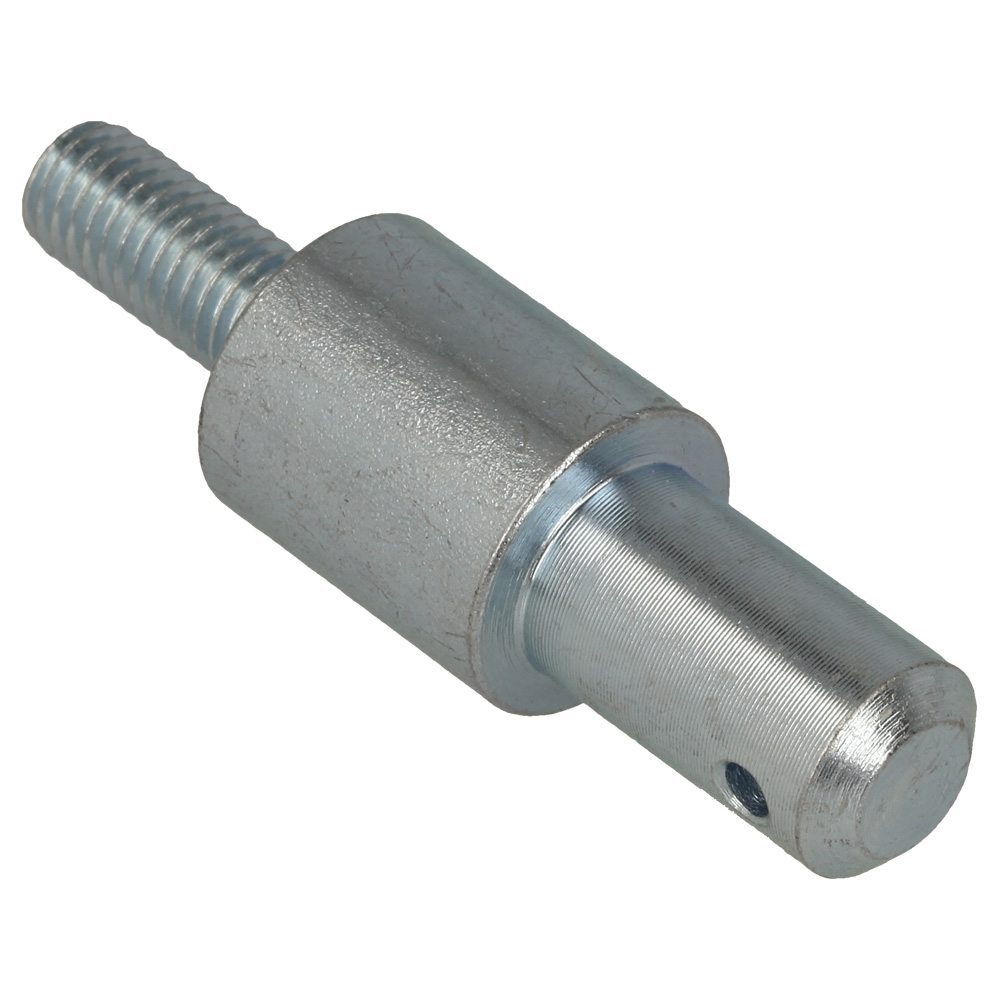

13	CO2106300075A Available to backorder	Pin Shaft	£6.02 £5.02

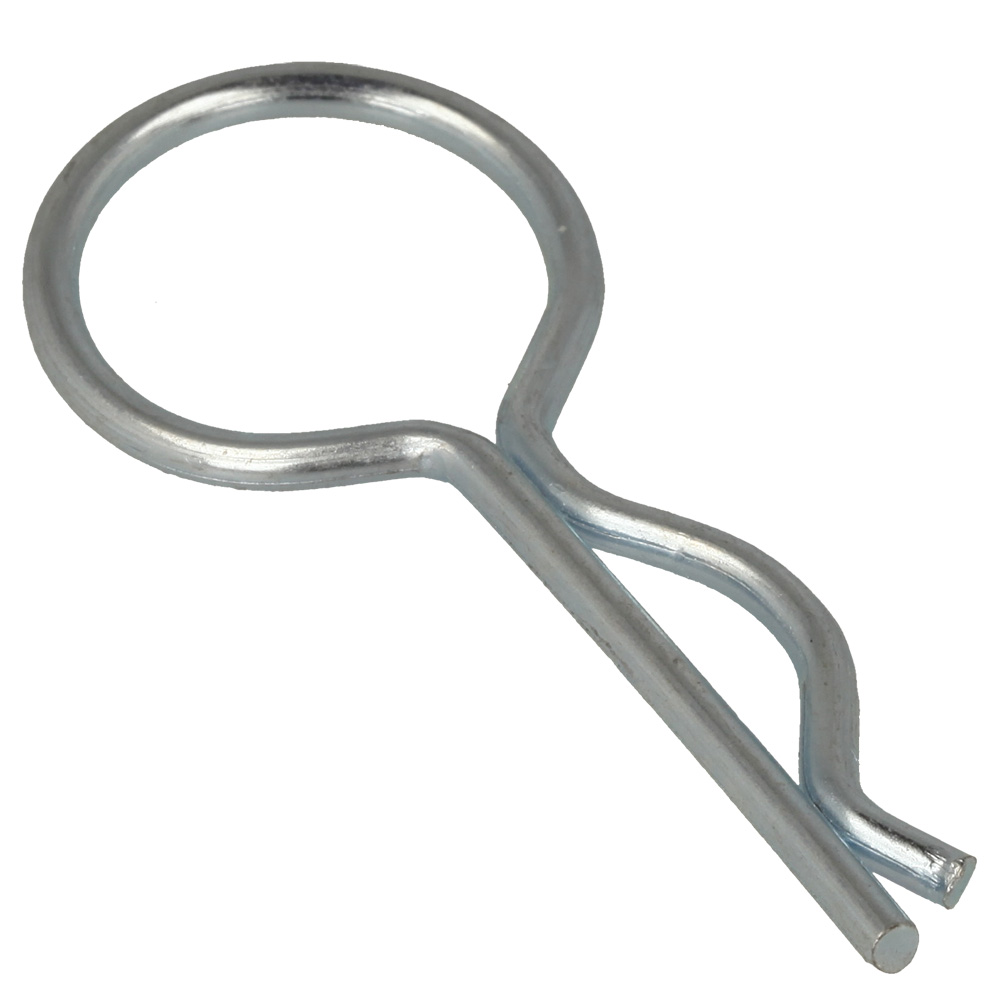

14	CO2106800426A Available to backorder	Pin	£2.48 £2.07
15	CO2106200876A Available to backorder	Loctaion Rod Of Handle	£3.37 £2.81
16	CO2104100455N Available to backorder	Cap Of Location Rod	£2.48 £2.07
17	CO3031309003 Available to backorder	Nut	£1.24 £1.03
18	CO21061000013201A Available to backorder	Cable Clamp	£2.48 £2.07
19	CO21061000113201A Available to backorder	Washer	£2.48 £2.07
20	CO26800600401 Available to backorder	Bolt	£2.48 £2.07
21	CO21062008720001A Available to backorder	Lower Handle	£23.20 £19.33
22	CO21063003680001A Available to backorder	Upper Handle	£26.17 £21.81
23	CO26800103701 In stock	Self Tapping Screw	£1.28 £1.07
24	CO21061001113201N Available to backorder	Washer	£1.24 £1.03
25	CO21061007140001A Available to backorder	Support Of Rod	£1.24 £1.03
26	CO2106800720A Available to backorder	Rignt Knob-Left	£1.24 £1.03
27	CO21061007300001A Available to backorder	Washer	£1.24 £1.03
28	CO21061007150001A Available to backorder	Self Propelled Cable Plate	£1.24 £1.03
29	CO21061007290001A Available to backorder	Cover Of Rod Bracket	£1.24 £1.03
30	CO2106800721A Available to backorder	Left Knob Spring-Right	£1.24 £1.03
31	CO2108900097A Available to backorder	Control Wire Of Handle	£17.05 £14.21
32	CO21061006060001A Available to backorder	Lower Cover Of Sw Box	£2.63 £2.19
33	COA26800101701 Available to backorder	Self Tapping Screw	£1.24 £1.03
34	CO2326900001A Available to backorder	Pressing Plate Of Switch	£1.24 £1.03
35	CO2108900226A Available to backorder	Power Indicator	£17.59 £14.66
36	CO21061006050001A Available to backorder	Upper Cover Of Sw Box	£3.34 £2.78
37	CO21061003770108A Available to backorder	Switch Button	£3.11 £2.59
38	CO2309100017A Available to backorder	Key Wire	£2.48 £2.07
39	CO2106800737A Available to backorder	Starting Cable	£2.63 £2.19
40	CO2109800013A Available to backorder	Spring	£2.48 £2.07
41	CO2106100607A Available to backorder	Switch Plate	£1.24 £1.03
42	CO2104100031A Available to backorder	Pulling Plate Of Switch	£2.48 £2.07
43	CO2109800012A Available to backorder	Spring	£2.48 £2.07
44	CO26800100302 Available to backorder	Self Tapping Screw	£1.24 £1.03
45	CO2281100002B Available to backorder	Wire Pressing Plate	£1.24 £1.03
46	CO2106600015N Available to backorder	Handle Sheath	£5.83 £4.86
47	CO26800202501 Available to backorder	Screw	£1.24 £1.03
48	CO21063003710108A Available to backorder	Flameout Rod	£8.65 £7.21
49	CO2102300100N Available to backorder	Rotating Shaft	£2.48 £2.07
50	CO21041004470001N Available to backorder	Rear Cover Of Quick Disassembly	£2.96 £2.47
51	CO2109800153A Available to backorder	Spring Of Quick Disassembly	£1.24 £1.03
52	CO21041004460001N Available to backorder	Front Cover Of Quick Disassembly	£3.37 £2.81
53	CO21041004480001N Available to backorder	Fixing Cover Of Quick Disassembly	£2.48 £2.07
54	CO21061002840108N Available to backorder	Button Of Quick Disassembly	£2.48 £2.07
55	CO2109800155A Available to backorder	Pressing Spring Of Quick Disassembly	£2.48 £2.07
56	CO21062008740001N Available to backorder	Upper Connection Shaft	£9.08 £7.57
57	CO21041004450001N Available to backorder	Right Rotating Cover	£2.48 £2.07
58	CO2102300099N Available to backorder	Pin Shaft	£5.83 £4.86
59	CO21041004440001N Available to backorder	Middle Rotating Cover	£2.48 £2.07
60	CO21041004420001N In stock	Front Rotating Cover	£4.06 £3.38
61	CO21062008730001N Available to backorder	Lower Connection Shaft	£4.99 £4.16
62	CO21041004510001N Available to backorder	Rear Fixing Cover	£3.12 £2.60
63	CO21041004500001N Available to backorder	Front Fixing Cover	£2.77 £2.31
64	CO21065000010001N Available to backorder	Welding Part Of Lower Connection Shaft	£6.56 £5.47
65	CO21041004430001N Available to backorder	Left Rotating Cover	£3.06 £2.55
66	CO21051000510001A Available to backorder	Bolt	£2.40 £2.00

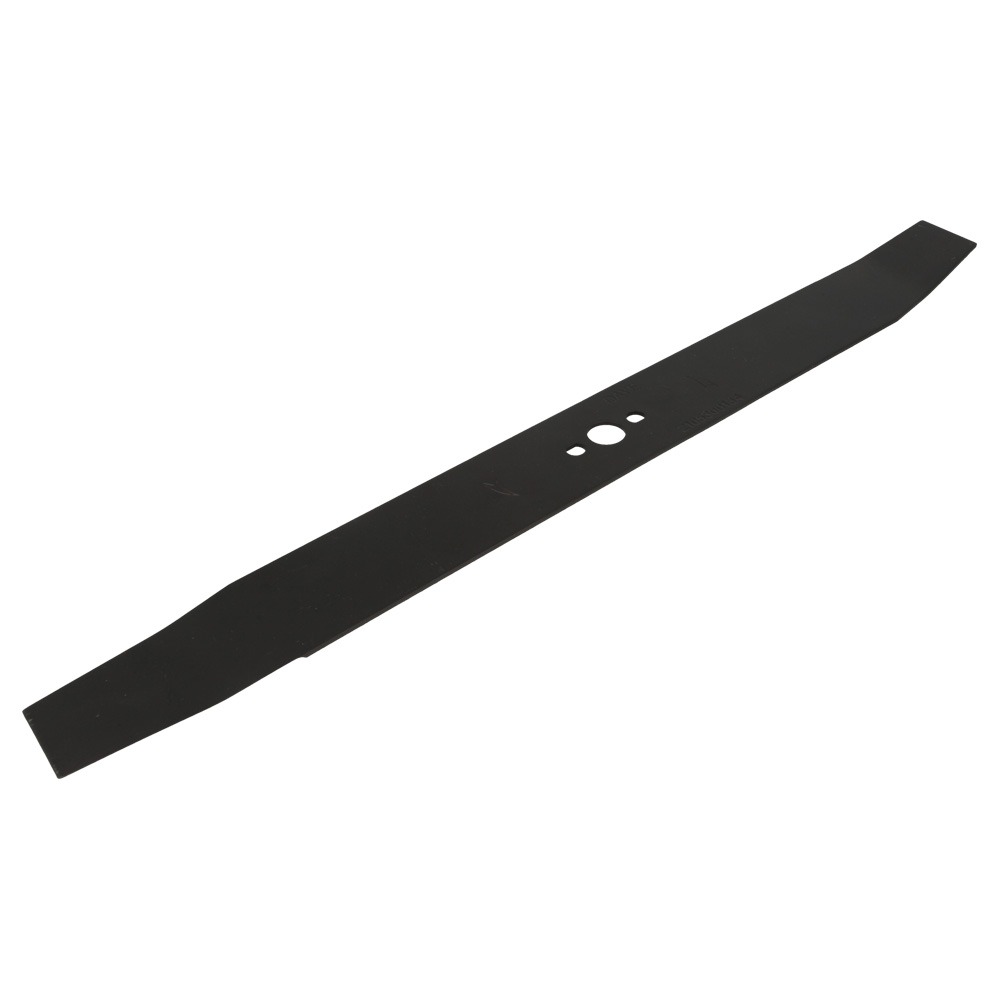

67	CO21053001342000A Available to backorder	Blade	£21.08 £17.57
68	CO2105400003B Available to backorder	Washer	£5.05 £4.21
69	CO21051000520001A Available to backorder	Fan	£32.26 £26.88
70	CO21031000660108A In stock	Deck	£92.52 £77.10
71	CO21031000670001A Available to backorder	Guide Slot	£2.48 £2.07
72	COA26800110201 Available to backorder	Self Tapping Screw	£1.24 £1.03
73	CO26800706301 Available to backorder	Flat Washer	£1.24 £1.03
74	COA26800801101 Available to backorder	Washer	£1.24 £1.03

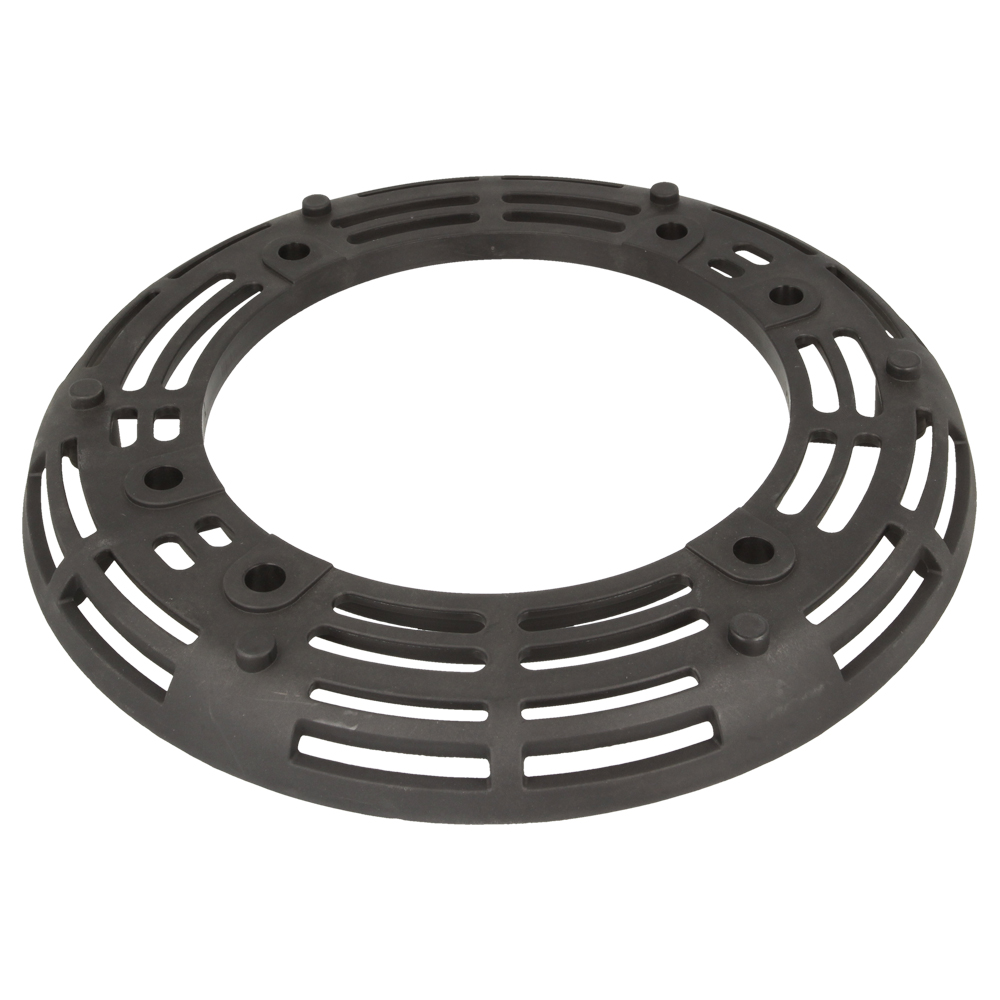

75	CO21041004490001N Available to backorder	Fixing Cover Of Engine	£11.32 £9.43
76	CO26800612801 Available to backorder	Bolt	£2.48 £2.07
77	CO26800103202 In stock	Self Tapping Screw	£1.28 £1.07
78	CO21031001470001A Available to backorder	Lower Cover	£17.52 £14.60
79	CO2109900124A Available to backorder	Anti-Dust Stick	£2.52 £2.10
80	CO21031002000001A Available to backorder	Cover Of Air Hole	£1.24 £1.03

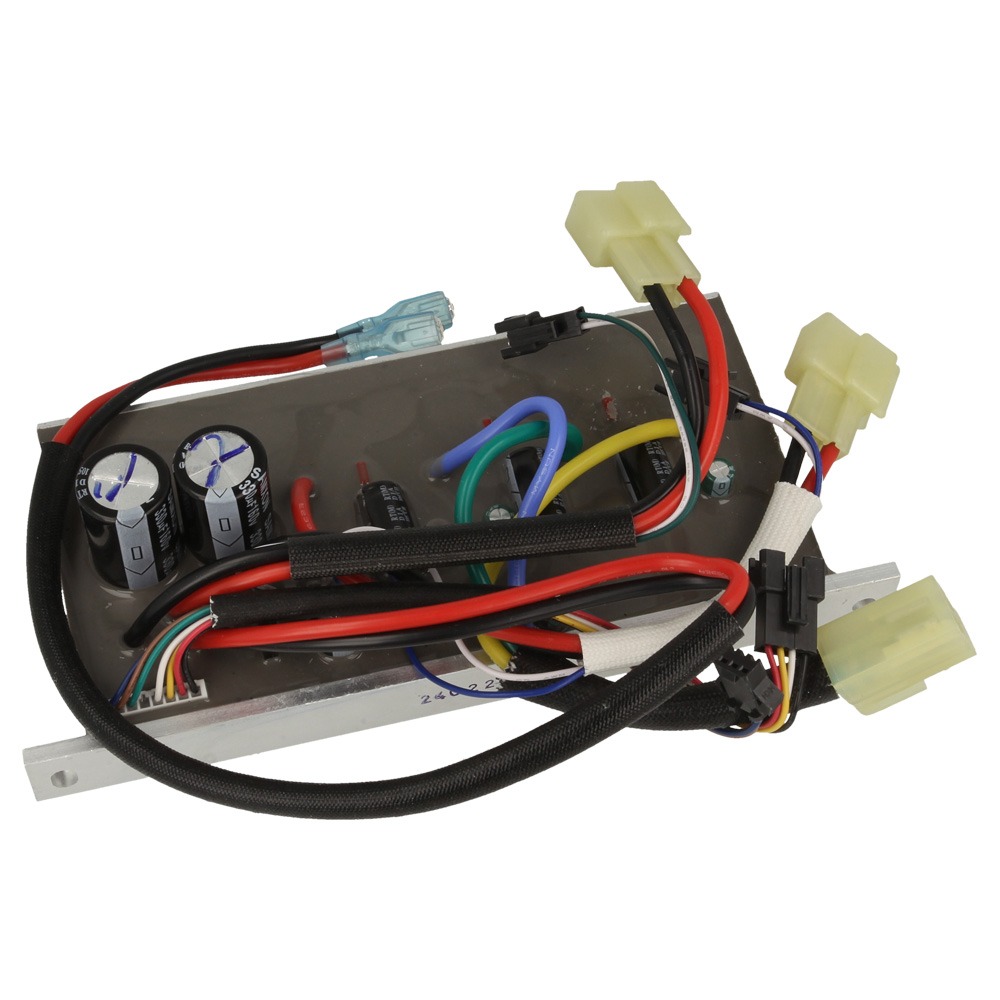

81	CO2108900225A Available to backorder	Controller	£63.96 £53.30
82	COA26800105402 Available to backorder	Self Tapping Screw	£1.24 £1.03
83	CO2108900096A Available to backorder	Inner Connection Wire	£16.39 £13.66
84	CO2108900043B Available to backorder	Male Welding Wire	£7.84 £6.53

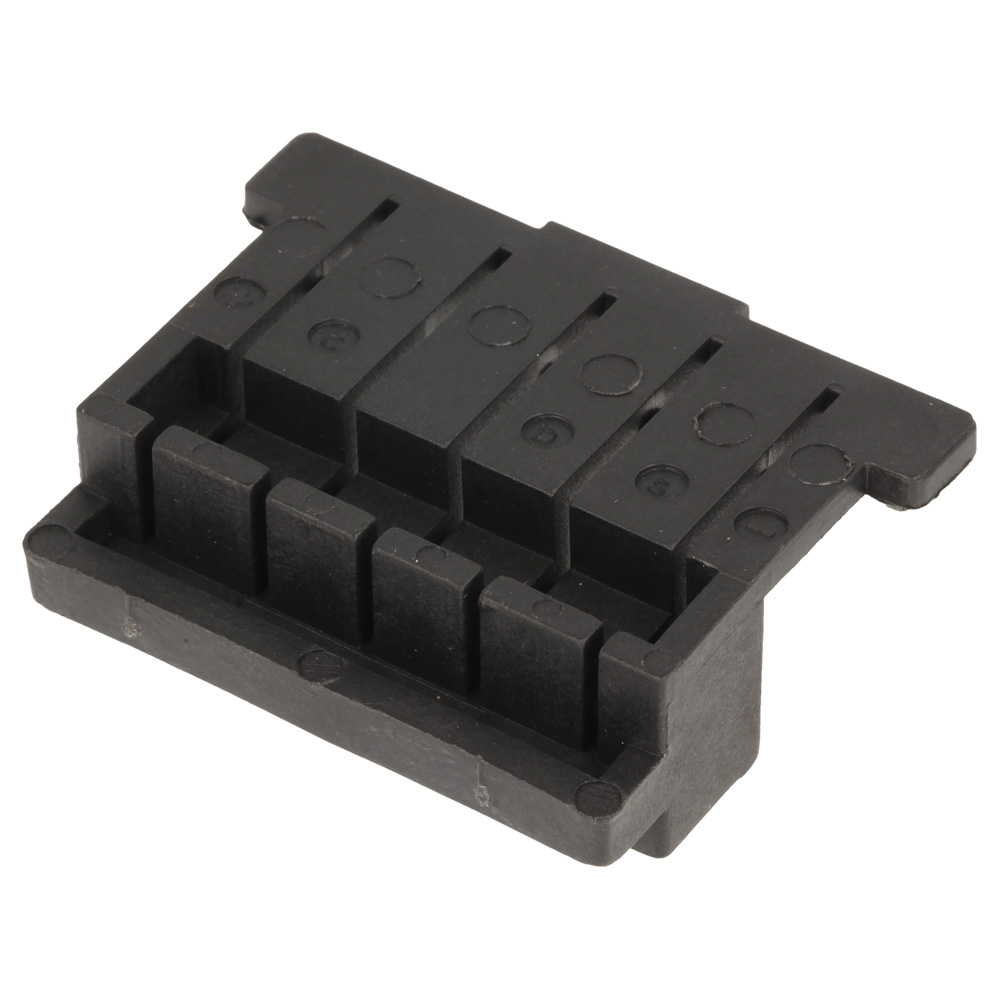

85	CO20741000010001A Available to backorder	Male Plug Of Battery	£1.66 £1.38
86	CO2109300058A Available to backorder	Self Tapping Screw	£1.24 £1.03
87	COA26800700502 Available to backorder	Flat Washer	£1.24 £1.03
88	CO2011400041A Available to backorder	Key Switch	£5.28 £4.40
89	CO21031001510006A Available to backorder	Right Cover	£1.24 £1.03
90	CO2104800010A Available to backorder	Spring Of Lid	£1.24 £1.03
91	CO2103100152A Available to backorder	Pressing Plate Of Lid	£1.24 £1.03
92	CO21031000550006B Available to backorder	Front Cover	£14.40 £12.00
93	CO21031001994063A Available to backorder	Printing Of Battery Lid	£7.91 £6.59
94	CO21031002020001A Available to backorder	Stopper Plate Of Lid	£1.34 £1.12
95	COA26800104501 Available to backorder	Self Tapping Screw	£1.24 £1.03
96	CO2103800014A Available to backorder	Spring	£1.55 £1.29

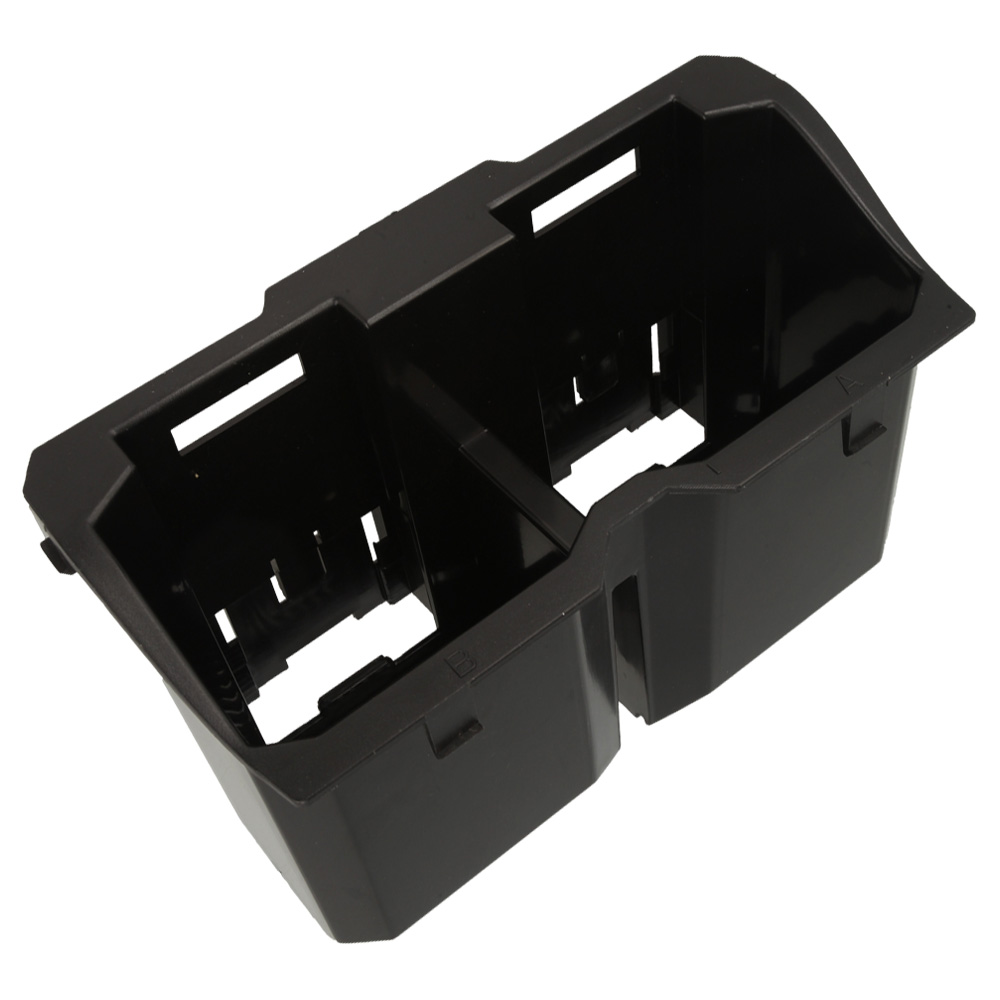

97	CO21031001490001B Available to backorder	Twin Battery Box	£10.99 £9.16
98	CO23061000420108A Available to backorder	Key	£2.66 £2.22
99	CO21031001170001A Available to backorder	Upper Cover	£20.77 £17.31
100	CO21031001500006A Available to backorder	Left Cover	£1.24 £1.03
101	CO3032306001 Available to backorder	Nut	£1.24 £1.03
102	CO2050100271A Available to backorder	Motor	£99.36 £82.80
103	CO21031001480001A Available to backorder	Motor Support	£9.94 £8.28
104	COA26800609001 Available to backorder	Bolt	£1.24 £1.03
105	CO21031001540001A Available to backorder	Wiring Outlet Plate	£1.24 £1.03
