Cobra AIRMOW 51 - Hover Mower Main Diagram

Description

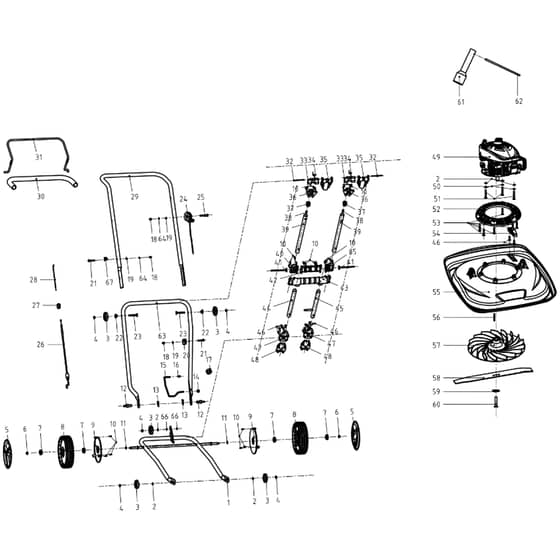

Cobra AIRMOW 51 Hover Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO21015001970001N In stock	Wheel Fixing Rack	£20.54 £17.12
2	COA26800700701 Available to backorder	Flat Washer	£2.40 £2.00
3	CO21061000020108B In stock	Lower Handle Knob	£2.40 £2.00
4	CO26800502301 In stock	Hex Nut	£1.20 £1.00
5	CO21011001490006A Available to backorder	Wheel Cover	£4.33 £3.61
6	COA26800502801 Available to backorder	Six Angle Flange Face Lock Nut	£2.52 £2.10
7	COA26800401601 Available to backorder	Angle Bearing	£4.13 £3.44
8	CO21011002750001A Available to backorder	Wheel Assey	£31.56 £26.30
9	CO21011001460001A Available to backorder	Anti-Dust Cover	£3.17 £2.64
10	CO26800100501 Available to backorder	Tapping Screw	£1.20 £1.00

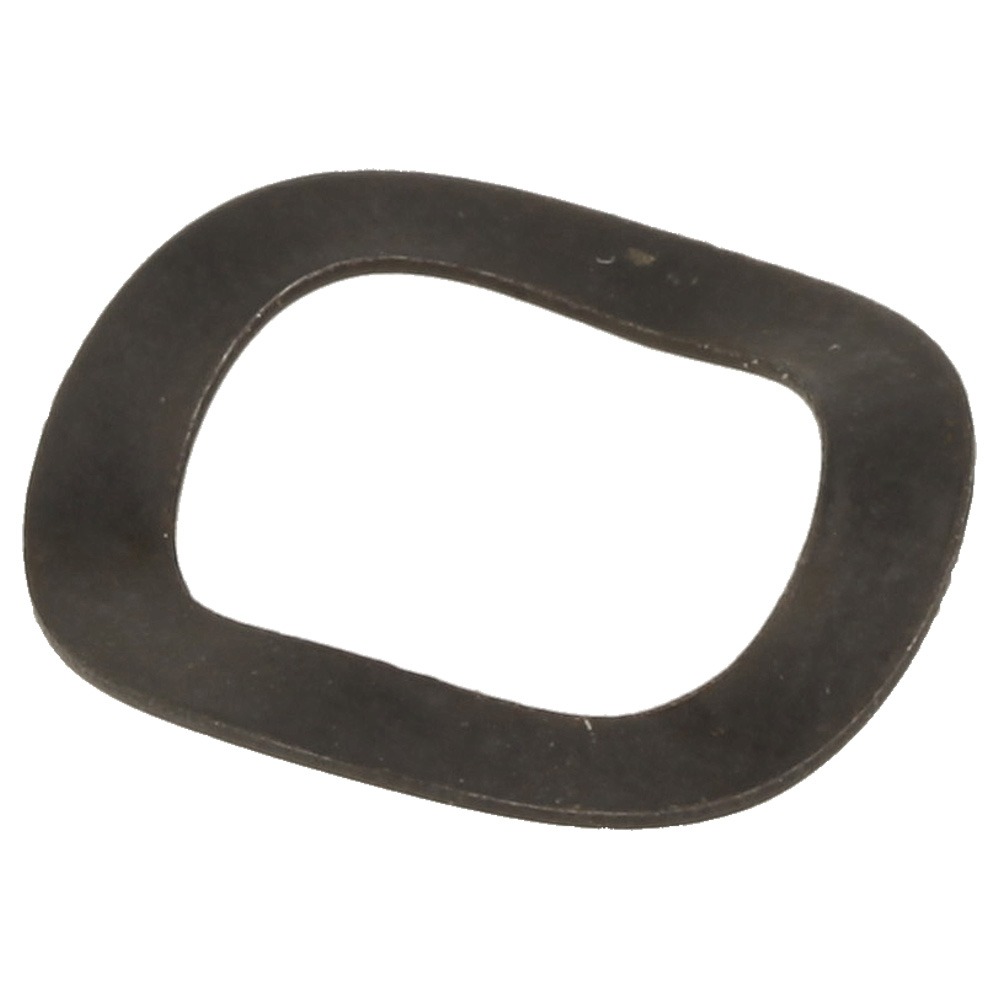

11	CO26800706202 Available to backorder	Wave Washer	£2.40 £2.00
12	CO2106300075A Available to backorder	Pin Shaft	£6.11 £5.09
13	CO2106800426A Available to backorder	Thumb Lock	£2.40 £2.00
14	COA26800500501 Available to backorder	Lock Six Angle Nut	£2.40 £2.00
15	CO2106200876A Available to backorder	Arm Positioning Lever	£3.26 £2.72
16	CO2104100455N Available to backorder	The Positioning Rod Head	£2.40 £2.00
17	CO21061000013201A Available to backorder	Cable Clamp	£2.40 £2.00
18	COA26800501603 Available to backorder	Acorn Nut	£1.20 £1.00
19	COA26800700801 Available to backorder	Flat Washer	£2.62 £2.18
20	CO21061001523201N Available to backorder	Cable Fixing Block	£2.40 £2.00
21	COA26800607701 Available to backorder	Six Hexagon Head Flange Bolts	£2.52 £2.10
22	CO21061000113201A Available to backorder	Curved Washer	£2.52 £2.10
23	COA26800600401 Available to backorder	Flat Head Bolt	£2.52 £2.10
24	CO2106800528N Available to backorder	Throttle Handle Assey	£11.32 £9.43
25	COA26800608201 Available to backorder	Six Hexagon Head Flange Bolts	£2.52 £2.10
26	CO2106800458N Available to backorder	Cable Assembly	£9.79 £8.16
27	CO21061001643201A Available to backorder	Cable Connecting Buckle	£2.40 £2.00
28	CO2106800523N Available to backorder	Extinguishing Cable	£6.11 £5.09
29	CO21062008710001N Available to backorder	Upper Handle	£18.04 £15.03
30	CO2106600015N Available to backorder	Handle Shield	£5.64 £4.70
31	CO21062008700108N Available to backorder	Extinguishing Rod	£10.81 £9.01
32	CO2102300100N Available to backorder	Rotation Axis	£2.52 £2.10
33	CO21041004470001N Available to backorder	Quick Remove Rear Lid	£2.86 £2.38
34	CO2109800153N Available to backorder	Quick Disconnect Torsion Spring	£2.40 £2.00
35	CO21041004460001N Available to backorder	Quickly Remove The Front Cover	£3.26 £2.72
36	CO21041004480001N Available to backorder	Quick Dismantling And Fixing Cover	£2.52 £2.10
37	CO21061002840108N Available to backorder	Quick Release Button	£2.40 £2.00
38	CO2109800155A Available to backorder	Quick Release Pressure Spring	£2.52 £2.10
39	CO21062008740001N Available to backorder	Upper Connecting Shaft	£9.22 £7.68
40	CO21041004450001N Available to backorder	Rotate Right Cover	£2.40 £2.00
41	CO2102300099N Available to backorder	Pin Roll	£5.93 £4.94
42	CO21041004440001N Available to backorder	Rotary Middle Cap	£2.96 £2.47
43	CO21041004420001N In stock	Rotary Front Cover	£3.78 £3.15
44	CO21062008730001N Available to backorder	Lower Connecting Shaft	£5.06 £4.22
45	CO21065000010001N Available to backorder	Lower Connecting Shaft Welding Part	£6.66 £5.55
46	COA26800103701 Available to backorder	Tapping Screw	£2.52 £2.10
47	CO21041004510001N Available to backorder	Fixed Rear Lid	£3.17 £2.64
48	CO21041004500001N Available to backorder	Fixed Front Cover	£2.82 £2.35
49	CO60400111501 Available to backorder	Engine Assembly	£148.92 £124.10
50	COA26800800202 Available to backorder	Spring Washer	£2.52 £2.10
51	COA26800612801 Available to backorder	Hexagon Headed Bolt	£2.52 £2.10
52	CO21041004490001N Available to backorder	Engine Fixing Cover	£10.94 £9.12
53	COA26800110201 Available to backorder	Tapping Screw	£1.44 £1.20
54	CO21031000670001A Available to backorder	Guide Slot	£2.52 £2.10
55	CO21031000660108A In stock	Deck	£92.52 £77.10
56	CO26809000201 In stock	Flat Key	£2.40 £2.00
57	CO21051000310001N In stock	Fan	£27.28 £22.73
58	CO2105200179N In stock	Blade	£20.40 £17.00
59	CO2105300001C Available to backorder	Dish Washer	£2.40 £2.00
60	CO2105300068 In stock	Blade Fastening Bolt	£2.40 £2.00
61	CO2012200002A Available to backorder	Cocket Wrench	£2.52 £2.10
62	CO2012100004A Available to backorder	Cocket Wrench Rod	£2.52 £2.10
63	CO21062008720001N Available to backorder	Lower Handle	£18.31 £15.26
64	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
65	CO21041004430001N Available to backorder	Rotate Left Cover	£2.96 £2.47
66	CO3054202001 Available to backorder	External Teeth Lock Washer	£2.52 £2.10
67	CO2106300002A Available to backorder	Hanging Hook	£2.52 £2.10
