Cobra 25CXVE - 25" Vertciutter Cassette Fortis25B May 2023 Main Diagram

Name: Cobra 25CXVE - 25" Vertciutter Cassette Fortis25B May 2023 Main Diagram
SKU: 25cxve_25_vertciutter_cassette_fortis25b_may_2023_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

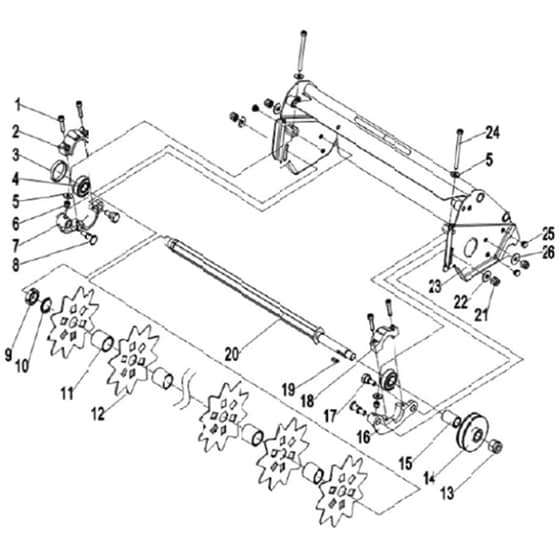

Cobra 25CXVE - 25" Vertciutter Cassette Fortis25B May 2023 Main Diagram

Description

Cobra 25CXVE Cylinder Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO7240622 Available to backorder	Hexagon Socket Head Screw M6×30-Black	£1.20 £1.00
2	CO4070810 Available to backorder	Right Bearing Housing (Upper)	£6.06 £5.05
3	CO4163490 Available to backorder	Spacer	£5.54 £4.62
4	CO7061237 Available to backorder	Deep Groove Ball Bearing 6203Z-Nsk	£10.70 £8.92
5	CO7030604 Available to backorder	Washer - A 6	£1.20 £1.00
6	CO7020615 In stock	Hex Lock Nut M6-Lh	£1.20 £1.00
7	CO4070820 Available to backorder	Right Bearing Housing (Lower)	£13.72 £11.43
8	CO1070290 Available to backorder	Bolt(With Holes)	£5.59 £4.66
9	CO3012085 Available to backorder	Arbor Lock Nut	£8.98 £7.48
10	CO4034934 Available to backorder	Shaft Locking Spacer 2Mm	£2.15 £1.79
11	CO4034929 Available to backorder	Blade Spacer 32.3Mm	£3.16 £2.63
12	CO3011059 Available to backorder	Verticutter Blade	£19.04 £15.87
13	CO7021407 Available to backorder	Hex Lock Nut M14	£1.25 £1.04
14	CO1042023 Available to backorder	Drive Pulley	£25.45 £21.21
15	CO4034702 Available to backorder	Pulley Spacer	£4.63 £3.86
16	CO4070800 Available to backorder	Left Bearing Housing (Lower)	£13.72 £11.43
17	CO1070280 Available to backorder	Bolt	£4.02 £3.35
18	CO4070790 Available to backorder	Left Bearing Housing (Upper)	£6.06 £5.05
19	CO7110501 Available to backorder	Key-A 5×5×16	£1.25 £1.04
20	CO4034898 Available to backorder	Cutter Shaft (25")	£92.05 £76.71
21	CO7020803 Available to backorder	Hex Lock Nut M8	£1.25 £1.04
22	CO7030813 Available to backorder	Washer - A 8	£1.25 £1.04
23	CO4034892B-9005 Available to backorder	Bracket ( 25")	£173.74 £144.78
24	CO7290612 In stock	Slotted Cylindrical Head Screw M6×80-L	£4.90 £4.08
25	CO7150153 Available to backorder	Plug	£1.25 £1.04
26	CO7030819 Available to backorder	Flat Washer- A 8	£1.25 £1.04
