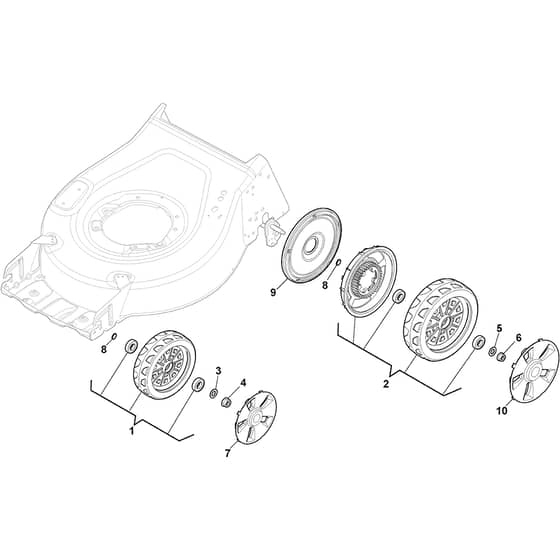

CLASSIC 20S - 2022-2025 - 2L0536047/MC - Atco Rotary Mower Wheels Diagram

Name: CLASSIC 20S - 2022-2025 - 2L0536047/MC - Atco Rotary Mower Wheels Diagram
SKU: classic_20s_2l0536047_mc_wheels-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CLASSIC 20S - 2022-2025 - 2L0536047/MC - Atco Rotary Mower Wheels Diagram

Description

Atco CLASSIC 20S Parts Diagram

Product Name - CLASSIC 20S

Model Year - 2022-2025

Model Type - CP1 534 S

Art.N - 2L0536047/MC

Engine Model - ST170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007814/0 In stock	Wheel Ø200	£17.87 £14.89

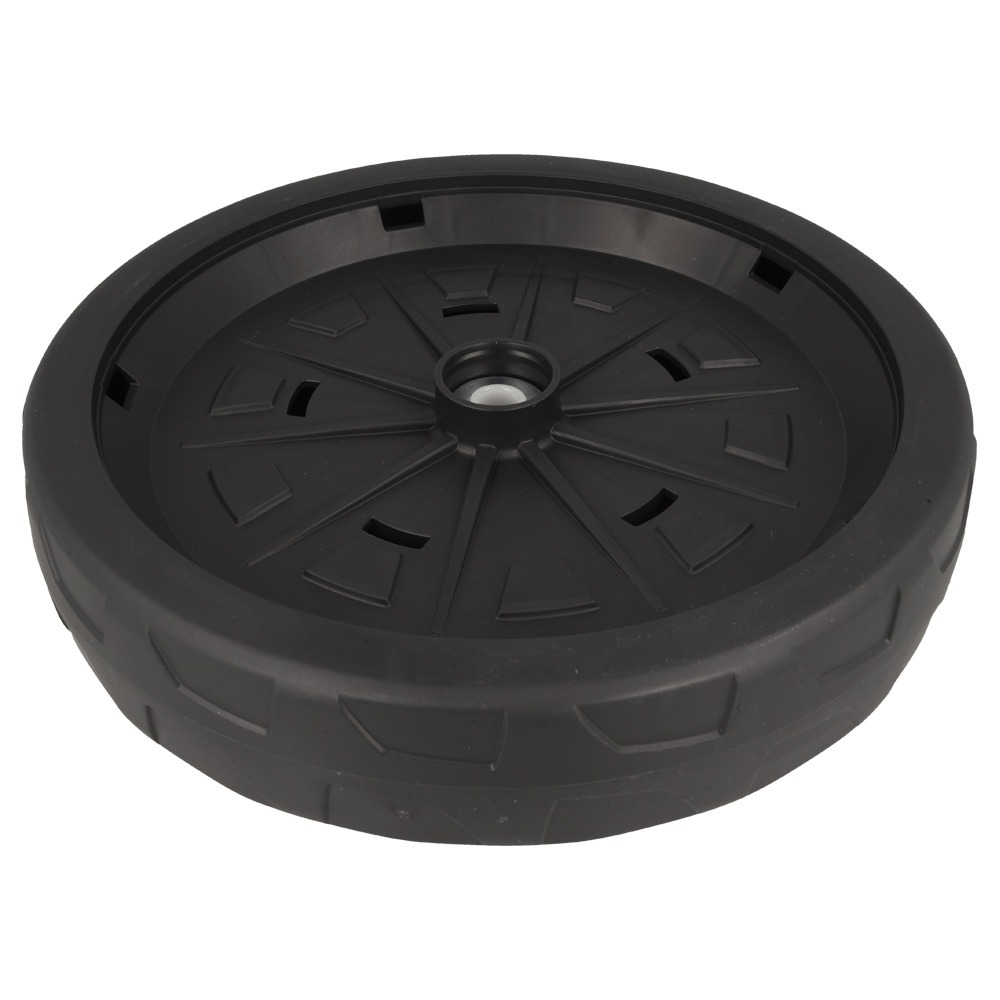

2	MO381007817/0 Available to backorder	Wheel Only bearings NOT bushings	£24.91 £20.76
3	MO112523050/0 In stock	Washer	£1.55 £1.29
5	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO322110643/0 Available to backorder	Hub Cap Grey	£2.53 £2.11
8	MO321660100/0 Available to backorder	Washer Only with bearings	£1.97 £1.64
9	MO322600240/0 Available to backorder	Protection. Wheel	£5.35 £4.46
10	MO322110644/0 Available to backorder	Avio Hub Cap D.280.300 [Grey]	£3.25 £2.71
