CHEYENNE (B&S) - 2017 - Oleo-Mac Ride On Mower Mowing deck 110 cm Diagram

Name: CHEYENNE (B&S) - 2017 - Oleo-Mac Ride On Mower Mowing deck 110 cm Diagram
SKU: cheyenne_b_s_2017_mowing_deck_110_cm-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CHEYENNE (B&S) - 2017 - Oleo-Mac Ride On Mower Mowing deck 110 cm Diagram

Description

Oleo-Mac CHEYENNE (B&S) Parts Diagram

Model Year - 2017

Be the first to review this product

0 product questions

	Part No.	Details
3	EFSGN324162099 Available to backorder	Bearing	£13.90 £11.58

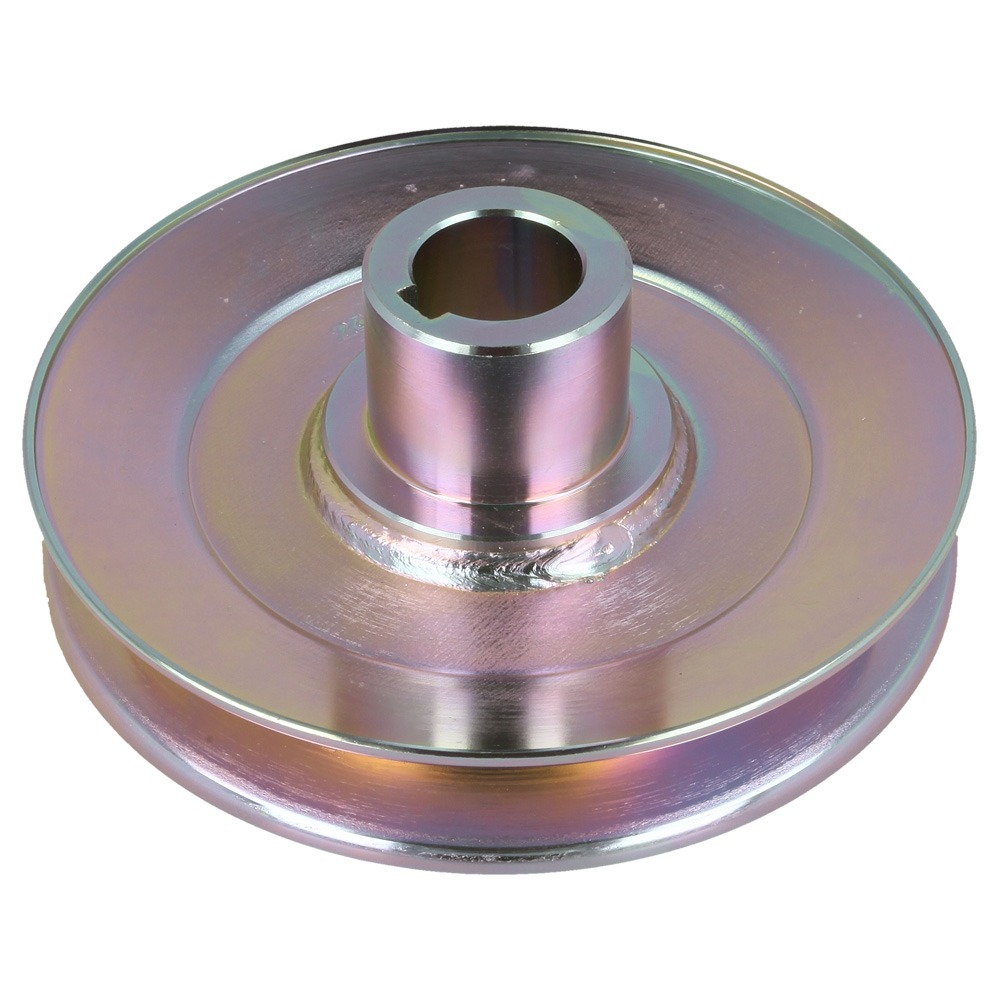

6	EFSGN532150273 In stock	Pulley	£48.53 £40.44
7	EFSGS532092207273 Available to backorder	Washer	£0.96 £0.80

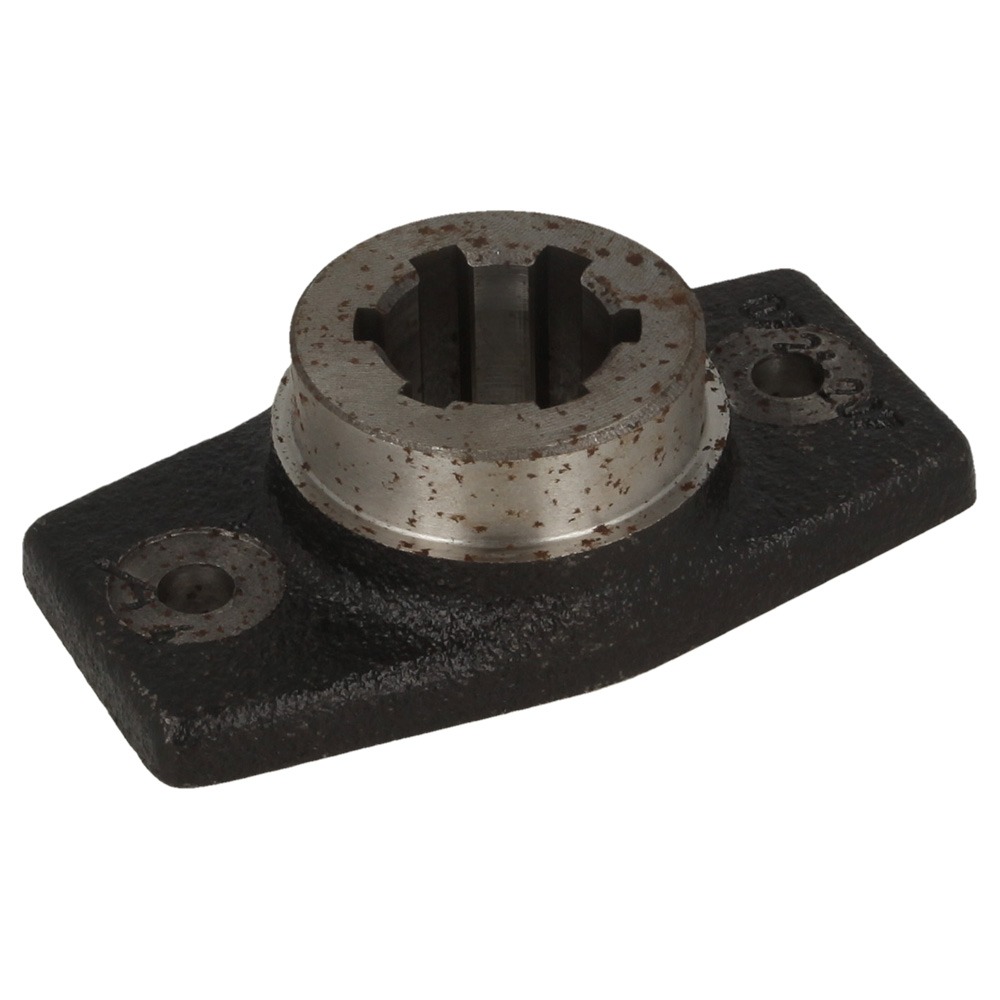

9	EFSGS532098212013 In stock	Flange	£84.80 £70.67
10	EFSGN311733014 Available to backorder	Retainer Washer	£1.84 £1.53
12	EFSGN309503543 Available to backorder	Screw	£0.90 £0.75
13	EFSGN532150290 Available to backorder	Nut	£0.96 £0.80
14	EFSGN311129505 Available to backorder	Nut	£0.96 £0.80
15	EFSGN309599017 Available to backorder	Screw	£5.94 £4.95
17	EFSGN311219523 Available to backorder	Washer	£2.14 £1.78
19	EFSGS532050422063 Available to backorder	Blade Right	£85.12 £70.93
20	EFSGS532050422073 Available to backorder	Blade Right	£93.24 £77.70
21	EFSGS532050422053 Available to backorder	Blade Left	£85.12 £70.93
22	EFSGS532050422093 Available to backorder	Blade Left	£93.24 £77.70
23	EFSGN532940128 In stock	Cutting Wheel	£18.50 £15.42
24	EFSGN309501567 Available to backorder	Screw	£1.84 £1.53
26	EFSGN311129522 Available to backorder	Nut	£1.84 £1.53
27	EFSGN309578529 Available to backorder	Screw	£5.44 £4.53
31	EFSGN315231234 Available to backorder	Spring	£7.70 £6.42
33	EFSGN311732009 Available to backorder	Ring	£0.90 £0.75
35	EFSGS532938522453 Available to backorder	Cover	£99.00 £82.50
36	EFSGS532913413313 Available to backorder	Slide	£114.44 £95.37
37	EFSGN309503518 Available to backorder	Screw	£0.90 £0.75
39	EFSGS532195203803 Available to backorder	Spacer	£14.72 £12.27
40	EFSGN324162097 Available to backorder	Bearing	£32.42 £27.02
43	EFSGN532151332 Available to backorder	Cover	£3.94 £3.28
48	EFSGS532094214513 Available to backorder	Bushing	£36.24 £30.20
53	EFSGS532093212633 Available to backorder	Pin	£14.92 £12.43
55	EFSGN311129523 Available to backorder	Nut	£0.72 £0.60
56	EFSGN315231193 Available to backorder	Spring	£10.60 £8.83
60	EFsgn532150784 Available to backorder	Compensator	£22.54 £18.78
62	EFSGN311129502 Available to backorder	Nut	£0.90 £0.75
63	EFSGN532150533 Available to backorder	Quick Fastener	£15.62 £13.02
64	EFSGN273111057 Available to backorder	Ring	£0.90 £0.75
65	EFSGN311120511 Available to backorder	Nut	£0.90 £0.75
69	EFSGN318112030 Available to backorder	Chain	£4.50 £3.75
70	EFSGN272731229 Available to backorder	Belt	£120.20 £100.17
73	EFSGN532151316 Available to backorder	Protection Cover	£122.18 £101.82
77	EFSGN309599008 Available to backorder	Screw	£9.54 £7.95
79	EFSGN311726091 Available to backorder	Spring	£0.90 £0.75
81	EFSGN311129501 Available to backorder	Nut	£0.90 £0.75
82	EFSG311212516 Available to backorder	Washer	£0.90 £0.75
85	EFSGS532913452133 Available to backorder	Guard	£119.40 £99.50
86	EFSG947311210503 Available to backorder	Washer	£0.90 £0.75
93	EFSGN311150504 Available to backorder	Nut	£0.56 £0.47
97	EFSGN311214503 Available to backorder	Washer	£0.90 £0.75
98	EFSGS532933713283 Available to backorder	Pulley	£45.38 £37.82

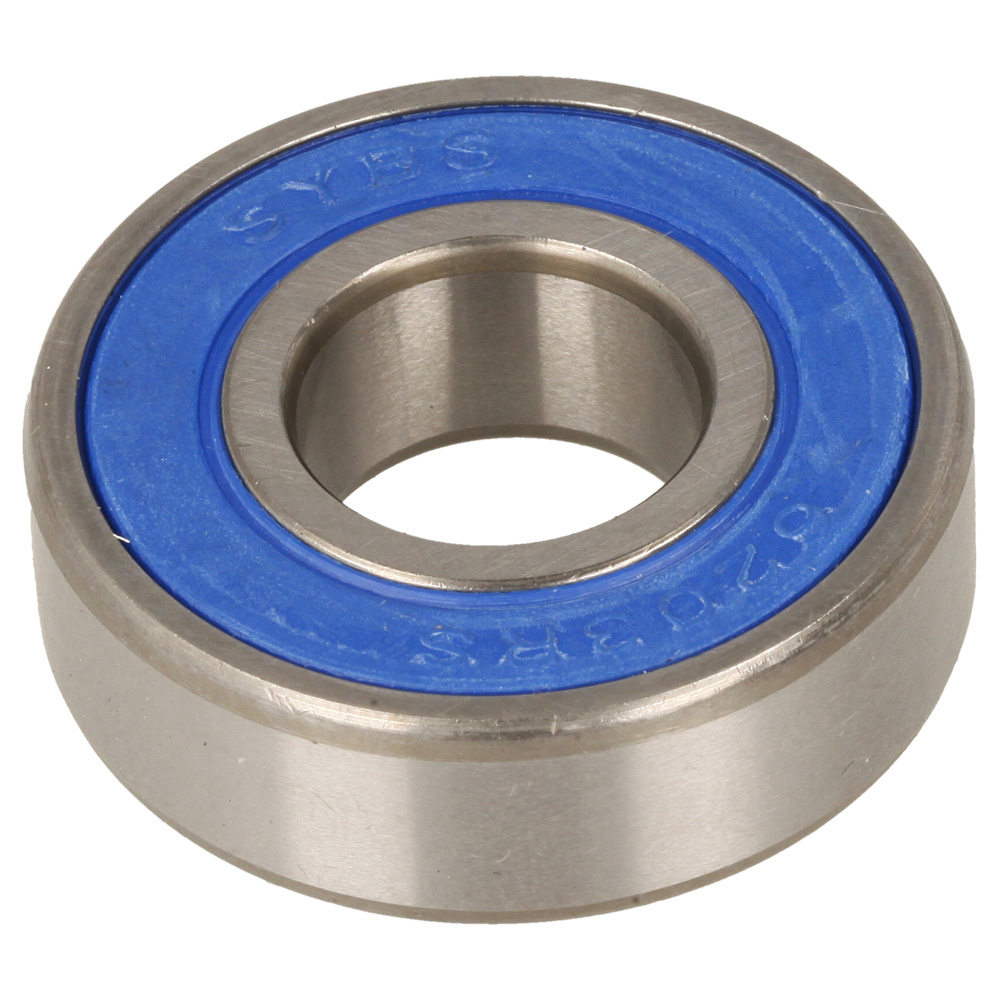

99	EFSGN324162098 Available to backorder	Bearing	£14.36 £11.97
100	EFSGN311733079 Available to backorder	Retainer Washer	£0.77 £0.64

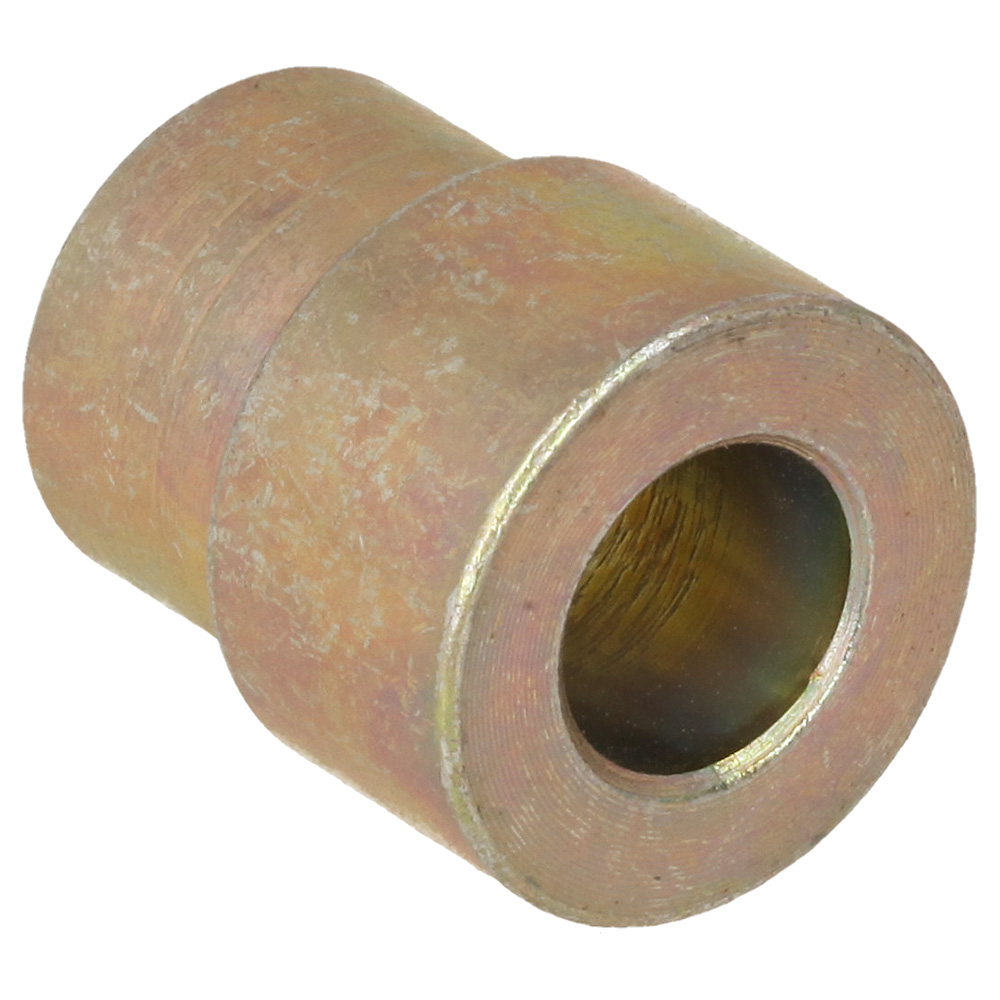

101	EFSGS532094214473 In stock	Bushing	£8.08 £6.73
102	EFSGN311212517 Available to backorder	Washer	£0.90 £0.75
103	EFSGN311214502 Available to backorder	Washer	£0.56 £0.47
104	EFSGN532150903 In stock	Bushing	£2.76 £2.30
105	EFSGN532150904 In stock	Stud	£2.76 £2.30
106	EFSGN532151474 Available to backorder	Belt Cover	£69.88 £58.23
107	EFSGN532151473 Available to backorder	Belt Cover	£78.80 £65.67
