CHEYENNE 26 (KAWASAKI) - 2023 - Oleo-Mac Ride On Mower Body Diagram

Name: CHEYENNE 26 (KAWASAKI) - 2023 - Oleo-Mac Ride On Mower Body Diagram
SKU: cheyenne_26_kawasaki_2023_body-group
Price: 0.4 GBP
Availability: InStock

Part No. cheyenne_26_kawasaki_2023_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CHEYENNE 26 (KAWASAKI) - 2023 - Oleo-Mac Ride On Mower Body Diagram

Description

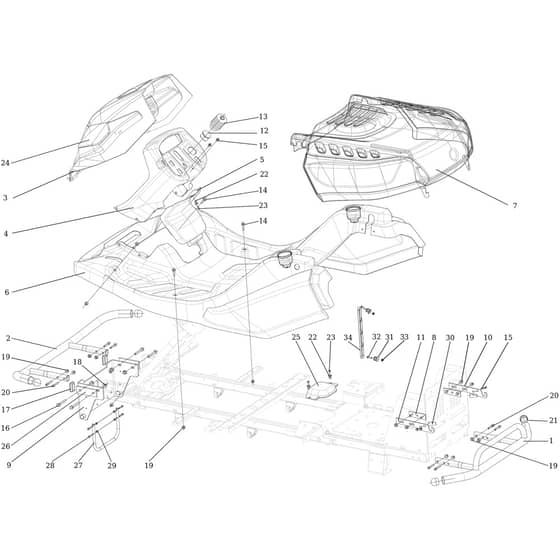

Oleo-Mac CHEYENNE 26 (KAWASAKI) Parts Diagram

Model Year - 2023

	Part No.	Details
5	EFSGN532151289 Available to backorder	Cover	£59.16 £49.30
6	EFSGN532151290 Available to backorder	Base	£387.84 £323.20
18	EFSGN311129523 Available to backorder	Nut	£0.86 £0.72
19	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
21	EFSGN321841087 Available to backorder	Cap	£3.24 £2.70
22	EFSGN532150903 In stock	Bushing	£3.13 £2.61
23	EFSGN532150904 In stock	Stud	£3.13 £2.61
28	EFSGN309503543 Available to backorder	Screw	£1.08 £0.90
29	EFSGN311129501 Available to backorder	Nut	£1.08 £0.90
32	EFSGN309203557 Available to backorder	Screw	£1.08 £0.90
33	EFSGN311129524 Available to backorder	Nut	£0.48 £0.40
