CHEYENNE 26 (KAWASAKI) - 2022 - Oleo-Mac Ride On Mower Mowing deck 132 cm Diagram

Name: CHEYENNE 26 (KAWASAKI) - 2022 - Oleo-Mac Ride On Mower Mowing deck 132 cm Diagram
SKU: cheyenne_26_kawasaki_2022_mowing_deck_132_cm-group
Price: 0.4 GBP
Availability: InStock

Part No. cheyenne_26_kawasaki_2022_mowing_deck_132_cm-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

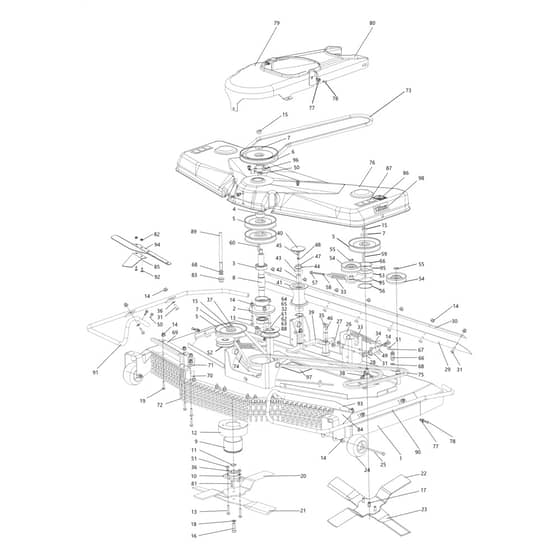

CHEYENNE 26 (KAWASAKI) - 2022 - Oleo-Mac Ride On Mower Mowing deck 132 cm Diagram

Description

Oleo-Mac CHEYENNE 26 (KAWASAKI) Parts Diagram

Model Year - 2022

	Part No.	Details
3	EFSGN324162099 Available to backorder	Bearing	£14.40 £12.00
7	EFSGS532092207273 Available to backorder	Washer	£1.08 £0.90
11	EFSGN311733014 Available to backorder	Retainer Washer	£2.00 £1.67
13	EFSGN309503543 Available to backorder	Screw	£1.08 £0.90
14	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
15	EFSGN311129505 Available to backorder	Nut	£1.08 £0.90
16	EFSGN309599017 Available to backorder	Screw	£5.64 £4.70
17	EFSGN309599008 Available to backorder	Screw	£9.00 £7.50
18	EFSGN311219523 Available to backorder	Washer	£2.34 £1.95
19	EFSG947309503512 Available to backorder	Screw	£1.08 £0.90
24	EFSGN532940128 In stock	Cutting Wheel	£18.16 £15.13
25	EFSGN309501567 Available to backorder	Screw	£2.00 £1.67
27	EFSGN311129522 Available to backorder	Nut	£2.00 £1.67
28	EFSGN309578529 Available to backorder	Screw	£5.64 £4.70
33	EFSGN315231234 Available to backorder	Spring	£7.92 £6.60
35	EFSGN311732009 Available to backorder	Ring	£1.08 £0.90
36	EFSG947311210503 Available to backorder	Washer	£1.08 £0.90
39	EFSGS532913413313 Available to backorder	Slide	£109.92 £91.60
40	EFSGN532151332 Available to backorder	Cover	£4.08 £3.40
42	EFSGS532195203803 Available to backorder	Spacer	£15.24 £12.70
43	EFSGN324162097 Available to backorder	Bearing	£33.48 £27.90
45	EFSGN309503518 Available to backorder	Screw	£1.08 £0.90
47	EFSGN311212517 Available to backorder	Washer	£1.08 £0.90
48	EFSGN311214502 Available to backorder	Washer	£0.48 £0.40
51	EFSGN311129501 Available to backorder	Nut	£1.08 £0.90
52	EFSGN000532003 Available to backorder	Pulley	£20.28 £16.90
54	EFsgn532150784 Available to backorder	Compensator	£23.28 £19.40
58	EFSGN309578523 Available to backorder	Screw	£3.96 £3.30
60	EFSGN311726089 Available to backorder	Key	£3.01 £2.51
62	EFSGN324162098 Available to backorder	Bearing	£14.88 £12.40
63	EFSGN311733079 Available to backorder	Retainer Washer	£0.77 £0.64
65	EFSGN311214503 Available to backorder	Washer	£1.08 £0.90
66	EFSGN532150533 Available to backorder	Quick Fastener	£16.20 £13.50
67	EFSGN273111057 Available to backorder	Ring	£1.08 £0.90
68	EFSGN311120511 Available to backorder	Nut	£1.08 £0.90
72	EFSGN318112030 Available to backorder	Chain	£4.68 £3.90
77	EFSGN532150903 In stock	Bushing	£3.13 £2.61
78	EFSGN532150904 In stock	Stud	£3.13 £2.61
80	EFSGN532151474 Available to backorder	Belt Cover	£72.24 £60.20
81	EFSGN311726091 Available to backorder	Spring	£1.08 £0.90
82	EFSGN311129513 Available to backorder	Self-Locking Nut	£1.08 £0.90
83	EFSGN311129526 Available to backorder	Nut	£1.10 £0.92
87	EFSGN283292121 Available to backorder	Label	£3.01 £2.51
