CHEYENNE 23 (B&S) - 2024 - Oleo-Mac Ride On Mower Engine Diagram

Description

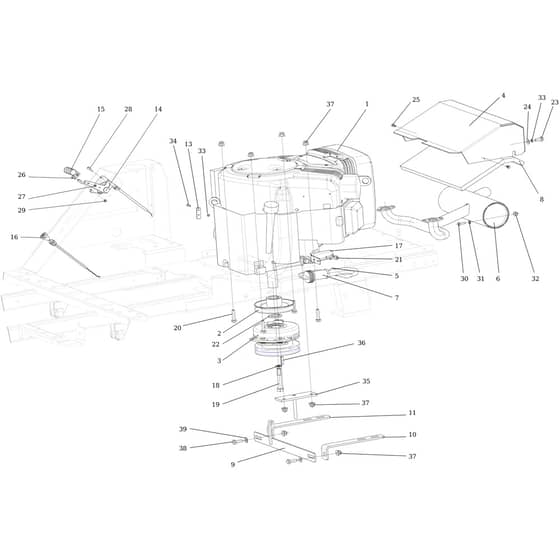

Oleo-Mac CHEYENNE 23 (B&S) Parts Diagram

Model Year - 2024

	Part No.	Details
2	EFSGN532151100 Available to backorder	Pulley (Engine)	£74.28 £61.90
3	EFSGN339242009 Available to backorder	Clutch	£307.20 £256.00
14	EFSGN443900144 Available to backorder	Throttle Lever	£36.48 £30.40
16	EFSGN443612016 Available to backorder	Cable	£36.12 £30.10
20	EFSGN309503543 Available to backorder	Screw	£1.08 £0.90
22	EFSGS532092208583 Available to backorder	Spacer	£4.08 £3.40
24	EFSGN311214502 Available to backorder	Washer	£0.48 £0.40
26	EFSGN309231535 Available to backorder	Screw	£1.08 £0.90
27	EFSG311129514 Available to backorder	Nut	£1.08 £0.90
29	EFSGN311129524 Available to backorder	Nut	£0.48 £0.40
31	EFSG311210502 Available to backorder	Washer	£1.08 £0.90
33	EFSG311214507 Available to backorder	Washer	£1.08 £0.90
36	EFSGN311726101 Available to backorder	Key	£2.27 £1.89
37	EFSGN532150290 Available to backorder	Nut	£1.15 £0.96
38	EFSG947309503512 Available to backorder	Screw	£1.08 £0.90
39	EFSG947311210503 Available to backorder	Washer	£1.08 £0.90
