CG 464 TR-G - 2008 - 293616146/HEL - Castel Garden Rotary Mower Blade Diagram

Name: CG 464 TR-G - 2008 - 293616146/HEL - Castel Garden Rotary Mower Blade Diagram
SKU: cg_464_tr_g_293616146_hel_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. cg_464_tr_g_293616146_hel_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 464 TR-G - 2008 - 293616146/HEL - Castel Garden Rotary Mower Blade Diagram

Description

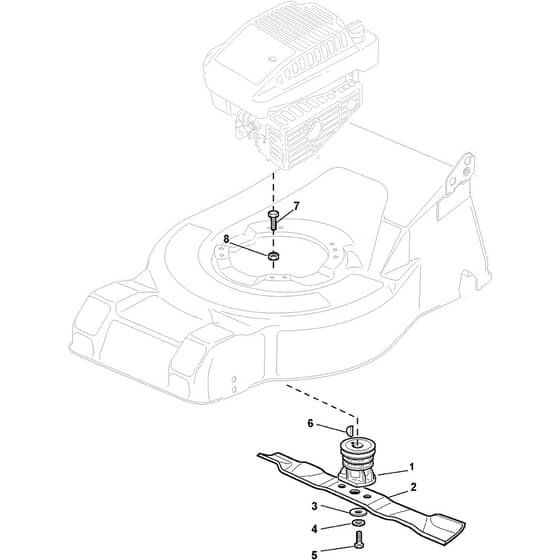

Castel Garden CG 464 TR-G Parts Diagram

Product Name - CG 464 TR - G

Model Year - 2008

Model Type - NG 464 TR

Art.N - 293616146/HEL

Engine Model -

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-9-2007	£9.30 £7.75
2	MO181004365/3 In stock	Mulching Blade From 01-9-2001	£12.06 £10.05
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112793701/0 In stock	Screw	£1.55 £1.29
7	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
8	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO112293201/0 In stock	Hexagon Nut M8 With Exagonal Flange	£1.70 £1.42
