CG 464 TR-B - 2005 - 293596026/05 - Castel Garden Rotary Mower Transmission Diagram

Description

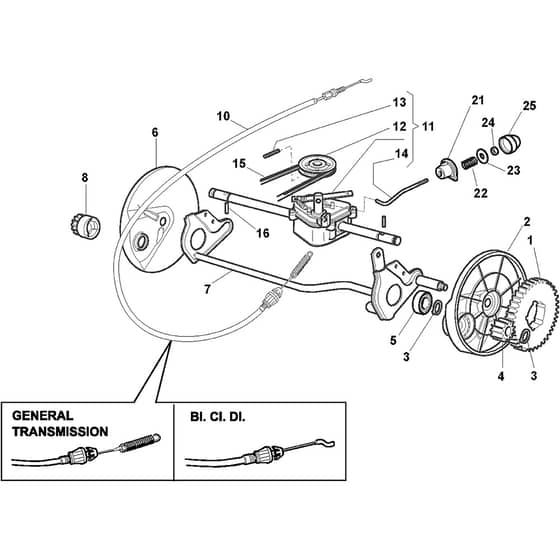

Castel Garden CG 464 TR-B Parts Diagram

Product Name - CG 464 TR - B

Model Year - 2005

Model Type - NG 464 TR

Art.N - 293596026/05

Engine Model -

	Part No.	Details
1	MO122120105/2 Available to backorder	Ring Gear	£9.92 £8.27
2	MO122600093/0 Available to backorder	Left Wheel Protection	£3.38 £2.82
3	MO112608600/0 In stock	Seeger	£1.55 £1.29
4	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
5	MO119216035/0 In stock	Bearing	£3.52 £2.93
6	MO122600092/0 Available to backorder	Right Wheel Protection	£3.38 £2.82
7	MO381000147/0 Available to backorder	Rear Wheel Axle	£27.44 £22.87
8	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
10	MO381000672/0 In stock	Cable Rear Drive (Bi. Ci. Di.) From 01-9-2003	£19.57 £16.31
10	MO181000645/0 In stock	Cable Rear Drive (Bi. Ci. Di.) To 31-8-2003	£29.52 £24.60
10	MO381000668/1 In stock	Cable Rear Drive (General Transmission) From 01-9-2003	£20.96 £17.47
10	MO381001143/0 In stock	Cable Rear Drive (General Transmission) To 31-8-2003	£30.98 £25.82
11	MO181003081/1 Available to backorder	Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2004	£145.04 £120.87
11	MO181003076/1 Available to backorder	G.T. Gear Box (General Transmission) From 01-9-2004	£121.07 £100.89
11	MO181003059/2 Available to backorder	Gear Box (General Transmission) To 31-8-2004	£59.16 £49.30
12	MO122601909/0 In stock	Pulley	£5.65 £4.71
13	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
14	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.64 £3.87
15	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
16	MO122753000/0 In stock	Pin	£1.55 £1.29
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
