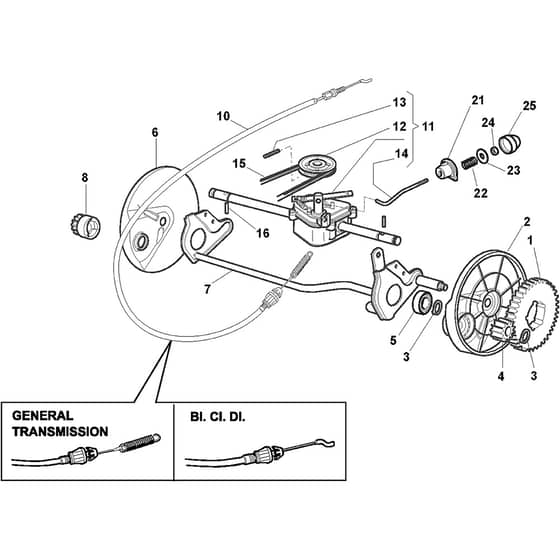

CG 464 TR-B - 2004 - 293596026/03 - Castel Garden Rotary Mower Transmission Diagram

Description

Castel Garden CG 464 TR-B Parts Diagram

Product Name - CG 464 TR-B

Model Year - 2004

Model Type - NG 464 TR

Art.N - 293596026/03

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Available to backorder	Ring Gear	£9.92 £8.27
2	MO122600093/0 Available to backorder	Left Wheel Protection	£3.38 £2.82
3	MO112608600/0 In stock	Seeger	£1.55 £1.29
4	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
5	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
6	MO122600092/0 Available to backorder	Right Wheel Protection	£3.38 £2.82
7	MO381000147/0 Available to backorder	Rear Wheel Axle	£27.46 £22.88
8	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
10	MO381000668/1 Available to backorder	Cable Rear Drive (General Transmission) From 01-9-2003	£20.96 £17.47
10	MO381001143/0 In stock	Cable Rear Drive (General Transmission) To 31-8-2003	£30.97 £25.81
10	MO381000672/0 Available to backorder	Cable Rear Drive (Bi. Ci. Di.) From 01-9-2003	£18.83 £15.69
10	MO181000645/0 In stock	Cable Rear Drive (Bi. Ci. Di.) To 31-8-2003	£29.56 £24.63
11	MO181003059/2 Available to backorder	Gear Box (General Transmission) To 31-8-2004	£64.56 £53.80
11	MO181003081/1 Available to backorder	Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2004	£145.04 £120.87
11	MO181003076/1 Available to backorder	G.T. Gear Box (General Transmission) From 01-9-2004	£121.07 £100.89
12	MO122601909/0 In stock	Pulley	£5.64 £4.70
13	MO112645705/0 In stock	Elastic Pin	£1.55 £1.29
14	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.66 £3.88
15	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
16	MO122753000/0 In stock	Pin	£1.55 £1.29
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
