CG 464 TR-B - 2004 - 293596026/03 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Name: CG 464 TR-B - 2004 - 293596026/03 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram
SKU: cg_464_tr_b_293596026_03_deck_and_height_adjusting-group
Price: 1.16 GBP
Availability: InStock

Part No. cg_464_tr_b_293596026_03_deck_and_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 464 TR-B - 2004 - 293596026/03 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

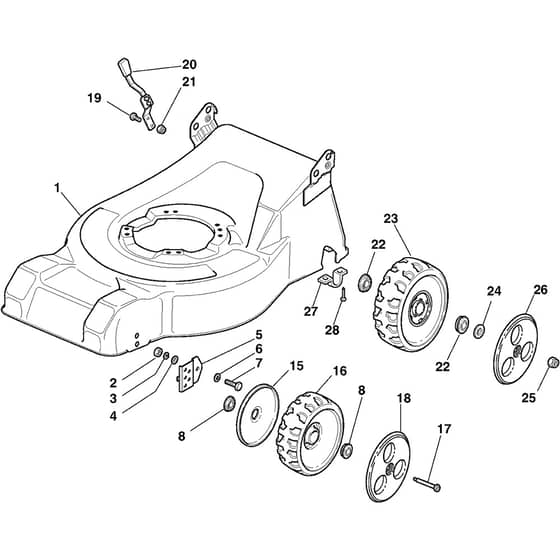

Castel Garden CG 464 TR-B Parts Diagram

Product Name - CG 464 TR-B

Model Year - 2004

Model Type - NG 464 TR

Art.N - 293596026/03

Engine Model -

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322551515/0 Available to backorder	Plate	£13.38 £11.15
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
8	MO322034511/0 Available to backorder	Bushing To 31-8-2005	£2.40 £2.00
8	MO322034515/1 Available to backorder	Bushing From 01-9-2005	£1.70 £1.42
15	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
16	MO322686091/1 In stock	Wheel To 31-8-2005	£6.77 £5.64
17	MO122524321/0 Available to backorder	Pin To 31-8-2005	£5.06 £4.22
17	MO122524340/0 Available to backorder	Pin From 01-9-2005	£2.69 £2.24
18	MO322110320/1 Available to backorder	Hub Cap White White From 01-9-2004	£8.45 £7.04
19	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
20	MO381003279/2 Available to backorder	Adjustment Lever	£32.38 £26.98
21	MO112154330/0 In stock	Nut	£1.55 £1.29
22	MO122122206/0 In stock	Bearing	£1.84 £1.53
23	MO381007360/0 Available to backorder	Wheel	£16.61 £13.84
24	MO112523060/0 In stock	Washer To 31-8-2005	£1.55 £1.29
24	MO112369500/0 In stock	Elastic Washer From 01-9-2005	£1.39 £1.16
25	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO322110636/0 In stock	Hub Cap White White	£2.53 £2.11
27	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
28	MO322545152/0 In stock	Axle Bracket	£1.55 £1.29
