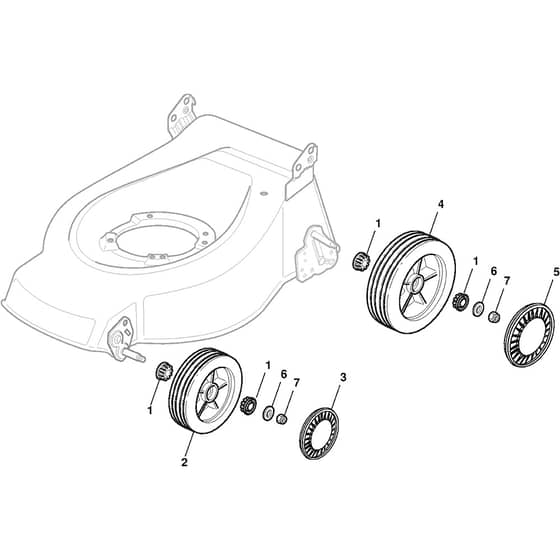

CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Name: CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram
SKU: cg_464_tr_b_293616026_02_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. cg_464_tr_b_293616026_02_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

Castel Garden CG 464 TR-B Parts Diagram

Product Name - CG 464 TR - B

Model Year - 2002

Model Type - NG 464 TR

Art.N - 293616026/02

Engine Model -

	Part No.	Details
1	MO122034508/0 In stock	Bushing	£1.55 £1.29
2	MO381007330/1 Available to backorder	Wheel	£13.81 £11.51
3	MO122110282/0 Available to backorder	Hub Cap White White	£6.16 £5.13
4	MO381007337/0 In stock	Wheel	£16.61 £13.84
5	MO122110281/0 Available to backorder	Hub Cap White White	£8.38 £6.98
6	MO112523060/0 In stock	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
