CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Name: CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram
SKU: cg_464_tr_b_293616026_02_deck_and_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. cg_464_tr_b_293616026_02_deck_and_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

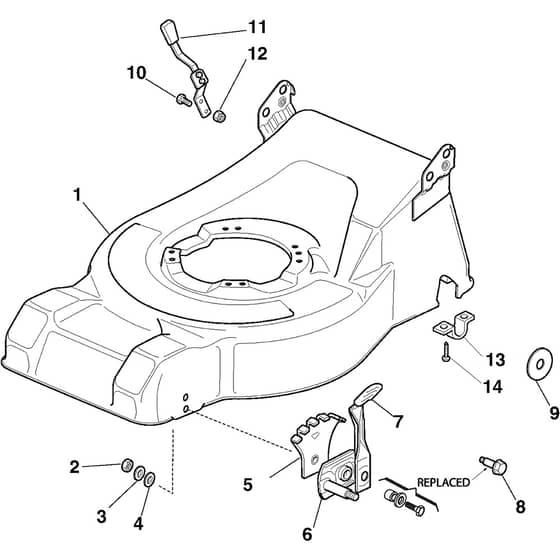

CG 464 TR-B - 2002 - 293616026/02 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

Castel Garden CG 464 TR-B Parts Diagram

Product Name - CG 464 TR - B

Model Year - 2002

Model Type - NG 464 TR

Art.N - 293616026/02

Engine Model -

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.24 £1.87
6	MO381005082/0 In stock	Wheel Support	Was £17.18 £14.32 Special Price £10.79 £8.99
7	MO481003285/1 In stock	Lever	£19.52 £16.27
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
9	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
10	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
11	MO381003279/2 Available to backorder	Adjustment Lever	£32.38 £26.98
12	MO112154330/0 In stock	Nut	£1.55 £1.29
13	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
14	MO322545152/0 In stock	Axle Bracket	£1.55 £1.29
