CG 448 TR - 2008 - 298506047/GI7 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Name: CG 448 TR - 2008 - 298506047/GI7 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram
SKU: cg_448_tr_298506047_gi7_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. cg_448_tr_298506047_gi7_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 448 TR - 2008 - 298506047/GI7 - Castel Garden Rotary Mower Wheels and Hub Caps Diagram

Description

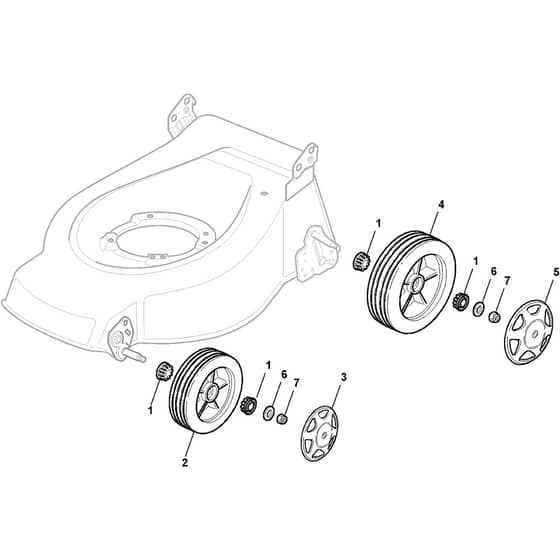

Castel Garden CG 448 TR Parts Diagram

Product Name - CG 448 TR

Model Year - 2008

Model Type - R 484 TR

Art.N - 298506047/GI7

Engine Model -

	Part No.	Details
1	MO122034508/0 In stock	Bushing	£1.55 £1.29

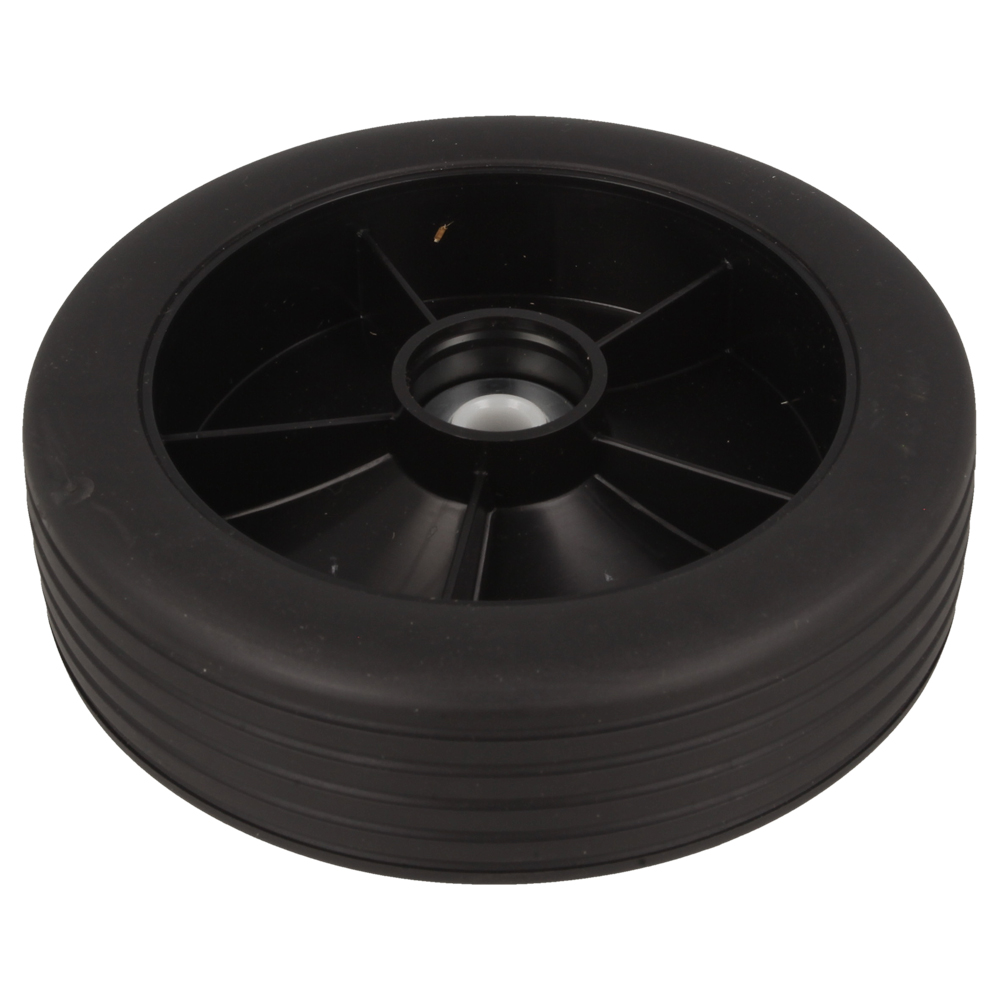

2	MO381007330/1 Available to backorder	Wheel	£13.81 £11.51
3	MO322110395/0 Available to backorder	Hub Cap Grey Grey	£1.97 £1.64
4	MO381007337/0 In stock	Wheel	£16.61 £13.84
5	MO322110521/0 Available to backorder	Hub Cap Grey Grey	£3.92 £3.27
6	MO112523060/0 In stock	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
