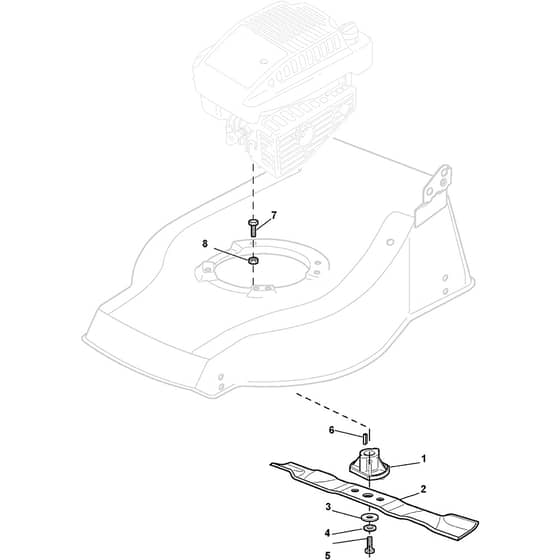

CG 443 - 2008 - 298196047/GI7 - Castel Garden Rotary Mower Blade Diagram

Name: CG 443 - 2008 - 298196047/GI7 - Castel Garden Rotary Mower Blade Diagram
SKU: cg_443_298196047_gi7_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. cg_443_298196047_gi7_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 443 - 2008 - 298196047/GI7 - Castel Garden Rotary Mower Blade Diagram

Description

Castel Garden CG 443 Parts Diagram

Product Name - CG 443

Model Year - 2008

Model Type - R 434

Art.N - 298196047/GI7

Engine Model -

	Part No.	Details
1	MO122463012/4 In stock	Hub. Crankshaft Ø 22.2 From 01-9-2008	£8.00 £6.67
2	MO181004396/0 Available to backorder	Blade Winged	£20.03 £16.69
2	MO181004341/3 In stock	Mulching Blade	£11.50 £9.58
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.70 £1.42
