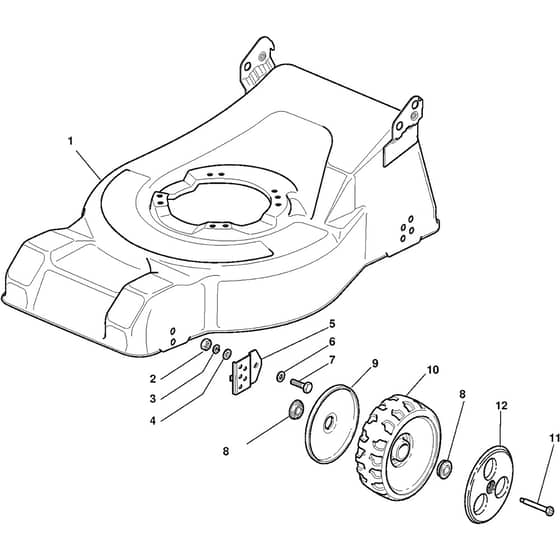

CG 414-T - 2003 - 293196016/0P3 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Name: CG 414-T - 2003 - 293196016/0P3 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram
SKU: cg_414_t_293196016_0p3_deck_and_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CG 414-T - 2003 - 293196016/0P3 - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

Castel Garden CG 414-T Parts Diagram

Product Name - CG 414-T

Model Year - 2003

Model Type - NG 414

Art.N - 293196016/0P3

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322551515/0 Available to backorder	Plate	£13.37 £11.14
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
8	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.69 £1.41
8	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
9	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
10	MO322686091/1 In stock	Wheel To 31-8-2006	£6.76 £5.63
11	MO122524321/0 In stock	Pin To 31-8-2006	£5.06 £4.22
11	MO122524340/0 Available to backorder	Pin From 01-9-2006	£2.68 £2.23
