Carburettor

Name: Carburettor
SKU: CS-420ES-5-group
Price: 0.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

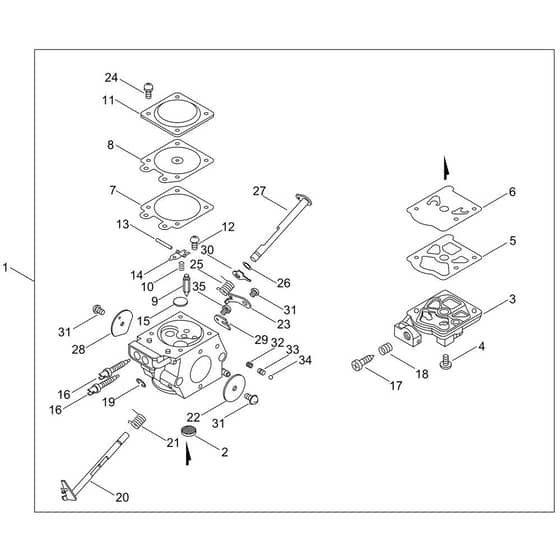

Genuine ECHO CS-420ES Carburettor Group

Be the first to review this product

0 product questions

	Part No.	Details
1	ECA021001900 Available to backorder	Carburetor Diaphragm	£127.04 £105.87
2	EC12312610631 Available to backorder	Screen Inlet	£2.68 £2.23
3	ECP003003930 Available to backorder	Cover Fuel Pump	£13.40 £11.17
4	EC12311003930 Available to backorder	Screw Pump Cover	£2.30 £1.92
5	EC12312515030 In stock	Gasket Fuel Pump	£5.90 £4.92
6	EC12311215030 In stock	Diaphragm Fuel Pump	£11.74 £9.78
7	EC12314003930 Available to backorder	Gasket M. Diaphragm	£3.60 £3.00
8	ECP003001850 In stock	Diaphragm Metering	£21.66 £18.05
9	EC12313719830 Available to backorder	Valve Inlet Needle	£11.44 £9.53
11	EC12314203930 Available to backorder	Cover M. Diaphragm	£5.90 £4.92
12	EC12313903930 Available to backorder	Screw M. Lever Pin	£2.44 £2.03
13	EC12313803930 Available to backorder	Pin Metering Lever	£2.00 £1.67
14	EC12312303930 Available to backorder	Lever Metering	£4.36 £3.63
15	EC12314610631 Available to backorder	Plug Welch	£2.30 £1.92
16	ECP003002270 Available to backorder	Needle	£28.36 £23.63
17	EC12313404260 Available to backorder	Screw Idle Adjust	£2.33 £1.94
18	EC12313304260 Available to backorder	Spring Idle Adjust	£2.12 £1.77
19	EC12312715030 Available to backorder	Ring	£1.08 £0.90
20	ECP003003960 Available to backorder	Shaft Asy Throttle	£17.42 £14.52
21	EC12311337530 Available to backorder	Spring Throttle Rtn	£2.33 £1.94
23	ECP003001780 Available to backorder	Lever Throttle	£17.00 £14.17
25	ECP003002260 Available to backorder	Spring	£5.36 £4.47
27	ECP003000150 Available to backorder	Choke Shaft	£20.02 £16.68
28	ECP003001790 Available to backorder	Valve Choke	£5.10 £4.25
30	ECP003001510 Available to backorder	Lever-Fast Idle	£6.92 £5.77
31	EC12311438830 Available to backorder	Screw	£2.28 £1.90
35	ECP003005120 Available to backorder	Screw	£1.22 £1.02
